DMS2085LSD-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> DMS2085LSD-13

DMS2085LSD-13: DescriptionSmall Signal Field-Effect Transistor,; CategoryDiscrete semiconductor The transistor; File Size296KB，7 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

DMS2085LSD-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMS2085LSD-13	-	-	View	Buy Now

DMS2085LSD-13 Overview

Small Signal Field-Effect Transistor,

DMS2085LSD-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	SOP-8
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	15 weeks
Samacsys Descripti	Diodes Inc DMS2085LSD-13 P-channel MOSFET Transistor w/Int Schottky -20Vbr 20Vr , 4.3 A, 20 V, 8-Pin SO
Other features	FAST SWITCHING
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	20 V
Maximum drain current (ID)	4.3 A
Maximum drain-source on-resistance	0.085 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	41 pF
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
Number of components	1
Number of terminals	8
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	P-CHANNEL
Maximum power consumption environment	1.8 W
Maximum pulsed drain current (IDM)	11.2 A
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

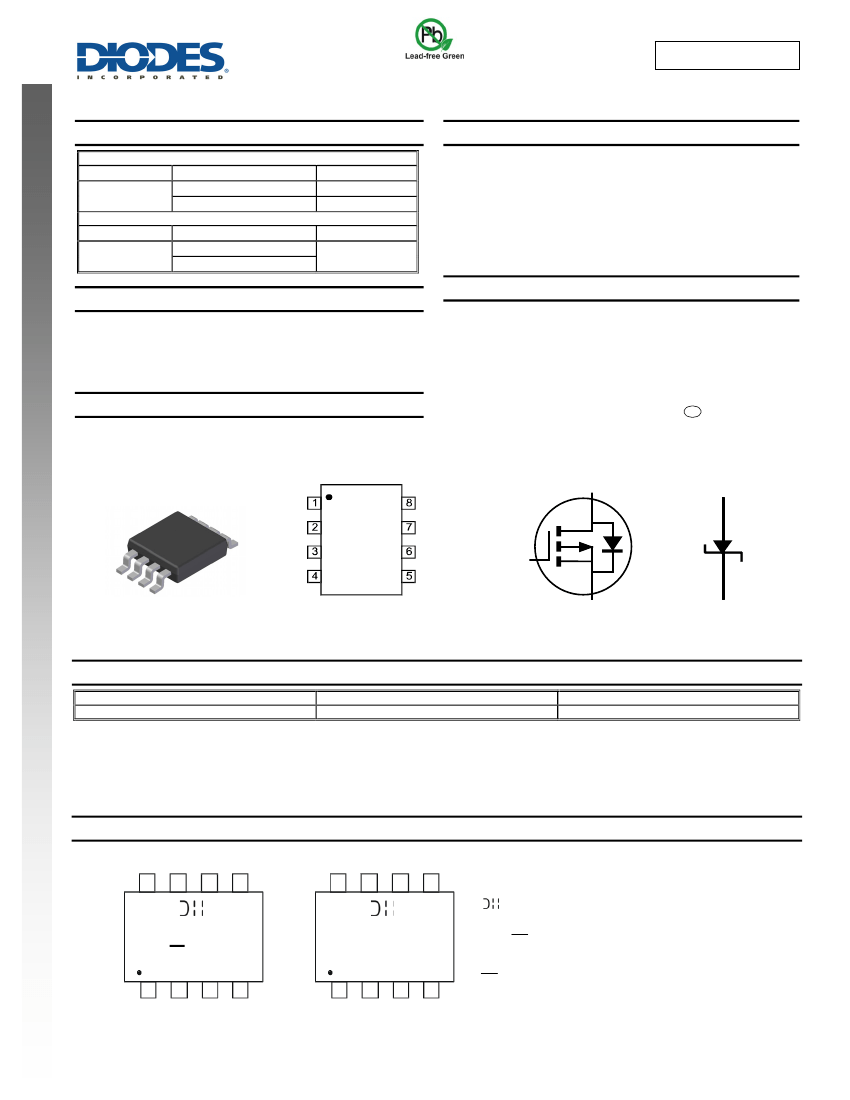

DMS2085LSD

P-CHANNEL ENHANCEMENT MODE MOSFET

WITH INTEGRATED SCHOTTKY DIODE

Product Summary

ADVANCE INFORMATION

NEW PRODUCT

(BR)DSS

-20V

20V

MOSFET

DS(on) max

85mΩ @ V

= -10V

125mΩ @ V

= -4.5V

SCHOTTKY DIODE

F max

400mV @ I

= 0.5A

470mV @ I

= 1.0A

-3.3A

-2.8A

1.0A

Features and Benefits

•

Low Input Capacitance

MOSFET with Low R

DS(ON)

– Minimize Conduction Losses

Schottky Diode with Low Forward Voltage Drop

Fast Switching Speed

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description

This new generation MOSFET has been designed to minimize the on-

state resistance (R

DS(ON)

) and yet maintain superior switching

performance, making it ideal for high efficiency power management

applications.

Mechanical Data

•

Case: SO-8

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Finish – Matte Tin annealed over Copper leadframe

Solderable per MIL-STD-202, Method 208

Weight: 0.074 grams (approximate)

Applications

•

DC-DC Converters

Power Management Functions

Backlighting

Q1 P-Channel MOSFET

Top View

Internal Schematic

D1 Schottky Diode

Ordering Information

(Note 4)

Part Number

DMS2085LSD-13

Notes:

Case

SO-8

Packaging

2,500/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

S2085LD

YY WW

S2085LD

YY WW

= Manufacturer’s Marking

S2085LD = Product Type Marking Code

YYWW = Date Code Marking

YY or YY = Year (ex: 13 = 2013)

WW = Week (01 - 53)

YY = Date Code Marking for SAT (Shanghai Assembly/ Test site)

YY = Date Code Marking for CAT (Chengdu Assembly/ Test site)

Chengdu A/T Site

Shanghai A/T Site

DMS2085LSD

Document number: DS36926 Rev. 2 - 2

1 of 7

www.diodes.com

August 2014
