DMTH3002LPS-13: DescriptionPower Field-Effect Transistor, 100A I(D), 30V, 0.0025ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET,; CategoryDiscrete semiconductor The transistor; File Size432KB，7 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

DMTH3002LPS-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMTH3002LPS-13	-	-	View	Buy Now

DMTH3002LPS-13 Overview

Power Field-Effect Transistor, 100A I(D), 30V, 0.0025ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET,

DMTH3002LPS-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Reach Compliance Code	_compli
ECCN code	EAR99
Factory Lead Time	24 weeks
Other features	HIGH RELIABILITY
Avalanche Energy Efficiency Rating (Eas)	700 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (ID)	100 A
Maximum drain-source on-resistance	0.0025 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-F5
JESD-609 code	e3
Number of components	1
Number of terminals	5
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	150 A
Guideline	AEC-Q101
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

Green

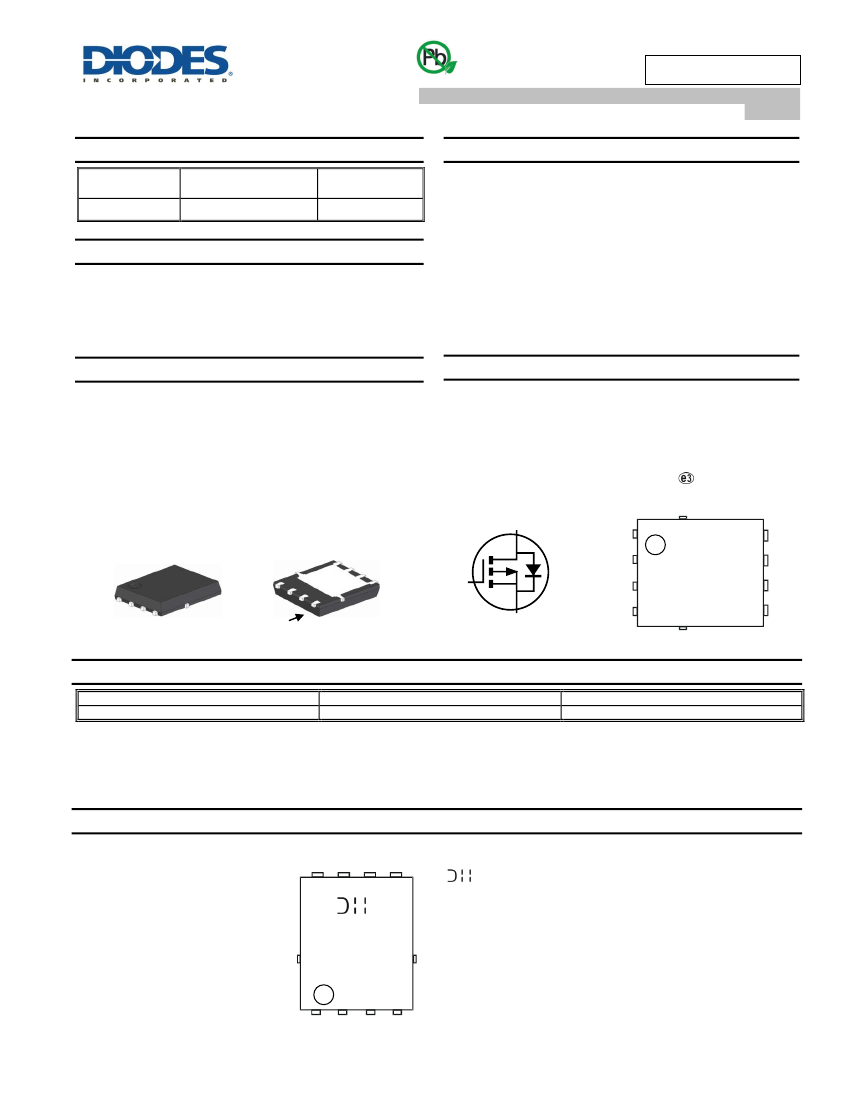

DMTH3002LPS

30V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET

PowerDI

Product Summary

DSS

30V

DS(ON)

1.6mΩ @ V

= 10V

= +25°C

240A

Features



Thermally Efficient Package – Cooler Running Applications

<1.1mm Package Profile – Ideal for Thin Applications

High Conversion Efficiency

Low R

DS(ON)

– Minimizes On-State Losses

Low Input Capacitance

Fast Switching Speed

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description

This new generation N-Channel Enhancement Mode MOSFET is

designed to minimize R

DS(ON),

yet maintain superior switching

performance. This device is ideal for use in power management and

load switch.

Applications



DC-DC Converters

Load Switch

Mechanical Data



PowerDI5060-8 (Type K)

Case: PowerDI5060-8 (Type K)

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Finish - Matte Tin Annealed over Copper Leadframe;

Solderable per MIL-STD-202, Method 208

Weight: 0.097 grams (Approximate)

Pin1

Top View

Bottom View

Internal Schematic

Top View

Pin Configuration

Ordering Information

(Note 4)

Part Number

DMTH3002LPS-13

Notes:

Case

PowerDI5060-8 (Type K)

Packaging

2,500/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

PowerDI5060-8 (Type K)

= Manufacturer’s Marking

H3002LS = Product Type Marking Code

YYWW = Date Code Marking

YY = Last Two Digits of Year (ex: 17 = 2017)

WW = Week Code (01 to 53)

H3002LS

YY WW

PowerDI is a registered trademark of Diodes Incorporated.

1 of 7

www.diodes.com

May 2017

DMTH3002LPS

Document number: DS38282 Rev. 4 - 2
