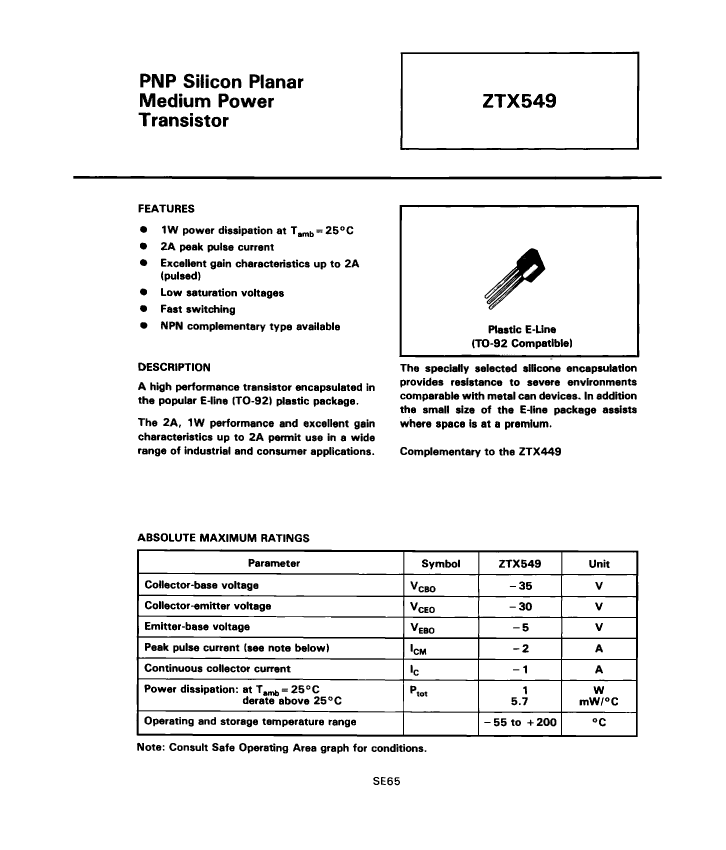

ZTX549L datasheet, PDF - EEWORLD Datasheet

ZTX549L: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size140KB，6 Pages; ManufacturerDiodes Incorporated

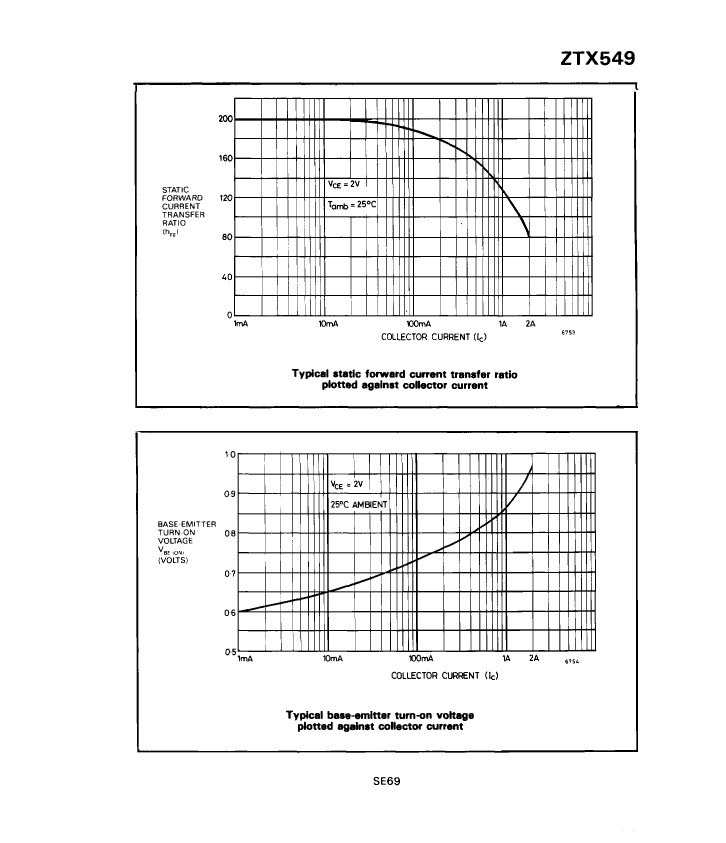

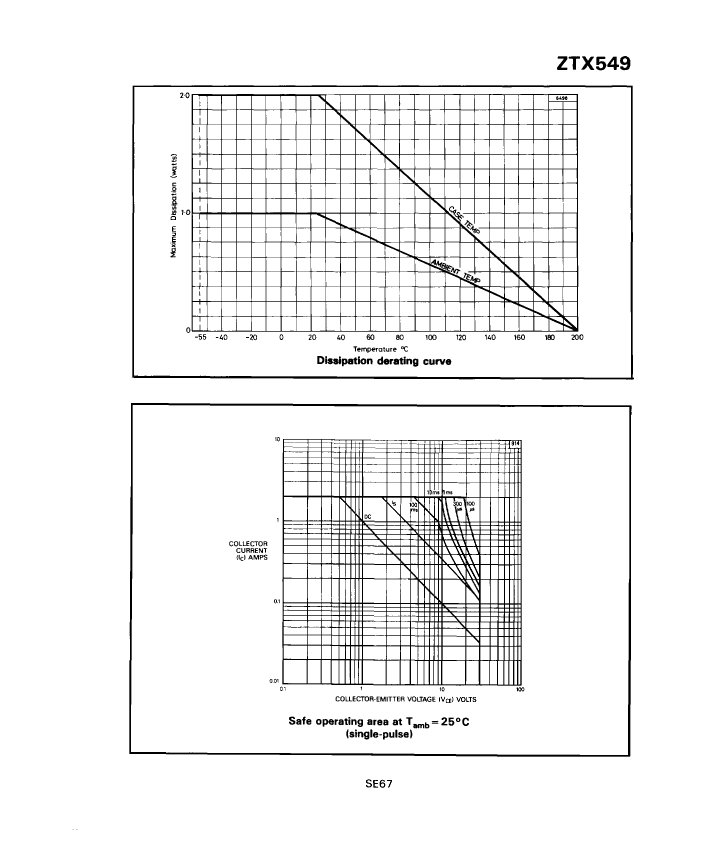

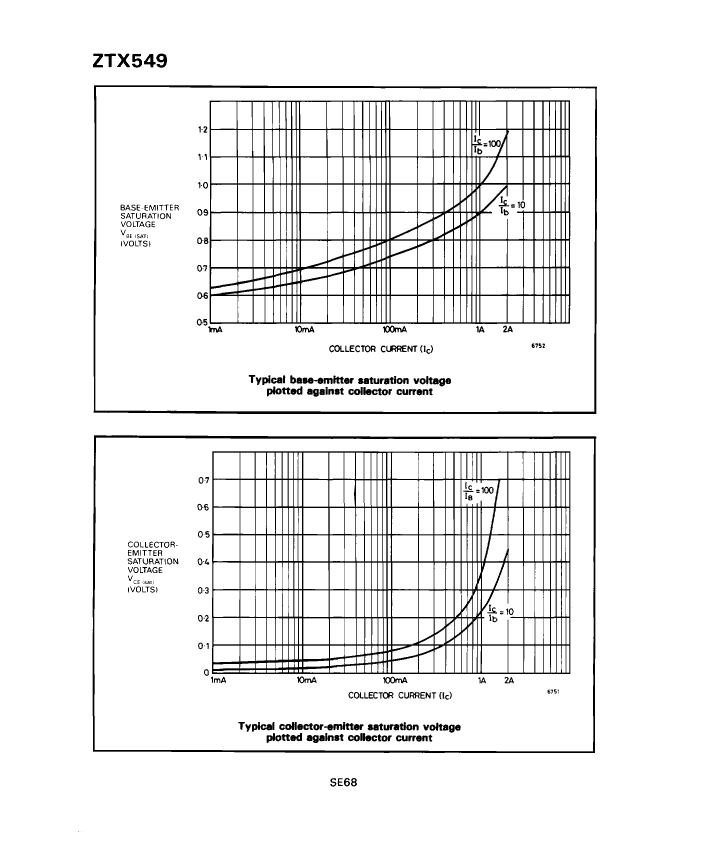

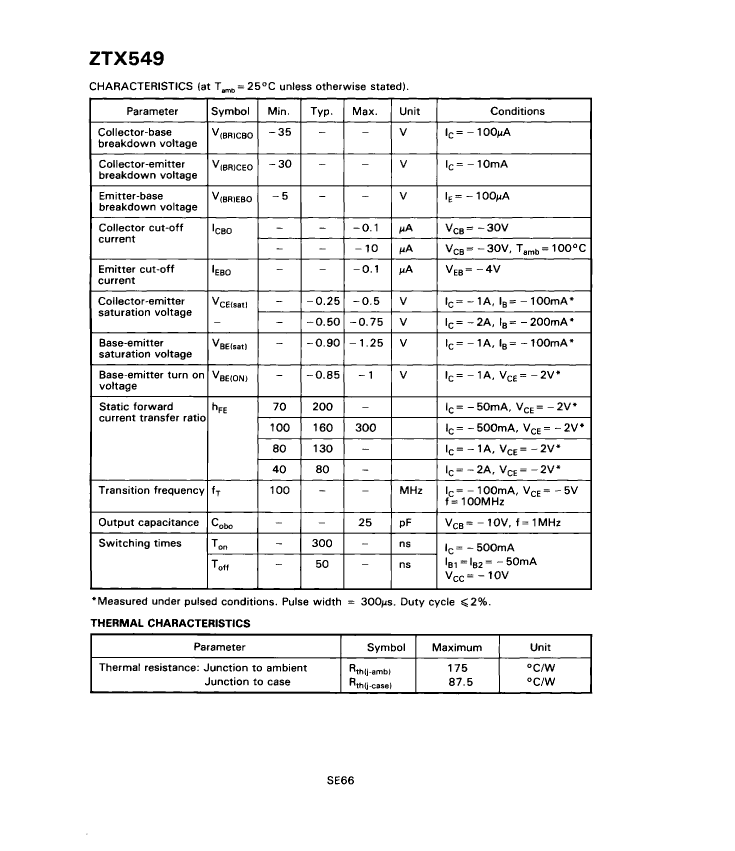

Download Datasheet Parametric Compare View All

ZTX549L Overview

Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	TO-92
package instruction	IN-LINE, R-PSIP-W3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JESD-30 code	R-PSIP-W3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

	ZTX549L	ZTX549K	ZTX549Q
Description	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
Parts packaging code	TO-92	TO-92	TO-92
package instruction	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3
Contacts	3	3	3
Reach Compliance Code	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99
Maker	Diodes Incorporated	-	Diodes Incorporated
