LFSPXO026190BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO026190BULK

Preview

LFSPXO026190BULK: DescriptionCMOS Output Clock Oscillator, 12.288MHz Nom; CategoryPassive components oscillator; File Size351KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO026190BULK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO026190BULK	-	-	View	Buy Now

LFSPXO026190BULK Overview

CMOS Output Clock Oscillator, 12.288MHz Nom

LFSPXO026190BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compli
Other features	STANDBY; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	12.288 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	5.2mm x 3.4mm x 1.3mm
longest rise time	10 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

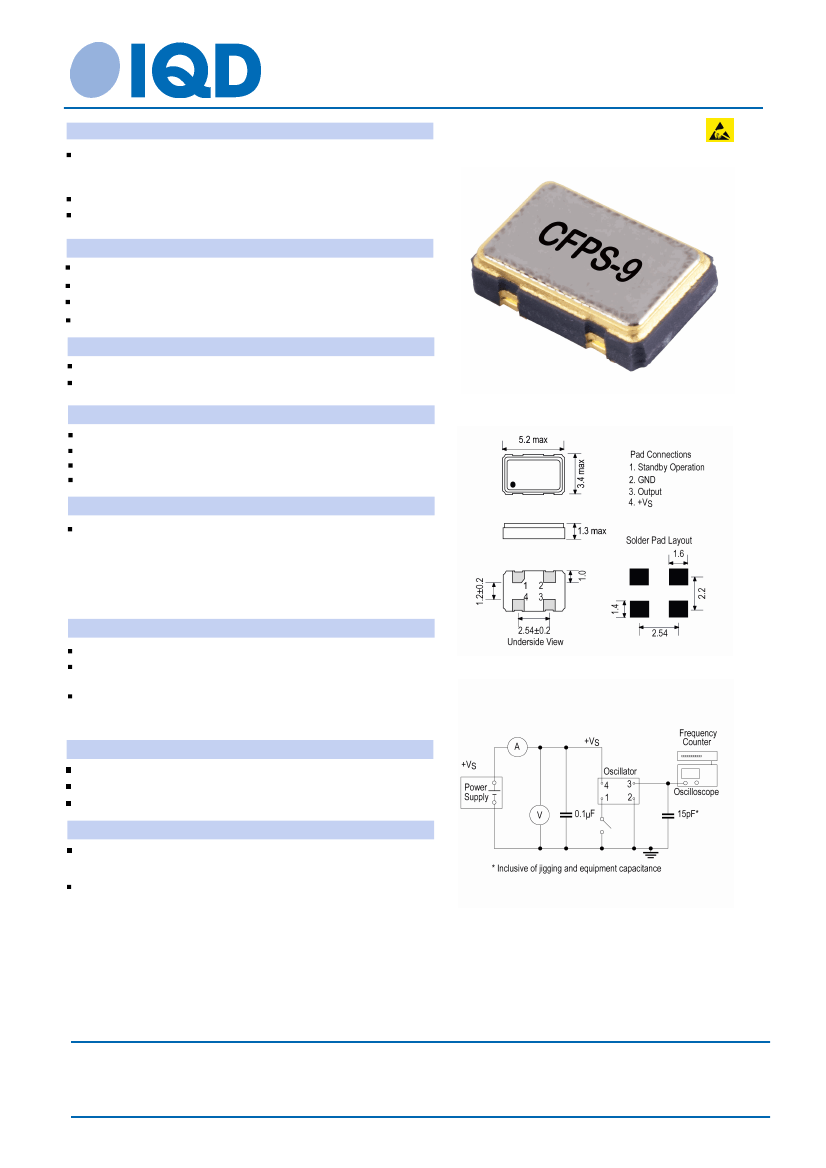

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO026190Bulk

Description

5 x 3.2mm crystal oscillator

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-9

Model Issue number

6

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

12.2880MHz

±100.00ppm

-40.00 to 85.00°C

±3ppm max per year @ 25°C

Supply Voltage

Current Draw

Output Details

3.3V ±0.3V

20.00mA

Outline (mm)

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

10.0ns max

40/60%

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10µA max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
