LFXTAL024637BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL024637BULK

Preview

LFXTAL024637BULK: DescriptionParallel - Fundamental Quartz Crystal, 20MHz Nom; CategoryPassive components Crystal/resonator; File Size285KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL024637BULK Overview

Parallel - Fundamental Quartz Crystal, 20MHz Nom

LFXTAL024637BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compli
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	16 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.8XB5.5XH2.1 (mm)/L0.465XB0.217XH0.083 (inch)
Series resistance	30 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie

Preview

Download Datasheet

View All

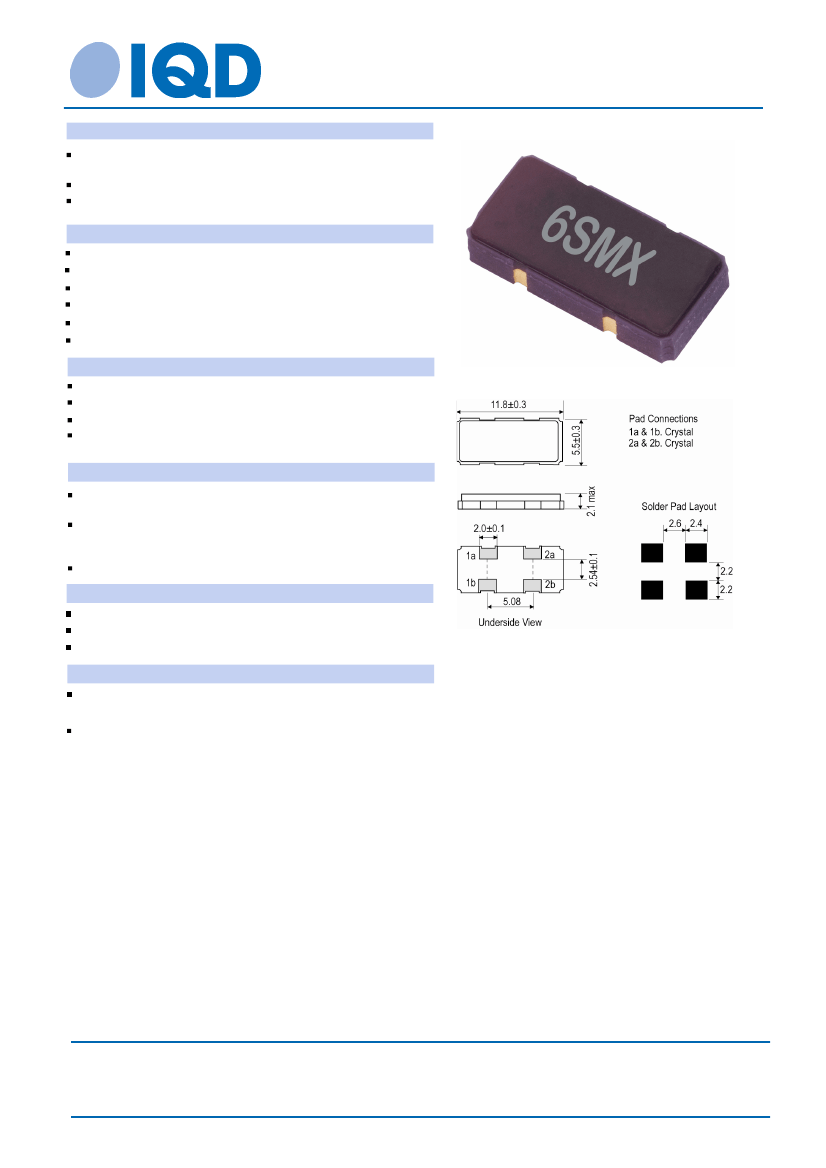

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL024637Bulk

Description

Ceramic package with a resin sealed ceramic lid, hermetically

sealed

Model

6SMX

Model Issue number

9

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

20.0MHz

±50.00ppm

-10.00 to 60.00°C

Fundamental

±5ppm max per year at 25°C

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

16.00pF

7pF max

100µW max

30.00Ω max

Outline (mm)

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Storage Temperature Range: -55°C to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1
