IXD2111A471PR

Description
Switching Regulator, PSSO3, SOT-89, 3 PIN
CategoryPower/power management    The power supply circuit
File Size2MB,34 Pages
ManufacturerIXYS
Environmental Compliance
Download Datasheet Parametric View All

IXD2111A471PR Overview

Switching Regulator, PSSO3, SOT-89, 3 PIN

IXD2111A471PR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerIXYS
package instruction,
Reach Compliance Codecompli
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
Control TechnologyPULSE FREQUENCY MODULATION
Maximum input voltage10 V
Minimum input voltage0.9 V
Nominal input voltage2.82 V
JESD-30 codeR-PSSO-F3
length4.5 mm
Number of functions1
Number of terminals3
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Nominal output voltage4.7 V
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height1.6 mm
surface mountYES
Switch configurationBOOST
Temperature levelINDUSTRIAL
Terminal formFLAT
Terminal pitch1.5 mm
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
width2.5 mm
IXD2110/IXD2111
Step-Up DC/DC Converter / Controller
FEATURES
o
o
o
o
o
o
Operating Input Voltage Range:
0.9V ~ 10.0V
Output Voltage Range:
1.5V~7.0V with (0.1V
increments, accuracy ±2.5%)
Maximum Oscillation Frequency:
100 kHz
(180kHz for the IXD2111)
Built-in Switching NMOSFET (A/C/E
type) or
External Transistor (B/D/F
type)
Low Operating Supply Current:
2.0µA
Small Package:
SOT-23 & SOT89 (for IXD2111
series),SOT-25, USP-6C 8-pin 2 x 3 x 0.8 mm
TDFN package
step-up operation by using only an inductor, a
capacitor, and a diode connected externally.
The IXD2110/111B, D, and F versions can be used
with an external transistor for applications requiring
larger currents.
Output voltage is internally programmed in a range
from 1.5V to 7.0V in increments of 0.1V (accuracy
± 2.5%).
Maximum oscillation frequency is set to 100 kHz for
IXD2110/111 series. (At light loads, it is set to
180 kHz for the IXD2111 series.)
Options include products equipped with a CE pin (C
and D versions) that allows the IC to be shut down,
thereby reducing supply current, and with separated
V
DD
/V
OUT
pins (E and F versions) to separate the
power supply block and the output voltage detect
block.
With the IXD2110 series, maximum duty cycle is set
to 75% (V
DD
= 3.3 V) making it suitable for use with
large current operations. The IXD2111 series
automatically switches duty ratio between 56% &
75% (V
DD
= 3.3 V) to drop output ripple voltage, when
it senses changes in load, It can support both large
and small currents.
The external transistor types (B/D/F types) designed
for applications, which require larger currents.
APPLICATION
o
o
o
Mobile phones
Cameras, VCRs
Various portable equipment
DESCRIPTION
The IXD2110/IXD2111 series is a group of PFM step-
up DC/DC converter/controller ICs, designed to
generate low supply voltage. The series is ideal for
applications where a longer battery life is needed
such as in portable communication equipment. With a
built-in 2.5
N-channel driver transistor, the
IXD2110A/C/E and IXD2111A/C/E types provide a

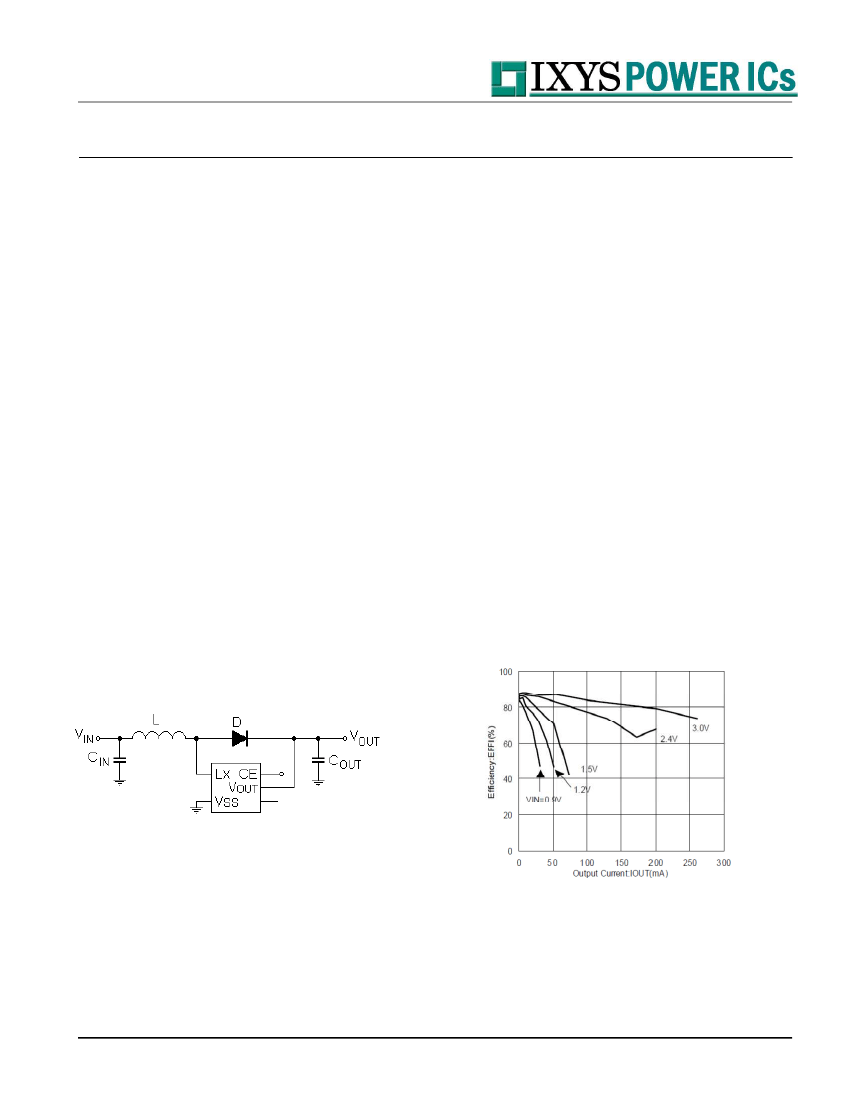

TYPICAL APPLICATION CIRCUIT
TYPICAL PERFORMANCE CHARACTERISTIC
© 2014 IXYS Corp.
Characteristics subject to change without notice
1
Doc. No. IXD2110_DS, Rev. N0
