5.0SMDJ20A

Description
Trans Voltage Suppressor Diode, 5000W, 20V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN
CategoryDiscrete semiconductor    diode
File Size706KB,6 Pages
ManufacturerPulse Electronics
Environmental Compliance
Download Datasheet Parametric View All

5.0SMDJ20A Overview

Trans Voltage Suppressor Diode, 5000W, 20V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN

5.0SMDJ20A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPulse Electronics
package instructionSMC, 2 PIN
Reach Compliance Codeunknow
Other featuresEXCELLENT CLAMPING CAPABILITY, PRSM-MIN
Maximum breakdown voltage24.5 V
Minimum breakdown voltage22.2 V
Breakdown voltage nominal value23.35 V
Maximum clamping voltage32.4 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-214AB
JESD-30 codeR-PDSO-C2
Humidity sensitivity level1
Maximum non-repetitive peak reverse power dissipation5000 W
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityUNIDIRECTIONAL
Maximum power dissipation6.5 W
Maximum repetitive peak reverse voltage20 V
surface mountYES
technologyAVALANCHE
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperature40

5.0SMDJ20A Preview

5.0SMDJ SERIES
Transient Voltage Suppressors (TVS) Data Sheet
Features
For surface mounted applications in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
5000W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical I
R
less than 2μA above 22V
High Temperature soldering: 260℃/10 seconds at terminals
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
Mechanical Data
Case: JEDEC DO-214AB. Molded plastic over glass passivated junction
Terminal: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Standard Packaging: 16mm tape (EIA STD RS-481)
Weight: 0.30g
Applications
I/O interface
AC/DC power supply
Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
Steady state power dissipation at T
A
=50℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Range.
Typical thermal resistance junction to lead
Typical thermal resistance junction to ambient
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
R
θJL
R
θJA
Value
Minimum 5000
See Table
6.5
300
-55 to +150
15
75
Units
Watts
Amps
Watts
Amps
℃/W
℃/W
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2.
2. Mounted on 8.0mm×8.0mm copper pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
Revision:TVS-5.0SMDJ SERIES-001(A1)
1/6
http://brightking.pulseelectronics.com
5.0SMDJ SERIES

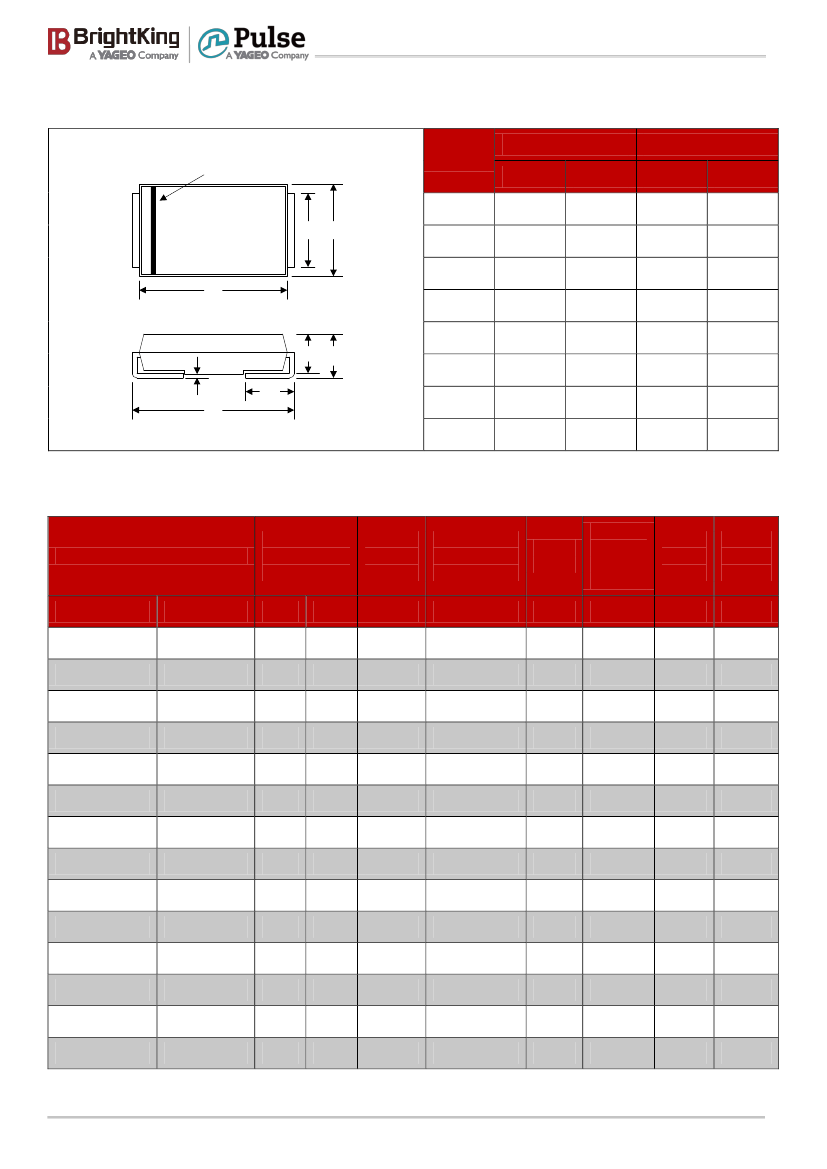

Dimensions (SMC/DO-214AB)
Millimeters
Inches
Min.
0.260
0.220
0.114
0.305
0.030
-
0.087
0.079
Max.
0.280
0.245
0.126
0.320
0.060
0.008
0.110
0.103
Cathode Band
Symbol
Min.
L
6.60
5.59
2.90
7.75
0.76
-
2.20
2.06
Max.
7.11
6.22
3.20
8.13
1.52
0.203
2.80
2.62
D1 D
D
D1
L
T
T1
H1 H
d
T
T1
d
H
H1
Electrical Characteristics (T
A
=25℃)
Device
Marking
Code
UNI
5PEN
5PEP
5PEQ
5PER
5PES
5PET
5PEU
5PEV
5PEW
5PEX
5PEZ
5PFE
5PFG
5PFK
BI
5BEN
5BEP
5BEQ
5BER
5BES
5BET
5BEU
5BEV
5BEW
5BEX
5BEZ
5BFE
5BFG
5BFK
Reverse
Stand-Off
Voltage
V
RWM
(V)
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
Breakdown
Voltage
@I
T
V
BR
(V)
12.20~13.50
13.30~14.70
14.40~15.90
15.60~17.20
16.70~18.50
17.80~19.70
18.90~20.90
20.00~22.10
22.20~24.50
24.40~26.90
26.70~29.50
28.90~31.90
31.10~34.40
33.30~36.80
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
Peak
Pulse
Current
I
PP
(A)
275.00
252.00
233.00
216.00
205.00
193.00
181.00
172.00
155.00
141.00
129.00
119.00
110.00
103.00
Reverse
Leakage
@V
RWM
I
R
(μA)
800
800
500
200
100
50
20
10
5
5
2
2
2
2
Part Number
Test
Current
Unidirectional
5.0SMDJ11A
5.0SMDJ12A
5.0SMDJ13A
5.0SMDJ14A
5.0SMDJ15A
5.0SMDJ16A
5.0SMDJ17A
5.0SMDJ18A
5.0SMDJ20A
5.0SMDJ22A
5.0SMDJ24A
5.0SMDJ26A
5.0SMDJ28A
5.0SMDJ30A
Bidirectional
5.0SMDJ11CA
5.0SMDJ12CA
5.0SMDJ13CA
5.0SMDJ14CA
5.0SMDJ15CA
5.0SMDJ16CA
5.0SMDJ17CA
5.0SMDJ18CA
5.0SMDJ20CA
5.0SMDJ22CA
5.0SMDJ24CA
5.0SMDJ26CA
5.0SMDJ28CA
5.0SMDJ30CA
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
Revision:TVS-5.0SMDJ SERIES-001(A1)
2/6
http://brightking.pulseelectronics.com
5.0SMDJ SERIES
Electrical Characteristics (T
A
=25℃)
Device
Marking
Code
UNI
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5PGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHM
5PHP
5PHR
BI
5BFM
5BFP
5BFR
5BFT
5BFV
5BFX
5BFZ
5BGE
5BGG
5BGK
5BGM
5BGP
5BGR
5BGT
5BGV
5BGX
5BGZ
5BHE
5BHG
5BHK
5BHM
5BHP
5BHR
Reverse
Stand-Off
Voltage
V
RWM
(V)
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
Breakdown
Voltage
@I
T
V
BR
(V)
36.70~40.60
40.00~44.20
44.40~49.10
47.80~52.80
50.00~55.30
53.30~58.90
56.70~62.70
60.00~66.30
64.40~71.20
66.70~73.70
71.10~78.60
77.80~86.00
83.30~92.10
86.70~95.80
94.40~104.00
100.00~111.00
111.00~123.00
122.00~135.00
133.00~147.00
144.00~159.00
167.00~185.00
178.00~197.00
189.00~209.00
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
Peak
Pulse
Current
I
PP
(A)
93.90
86.10
77.60
72.10
68.80
64.70
60.70
57.50
53.50
51.70
48.60
44.30
41.40
39.70
36.50
34.30
30.90
28.30
26.00
24.00
20.60
19.30
18.20
Reverse
Leakage
@V
RWM
I
R
(μA)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Part Number
Test
Current
Unidirectional
5.0SMDJ33A
5.0SMDJ36A
5.0SMDJ40A
5.0SMDJ43A
5.0SMDJ45A
5.0SMDJ48A
5.0SMDJ51A
5.0SMDJ54A
5.0SMDJ58A
5.0SMDJ60A
5.0SMDJ64A
5.0SMDJ70A
5.0SMDJ75A
5.0SMDJ78A
5.0SMDJ85A
5.0SMDJ90A
5.0SMDJ100A
5.0SMDJ110A
5.0SMDJ120A
5.0SMDJ130A
5.0SMDJ150A
5.0SMDJ160A
5.0SMDJ170A
Bidirectional
5.0SMDJ33CA
5.0SMDJ36CA
5.0SMDJ40CA
5.0SMDJ43CA
5.0SMDJ45CA
5.0SMDJ48CA
5.0SMDJ51CA
5.0SMDJ54CA
5.0SMDJ58CA
5.0SMDJ60CA
5.0SMDJ64CA
5.0SMDJ70CA
5.0SMDJ75CA
5.0SMDJ78CA
5.0SMDJ85CA
5.0SMDJ90CA
5.0SMDJ100CA
5.0SMDJ110CA
5.0SMDJ120CA
5.0SMDJ130CA
5.0SMDJ150CA
5.0SMDJ160CA
5.0SMDJ170CA
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Notes: For bidirectional type having V
RWM
of 18V and less, the I
R
limit is double.
Revision:TVS-5.0SMDJ SERIES-001(A1)
3/6
http://brightking.pulseelectronics.com
5.0SMDJ SERIES

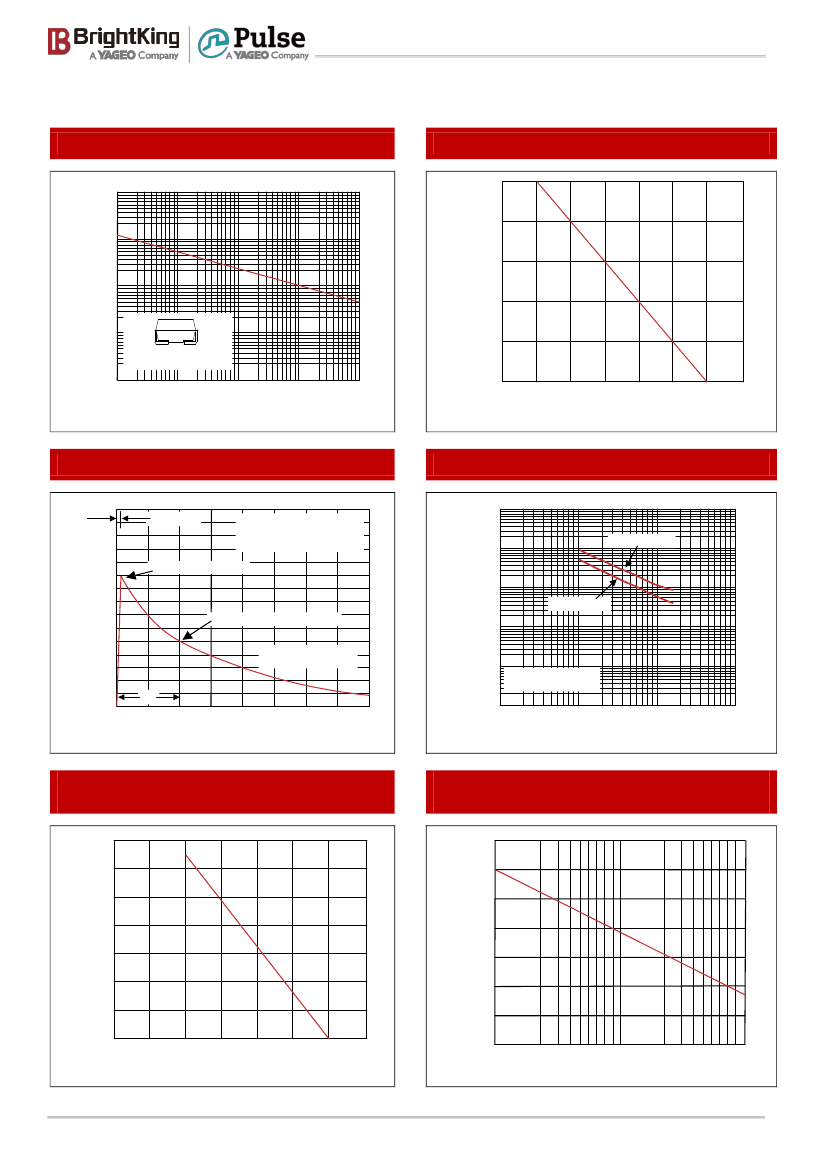

Ratings and Characteristic Curves (T
A
=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
Figure 2. Pulse Derating Curve
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
10
t
d
-Pulse Width (µs)
100
1000
1000
100
P
PPM
- Peak Pulse Power (kW)
80
100
60
10
40
1
0.31×0.31″(8.0×8.0mm)
Copper Pad Area
20
0.1
0.1
1
0
0
25
50
75
100
125
150
175
T
A
-Ambient Temperature (℃)
Figure 3. Pulse Waveform
150
Figure 4. Typical Junction Capacitance
100000
Uni-directional
I
PPM
- Peak Pulse Current, %I
RSM
t
r
=10µs
T
J
=25℃
Pulse Width(t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
10000
Cj (pF)
100
Peak Value I
PPM
1000
Bi-directional
Half Value I
PPM
(I
PPM
/2)
50
10/1000µs Waveform
as defined by R.E.A
100
10
Measured at
1MHz, 100mV, 0V bias
0
0
t
d
1.0
2.0
t-Time (ms)
3.0
4.0
1
1
10
100
V
RWM
-Reverse Stand-Off Voltage (V)
1000
Figure 5. Steady State Power Dissipation Derating
Curve
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
I
FSM
- Peak Forward Surve Current (A)
350
300
250
200
150
100
50
0
1
10
Number of Cycles at 60Hz
100
P
M(AV)
, Steady State Power Dissipation (W)
7
6
5
4
3
2
1
0
0
25
50
75
100
125
150
175
T
A
-Ambient Temperature (℃)
Revision:TVS-5.0SMDJ SERIES-001(A1)
4/6
http://brightking.pulseelectronics.com
5.0SMDJ SERIES

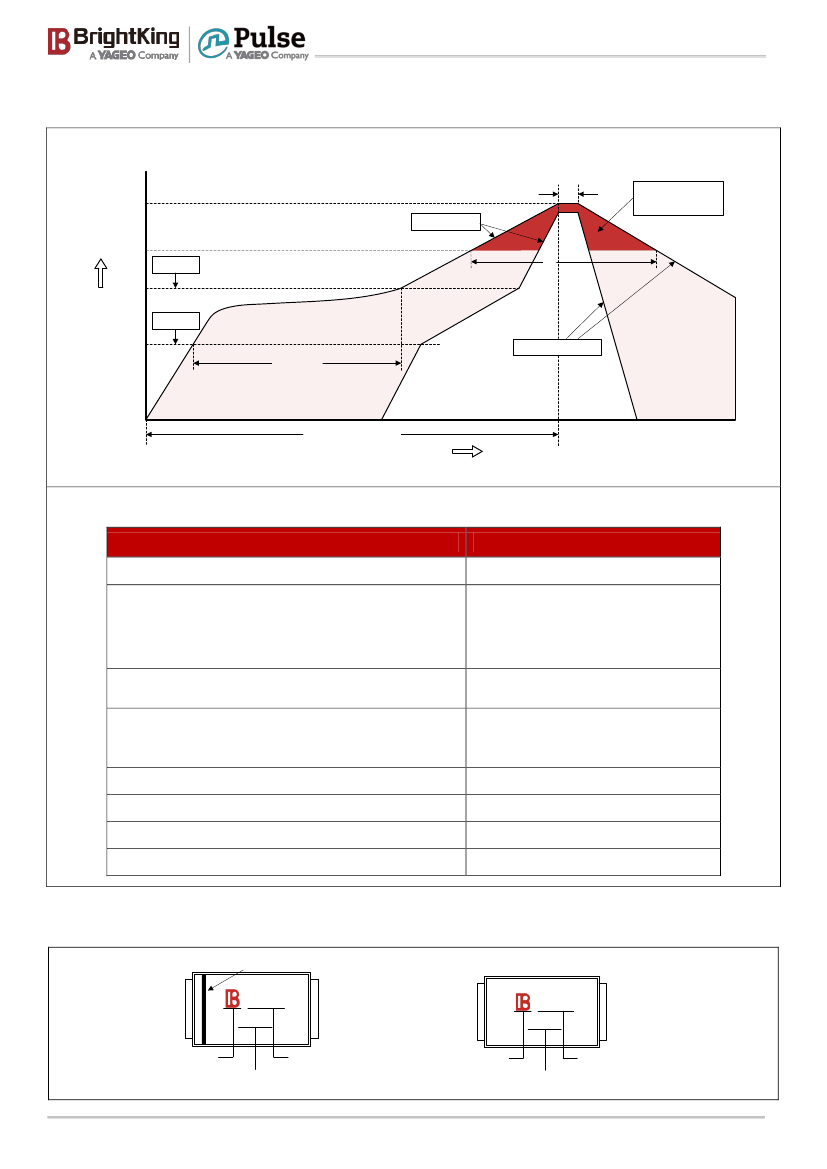

Recommended Soldering Conditions
Reflow Soldering
T
P
Ramp-up
T
L
T
S max
t
P
Critical Zone
T
L
to T
P
t
L
Temperature
T
S min
t
S
Preheat
Ramp-down
25
t 25℃ to Peak
Time
Recommended Conditions
Profile Feature
Average ramp-up rate (T
L
to T
P
)
Preheat
-Temperature Min (T
S min
)
-Temperature Max (T
S max
)
-Time (min to max) (t
S
)
T
S max
to T
L
-Ramp-up Rate
Time maintained above:
-Temperature (T
L
)
-Time (t
L
)
Peak Temperature (T
P
)
Time within 5℃ of actual Peak Temperature (t
P
)
Ramp-down Rate
Time 25℃ to Peak Temperature
Pb-Free Assembly
3℃/second max.
150℃
200℃
60-180 seconds
3℃/second max.
217℃
60-150 seconds
260℃
20-40 seconds
6℃/second max.
8 minutes max.
Marking Code
Cathode Band
YXXX
5PEN
Logo
Date Code
Logo
YXXX
5BEN
Date Code
Marking Code
Marking Code
Revision:TVS-5.0SMDJ SERIES-001(A1)
5/6
http://brightking.pulseelectronics.com
What should I do if the connection fails?
fet140(149), when I enter c-spy, it prompts "target not found". It was working fine yesterday, and the parallel port was fine too. Is the emulation tool damaged? Can any expert give me some advice? Th...
tyqlark Microcontroller MCU
EEWORLD University Hall----Intelligent meter based on State Grid DL645 protocol with Bluetooth wireless reading (demonstration of work by netizen KW41)
Smart meter with Bluetooth wireless reading based on State Grid DL645 protocol (demonstration by netizen KW41) : https://training.eeworld.com.cn/course/4225...
nmg MCU
Recruiting FPGA Engineers
Senior Software Engineer Qualifications: 1. Bachelor degree or above in software, computer, communication and other related majors, more than two years of development experience. 2. Proficient in C/C+...
ittiger Recruitment
How to use stm32f103VCT6 to tune the zigbee module for simple transceiver communication?
[size=6][b]I used the SZ-05 enhanced zigbee module I bought! I would like to ask the experts who have debugged it to share their experience. It is enough for the modules to simply send and receive com...
千里千寻 stm32/stm8
GSM digital mobile communication principle
:lol :kiss:...
mzxiang8 Embedded System
Why can't the property page pop up when the window function is placed in a .cpp file containing a non-main function? ?
Why can the property page be popped up when the WM_command function (LPARAM CommandShowProp()) that creates the property page is placed in the .cpp file of the main function WINMAIN, but the property ...
evilsop Embedded System

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2064  1082  1578  2524  1325  42  22  32  51  27
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
