LCE SERIES
DATA SHEET
LOW CAPACTIONCE TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE - 6.5 to 28 Volts
1500 Watt Peak Power
FEATURE
Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
Glass passivated junction.
1500W peak pulse power capability with a 10/1000µs waveform,
repetition rate(duty cycle):0.05%
Excellent clamping capability.
Low incremental surge resistance.

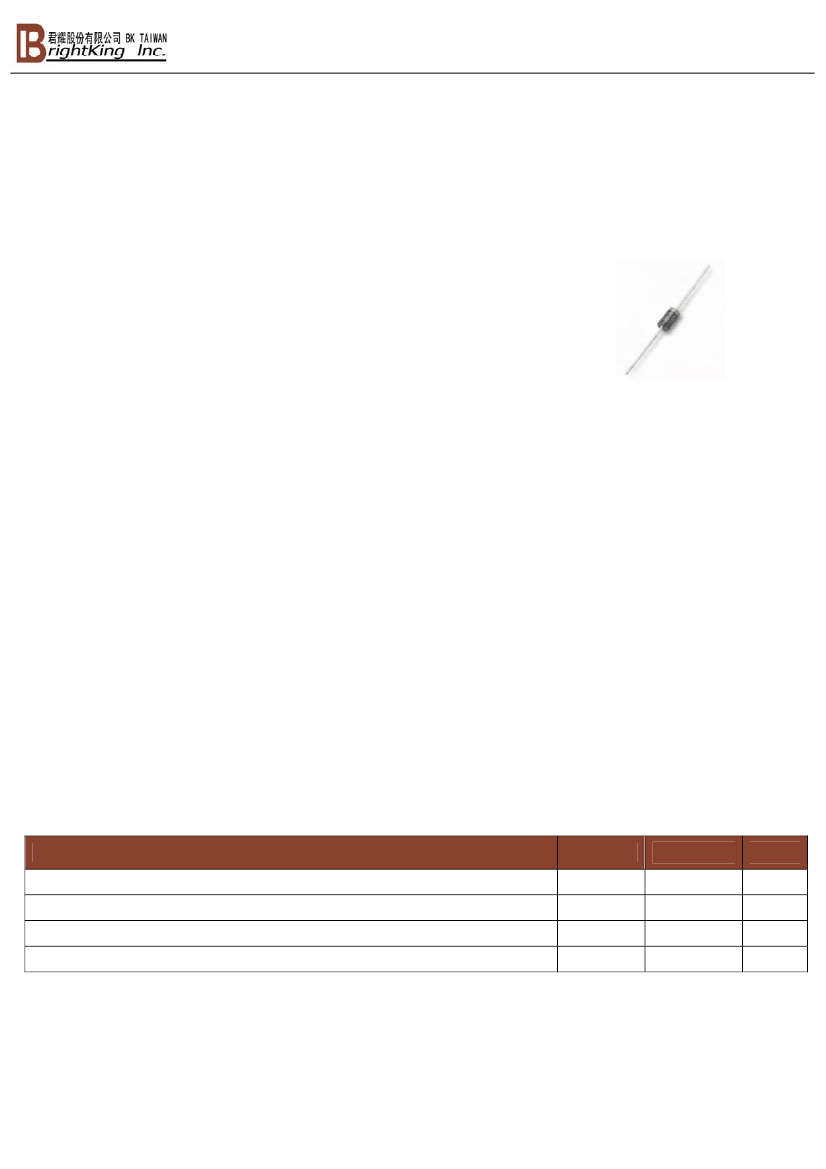

DO-201
Fast response time: typically less than 5.0ns from 0 Volts to V
BR
min.
Ideal for data line applications..
High temperature soldering guaranteed: 265℃/10 seconds/.375”, (9.5mm) lead length, 5lbs., (2.3kg) tension.
MECHANICAL DATE
Case: JEDEC DO-201 Molded Plastic.
Terminals: Axial leads, solderable per MIL-STD-750, Method 2026.
Polarity: Color and denotes positive end (cathode).
Mounting Position: Any.
Weight: 0.045 ounce, 1.2 grams.
DEVICES FOR BIPOLAR APPLICATION
For bidirectional use C or CA suffix for types 1.5KE6.8 thru types 1.5KE550 (e.g.1.5KE6.8C, 1.5KE550CA), electrical
characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified.
RATING
Peak Power Dissipation at T
A
= 25℃, T
P
= 1ms (Note 1,FIG.1).
Steady State Power Dissipation at T
L
=75℃, Lead lengths.375", (9.5mm).
Peak Power Pules Surge Current With a 10/1000µs waveform(FIG.3,NOTE 1).
Operating junction and Storage Temperature Range.
SYMBOL
P
PPM
P
M(AV)
I
FSM
T
J
,T
STG
VALUE
5
See Table 1
-55 to +175
UNITS
Watts
Amps
℃
Minimum 1500 Watts

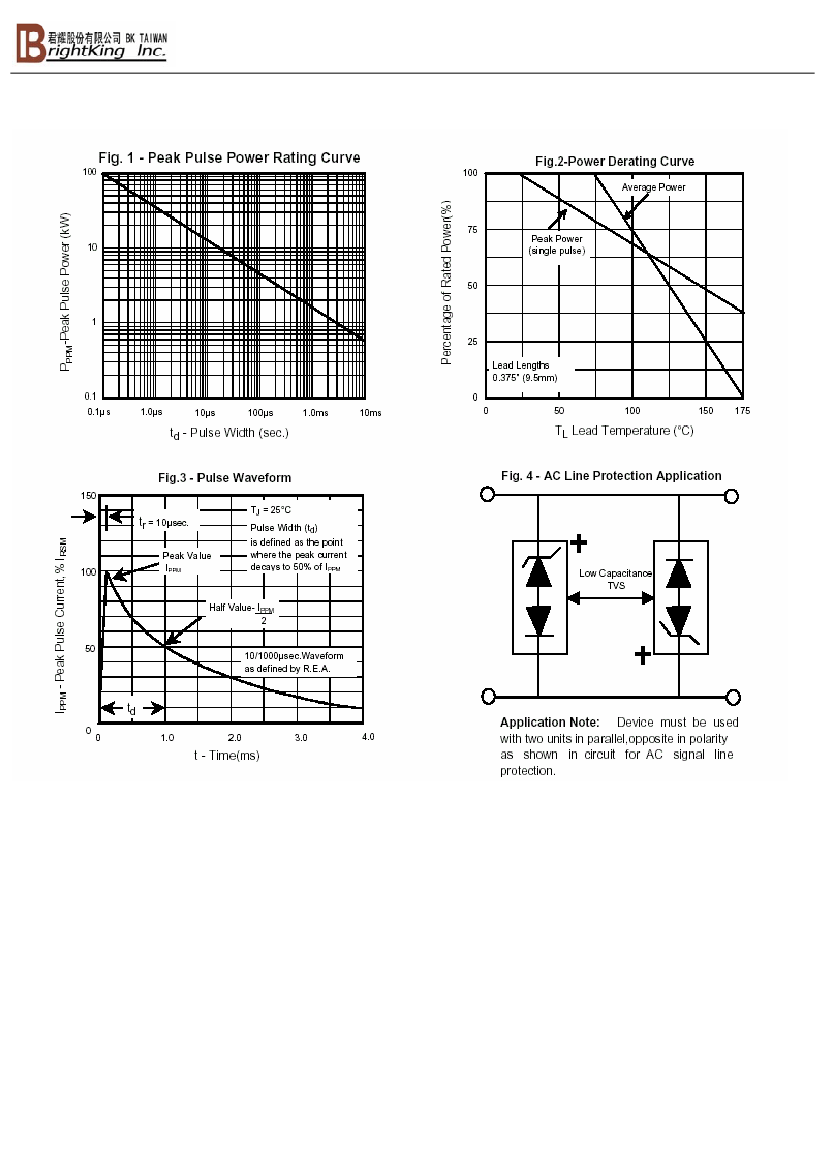

Notes: 1.Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25℃ per Fig. 2.
