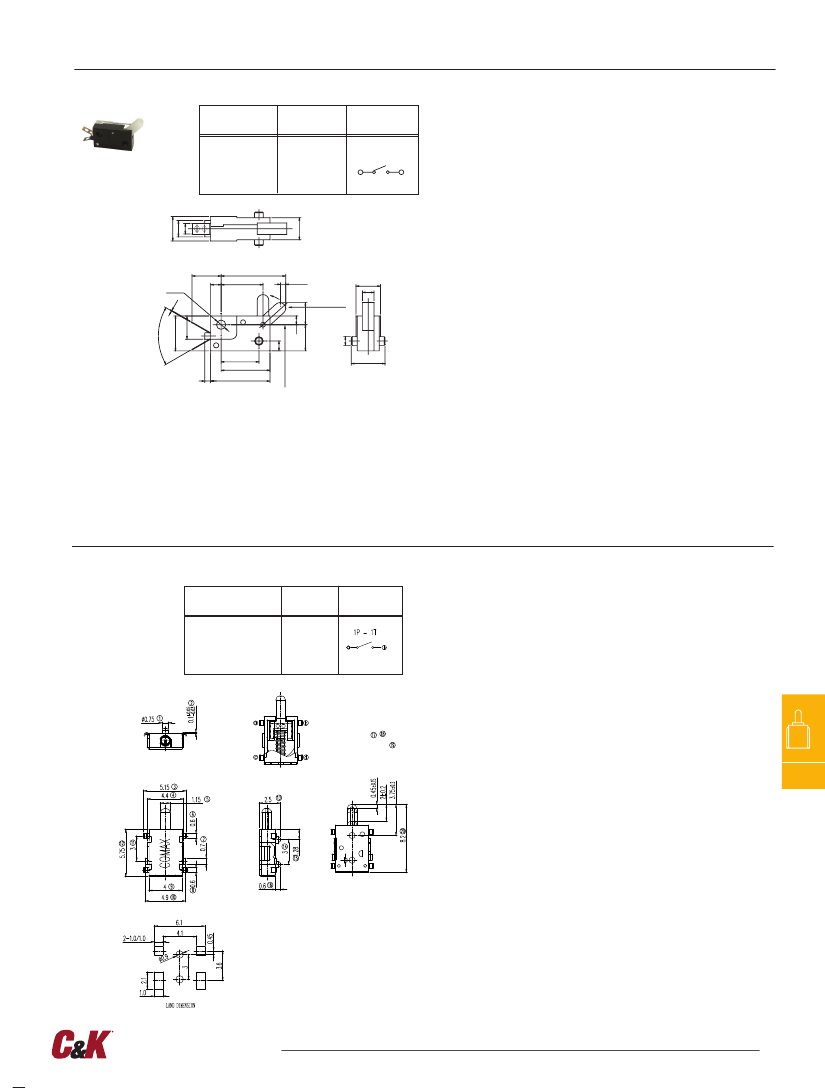

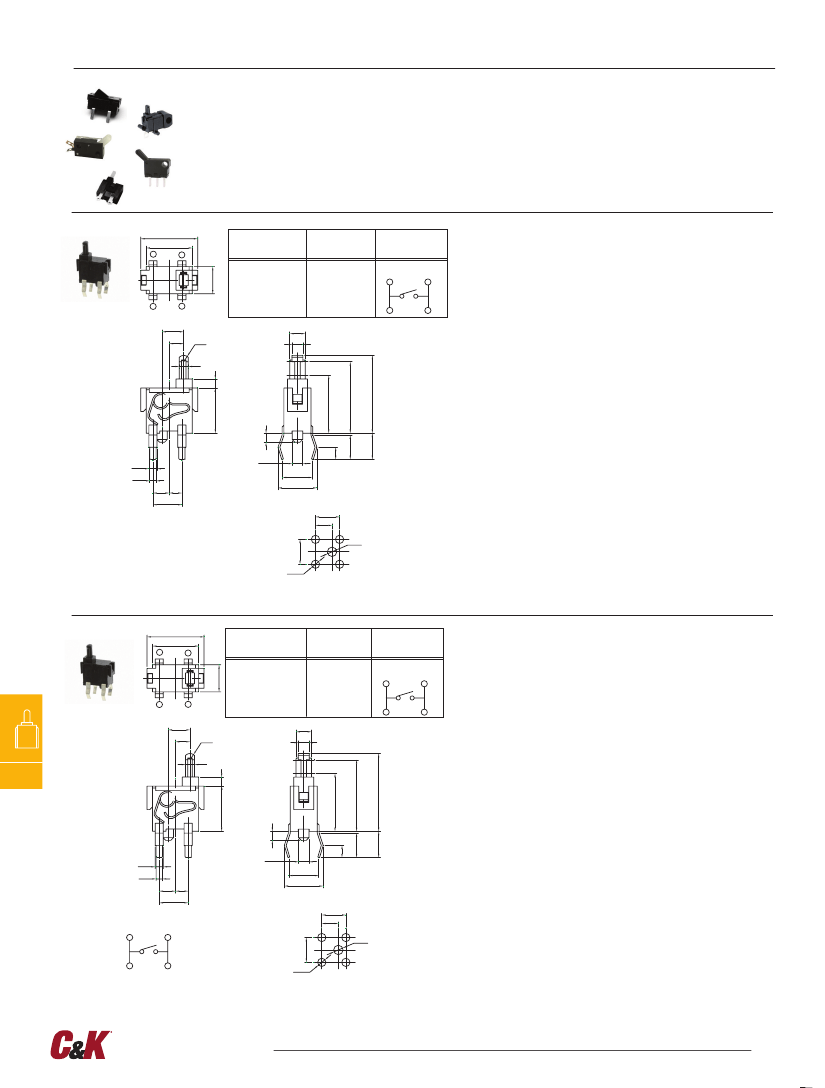

DS Series
Detect Switch
Features/Benefits
•
Compact design
•
Low actuation force
•
Detect mechanical movement
•
Left and right options
•
Right angle options
6.3
5.1
c
1P - 1T
Typical Applications
•
Computer peripherals
•
Office equipment
•
Consumer electronics
•
Appliances
•
Audio and visual equipment
Specifications
CONTACT ARRANGEMENT: SPST, NO
c
d
N.O.

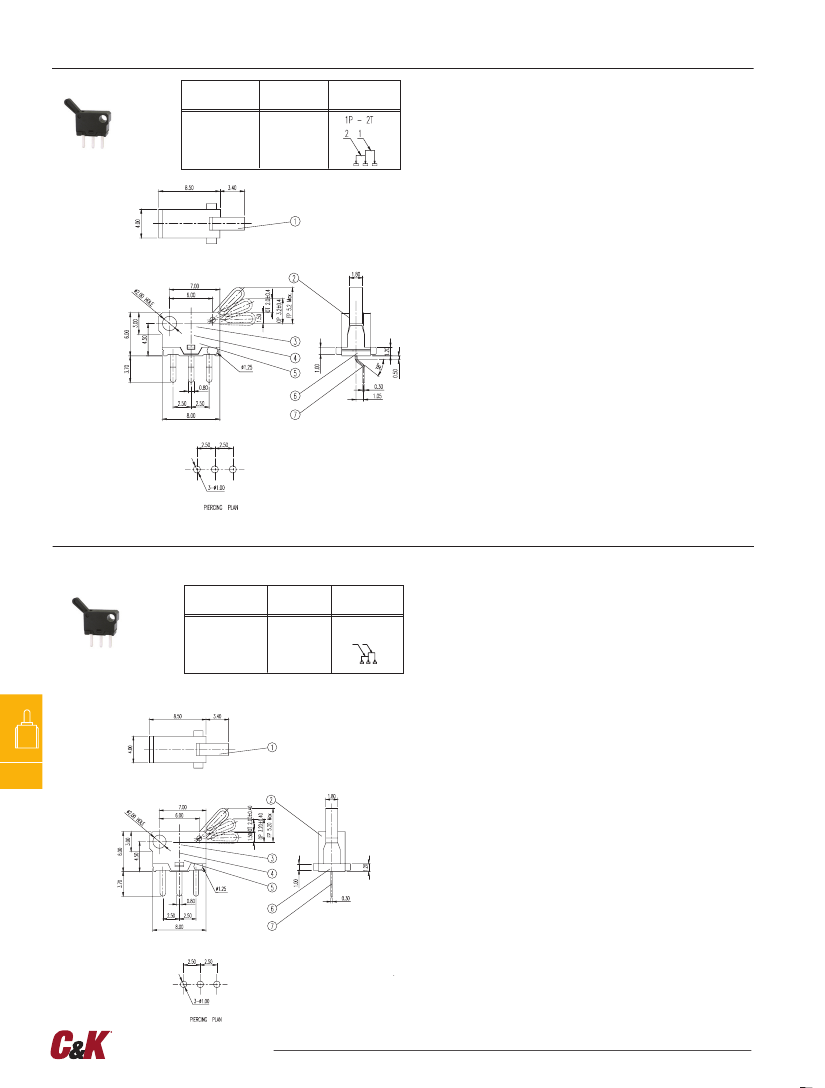

PART NUMBER
PACKAGING
SCHEMATIC
a
DS-02005
1,000 pieces
a
b
3
CONTACT RATING: 100mA @ 30 VDC
OPERATING LIFE: 50,000 cycles
OPERATING FORCE: 50 gf max.
PRE-TRAVEL: 0.7 mm
TOTAL TRAVEL: 2.6 mm
INITIAL CONTACT RESISTANCE: 1 Ω max.
INSULATION RESISTANCE: 100 M Ω min. @ 100 VDC 60 sec.
b
2.4
1.6
1
6.4
7.9
8.6
5
1
0.9
0.7
1.8 1.4
3.2
Ø1.15
3.3
4.3
1.35
2.7
2.9
4- Ø 1.1
PIERCING PLAN
a
6.3
5.1
c
3.3
3
b
2.4
1.6
E
Detect
1
6.4
7.9
8.6
5
1
0.9
0.7
1.8 1.4
3.2
1P - 1T
a
b
c
d
SCHEMATIC
Ø1.15
3.3
4.3
1.35
2.7
2.9
4- Ø 1.1
PIERCING PLAN
3.3
COMAX
COMAX
d
1
d
R0.7
1.7
1.2
DIELECTRIC STRENGTH: 100 V AC (50-60Hz) 60 sec.
OPERATING TEMPERATURE: –40ºC to +85ºC.
Materials
KNOB: PA
COVER: PA
SPRING: Gold plated, copper alloy
3.2
2.2
Ø 1.25
HOUSING: PA
TERMINAL: Silver plated, copper alloy
PART NUMBER
PACKAGING
SCHEMATIC
Specifications
CONTACT ARRANGEMENT: SPST, NO
CONTACT RATING: 100mA @ 30 VDC
OPERATING LIFE: 50,000 cycles
OPERATING FORCE: 30 gf max.
PRE-TRAVEL: 0.7 mm
TOTAL TRAVEL: 2.2 mm
INITIAL CONTACT RESISTANCE: 1 Ω max.
INSULATION RESISTANCE: 100 M Ω min. @ 100 VDC 60 sec.
DIELECTRIC STRENGTH: 100 V AC (50-60Hz) 60 sec.
OPERATING TEMPERATURE: –40ºC to +85ºC.
1P - 1T
DS-02005 (30)
1,000 pieces
a
b
c
d
N.O.
R0.7
1
1.7
1.2
Materials
KNOB: PA
COVER: PA
SPRING: Gold plated, copper alloy
HOUSING: PA
3.2
2.2
Ø 1.25
TERMINAL: Silver plated, copper alloy
Dimensions are shown: mm
Specifications and dimensions subject to change
9 Feb 21
E–8
www.ckswitches.com
5
ø 1.6 HOLE
0 .1
1.8
7.2
11.1
TRAVEL
3.8
OPERATING
POSITION
4.2
2
60°
4.5
PART NUMBER
PACKAGING
1
SCHEMATIC
6.5
8.4
10.2
OPERATING 1.7
POSITION
ø 1.5
DS Series
Detect Switch
4
6
1.5
5.8
Specifications
CONTACT ARRANGEMENT: SPST, NO
CONTACT RATING: 0.1A @ 16 VDC
OPERATING LIFE: 20,000 cycles
OPERATING FORCE: 30 ± 15 gf
TRAVEL: 0.90 ± 0.20 mm
INITIAL CONTACT RESISTANCE: 40 m Ω max.
DS-040-02
1,000 pieces
1P - 1T
N.O.
4.2
2.8
1.8
3.8
INSULATION RESISTANCE: 100 M Ω min. @ 250 VDC 60 sec.
DIELECTRIC STRENGTH: 250 V AC (50-60Hz) 60 sec.
OPERATING TEMPERATURE: –20ºC to +70ºC.
5
ø 1.6 HOLE
0.1
1.8
7.2
11.1
TRAVEL
3.8
OPERATING
POSITION
4.2
2
Materials
LEVER: POM
CASE: PBT
5.8
4
60°
6
4.5
1.5
OPERATING 1.7
POSITION
ø 1.5
1
6.5
8.4
10.2
COVER: PC
1P - 1T
PART NUMBER
PACKAGING SCHEMATIC
Specifications
CONTACT ARRANGEMENT: SPST NO
CONTACT RATING: 1mA @ 5 VDC
OPERATING LIFE: 50,000 cycles
OPERATING FORCE: 60 gf max.
DS-180 RT
3000 pieces
N.O.
TOTAL TRAVEL: 2.0±0.2 mm
INITIAL CONTACT RESISTANCE: 5Ω max.
INSULATION RESISTANCE: 100 M Ω min. @ 100 VDC 60 sec.
DIELECTRIC STRENGTH: 100 V AC (50-60Hz) 60 sec.
FULL STROKE POSITION
ON STAR POSITION
OPERATING TEMPERATURE: –40ºC to +85ºC.
FREE POSITION
Materials
KNOB: PA
COVER: SPTE
SPRING: SUS
HOUSING: LCP
TERMINAL: Silver plated
E
Detect
Dimensions are shown: mm
Specifications and dimensions subject to change
9 Feb 21
E–9
www.ckswitches.com
DS Series
Detect Switch
PART NUMBER
PACKAGING
SCHEMATIC
Specifications
CONTACT ARRANGEMENT: SPDT
CONTACT RATING: 100mA @ 30 VDC
OPERATING LIFE: 20,000 cycles
DS-080
1,000 pieces
N.O.
OPERATING FORCE: 30 ± 20 gf
OVER TRAVEL: 2.0 ± 0.40 mm
INITIAL CONTACT RESISTANCE: 200 m Ω max.
INSULATION RESISTANCE: 10 M Ω min. @ 250 VDC 60 sec.
DIELECTRIC STRENGTH: 250 V AC (50-60Hz) 60 sec.
OPERATING TEMPERATURE: –20ºC to +70ºC.
Materials
KNOB: POM
COVER: PA46
SLIDER: PBT
HOUSING: PA46
TERMINAL: Silver plated
PART NUMBER
PACKAGING
SCHEMATIC
Specifications
CONTACT ARRANGEMENT: SPDT
CONTACT RATING: 100mA @ 30 VDC
OPERATING LIFE: 20,000 cycles
OPERATING FORCE: 30 ± 20 gf
OVER TRAVEL: 2.0 ± 0.40 mm
INITIAL CONTACT RESISTANCE: 200 m Ω max.
INSULATION RESISTANCE: 10 M Ω min. @ 250 VDC 60 sec.
DIELECTRIC STRENGTH: 250 V AC (50-60Hz) 60 sec.
OPERATING TEMPERATURE: –20ºC to +70ºC.
DS-080-C PA
1,000 pieces
1P - 2T
2 1
N.O.
E
Detect
Materials
KNOB: POM
COVER: PA46
SLIDER: PBT
HOUSING: PA46
TERMINAL: Silver plated
Dimensions are shown: mm
Specifications and dimensions subject to change
9 Feb 21
E–10
www.ckswitches.com
DS Series
Detect Switch
PART NUMBER
PACKAGING SCHEMATIC
Specifications
CONTACT ARRANGEMENT: SPST
CONTACT RATING: 1mA @ 5 VDC
OPERATING LIFE: 100,000 cycles
OPERATING FORCE: 50 gf max.
TOTAL TRAVEL: 4.5±0.2 mm
INITIAL CONTACT RESISTANCE: 500 m Ω max.
INSULATION RESISTANCE: 100 M Ω min. @ 500 VDC 60 sec.
DIELECTRIC STRENGTH: 500 V AC (50-60Hz) 60 sec.
OPERATING TEMPERATURE: –20ºC to +70ºC.
DS-09005-02 RP
500 pieces
A
B
N.O.
10
4.8
A
B
0.6
0.4
6.6
Materials
LEVER: POM
COVER: PA
HOUSING: PA
TERMINAL: Silver plated
2.8
Total Travel Position 4.5±0.2
Pre Travel 5.7±0.3
4-1.00
5
a
4
A
B
E
Detect
Dimensions are shown: mm
Specifications and dimensions subject to change
9 Feb 21
E–11
www.ckswitches.com
