RTAP44S02M25NS

Description
ROTARY SWITCH-2POSITIONS, 4PDT, LATCHED, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size501KB,5 Pages
ManufacturerC&K
Environmental Compliance
Download Datasheet Parametric Compare View All

RTAP44S02M25NS Overview

ROTARY SWITCH-2POSITIONS, 4PDT, LATCHED, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

RTAP44S02M25NS Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerC&K
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Actuator typeSCREW DRIVER SLOT
Other featuresPANEL MOUNTABLE
body width22 mm
Body length or diameter25.8 mm
Contact (AC) maximum rated R load.15A@60VAC
Maximum contact current (AC)0.15 A
Maximum contact voltage (AC)60 V
Electrical life10000 Cycle(s)
Graduation angle36 deg
JESD-609 codee3
Manufacturer's serial numberRTA
Installation featuresTHROUGH HOLE-STRAIGHT
Number of positions2
Number of switching segments1
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
surface mountNO
Switch actionLATCHED
switch function4PDT
Switch typeROTARY SWITCH
Terminal surfaceMatte Tin (Sn)
Termination typeSOLDER
RTA Series
1–4 Poles Coded Rotary Switches
Features/Benefits
PCB or hand soldering versions
Bushing mounting
Multiple poles
Decimal and hexadecimal codes
Screwdriver slot or extended actuator
RoHS Compliant
Electrical Data
Silver
Gold
BBM
0.5 VA
20 mA
1A
25 V
< 150 mΩ
Typical Applications
Appliances
Electronic alarm systems
Medical
Building automation
HVAC air conditioning
Mechanical Data
MAX. NO. OF BANKS: 1.
OPERATING TORQUE: 5 Ncm±20%.
END STOP TORQUE: < 60 Ncm.
STOP: With/without or adjustable
MOUNTING: By fixed index 9.5 mm (0.374) of center, for
bushing mount only
SWITCHING MODE:
BBM
MAX. SWITCHING POWER
5 VA
MAX. SWITCHING CURRENT:
150 mA
5A
MAX. CARRYING CURRENT:
NOMINAL VOLTAGE AT 50 Hz
60 V
CONTACT RESISTANCE:
< 150 mΩ
DIELECTRIC STRENGTH AT 50 Hz
BETWEEN CONTACTS AND
GROUND TERMINALS:
500 V r
INSULATION RESISTANCE BETWEEN
CONTACTS OR CONTACTS
AND FRAME (500 V =):
10
9
NO. OF OPERATIONS:
10,000
BOUNCE:
< 5 ms
Materials
500 V r
BUSHING/HOUSING: PETP Thermoplastic
STATIONARY CONTACTS & TERMINALS: Nickel Plated Brass
with additional plating of Gold or Silver.
ROTOR: Gold or Silver plated Brass or PCB.
CODING PLATE: PA thermoplastic
ACTUATOR: Polysulfon thermoplastic
HARDWARE: Stop pin: Aluminum. Ball & Spring: Stainless steel.
Washer: PA. Nut: Brass.
10
9
10,000
< 5 ms
Environmental Data
OPERATING TEMPERATURE: –20ºC to + 70ºC
STORAGE TEMPERATURE:
–40ºC to + 85ºC
–20ºC to + 70ºC
–40ºC to + 85ºC
K
Rotary
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages K-9 thru K-12. For additional options not shown in catalog, consult Customer Service Center.
Designation
RTA

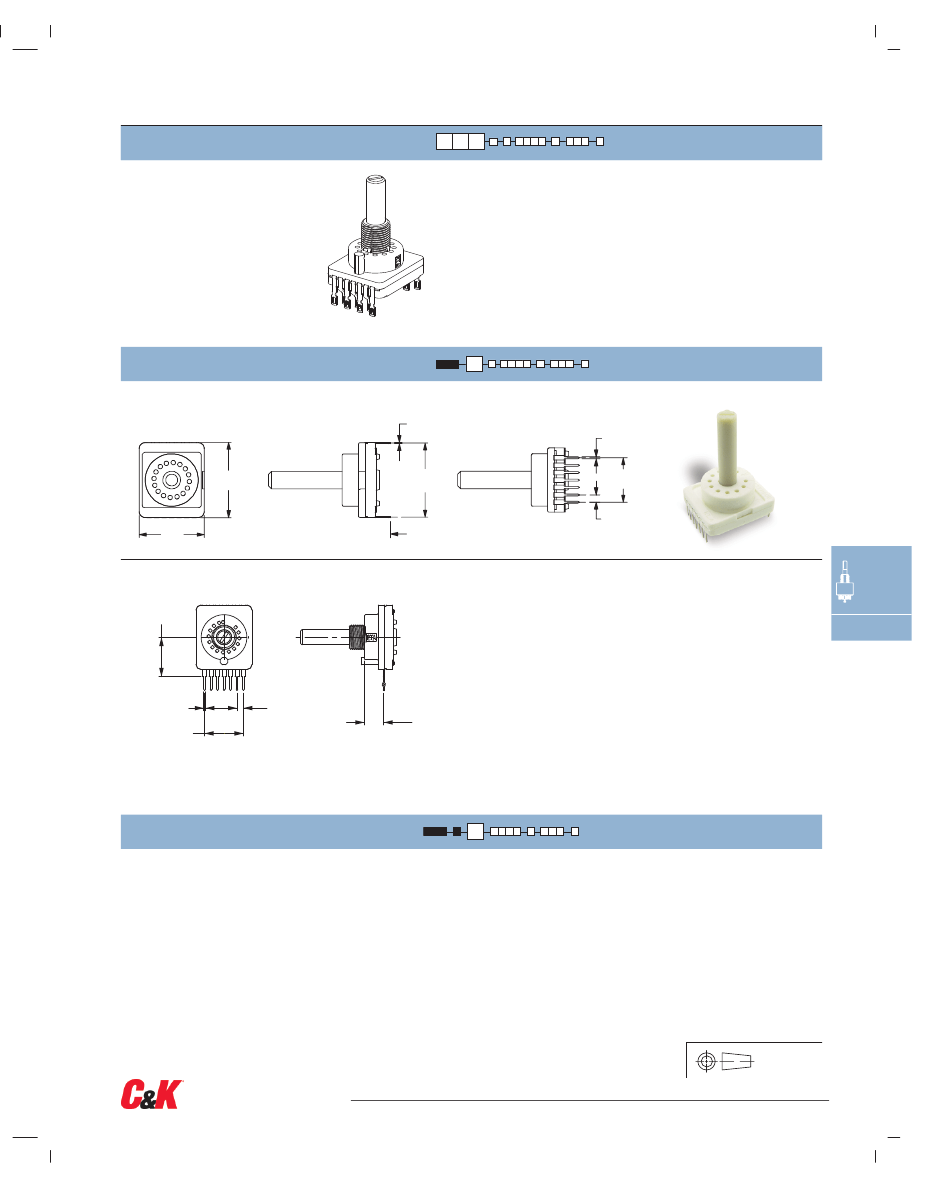

Termination
P
With PC Thru-hole

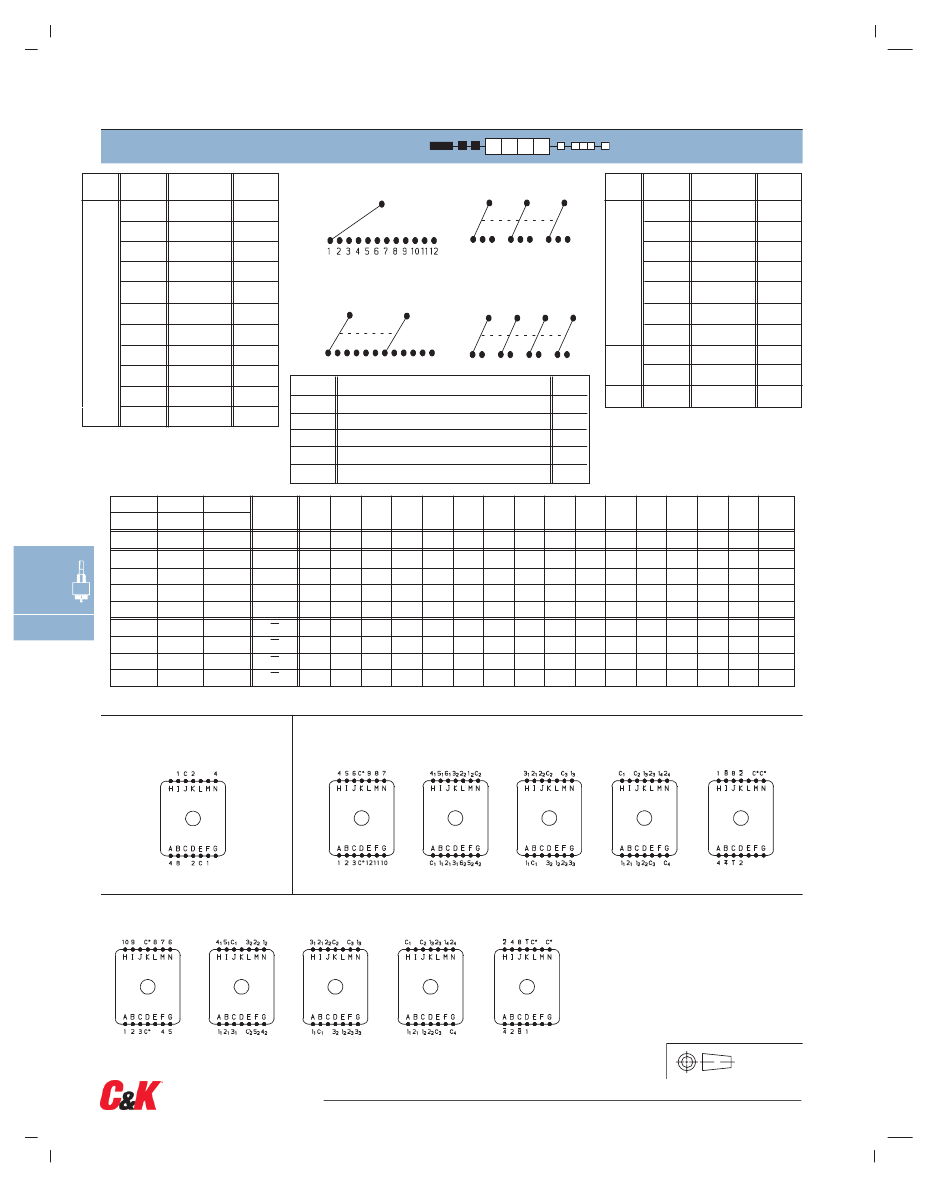

Switch Function
H
Horizontal with
1W12
SP, 30° Index, 12 pos. no stop
PC Thru-hole
1W10
SP, 36° Index, 10 pos. no stop
1S02
SP, 30° /36° Index, 2 pos.
1S03
SP, 30° /36° Index, 3 pos.
1S04
SP, 30° /36° Index, 4 pos.
1S05
SP, 30° /36° Index, 5 pos.
1S06
SP, 30° /36° Index, 6 pos.
1S07
SP, 30° /36° Index, 7 pos.
1S08
SP, 30° /36° Index, 8 pos.
1S09
SP, 30° /36° Index, 9 pos.
1S10
SP, 30° /36° Index, 10 pos.
1S11
SP, 30° Index, 11 pos.
1S12
SP, 30° Index, 12 pos.
2S02
DP, 30° /36° Index, 2 pos.
2S03
DP, 30° /36° Index, 3 pos.
2S04
DP, 30° /36° Index, 4 pos.
2S05
DP, 30° /36° Index, 5 pos.
2S06
DP, 30° Index, 6 pos.
3S02
3P, 30° /36° Index, 2 pos.
Indexing
2
22.5 index (coded only)
3
30° index (12 positions max.)
4
36° index (10 positions max.)
3P, 30° /36° Index, 3 pos.
4P, 30° /36° Index, 2 pos.
Direct + complement, 36º
Index, no stop
EW12
Direct + complement, 30º
Index, no stop
DW16
Direct, 22.5º Index, no stop
ES——
Direct + complement, 30º/36º
Index, with stop
(specify stop position)
DS——
Direct, 22.5º Index, with stop
(specify stop position)

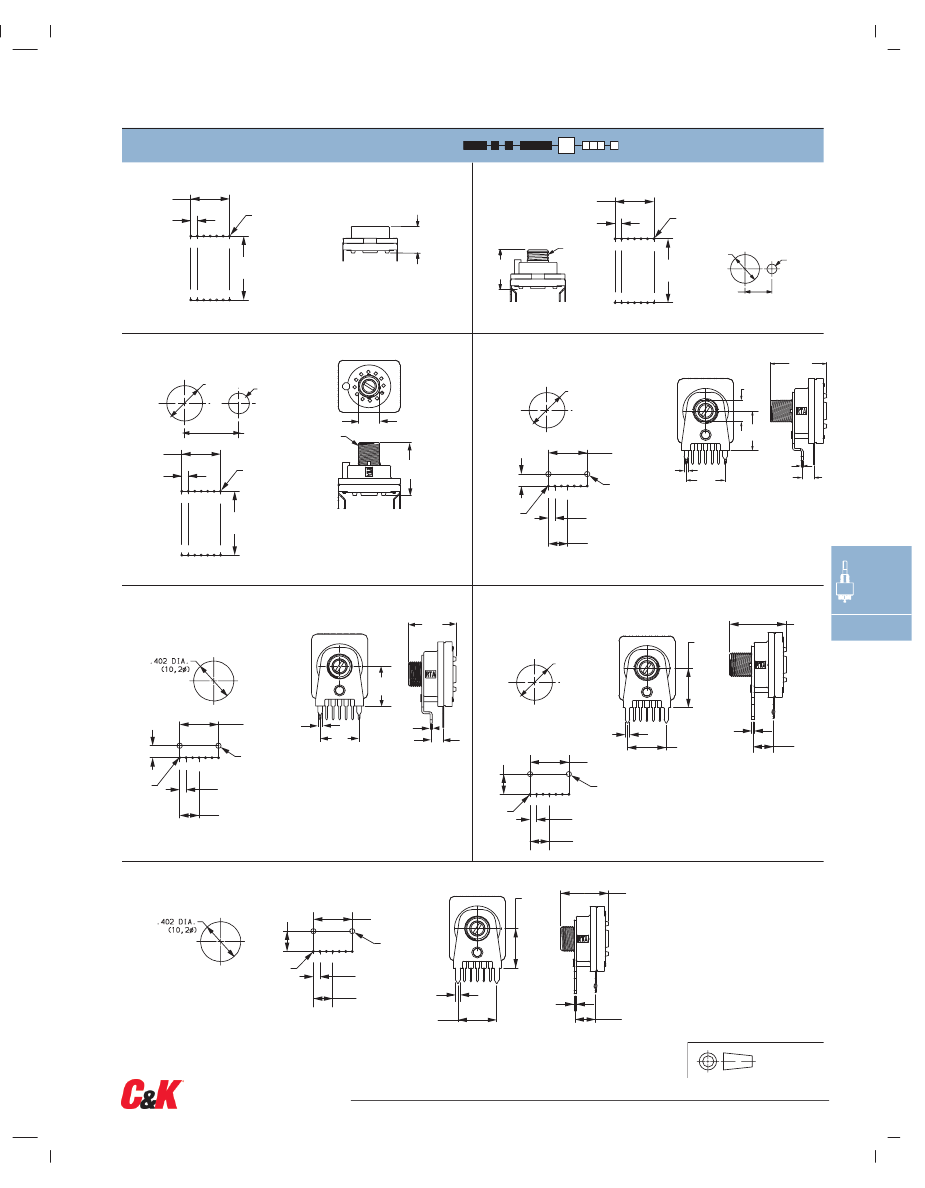

Mounting Style
W
Without bushing
R
3/8-32 Threaded Bushing
M
M10x.75 Metric Threaded Bushing
A
3/8-32 Threaded Bushing
with Offset Bracket
B
M10x.75 Metric Threaded
Bushing with Offset Bracket
C
D
3S03
4S02
EW10
Contact Material
S
Silver plated, matte-tin terminal
P
Gold plated, matte-tin terminal

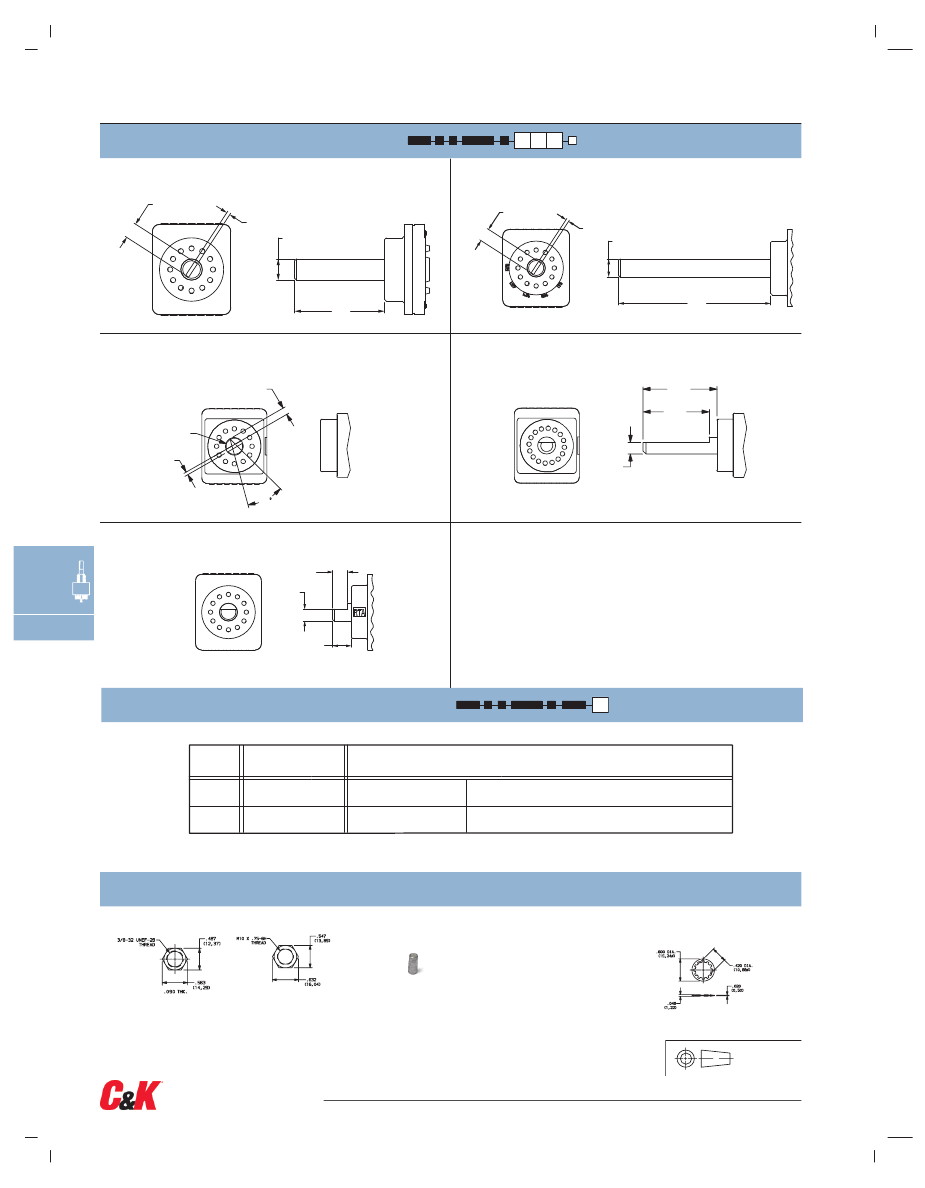

Actuator (max.)
25N
.984 (25,0) with screwdriver slot
50N
1.97 (50,0) with screwdriver slot
FLS
Flush shaft with screwdriver slot
and position indicator
25F
.984 (25,0) Shaft with flat
06F
.236 (6,0) Shaft with flat
3/8-32 Threaded Bushing
with Straight Bracket
M10x.75 Metric Threaded
Bushing with Straight Bracket
7 nov 16
K–8
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ck-components.com
