TECHNICAL CHARACTERISTICS
5
MATERIAL
INSULATOR: PA 66
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
METAL HOUSING: BRASS (CuZn)
TERMINAL SCREW: STEEL ZINC PLATING "-" SLOT TYPE
WIRE GUARD: STAINLESS STEEL
SURFACE OF SOLDER TAIL PLATING: TIN
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
UL
20A
300VAC
1.6KV
20 mOhm MAX
A
STANDARD
CERTIFIED E315414 / MODEL NUMBER 2335
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
TORQUE:
WIRE STRIPE LENGTH: 6-7mm
SCREW: M3
PITCH: 5.08mm
SOLDERING: WAVE PROCESS ONLY
PACKAGING: BOX
SERIE 2335
22-12 AWG / 0.30-3.0MM²
22-12 AWG / 0.30-3.0MM²
4.3Lb.In / 0.49Nm
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
11-JUN-10
DATE
PDF
FILE
JP
BY
APPROVAL: RJ
SCALE:
SHEET: 1/1
DRAW: MARVIN
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

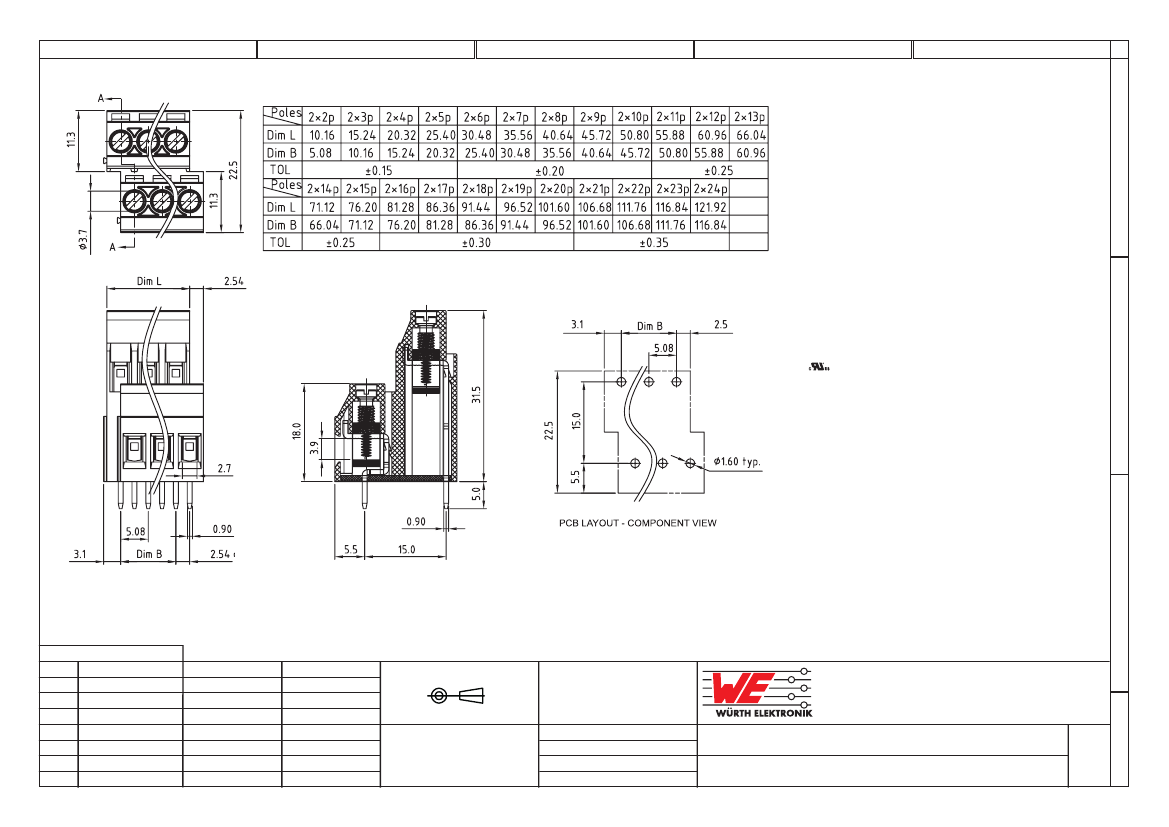

DESCRIPTION: SERIE 2335 - 5.08MM DOUBLE LEVEL HORIZONTAL ENTRY
MODULAR WITH RISING CAGE - 3.0MM² WIRES WR-TBL
WERI PART NO: 691 233 510 0xx
