HAS SERIES - 60 WATT
DESCRIPTION
HAS DC/DC converters are low-cost, industry standard,
half-brick converters. The HAS features 2:1 input
voltage, excellent efficiency, and open-frame packaging
technology. The HAS operates over a range of -40°C to
100°C and has a built-in input pi filter that helps to
ensure low noise operation. Available in several input
and output combinations, the HAS is designed for
industrial, telecom, and networking applications.
FEATURES
• Industry Standard
Half-Brick
• Low-Cost Design
• Open-Frame Packaging
• 100°C Baseplate
Operation
•
•
•
•
24V and 48V Inputs
Optional Enable Logic
1500V Isolation
Input Pi Filter

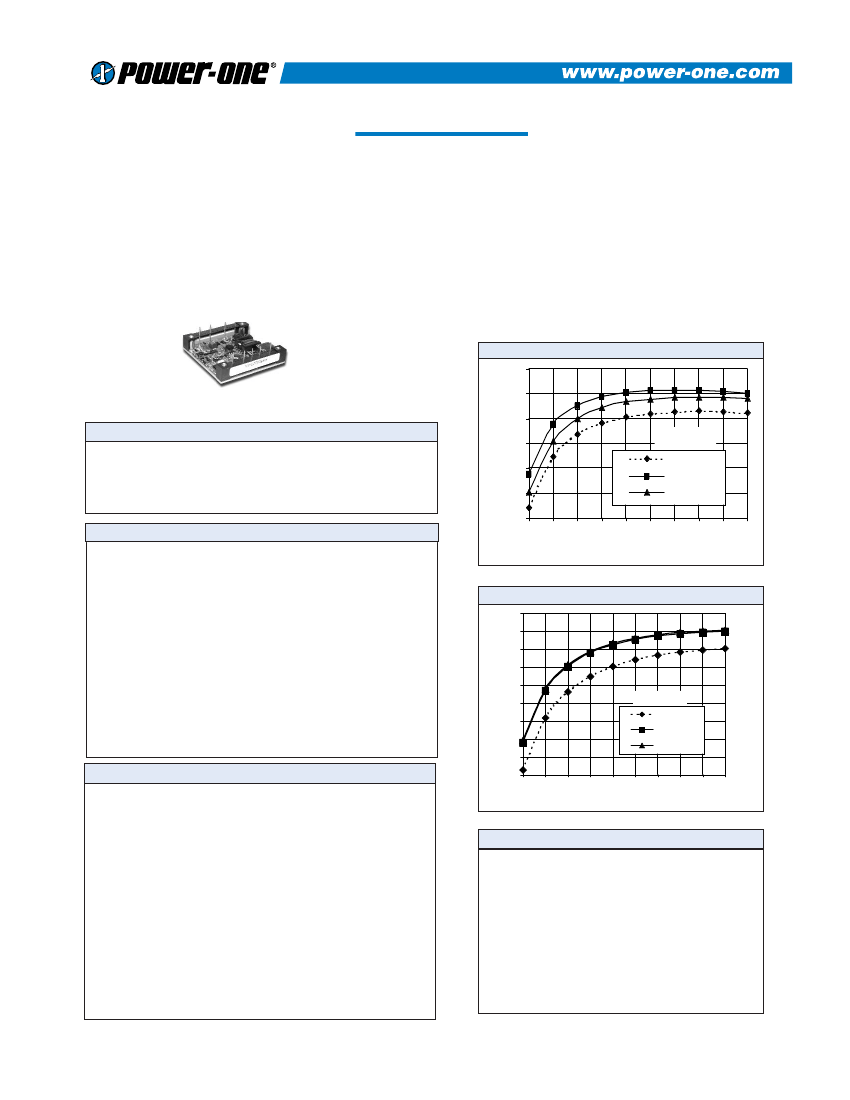

Efficiency vs. Load (24V Input)
90
85
EFFICIENCY%
TECHNICAL SPECIFICATIONS
Input
Voltage Range
24 VDC Nominal
48 VDC Nominal
Reflected Ripple
Input Reverse Voltage Protection
Output
Setpoint Accuracy
Line Regulation V
in
Min. - V
in
Max., I
out
Rated
Load Regulation I
out
Min. - I
out
Max., V
in
Nom.
Remote Sense Headroom
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Current Limit Threshold Range, % of I
out
Rated
OVP Trip Range
Remote Shutdown Reference
Shutdown Pin Current, Sourced at Off
General
Turn-On Time
Remote Shutdown
Switching Frequency
Isolation
Input - Output
Input - Case
Output - Case
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Thermal Shutdown Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF
†
(Bellcore TR-NWT-000332)
Safety
Weight (approx.)
REV. 12/01
10 ms
Positive or Negative Logic
500 kHz
1500 VDC
1050 VDC
500 VDC
0.03%/°C
-40 To +100°C
-40 To +125°C
105 To 115°C
95%
5 g, 10 - 55 Hz
2.5 x 106 hrs
UL, cUL, TUV
1.4 oz
±1%
±0.2% V
out
±0.2% V
out
0.5 VDC
10 % I
out
Rated
25% I
out
4% V
out
500
µs
±10%
Hiccup
110 - 140%
115 - 140% V
out
Nom.
V
in
Negative
10 mA Max.
18 - 36 VDC
36 - 72 VDC
25 mA
Shunt Diode
80
75
70
65
60
10
20
30
40
50
60
70
80
90 100
HAS060YH-A
EFF. (18v)
EFF. (24v)
EFF. (36v)
LOAD %
Efficiency vs. Load (48V Input)
90
85
80
EFFICIENCY %
75
70
65
60
55
50
45
10
20
30
40
50
60
70
80
90
100
LOAD %
HAS060ZH-A
EFF. (36v)
EFF. (48v)
EFF. (72v)
Notes
† MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please consult
factory for specific model information.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
1

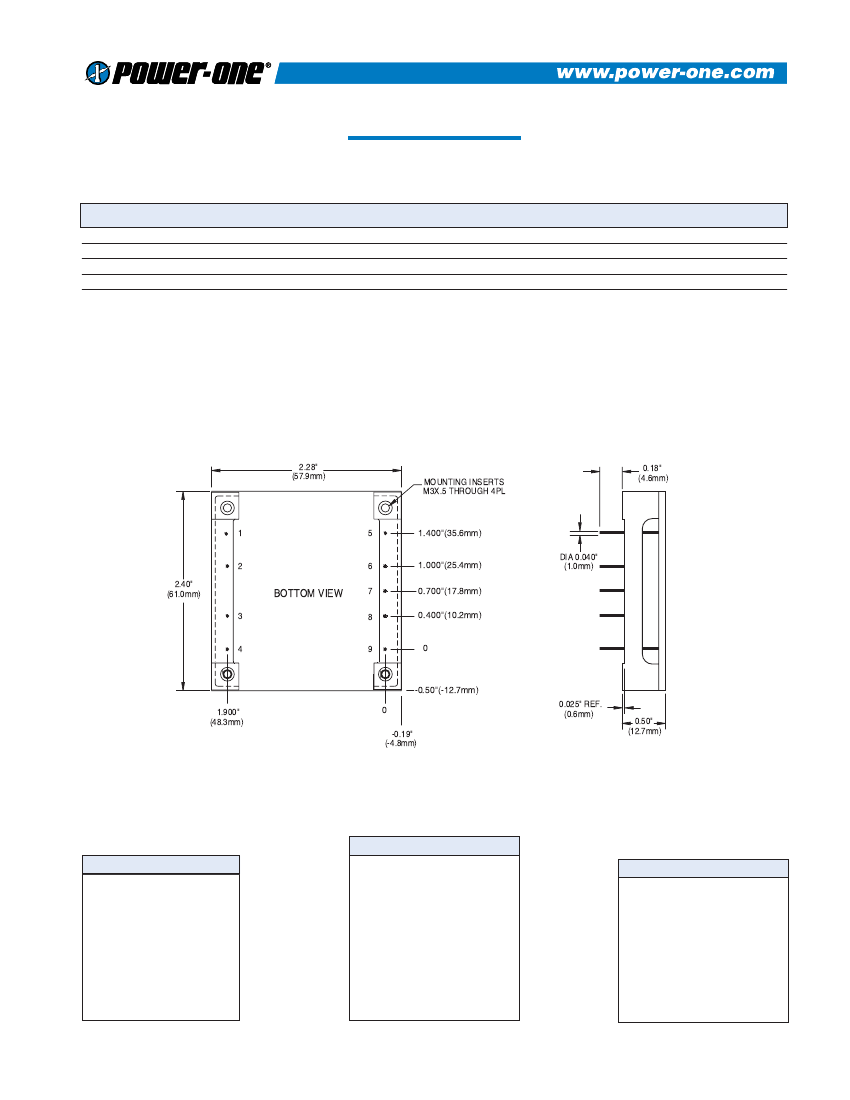

OPTIONS
When ordering equipment options, use the following suffix information. Select the option(s) that you prefer
and add them to the model number. Example ordering options are located below the options table.
OPTION
Negative Logic
Lucent-Compatible
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
SUFFIX
N
T
TS
1
2
3
4
Y
APPLICABLE SERIES
HAS, HBD, HBS, HES, HLS, HLD, LES,
QBS, QES, QLS, TES, TQD
HAS, HBD, HBS, HES, HLS, QBS, QES,
QLS
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
REMARKS
TTL "Low" Turns Module ON
TTL "High" Turns Module OFF
Pin Length and Heatsink Options
0.110" (2.8mm) Pin Length
0.150" (3.8mm) Pin Length
0.24" (6.1mm) Horizontal Heatsink
0.24" (6.1mm) Vertical Heatsink
0.45" (11.4mm) Horizontal Heatsink
0.45" (11.4mm) Vertical Heatsink
0.95" (24.1mm) Horizontal Heatsink
0.95" (24.1mm) Vertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Units (Except SMS)
All Units (Except SMS)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
Standard Pin Length is 0.180" (4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:
HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent-compatible trim, and 0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent-compatible trim and 0.110” pin length.
NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
