D2516EC4BXGGB-U datasheet, PDF

Datasheet> All Categories > storage> storage> D2516EC4BXGGB-U

D2516EC4BXGGB-U: DescriptionDDR DRAM, 256MX16, CMOS, PBGA96, FBGA-96; Categorystorage storage; File Size639KB，1 Pages; ManufacturerKingston; Websitehttps://www.kingston.com/cn; Environmental Compliance

Download Datasheet Parametric View All

D2516EC4BXGGB-U Overview

DDR DRAM, 256MX16, CMOS, PBGA96, FBGA-96

D2516EC4BXGGB-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingston
package instruction	BGA,
Reach Compliance Code	compli
Other features	SELF REFRESH
JESD-30 code	R-PBGA-B96
memory density	4294967296 bi
Memory IC Type	DDR DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	96
word count	268435456 words
character code	256000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	95 °C
Minimum operating temperature
organize	256MX16
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
self refresh	YES
Nominal supply voltage (Vsup)	1.35 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	BALL
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

KINGSTON.COM

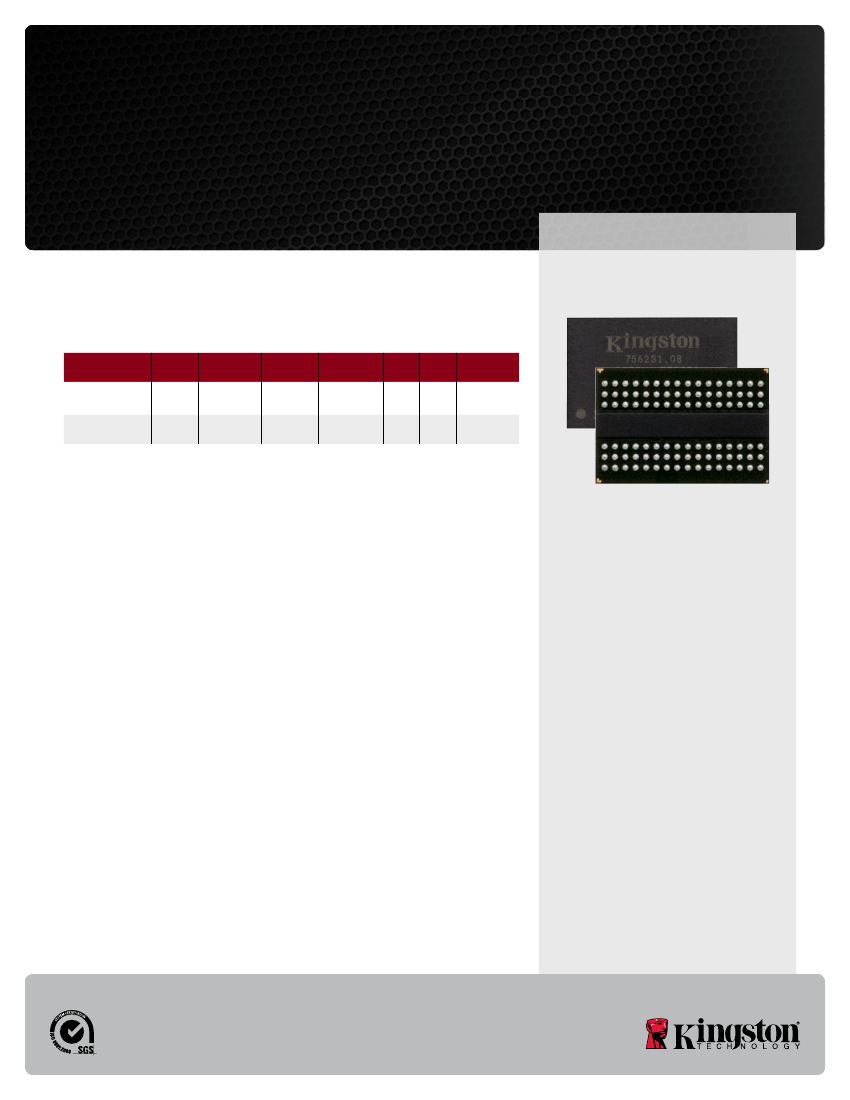

Kingston DDR3/3L DRAM

for embedded applications

Kingston DDR3/3L

Kingston on-board DRAM is designed to meet the needs of embedded applications

and offers a low-voltage option for lower power consumption.

DDR3/3L Part Numbers and Specifications

DDR3/3L Part

Number

D2516EC4BXGGB

D5128EETBPGGBU

Capacity

4Gb

Description

96 ball FBGA

DDR3/3L

78 ball FBGA

DDR3/3L

Package

Size

9.0x13.5x1.2

9.0x10.6x1.2

Organization

(words x bits)

256MX16

512Mx8

Speed

Mbps

1600

VDD,

VDDQ

1.35V*

Operating

Temperature

0°C ~ +95°C

*Backward compatible to 1.5V VDD, VDDQ

Features

• Double-data-rate architecture: two data transfers per clock cycle

• The high-speed data transfer is realized by the 8 bits prefetch pipelined

architecture

• Bi-directional differential data strobe (DOS and /DQS) is transmitted/received

with data for capturing data at the receiver

• DOS is edge-aligned with data for READS; center-aligned with data for WRITES

• Differential clock inputs (CK and !CK)

• DLL aligns DQ and DOS transitions with CK transitions

• Commands entered on each positive CK edge; data and data mask referenced

to both edges of DQS

• Data mask (DM) for write data

• Posted /CAS by programmable additive latency for better command and data

bus efficiency

• On-Die Termination (ODD for better signal quality

— Synchronous ODT

— Dynamic CDT

Asynchronous ODT

• Multi Purpose Register (MPR) for pre-defined pattern read out

• ZQ calibration for DO drive and ODT

• Programmable Partial Array Self-Refresh (PASR)

• /RESET pin for Power-up sequence and reset function

• SRT range: Normal/extended

• Programmable Output driver impedance control

THIS DOCUMENT SUBJECT TO CHANGE WITHOUT NOTICE
