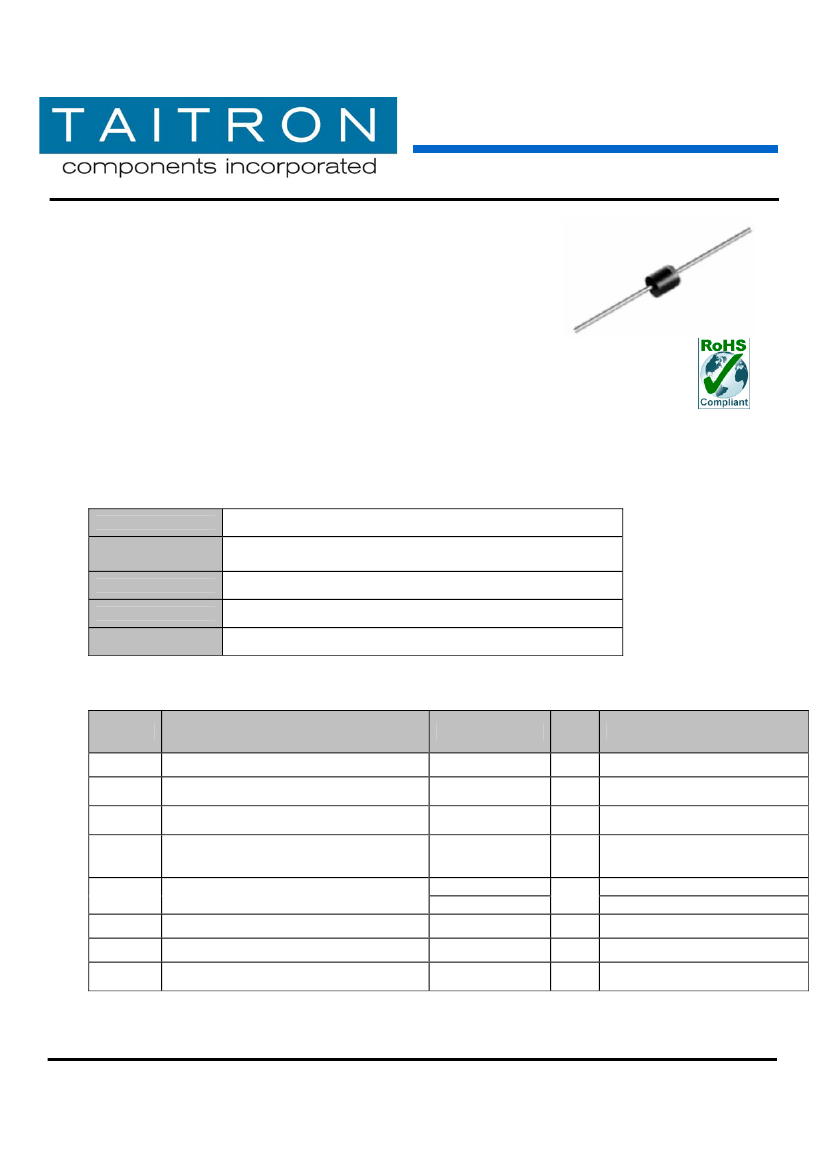

3000W Transient Voltage Suppressor
3KP5.0A – 3KP220CA
3000W Transient Voltage Suppressor
Features
Glass passivated junction
3000W peak pulse power capability at 10/1000μs waveform
repetition rate (duty cycles): 0.01%
Fast response time: typically less than 1.0ps from 0v to V
BR
min.
Excellent clamping capability
Low incremental surge resistance
High temperature soldering guaranteed:
260°C/40 seconds, 0.375" (9.5mm) lead length at 5lbs. (2.3kg) tension
RoHS Compliant

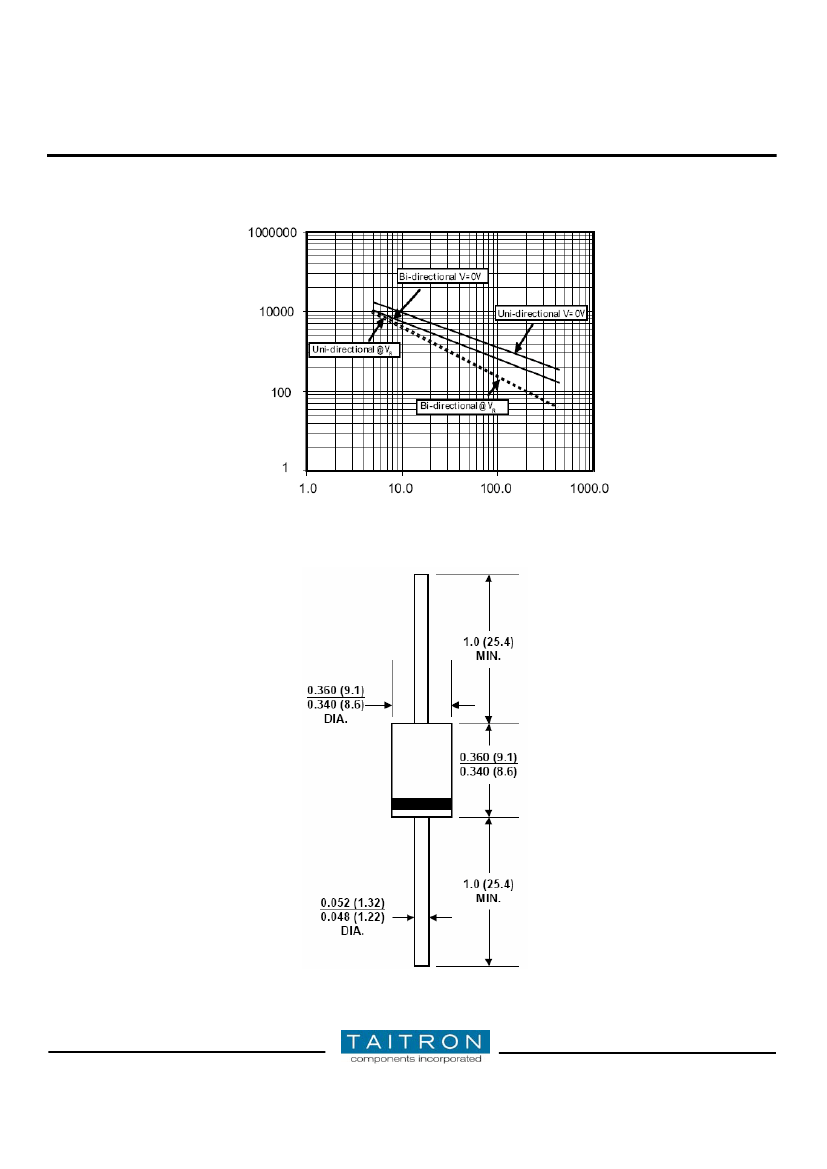

T6L
Mechanical Data
Case:
Lead:
Polarity:
Mounting position:
Weight:
Molded plastic body, T6L
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Color band denotes the cathode except Bi-directional
Any
0.07 ounce, 2.1 grams
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
V
WM
P
PPM
I
PPM
I
FSM
V
F
R
thJA
R
thJL
T
J,
T
STG
Description
Maximum Recurrent Peak Reverse Voltage
Peak Pulse Power Dissipation on 10/1000μs
Waveform
Peak Pulse Current with 10/1000μs
Waveform
Peak Forward Surge Current, Uni-directional
only
Maximum Instantaneous Forward Voltage
at 100A for Uni-directional only
Typical Thermal Resistance to Ambient
Typical Thermal Resistance to Leadt
Operating Junction and Storage Temperature
Range
Value
5.0 to 220
Minimum 3000
See Table
300
3.5
5.0
40
8.0
-55 to +175
Unit
V
W
A
A
V
° C/W
° C/W
°C
Note 1
Note 1
Conditions
8.3ms single half sine-wave or
equivalent square wave, duty
cycle=4 pulses per minute maximum
3KP5.0~3KP200
3KP210~3KP220
Notes:
(1) Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25°C per Fig. 2
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/AH 2008-02-22
Page 1 of 6
3000W Transient Voltage Suppressor
3KP5.0A – 3KP220CA
Note:
1. Surge current waveform per Fig. 3 and derate per Fig. 2
2. For Bi-directional types with V
WM
of 10 volts and less, the I
D
limit is doubled.
3. C suffix for Bidirectional use, A suffix for 5% tolerance.

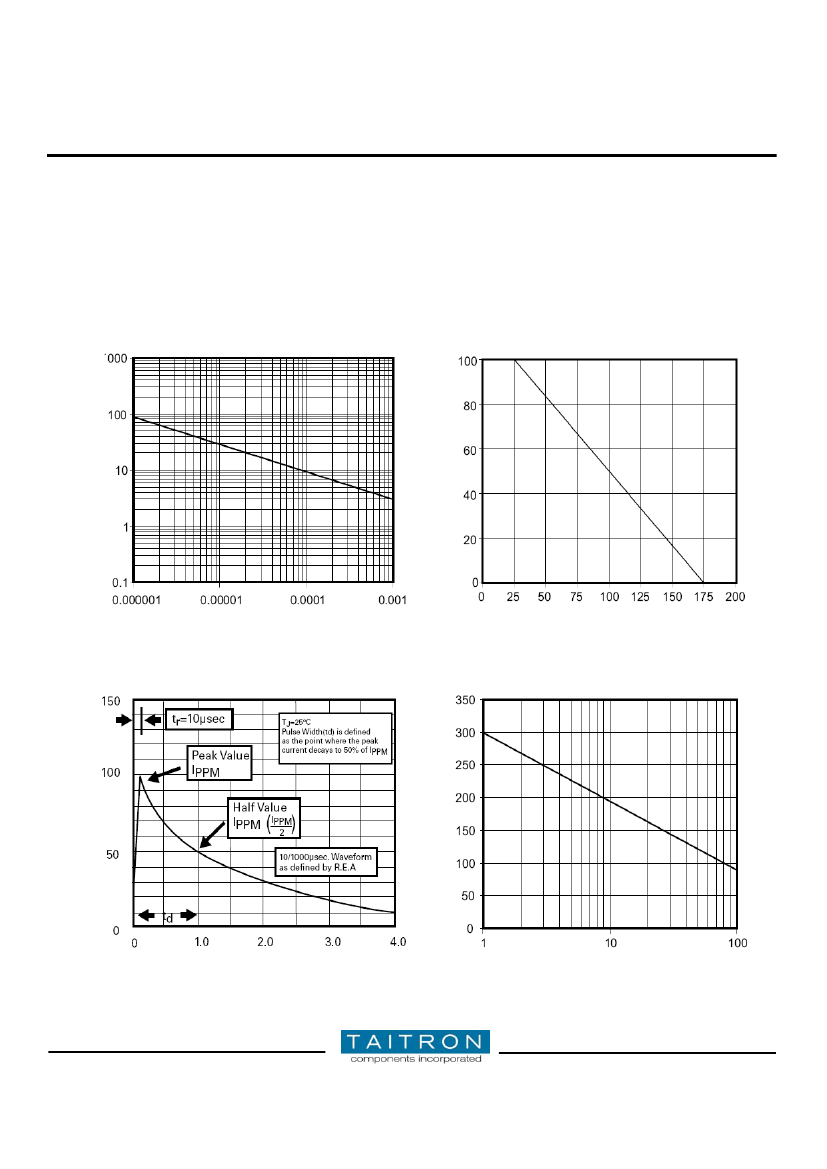

Typical Characteristics Curves
Fig.1- Peak Pulse Power Rating Curve
Fig.2- Pulse Derating Curve
P
PPM
-Peak Pulse Power (KW)
P
PPM
or
I
PPM
(%)
Pulse Width
t
d
Ambient Temperature T
A
(°C)
I
FSM
-Peak
Forward Surge Current (A)
Fig.3- Pulse Waveform
Fig.4- Max. Non-Repetitive Forward Surge Current
Uni-directional only
I
PPM
-Peak Pulse Current (%)
Time
t
(ms)
Number of Cycles at 60Hz
Rev. A/AH 2008-02-22
www.taitroncomponents.com
Page 4 of 6
