HVRW39T9388M0.1% datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> HVRW39T9388M0.1%

HVRW39T9388M0.1%: DescriptionRESISTOR, 0.5W, 0.1%, 25ppm, 38800000ohm, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size114KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

HVRW39T9388M0.1% Overview

RESISTOR, 0.5W, 0.1%, 25ppm, 38800000ohm, THROUGH HOLE MOUNT, RADIAL LEADED

HVRW39T9388M0.1% Parametric

Parameter Name	Attribute value
Maker	SEI(Stackpole Electronics Inc.)
package instruction	RADIAL LEADED
Reach Compliance Code	unknow
ECCN code	EAR99
JESD-609 code	e3
Manufacturer's serial number	HVR
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.5 W
Rated temperature	25 °C
resistance	38800000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
Temperature Coefficient	25 ppm/°C
Terminal surface	MATTE TIN
Terminal shape	WIRE
Tolerance	0.1%
Operating Voltage	2000 V

Preview

Download Datasheet

View All

HVR Series

High Voltage Radial Leaded Plate Resistors

Features:

•

Ohmic values available up to 2,000G

Voltage ratings to 40,000 volts

Ultra-high stability

Tight tolerances to 0.1%

Low VCR to 0.05ppm/volt

Very low noise

Custom solutions available

Stackpole Electronics, Inc.

Resistive Product Solutions

Electrical Specifications

Case Power Rating

Size (Watts) @ 25ºC

0.5W

Maximum

Voltage

Rating (kv)

2KV

Resistance

Temperature

Coefficient

±25ppm/ºC

±50ppm/ºC

±100ppm/ºC

±25ppm/ºC

0.5W

4KV

±50ppm/ºC

±100ppm/ºC

±25ppm/ºC

10KV

±50ppm/ºC

±100ppm/ºC

±25ppm/ºC

20KV

±50ppm/ºC

±100ppm/ºC

±25ppm/ºC

30KV

±50ppm/ºC

±100ppm/ºC

±25ppm/ºC

40KV

±50ppm/ºC

±100ppm/ºC

Ohmic Range (Ω) and Tolerance

0.1%

<30M - 100M

0.25%, 0.5%

<30M - 100M

>100M - 2G

<30M - 100M

>100M - 2G

<30M - 100M

>100M - 2G

<30M - 100M

>100M - 2G

<30M - 100M

>100M - 2G

<30M - 100M

>100M - 2G

<30M - 100M

>100M - 2G

>2G - 20G

<30M - 100M

>100M - 2G

>2G - 20G

<30M - 100M

>100M - 2G

>2G - 20G

<30M - 100M

>100M - 2G

>2G - 20G

<30M - 100M

>100M - 2G

>2G - 20G

<30M - 100M

>100M - 2G

>2G - 20G

<30M - 100M

>100M - 2G

>2G - 50G

<30M - 100M

>100M - 2G

>2G - 50G

<30M - 100M

>100M - 2G

>2G - 50G

<30M - 100M

>100M - 2G

>2G - 50G

<30M - 100M

>100M - 2G

>2G - 50G

<30M - 100M

>100M - 2G

>2G - 50G

5%, 10%, 20%

<30M - 100M

>100M - 2G

>2G - 100G

<30M - 100M

>100M - 2G

>2G - 100G

<30M - 100M

>100M - 2G

>2G - 100G

<30M - 100M

>100M - 2G

>2G - 100G

<30M - 100M

>100M - 2G

>2G - 100G

<30M - 100M

>100M - 2G

>2G - 100G

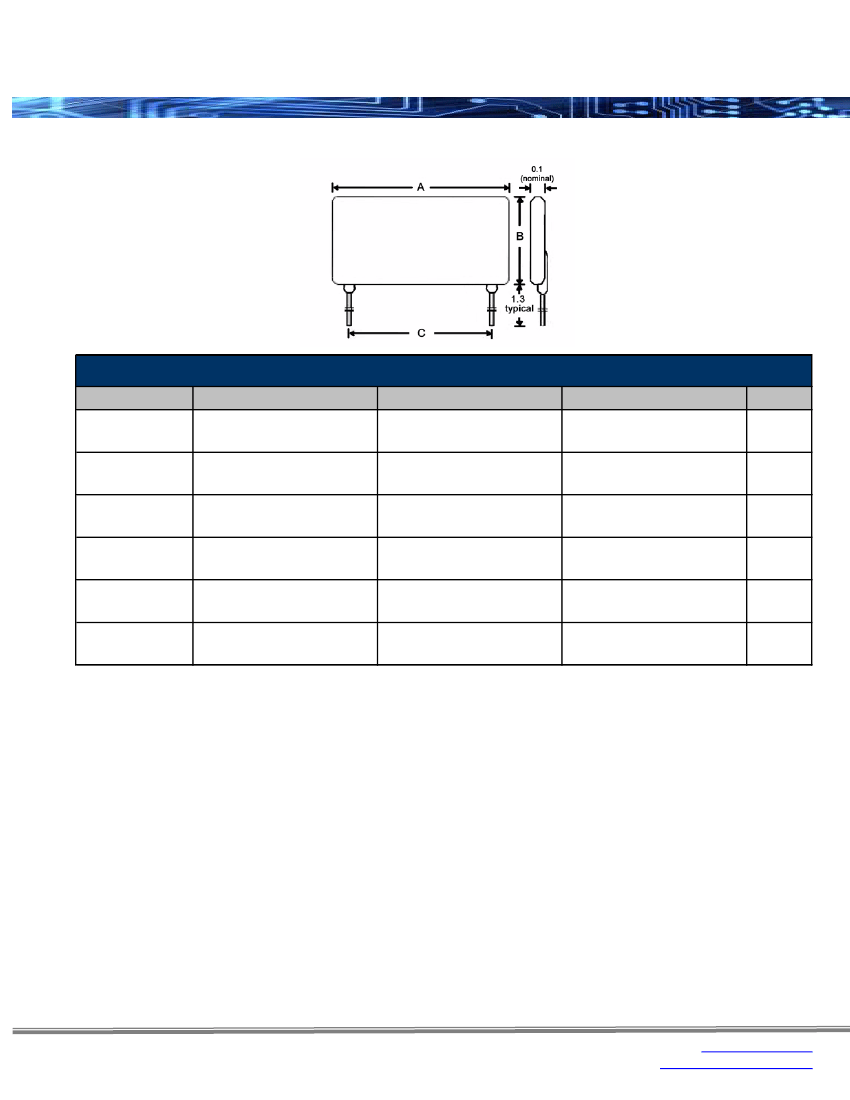

How to Order

SEI Type

Lead Style

Case Size

TCR Rating (1)

Nominal Resistance

Tolerance (2)

HVR

Type

HVR

Lead Style

Case Size

TCR Rating

±25ppm/ºC

±50ppm/ºC

±100ppm/ºC

±200ppm/ºC

50M

Ratio Tolerance

±0.1%

±0.25%

±0.5%

±1%

±2%

±5%

±10%

±20%

Note (1): TCR is measured from 25ºC to 75ºC

Note (2): Tolerance is dependent on case size and value

Rev Date: 02/10/2010

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com

marketing@seielect.com
