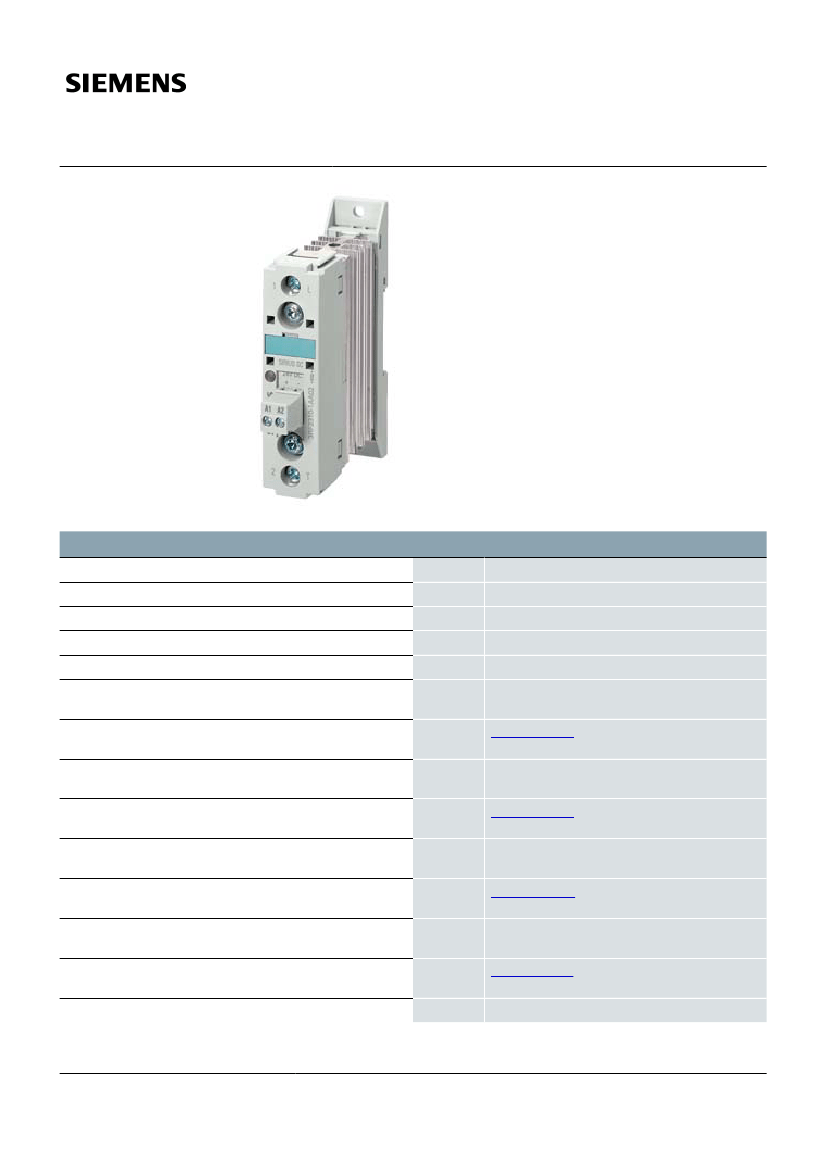

Product data sheet
3RF2310-1AA04
SEMICOND. CONTACTOR 3RF2,
1-PH. AC 51 10 A 40 DEGREES C 48-460 V / 24 V DC
SCREW TERMINAL
General technical data:
product brand name
product designation
Product function
Number of poles / for main current circuit
Protection class IP
Product designation / _1 / of the accessories that can be
ordered
Manufacturer article number / _1 / of the accessories that can
be ordered
Product designation / _3 / of the accessories that can be
ordered
Manufacturer article number / _3 / of the accessories that can
be ordered
Product designation / _4 / of the accessories that can be
ordered
Manufacturer article number / _4 / of the accessories that can
be ordered
Product designation / _5 / of the accessories that can be
ordered
Manufacturer article number / _5 / of the accessories that can
be ordered
Ambient temperature
SIRIUS
solid-state contactor
zero-point switching
1
IP20
terminal cover
3RF2900-3PA88
converter
3RF2900-0EA18
load monitoring
3RF2920-0GA16
load monitoring, basis
3RF2920-0FA08
3RF2310-1AA04
Page 1/ 6
07/24/2012
subject to modifications
© Copyright Siemens AG 2012
• during operating
• during storage
Installation altitude / at a height over sea level / maximum
Resistance against vibration / according to IEC 60068-2-6
Resistance against shock / according to IEC 60068-2-27
Item designation
• according to DIN 40719 extendable after IEC 204-2 / according
to IEC 750
• according to DIN EN 61346-2
Number of NC contacts / for auxiliary contacts
Number of NO contacts / for auxiliary contacts
Number of change-over switches / for auxiliary contacts
°C
°C
m
-25 … +60
-55 … +80
1,000
2g
15g / 11 ms
K
Q
0
0
0
Main circuit:
Number of NO contacts / for main contacts
Number of NC contacts / for main contacts
Operating current
• at AC-1 / at 400 V / rated value
• at AC-51 / rated value
Operating current / minimum
Operating voltage
• at 50 Hz / at AC / rated value
• at 60 Hz / at AC / rated value
Working area related to the operating voltage
• at 50 Hz / for AC
• at 60 Hz / for AC
Operating frequency
• rated value
Relative symmetrical tolerance / of the operation frequency
Insulation voltage / rated value
Voltage slew rate / at the thyristor / for main contacts /
maximum permissible
Block voltage / at the thyristor / for main contacts / maximum
permissible
Reverse current / of the thyristor
Derating temperature
Active power loss / total / typical
Resistance against the impulse current / rated value
I2t-level / maximum
Hz
%
V
V/µs
50 … 60
10
600
500
V
V
40 … 506
40 … 506
V
V
48 … 460
48 … 460
A
A
mA
10.5
10.5
100
1
0
V
1,200
mA
°C
W
A
A²·s
10
40
11
200
200
Control circuit:
3RF2310-1AA04
Page 2/ 6
07/24/2012
subject to modifications
© Copyright Siemens AG 2012
Type of voltage / of the controlled supply voltage
Control supply voltage / 1
• for DC
• initial rated value
• final rated value
Control supply voltage
• for DC / final value for signal<0>-recognition
Control current
• at minimum control supply voltage / for DC
• for DC / rated value
Fuse assignments
mA
mA
V
V
V
DC
15
24
5
2
15
https://www.automation.siemens.com/cd-
static/material/info/3RF21_eng.pdf
Installation/mounting/dimensions:
Type of mounting
screw and snap-on mounting onto 35 mm standard
mounting rail
Yes
M4
Type of fixing/fixation / series installation
Design of the thread / of the screw for fastening of the operating
resource
Tightening torque / of the screw for fastening of the operating
resource
Width
Height
Depth
N·m
1.5
mm
mm
mm
22.5
100
94
Connections:
Design of the electrical connection / for main current circuit
Design of the thread / of the connection screw / for main
contacts
Tightening torque / for main contacts
• with screw-type terminals
Tightening torque (lbf·in) / for main contacts
• with screw-type terminals
Type of the connectable conductor cross-section
• for main contacts
• solid
• finely stranded
• with conductor end processing
• for AWG conductors
• for main contacts
• for auxiliary and control contacts
• for auxiliary and control contacts
2x (14 ... 10)
1x (AWG 20 ... 12)
2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²
2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²)
lbf·in
18 … 22
N·m
2 … 2.5
screw-type terminals
M4
3RF2310-1AA04
Page 3/ 6
07/24/2012
subject to modifications
© Copyright Siemens AG 2012
• solid
• finely stranded
• with conductor end processing
• without conductor final cutting
Conductor cross section that can be connected
• for main contacts
• solid
• stranded wire
• with conductor end processing
• for auxiliary and control contacts
• solid
• stranded wire
• with conductor end processing /
• without conductor final cutting
AWG number / as coded connectable conductor cross-section /
for main contacts
Design of the electrical connection / for auxiliary and control
current circuit
Design of the thread / of the connection screw / of the auxiliary
and control pins
AWG number / as coded connectable conductor cross-section
• for auxiliary and control contacts
Skinning length / of the cable / for main contacts
Skinning length / of the cable / for auxiliary and control contacts
Tightening torque / for auxiliary and control contacts
• with screw-type terminals
Tightening torque (lbf·in) / for auxiliary and control contacts
• with screw-type terminals
lbf·in
N·m
mm
mm
mm²
mm²
mm²
mm²
mm²
1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
1.5 … 6
1 … 10
0.5 … 2.5
0.5 … 2.5
0.5 … 2.5
10 … 14
screw-type terminals
M3
20 … 12
7
7
0.5 … 0.6
4.5 … 5.3
Certificates/approvals:
General Product Approval
Test Certificates
Special Test
Certificate
Type Test
Certificates/Test
Report
other
Declaration of
Conformity
Environmental
Confirmations
Further information:
Information- and Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/industrial-controls/catalogs
3RF2310-1AA04
Page 4/ 6
07/24/2012
subject to modifications
© Copyright Siemens AG 2012
Industry Mall (Online ordering system)
http://www.siemens.com/industrial-controls/mall
CAx-Online-Generator
http://www.siemens.com/cax
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
http://support.automation.siemens.com/WW/view/en/3RF2310-1AA04/all
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=3RF2310-1AA04
3RF2310-1AA04
Page 5/ 6
