Catalog 1308242

Issued 3-03 (PDF Rev. 9-09)

THIS DATA IS FOR REFERENCE PURPOSES ONLY

This Product's status is: OBSOLETE.

Tyco Electronics no longer offers the 3RP1 series.

3RP1

series

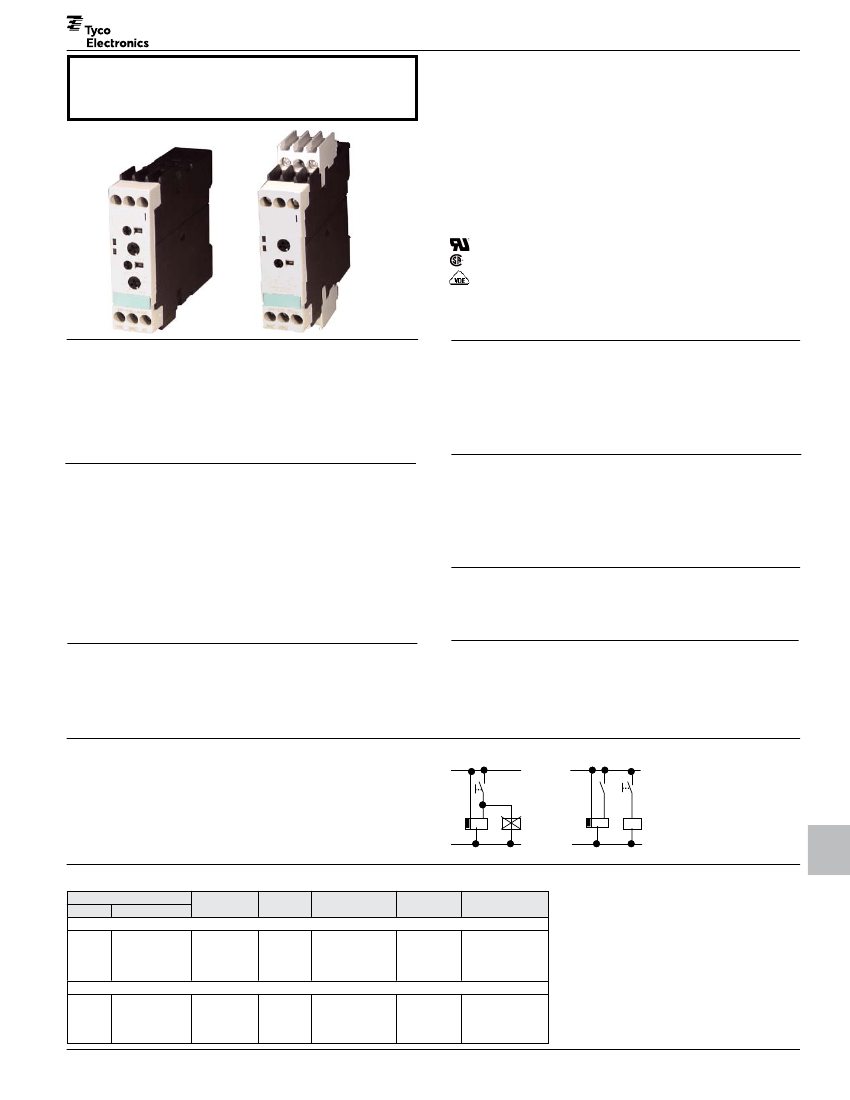

Multifunction Solid State DIN Mount

Time Delay Relay

• Available as SPDT or DPDT

• 15 time setting ranges

• .05s - 100hr programmable timing range

• Universal 24-240 VAC/VDC or fixed input types.

• 3A switching current rating

• Fits 35mm DIN track

• Single function, Delay-On available

Users should thoroughly review the technical data before selecting a product

part number. It is recommended that user also seek out the pertinent approvals

files of the agencies/laboratories and review them to ensure the product meets

the requirements for a given application.

Standards and Specifications

• IEC 721-3-3 "Ambient conditions"

• IEC 61812-1/DIN VDE 0435 Part 2021 "Solid State Relays, Time Relays"

• IEC 1000 "electromagnetic compatibility"

• IEC 947-5-1: DIN VDE 0660 Part 200 "Low-voltage control circuit devices"

Contact Data @ 25°C

Arrangements:

1 Form C (SPDT).

2 Form C (DPDT)

Material: Silver tin oxide.

Rating:

3A @ 250VAC.

Switching Frequency: 2,500 ops./hour.

Electrical Life: 200,000 operations min. at rated load.

Mechanical Life: 30 x 10

operations.

Timing Specifications

Timing Ranges:

0.05 to 1 / 0.15 to 3 / 0.5 to 10 / 1.5 to 30 / 5 to 100 sec.;

0.05 to 1 / 0.15 to 3 / 0.5 to 10 / 1.5 to 30 / 5 to 100 min.;

0.05 to 1 / 0.15 to 3 / 0.5 to 10 / 1.5 to 30 / 5 to 100 hr.

Timing Adjustment: Potentiometer adjustable within selected range.

Tolerance:

±5% of full scale value.

Reset Time:

150 ms.

Minimum On Period: 35 msec.

Repeatability: ± 1%.

Input Data @ 25°C

Voltage: Universal Input Type:

24 - 240V, 50/60 Hz. AC or DC.

Fixed Input Type:

24, 100-127, 200-240AC; 24VDC.

Operating Range: AC: 85 to 110%.

DC: 80 to 125%.

Power Requirement:

Universal Input Type: AC:

6VA.

DC: 2W.

Environmental Data

Temperature Range: Storage:

-40°C to +80°C.

Operating:

-25°C to +60°C.

Protection Category:

IP 20 according to EN 60529.

Timing Modes

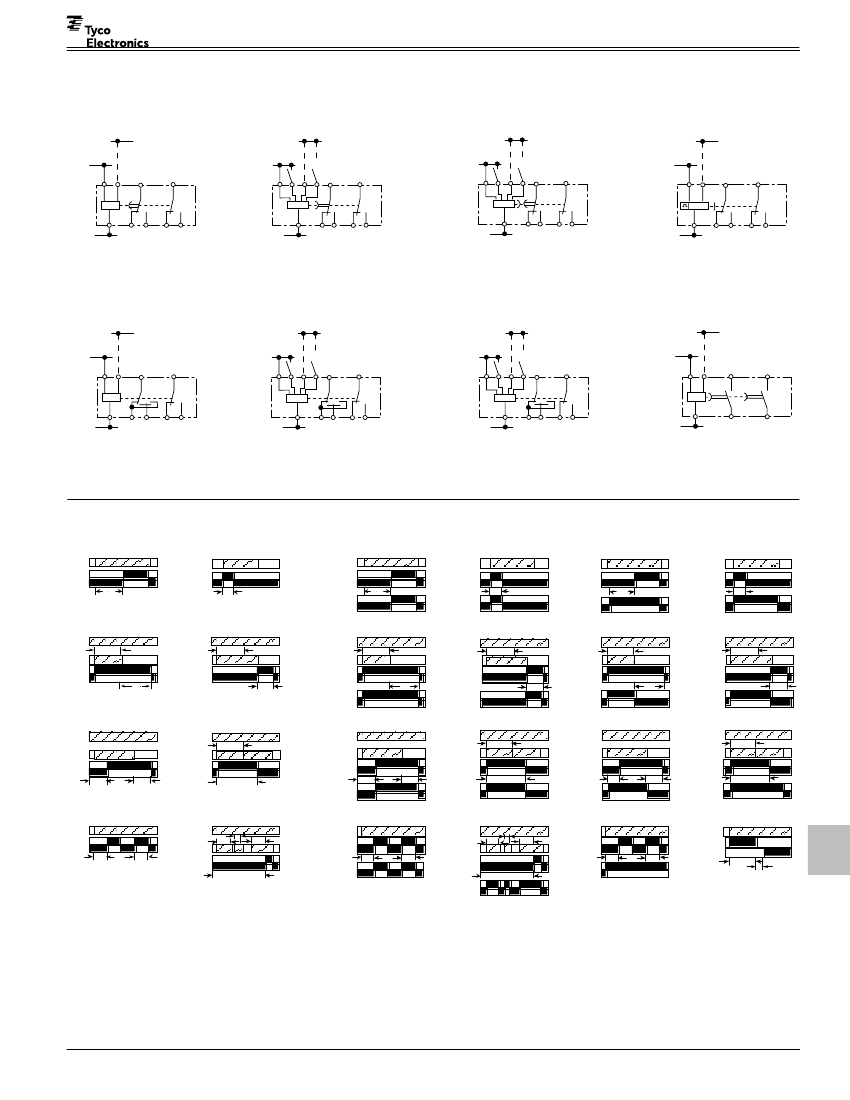

See the following page for a description of timing modes.

Mechanical Data

Termination: Screw terminal.

Enclosure:

Plastic DIN case.

Mounting:

35mm DIN track.

Weight: (3RP1505) 5.29 oz. (150g) approximately.

(3RP1525) 3.88 oz. (110g) approximately.

Configuring

• Changing the timer range and their functions will only be effective when

they are carried out in a voltage-free state.

• Trigger input B1 or B3 must only be started when the supply voltage is

applied.

• The same potential must be applied to A1 and B1, or A3 and B3. With the

two-voltage design, only one voltage range must be connected.

• The triggering of the load paralleled to the start input is not permissible

when using AC (see adjacent diagrams).

Ordering Information – Authorized distributors are more likely to stock boldface items listed below.

Input Voltage

3RP1505 Multifunction

24-240

24, 100-127

24, 200-240

24, 100-127

24-240

24, 100-127

24, 200-240

24, 100-127

24, 200-240

Fixed

Universal

Fixed

SPDT

DPDT

SPDT

DPDT

1 to 8

9 to 24

1 to 8

9 to 24

3RP15 05-1AQ30

3RP15 05-1AP30

3RP15 05-1BQ30

3RP15 05-1BW30

3RP15 25-1AQ30

3RP15 25-1AP30

3RP15 25-1BQ30

3RP15 25-1BP30

Specifications and availability

subject to change.

www.tycoelectronics.com

Technical support:

1207

Refer to inside back cover.

Input

Type

Contact

Arrang.

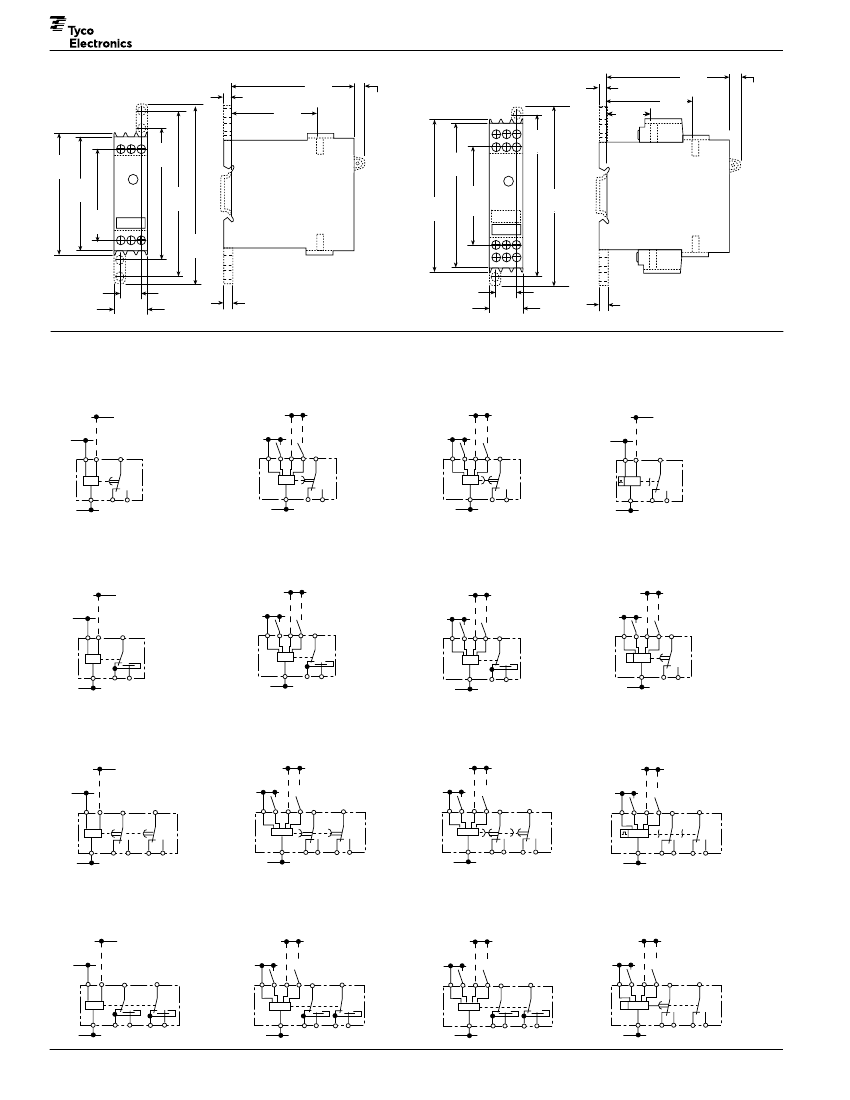

Wiring

Diagram

Functions

Part

Number

3RP1525 Delay On

Dimensions are shown for

reference purposes only.

Dimensions are in inches over

(millimeters) unless otherwise

specified.
