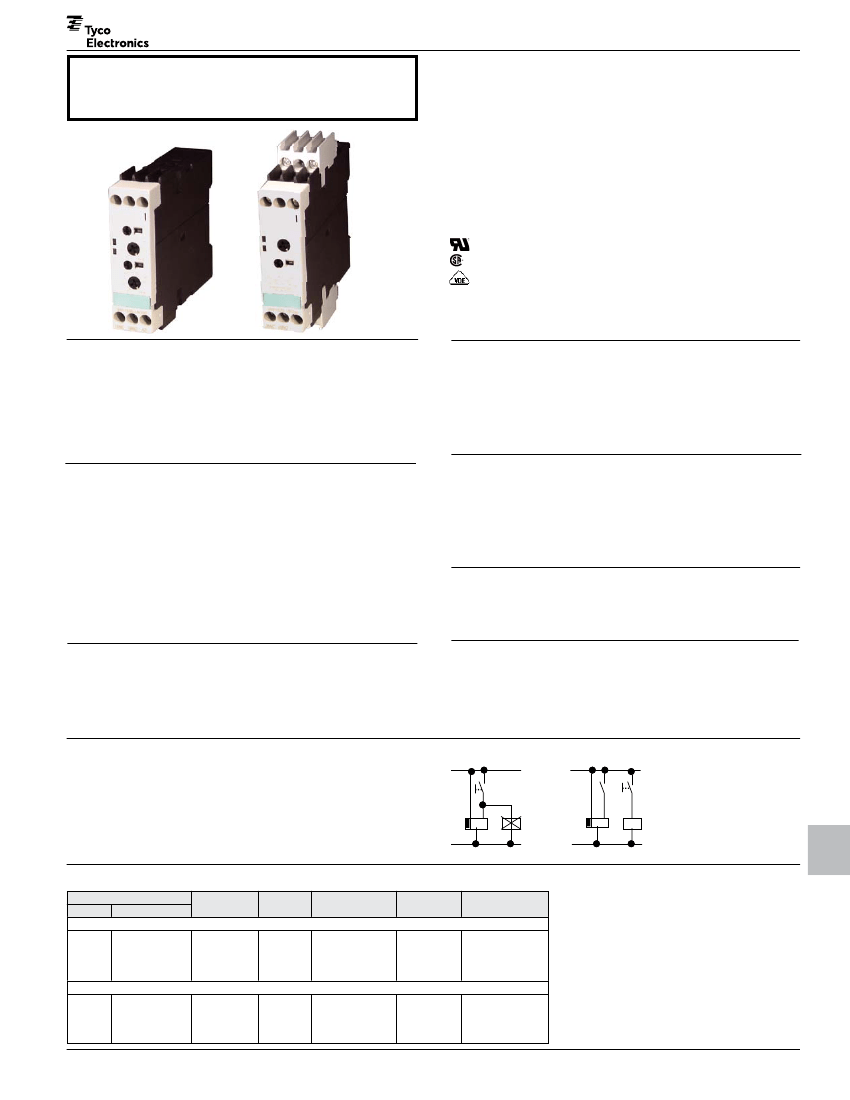

3RP1
series
Multifunction Solid State DIN Mount
Time Delay Relay
• Available as SPDT or DPDT
• 15 time setting ranges
• .05s - 100hr programmable timing range
• Universal 24-240 VAC/VDC or fixed input types.
• 3A switching current rating
• Fits 35mm DIN track
• Single function, Delay-On available
Users should thoroughly review the technical data before selecting a product
part number. It is recommended that user also seek out the pertinent approvals
files of the agencies/laboratories and review them to ensure the product meets
the requirements for a given application.
Standards and Specifications
• IEC 721-3-3 "Ambient conditions"
• IEC 61812-1/DIN VDE 0435 Part 2021 "Solid State Relays, Time Relays"
• IEC 1000 "electromagnetic compatibility"
• IEC 947-5-1: DIN VDE 0660 Part 200 "Low-voltage control circuit devices"
Contact Data @ 25°C
Arrangements:
1 Form C (SPDT).
2 Form C (DPDT)
Material: Silver tin oxide.
Rating:
3A @ 250VAC.
Switching Frequency: 2,500 ops./hour.
Electrical Life: 200,000 operations min. at rated load.
Mechanical Life: 30 x 10
6
operations.
Timing Specifications
Timing Ranges:
0.05 to 1 / 0.15 to 3 / 0.5 to 10 / 1.5 to 30 / 5 to 100 sec.;
0.05 to 1 / 0.15 to 3 / 0.5 to 10 / 1.5 to 30 / 5 to 100 min.;
0.05 to 1 / 0.15 to 3 / 0.5 to 10 / 1.5 to 30 / 5 to 100 hr.
Timing Adjustment: Potentiometer adjustable within selected range.
Tolerance:
±5% of full scale value.
Reset Time:
150 ms.
Minimum On Period: 35 msec.
Repeatability: ± 1%.
Input Data @ 25°C
Voltage: Universal Input Type:
24 - 240V, 50/60 Hz. AC or DC.
Fixed Input Type:
24, 100-127, 200-240AC; 24VDC.
Operating Range: AC: 85 to 110%.
DC: 80 to 125%.
Power Requirement:
Universal Input Type: AC:
6VA.
DC: 2W.
Environmental Data
Temperature Range: Storage:
-40°C to +80°C.
Operating:
-25°C to +60°C.
Protection Category:
IP 20 according to EN 60529.
Timing Modes
See the following page for a description of timing modes.
Mechanical Data
Termination: Screw terminal.
Enclosure:
Plastic DIN case.
Mounting:
35mm DIN track.
Weight: (3RP1505) 5.29 oz. (150g) approximately.
(3RP1525) 3.88 oz. (110g) approximately.
Configuring
• Changing the timer range and their functions will only be effective when
they are carried out in a voltage-free state.
• Trigger input B1 or B3 must only be started when the supply voltage is
applied.
• The same potential must be applied to A1 and B1, or A3 and B3. With the
two-voltage design, only one voltage range must be connected.
• The triggering of the load paralleled to the start input is not permissible
when using AC (see adjacent diagrams).
L1
S1
A1
K2
A2
N
B1
K1
A1
K2
N
L1
S1
B1
K1
S1
Ordering Information – Authorized distributors are more likely to stock boldface items listed below.
Input Voltage
DC
AC
3RP1505 Multifunction
24
24
24
24-240
24
24
24
24
24, 100-127
24, 200-240
24, 100-127
24-240
24, 100-127
24, 200-240
24, 100-127
24, 200-240
Fixed
Fixed
Fixed
Universal
Fixed
Fixed
Fixed
Fixed
SPDT
SPDT
DPDT
DPDT
SPDT
SPDT
DPDT
DPDT
1 to 8
1 to 8
9 to 24
9 to 24
1
1
9
9
1 to 8
1 to 8
9 to 24
9 to 24
1
1
9
9
3RP15 05-1AQ30
3RP15 05-1AP30
3RP15 05-1BQ30
3RP15 05-1BW30
3RP15 25-1AQ30
3RP15 25-1AP30
3RP15 25-1BQ30
3RP15 25-1BP30
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
1207
Refer to inside back cover.
Input
Type
Contact
Arrang.
Wiring
Diagram
Functions
Part
Number
3RP1525 Delay On
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Catalog 1308242
Issued 3-03 (PDF Rev. 9-09)

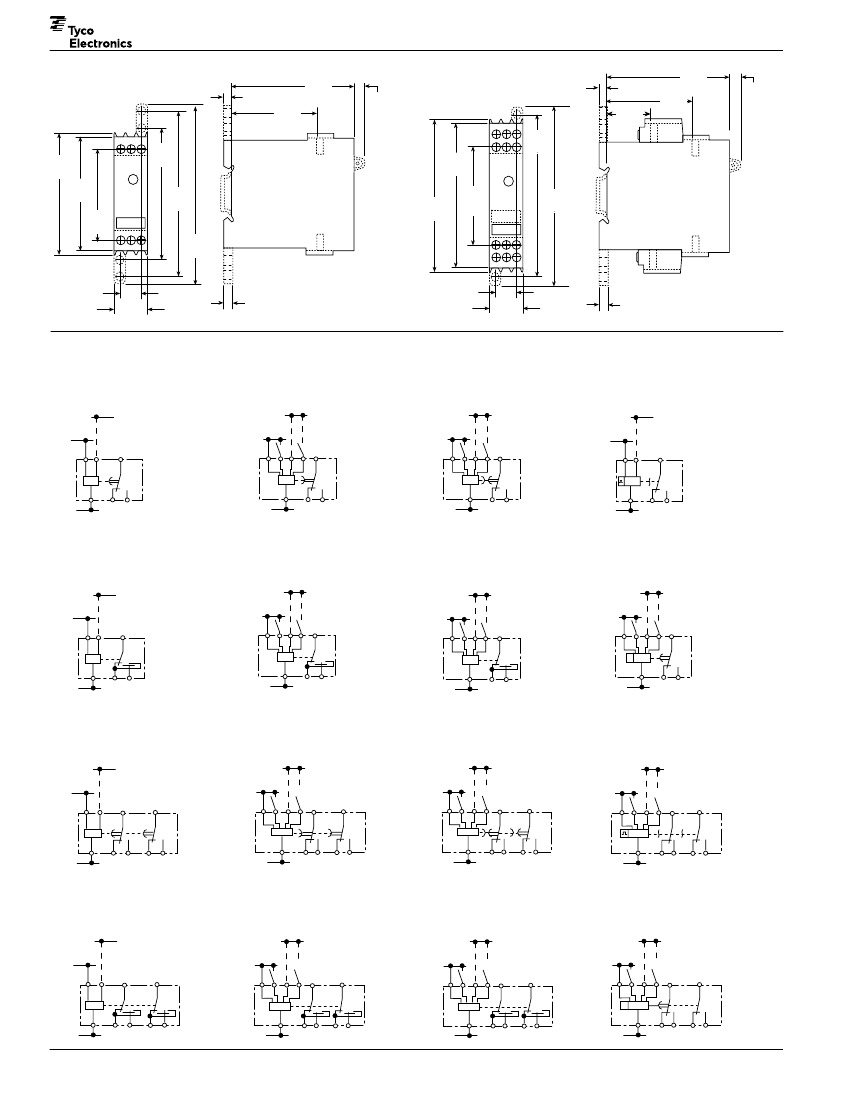

Outline Dimensions
3RP1505-1A, 3RP1525-1A
.19
(5.0)
2.36
(60.0)
3.39
(86.0)
3RP1505-1B, 3RP1525-1B
.31
(8.0)
4.33
(110.0)
3.23
(82.0)
2.44
(62.0)
4.72
(120.0)
.19
(5.0)
1.18
(30.0)
3.39
(86.0)
2.36
(60.0)
.31
(8.0)
3.23
(82.0)
2.99
(76.0)
2.44
(62.0)
3.54
(90.0)
4.33
(110.0)
4.02
(102.0)
4.72
(120.0)
.59
(15.0)
.886
(22.5)
.23
(6.0)
.59
(15.0)
.886
(22.5)
.23
(6.0)
Wiring Diagram
1. On-Delay
3RP1505-1A
3RP1525-1A
AC/DC 24V
AC100/127V
AC200/240V
2. Off-Delay
With Auxiliary Voltage
3RP1505-1A
3. On and Off Delay
With Auxiliary Voltage
3RP1505-1A
4. Flashing
3RP1505-1A
AC/DC 24V
AC100/127V
AC200/240V
AC/DC 24V
AC100/127V
AC200/240V
AC/DC 24V
AC100/127V
AC200/240V
A1 A3
A2
15
16 18
A1 B1 A3 B3 15
A2
16 18
A1 B1 A3 B3 15
A2
16 18
A1 A3
A2
15
16 18
5. Making-Pulse Contact
3RP1505-1A
3RP1525-1A
AC/DC 24V
AC100/127V
AC200/240V
6. Breaking-Pulse Contact
With Auxiliary Voltage
3RP1505-1A
AC/DC 24V
AC100/127V
AC200/240V
7. Pulse Forming
With Auxiliary Voltage
3RP1505-1A
8. Additive On-Delay With Auxiliary
Voltage and Instantaneous Contact
3RP1505-1A
AC/DC 24V
AC100/127V
AC200/240V
AC/DC 24V
AC100/127V
AC200/240V
A1 A3
A2
15
›
16 18
A1 B1A3 B3 15
A2
›
16 18
A1 B1A3 B3 15
A2
›
16 18
A1 B1 A3 B3 15
Σ
A2
16 18
9. On-Delay
3RP1505-1B
3RP1525-1B
AC/DC 24V
AC100/127V
AC200/240V
10. Off-Delay
With Auxiliary Voltage
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
11. On-and Off-Delay
With Auxiliary Voltage
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
12. Flashing
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
A1 A3
A2
15
16 18
25
26 28
A1 B1 A3 B3 15
A2
16 18
25
26 28
A1 B1 A3 B3 15
A2
16 18
25
26 28
A1 B1 A3 B3 15
A2
16 18
25
26 28
13. Making-Pulse Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
14. Breaking-Pulse Contact
With Auxiliary Voltage
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
15. Pulse Forming
With Auxiliary Voltage
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
16. Additive On-Delay With Auxiliary
Voltage and Instantaneous Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
A1 A3
A2
15
›
16 18
25
›
26 28
A1 B1 A3 B3 15
A2
16 18
›
25
26 28
›
A1 B1 A3 B3 15
A2
›
16 18
25
›
26 28
A1 B1 A3 B3 15
Σ
21
22 24
A2
16 18
1208
reference purposes only.
Dimensions are shown for
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
A1 A3
15
25
A1 B1 A3 B3 15
A2
16 18
›
25
›
t
Wiring
›
›
A2 16 18
26 28
Diagrams (continued)
26 28
Catalog 1308242
Issued 3-03 (PDF Rev. 9-09)
A1 B1 A3 B3 15
A2
›
16 18
25
›
26 28
A1 B1 A3 B3 15
Σ
21
22 24
A2
16 18
17. On-Delay and
Instantaneous Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
18. Off-Delay
With Auxiliary Voltage and
Instantaneous Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
19. On and Off Delay
With Auxiliary Voltage and
Instantaneous Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
20. Flashing and
Instantaneous Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
A1 A3
A2
15
16 18
21
22 24
A1 B1 A3 B3 15
A2
16 18
21
22 24
A1 B1 A3 B3 15
A2
16 18
21
22 24
A1 A3
A2
15
16 18
21
22 24
21. Making-Pulse Contact and
Instantaneous Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
22. Breaking-Pulse Contact
With Auxiliary Voltage and
Instantaneous Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
23. Pulse Forming With
Auxiliary Voltage and
Instantaneous Contact
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
24. Star-Delta Function
3RP1505-1B
AC/DC 24V
AC100/127V
AC200/240V
A1 A3
A2
15
›
16 18
21
22 24
A1 B1 A3 B3 15
A2
16 18
›
21
22 24
A1 B1 A3 B3 15
A2
›
16 18
21
22 24
A1 A3
A2
17
Y18
27
∇
28

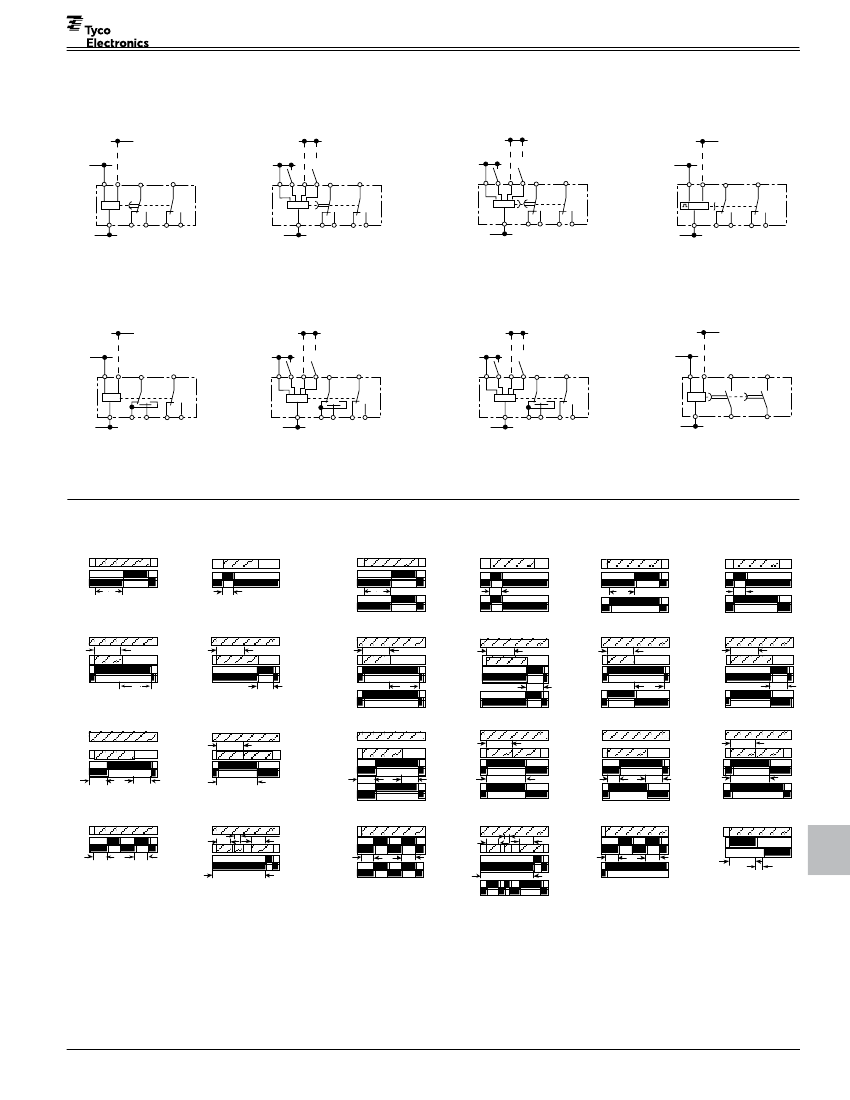

Timing Function Descriptions and Settings
3RP1505-1A
1. On Delay
A./A2
15/18
15/16
t
3RP1505-1B
5. Impulse On
A./A2
15/1 8
15/1 6
t
9. On Delay
A./A2
15/18
15/16
25/28
25/26
t
13. Impulse On
A./A2
15/18
15/16
25/28
25/26
t
17. On Delay
A./A2
15/18
15/16
21/24
21/22
t
21. Impulse On
A./A2
15/18
15/16
21/24
21/22
t
2. Off Delay
A./A2
B./A2
15/18
15/16
_
> 35ms
6. Impulse Off
A./A2
B./A2
15/18
15/16
> 35ms
_
10. Off Delay
A./A2
B./A2
15/18
15/16
25/28
25/26
_
> 35ms
14. Impulse Off
A./A2
B./A2
15/18
15/16
25/28
25/26
_
> 35ms
18. Off Delay
A./A2
B./A2
15/18
15/16
21/24
21/22
> 35ms
_
22. Impulse Off
A./A2
B./A2
15/18
15/16
21/24
21/22
> 35ms
_
t
t
t
t
t
t
3. On/Off Delay
A./A2
B./A2
15/1 8
15/1 6
t
7. Pulse Shaping
A./A2
B./A2
15/18
15/16
t
_
> 35ms
11. On/Off Delay
A./A2
B./A2
15/18
15/16
25/28
25/26
t
15. Pulse Shaping
A./A2
B./A2
15/18
15/16
25/28
25/26
> 35ms
_
19. On/Off Delay
A./A2
B./A2
15/18
15/16
21/24
21/22
23. Pulse Shaping
A./A2
B./A2
15/18
15/16
21/24
21/22
> 35ms
_
t
t
t
t
t
t
4. Flasher
A./A2
15/18
15/16
8. Cumulative On Delay
A./A2
t
1
B./A2
15/18
15/16
t
3
t
2
12. Flasher
A./A2
15/18
15/16
25/28
25/26
16. Cumulative On Delay 20. Flasher
A./A2
t
1
B./A2
15/18
15/16
22/24
21/22
t
3
t
2
A./A2
15/18
15/16
21/24
21/22
t
24. Star/Delta
A./A2
17/18
27/28
t
t
t
t
t
Σt
Σt
50ms
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
1209
Refer to inside back cover.
