LRGSCK221-R-S-B-0/125N datasheet, PDF

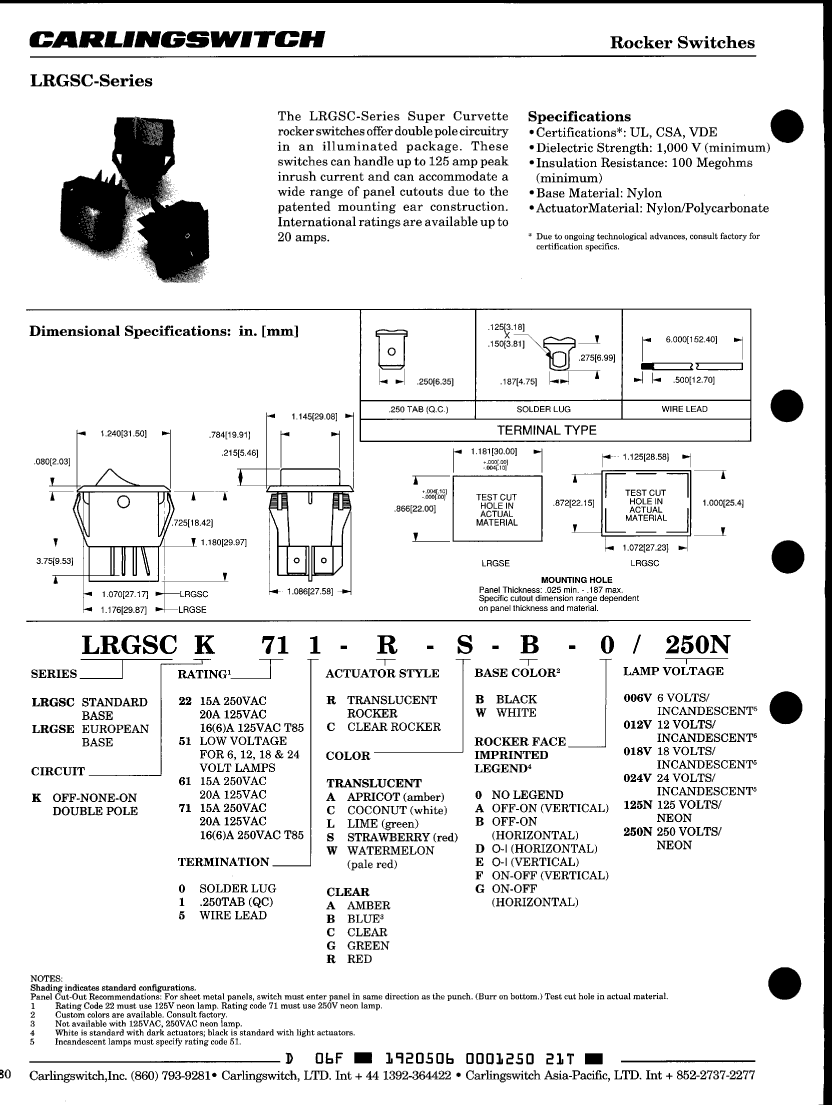

LRGSCK221-R-S-B-0/125N: DescriptionRocker Switch, DPDT, On-off, Horizontal, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size109KB，1 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric Compare View All

LRGSCK221-R-S-B-0/125N Overview

Rocker Switch, DPDT, On-off, Horizontal, Quick Connect Terminal, Rocker Actuator, Panel Mount

Parameter Name	Attribute value
Maker	Carling Technologies
Reach Compliance Code	compli
Actuator color	RED
Actuator length	0.295 inch
Actuator type	ROCKER
Other features	NO LEGEND
body width	27.5844 mm
Body color	BLACK
body height	29.972 mm
Body length or diameter	27.178 mm
Contact (AC) maximum rated load M	6A@125VAC
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Contact function	ON-OFF
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VDC V
illumination	LAMP
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	LRGSC
Installation features	PANEL MOUNT
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Switch type	ROCKER SWITCH
Terminal length
Termination type	QUICK CONNECT

	LRGSCK221-R-S-B-0/125N	LRGSCK711-R-A-B-0/250N
Description	Rocker Switch, DPDT, On-off, Horizontal, Quick Connect Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, On-off, Horizontal, Quick Connect Terminal, Rocker Actuator, Panel Mount
Reach Compliance Code	compli	compliant
Actuator color	RED	AMBER
Actuator length	0.295 inch	0.295 inch
Actuator type	ROCKER	ROCKER
Other features	NO LEGEND	NO LEGEND
body width	27.5844 mm	27.5844 mm
Body color	BLACK	BLACK
body height	29.972 mm	29.972 mm
Body length or diameter	27.178 mm	27.178 mm
Contact (AC) maximum rated load M	6A@125VAC	6A@250VAC
Contact (AC) maximum rated R load	15A@250VAC	15A@250VAC
Maximum contact current (AC)	15 A	15 A
Contact function	ON-OFF	ON-OFF
Maximum contact voltage (AC)	250 V	250 V
Dielectric withstand voltage	1000VDC V	1000VDC V
illumination	LAMP	LAMP
Insulation resistance	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON
Manufacturer's serial number	LRGSC	LRGSC
Installation features	PANEL MOUNT	PANEL MOUNT
surface mount	NO	NO
Switch action	HORIZONTAL	HORIZONTAL
switch function	DPDT	DPDT
Switch type	ROCKER SWITCH	ROCKER SWITCH
Termination type	QUICK CONNECT	QUICK CONNECT
