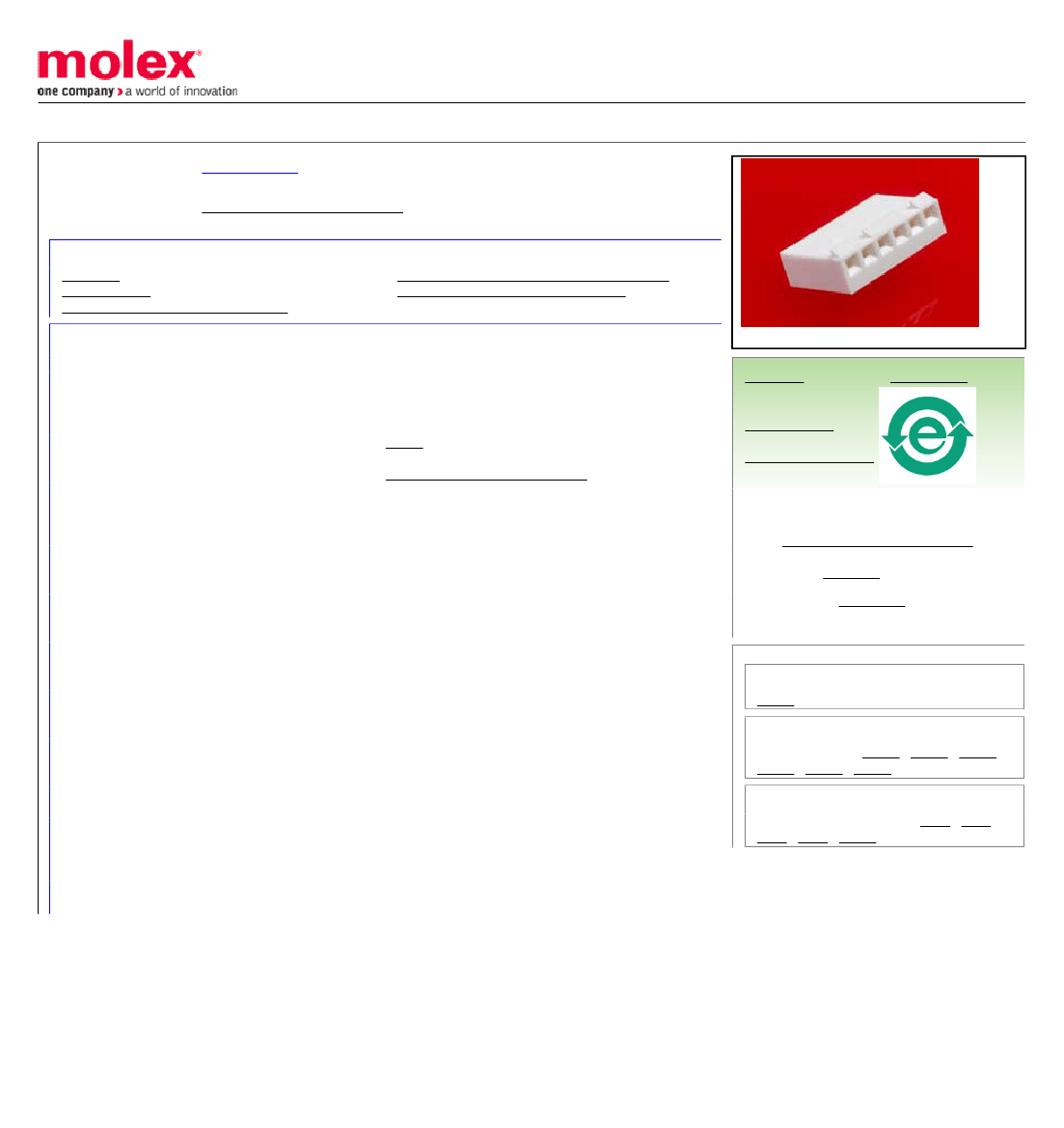

This document was generated on 10/07/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
09-50-8020
Active
KK® Interconnect System - Molex
KK® 3.96mm Crimp Terminal Housing, 2 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-08-50 (PDF)
Packaging Specification PK-41695-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Application
Overview
Product Name
UPC
Crimp Housings
41695
Power, Wire-to-Board
KK® Interconnect System - Molex
KK® 396
800754227568
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Temperature Range - Operating
No
2
Natural
94V-0
Female
No
None
None
Polyester
0.667/g
1
Bag
No
3.96mm
See Product Specification
Search Parts in this Series
41695Series
Mates With
KK® 396 Header 41791 , 41792 , 41671 ,
41672 , 41661 , 41662
Use With
KK® 396 Crimp Terminals, 2478 , 2578 ,
6838 , 7258 , 45570
Material Info
Old Part Number
41695-N-A02
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-41695-001
PS-08-50
SD-41695
This document was generated on 10/07/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
