42023-2A2L

Description
BRASS, TIN FINISH, WIRE TERMINAL
CategoryThe connector    Connector bracket
File Size153KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

42023-2A2L Overview

BRASS, TIN FINISH, WIRE TERMINAL

42023-2A2L Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresMATING: GOLD OVER NICKEL (50), TERMINATION: TIN (100) OVER NICKEL (50)
Assembly nameCONTACT
Maximum number of cable entries0.0051 inch
Minimum cable entry0.0023 inch
Connector bracket typeCONNECTOR ACCESSORY
Contactor designLOOSE
Contact point genderMALE
DIN complianceNO
Finished thickness30
IEC complianceNO
MIL complianceNO
MaterialBRASS
Installation methodSTRAIGHT
Terminal length20 inch
Terminal typeCRIMP
used for42021, 42022
Minimum wire diameter14 AWG
Base Number Matches1

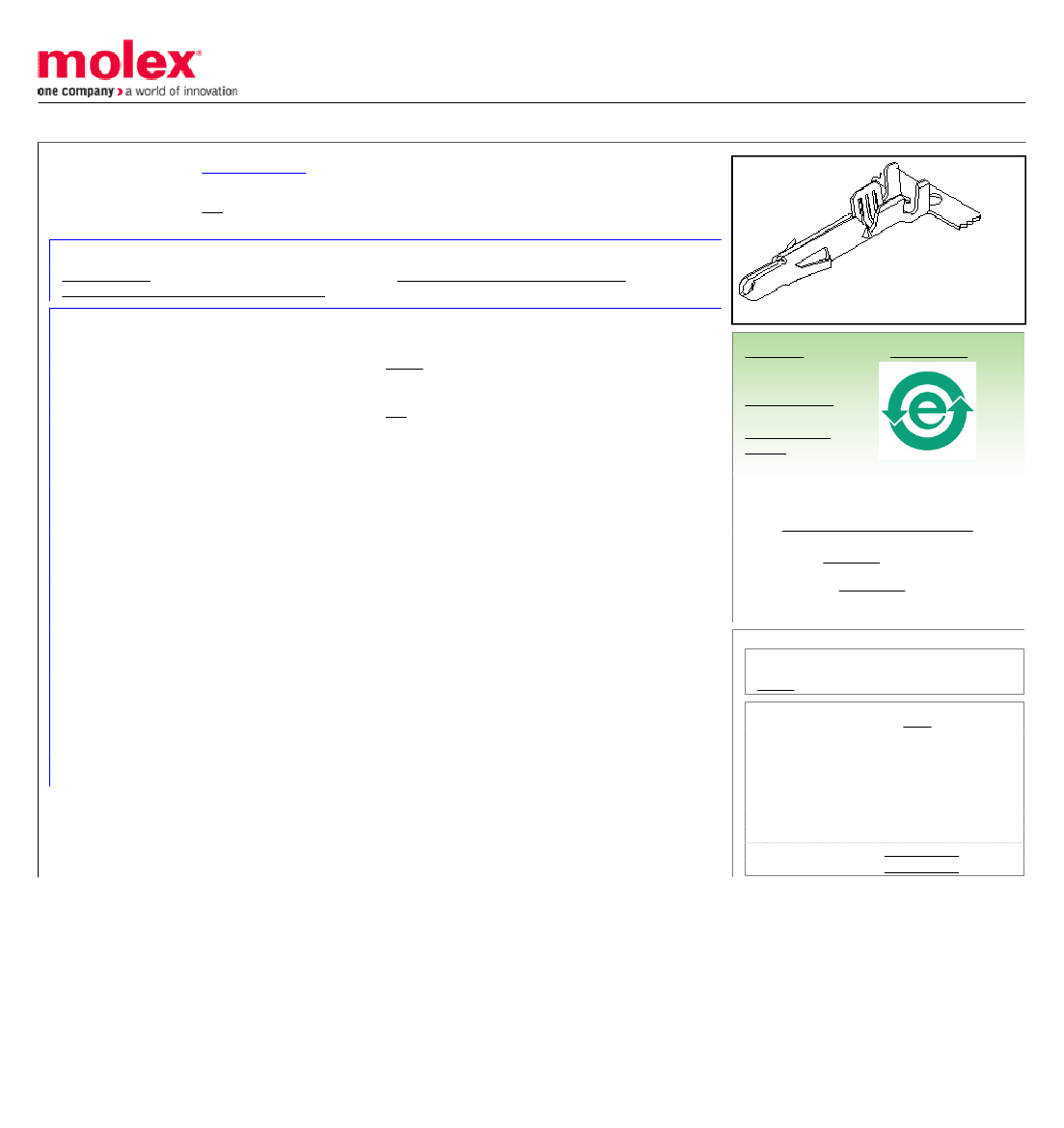

This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0002082004
Active
mlx
MLX Crimp Terminal 42023, 14-20 AWG, Bag Tin (Sn)
Documents:

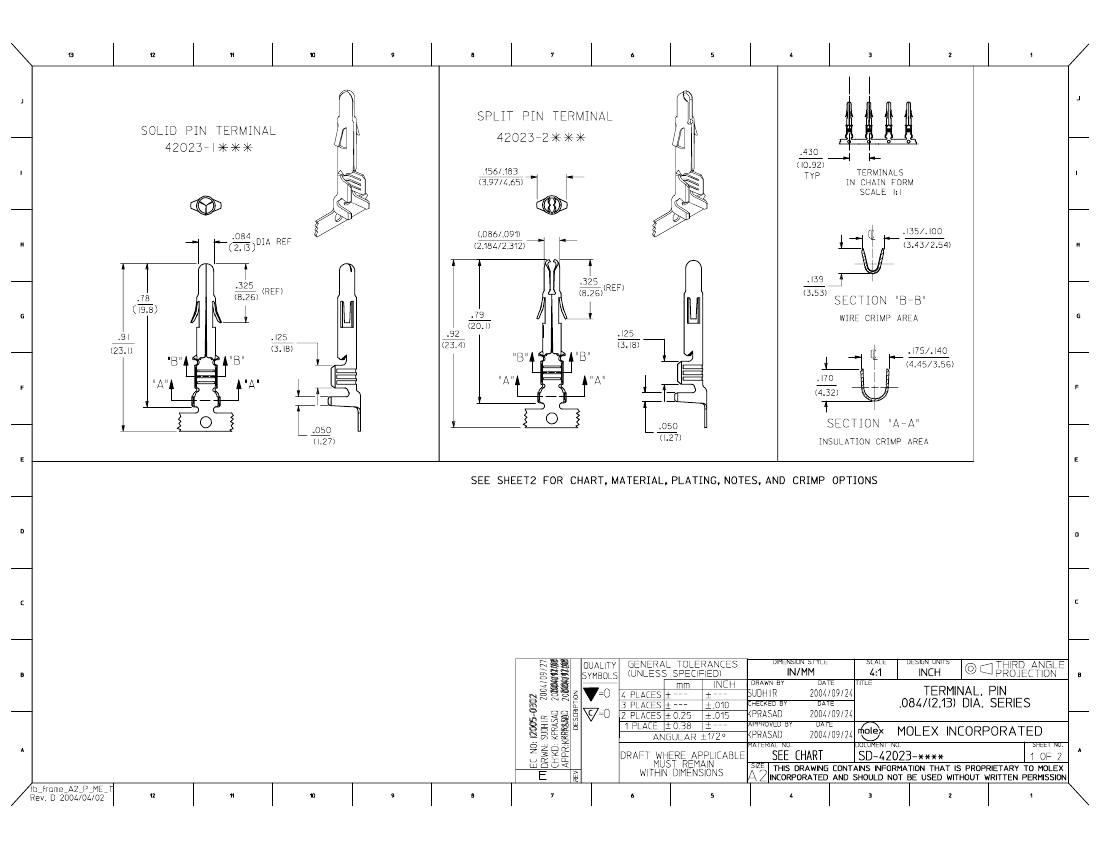

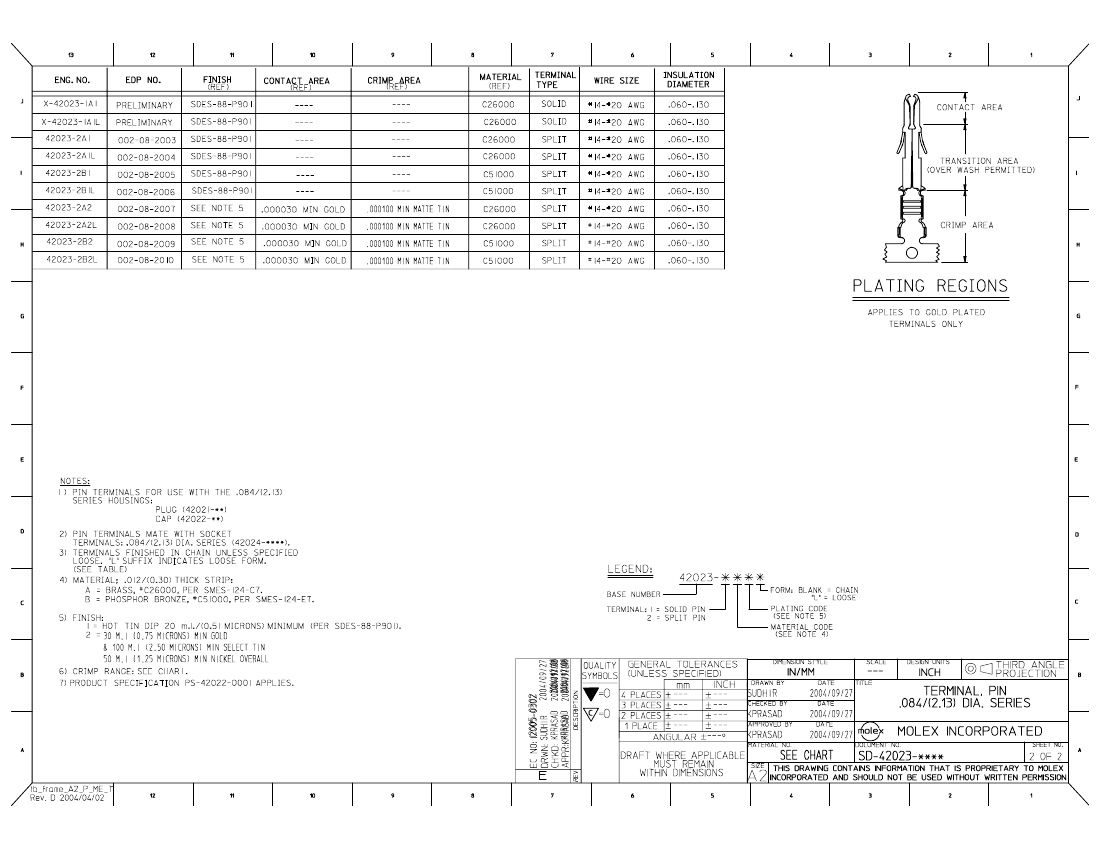

Drawing (PDF)
Product Specification PS-42022-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Crimp Quality Equipment
MolexKits
Overview
Product Name
Crimp Terminals
42023
Yes
Yes
mlx
MLX™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Male
Brass
Tin
Tin
Bag
20
0.50
20
0.50
Crimp or Compression
1.52-3.30mm (.060-.130")
14, 16, 18, 20
N/A
Material Info
Old Part Number
42023-2A1L
Search Parts in this Series
42023Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Extraction Tool
0011010168
HAND CRIMP TOOL 0638116800
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-42022-0001
SD-42023-****
This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
