CPS057-2N2324-WN

Description
Silicon Controlled Rectifier
CategoryAnalog mixed-signal IC    Trigger device
File Size268KB,2 Pages
ManufacturerCentral Semiconductor
Download Datasheet Parametric View All

CPS057-2N2324-WN Overview

Silicon Controlled Rectifier

CPS057-2N2324-WN Parametric

Parameter NameAttribute value
MakerCentral Semiconductor
Reach Compliance Codecompli
PROCESS
CPS057
Silicon Controlled Rectifier
Sensitive Gate SCR Chip
PROCESS DETAILS
Process
Die Size
Die Thickness
Cathode Bonding Pad Area
Gate Bonding Pad Area
Top Side Metalization
Back Side Metalization
GEOMETRY
GROSS DIE PER 4 INCH WAFER
3,374
PRINCIPAL DEVICE TYPES
CS39-4D
2N2323 thru 2N2329
CS223-4M
GLASS PASSIVATED MESA
57 x 57 MILS
8.7 MILS ± 0.6 MILS
24 x 14 MILS
7.9 x 7.9 MILS
Al - 45,000Å
Al/Mo/Ni/Ag - 20,000Å/5,000Å/5,000Å/2,000Å
BACKSIDE ANODE

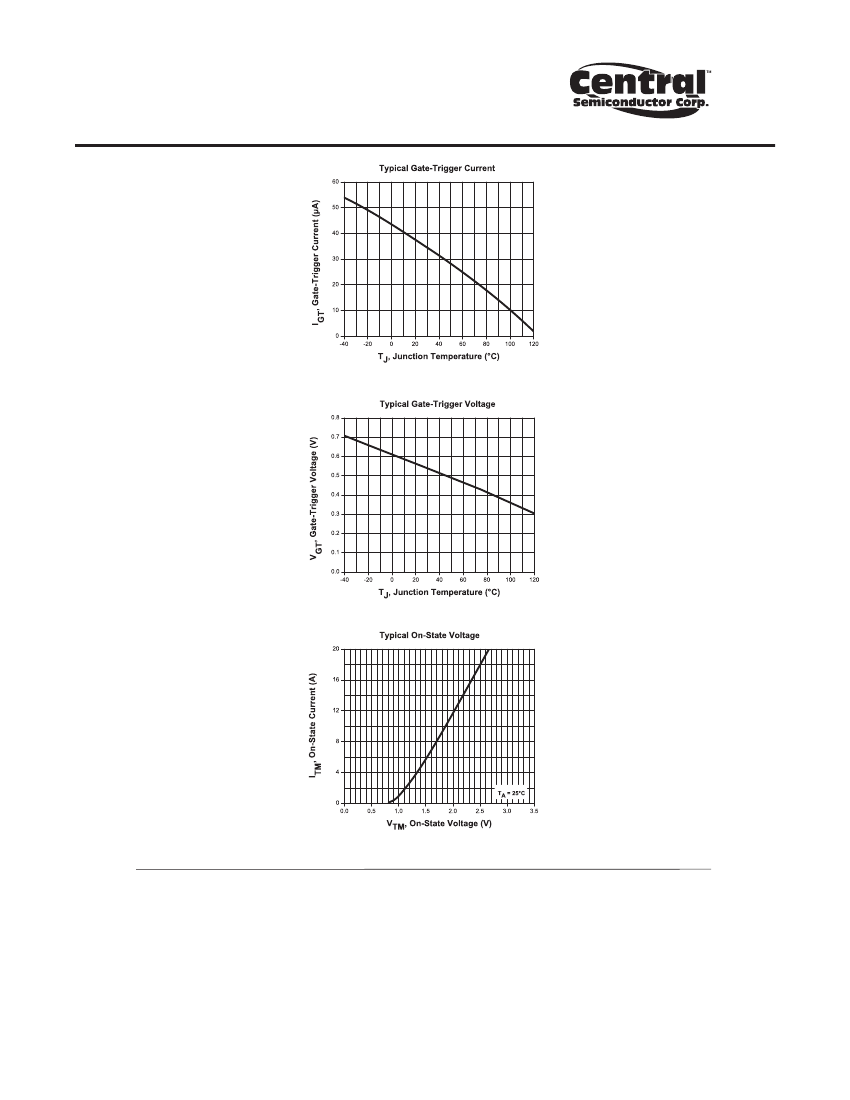

R3 (22-March 2010)
w w w. c e n t r a l s e m i . c o m
