B067-1224-007-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B067-1224-007-Z

B067-1224-007-Z: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size569KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B067-1224-007-Z Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug

B067-1224-007-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
Board mount options	LOCATING POSTS
body width	0.37 inch
subject depth	0.197 inch
body length	0.48 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B067
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.5024 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	12

Preview

Download Datasheet

View All

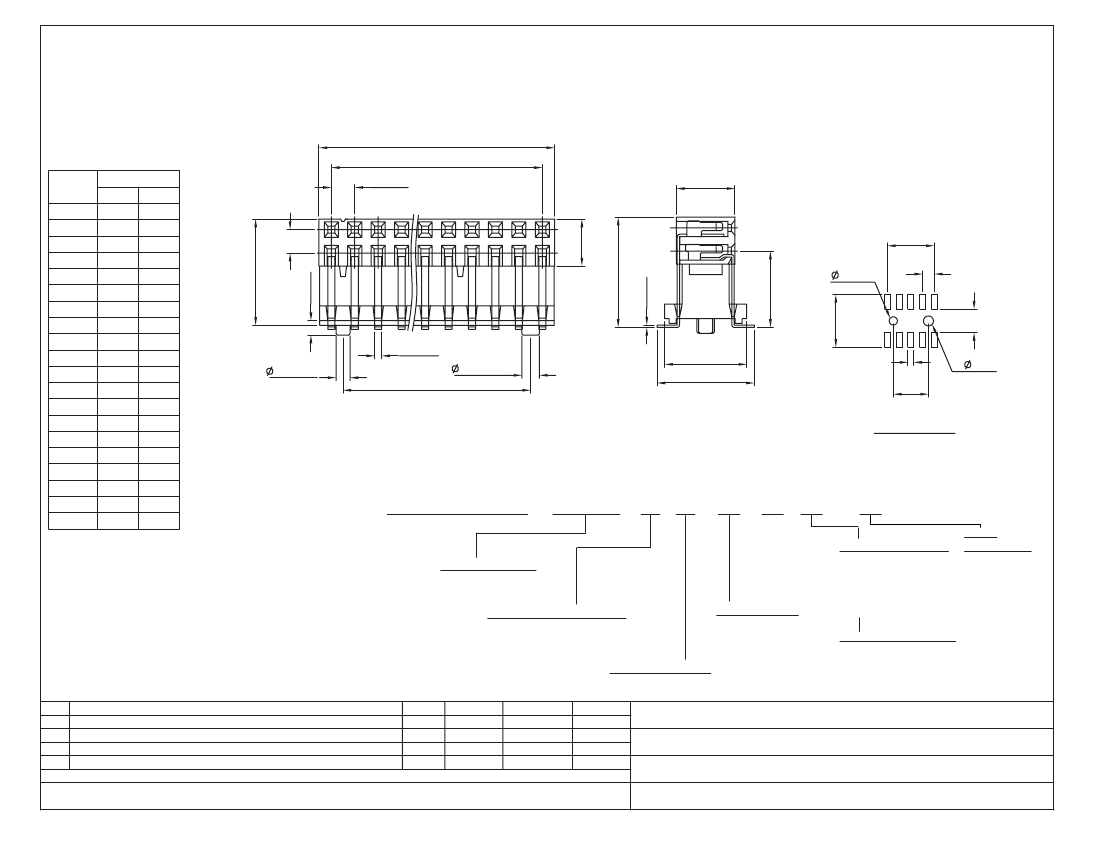

B±0.20

A±0.10

No. of

Contacts

DIMENSIONS

10.00

12.00

14.00

16.00

18.00

20.00

22.00

24.00

26.00

28.00

30.00

32.00

34.00

36.00

38.00

40.00

42.00

44.00

46.00

48.00

12.20

14.20

18.20

20.20

22.20

24.20

26.20

28.20

30.20

32.20

34.20

36.20

38.20

40.20

42.20

44.20

46.20

48.20

50.20

2.00±0.05

5.0±0.20

2.00±0.05

9.05±0.15

9.40±0.20

16.20

4.00

0.20±0.02

1.40

2.00

1.25±0.10

6.50

0.60±0.05

1.20±0.05

1.50±0.05

A-2.0±0.10

7.00±0.15

8.30±0.40

9.00

1.00

A-2.00

P.C.B. LAYOUT

1.70

HOW TO ORDER:

ELECTRICAL:

CURRENT: 1A

# OF CONTACTS:

CONTACT RESISTANCE: 20mΩ Max.

12 thru 50

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC For 1 MIN.

CONTACT TAIL OPTIONS:

OPERATING TEMPERATURE: -40°C to +105°C

2 - SURFACE MOUNT w/POST

MAX PROCESSING TEMPERATURE: 230° For 30 ~ 60 Sec. (260° For 10 Sec.)

BODY HEIGHT:

0 - STANDARD

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

RoHS

COMPLIANT

MATERIAL:

INSULATOR: Polyester, UL 94V-0 ; Nylon-6T

CONTACT: Phosphor Bronze

CONTACT PLATING: Full Gold, Full Tin, Selective Plating

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/- 5°

UNIT: mm

Drawn Checked

S.M.

A.M.

B.S.

S.M.

HOUSING OPTION:

4 - ELEVATED SIDE ENTRY

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Date

Appproved

S.M.

08/08/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

Receptacle Assembly, 2.00mm Pitch, Double Row, Surface Mount

Side Entry, w/Mounting Post, Elevated Style

SERIES: B067

4.00

Pg: 1
