HL21-0610-0160-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HL21-0610-0160-Z

Preview

HL21-0610-0160-Z: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size362KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

HL21-0610-0160-Z Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Solder Terminal, Receptacle

HL21-0610-0160-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.126 inch
subject depth	0.039 inch
body length	0.093 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	HL
Plug contact pitch	0.031 inch
Match contact row spacing	0.047 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.1938 mm
Plating thickness	FLASH inch
Rated current (signal)	0.75 A
reliability	COMMERCIAL
Terminal length	0.062 inch
Terminal pitch	0.7874 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

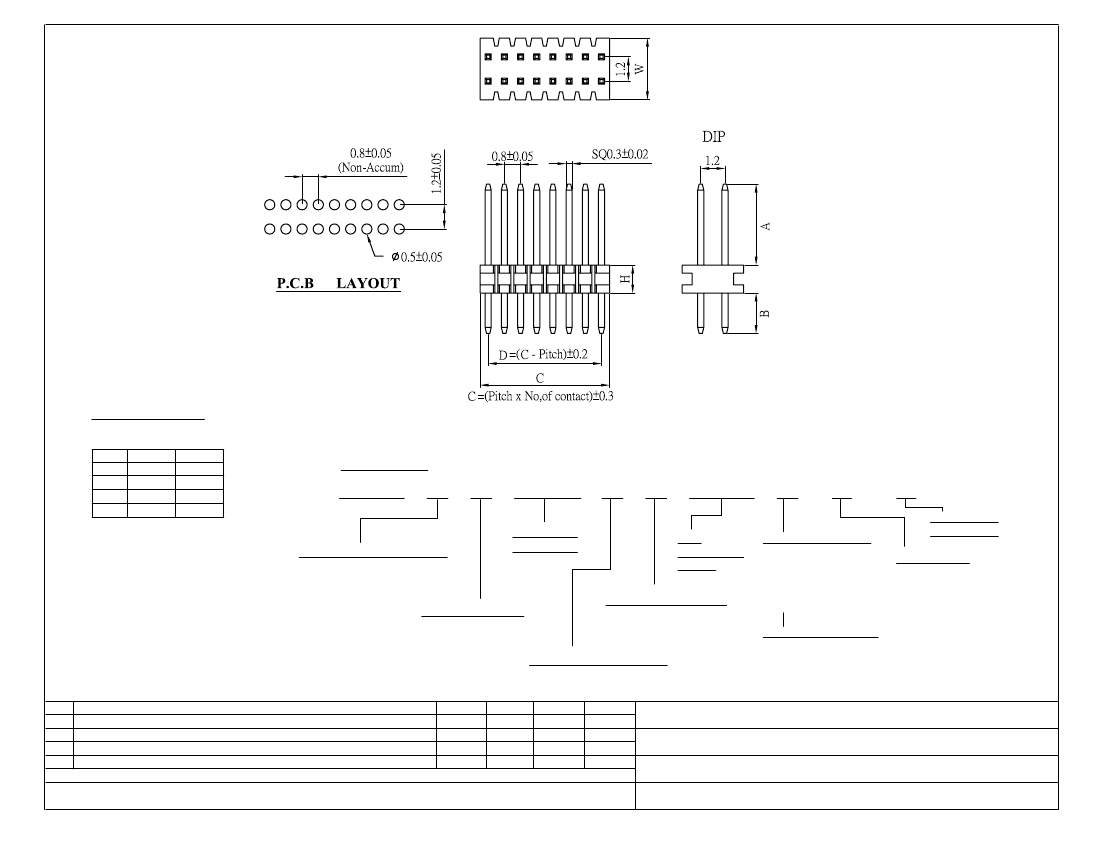

DOUBLE INSULATOR

0.8 x 1.2mm Insulator Thickness

DIMENSION TABLE

A

B

01

1.90

1.57

02

4.45

1.57

03

3.05

1.57

04

2.80

2.00

HOW TO ORDER:

H

L

2

1

-

X

1

0

-

X

-

Z

NUMBER OF ROWS:

2 - DOUBLE ROW -

0.3mm SQ. POST, Thru Hole

SPECIFICATIONS:

CURRENT RATING: 0.75A @ 80°C AMBIENT

OPERATING TEMP RANGE: -65°C TO +125°C

INSULATOR MATERIAL: NYLON-6T

CONTACT MATERIAL: PHOSPHOR BRONZE

MAX PROCESSING TEMP: 260°C FOR 10 SECONDS

Rev

0

Issued

NUMBER OF

CONTACTS:

02-100

A0 = 100

SEE

DIMENSION

TABLE

MOUNTING OPTIONS:

0 - WITHOUT PCB MTG. PEG

INSULATOR TYPE:

1 - SINGLE INSULATOR

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

RoHS

COMPLIANT

PACKAGING:

0 - TRAY

3 - TUBE W/OUT CAP

INSULATOR THICKNESS:

1 - 1.0(H) X 3.2 (W)

Drawn Checked Approved

Date

S.M.

S.M. 08/23/06

WHS

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

Pin Header, 0.8mm x 1.2mm, Dual Row 02-100 Contacts,

SCALE

TOL. DEC.

N/A

Single Insulator, Straight, Thru Hole

.X +/- 0.2

.XX +/-

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: H L 2 1 - X X 1 0 - X X X X - Z

Pg: 1
