Standard Products
Advanced
RadHard-by-Design
RHD5931 Digital-to-Analog Converter
11-Bit Buffered Output
www.aeroflex.com/RHDseries
March 8, 2011
FEATURES
❑
Radiation performance
- Total dose:
- ELDRS Immune
- SEL Immune:
- Neutron Displacement Damage:
11-Bit DAC
Buffered Output
>1Mrad(Si), Dose rate = 50 - 300 rads(Si)/s
>100 MeV-cm
2
/mg
>10
14
neutrons/cm
2
❑
❑
❑
❑
❑
❑
❑
❑
❑
VCC PREF
Unity Gain
Buffer
D10:D00
11-Bit
D-to-A
AOUT
Single power supply operation at +3.3V to +5V
Low Power
Full 4-quadrant multiplying DAC
CMOS/TTL inputs
Full military temperature range
Designed for aerospace and high reliability space applications
Packaging – Hermetic ceramic SOIC
- 16 leads, 0.3"W x 0.4"L x 0.12Ht SOIC
- Typical Weight 1.2 grams
DSCC SMD 5962-11208 pending
GND NREF

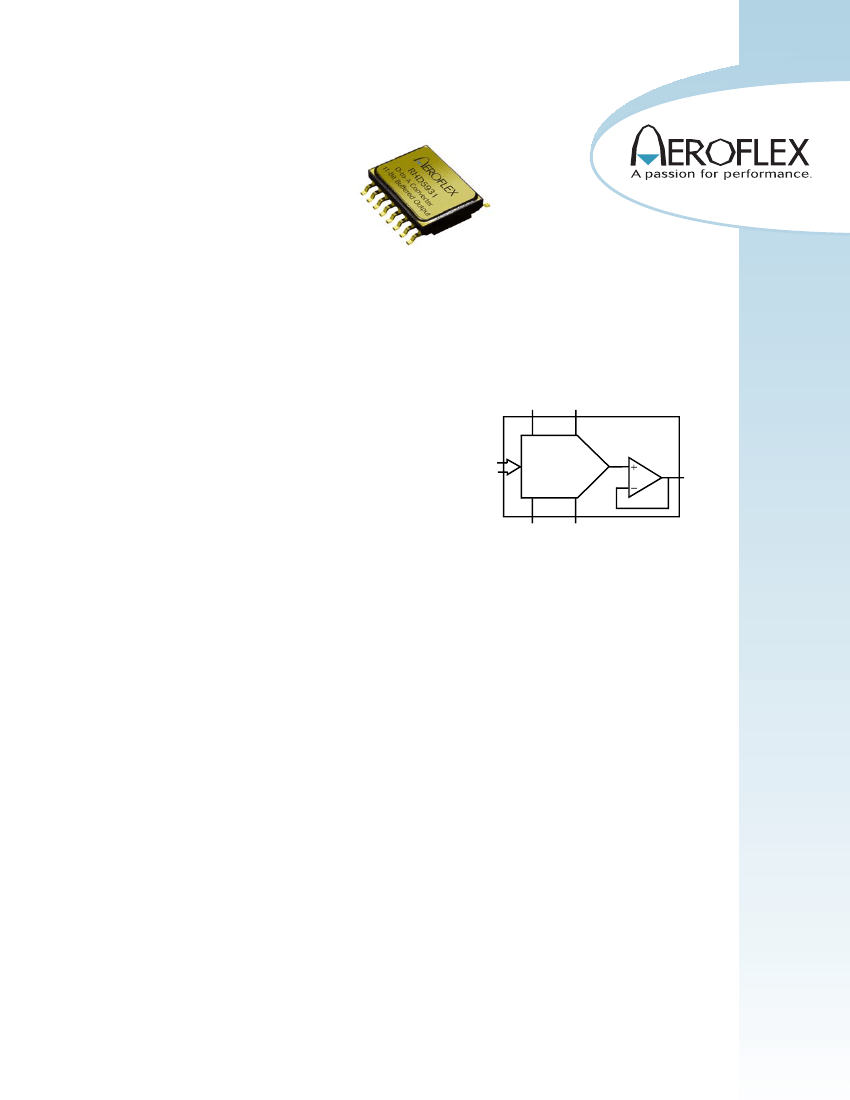

SCHEMATIC SYMBOL
❑
GENERAL DESCRIPTION
The Aeroflex 11-Bit DAC is a standard CMOS R/2R Kelvin resistor network with a buffered output. The
digital inputs, D10
(MSB)
through D00
(LSB)
, are buffered to drive single-pole double-throw CMOS switches
to apply either the PREF or NREF signals to the 2R legs of the resistor network.
PREF and NREF inputs can be any static or dynamic voltage within the power supply range. The nominal
values or R and 2R are 5K and 10K respectively. The characteristic impedance of the resistor network is
approximately 5K.
The voltage-output configuration of the integrated circuit can be thought of as a digitally controlled voltage
with a value of PREF-NREF with a high output impedance. The output will swing rail-to-rail if unloaded.
Applications include digital potentiometers, programmable voltage sources and a large variety of other
circuits that can be found in many industry references.
SCD5931 Rev A
Model Number
RHD5931-7
RHD5931-S
RHD5931-201-1S
RHD5931-201-2S
RHD5931-901-1S
RHD5931-901-2S
DSCC SMD #
Screening
Commercial Flow, +25°C testing only
Military Temperature, -55°C to +125°C
Screened in accordance with MIL-PRF-38534, Class K
Package
-
-
5962-1120802KXC
(Pending)
5962-1120802KXA
(Pending)
5962H1120802KXC
(Pending)
5962H1120802KXA
(Pending)
16-Pin Ceramic
SOIC
In accordance with DSCC SMD
(Pending)
PREF
NREF
GND
(MSB)
D10
1
2
3
4
5
6
7
8
16
15
14
13
AOUT
(Buffered)
VCC
D00
(LSB)
D01
D02
D03
D04
D05
D09
D08
D07
D06
5931
12
11
10
9

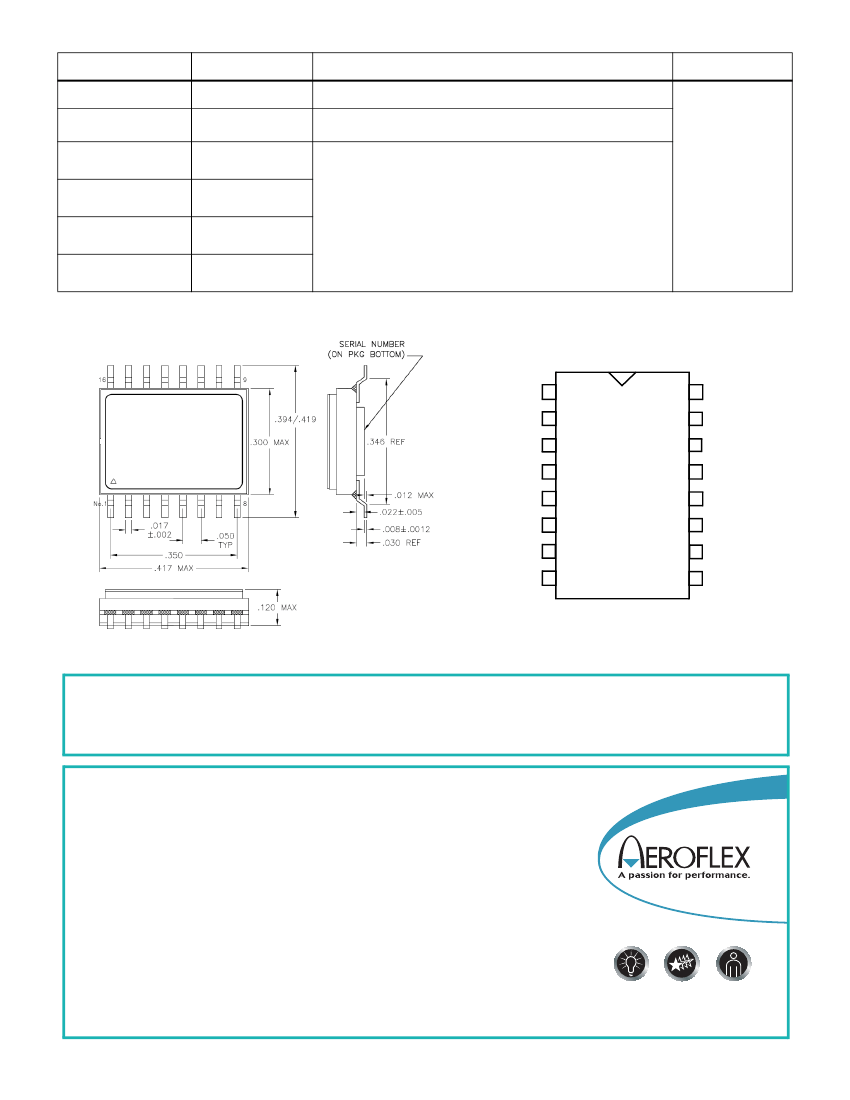

PACKAGE OUTLINE
EXPORT CONTROL:
This product is controlled for export under the International Traffic in
Arms Regulations (ITAR). A license from the U.S. Department of
State is required prior to the export of this product from the United
States.
PACKAGE PINOUT
EXPORT WARNING:
Aeroflex’s military and space products are controlled for export under
the International Traffic in Arms Regulations (ITAR) and may not be
sold or proposed or offered for sale to certain countries. (See ITAR
126.1 for complete information.)
PLAINVIEW, NEW YORK
Toll Free: 800-THE-1553
Fax: 516-694-6715
SE AND MID-ATLANTIC
Tel: 321-951-4164
Fax: 321-951-4254
INTERNATIONAL
Tel: 805-778-9229
Fax: 805-778-1980
WEST COAST
Tel: 949-362-2260
Fax: 949-362-2266
NORTHEAST
Tel: 603-888-3975
Fax: 603-888-4585
CENTRAL
Tel: 719-594-8017
Fax: 719-594-8468
www.aeroflex.com
info-ams@aeroflex.com
Aeroflex Microelectronic Solutions reserves the right to
change at any time without notice the specifications, design,
function, or form of its products described herein. All
parameters must be validated for each customer's application
by engineering. No liability is assumed as a result of use of
this product. No patent licenses are implied.
