BS2-044-R500-55/2: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size259KB，1 Pages; ManufacturerE-tec Interconnect Ltd.

Download Datasheet Parametric Compare View All

BS2-044-R500-55/2 Overview

Board Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug

BS2-044-R500-55/2 Parametric

Parameter Name	Attribute value
Maker	E-tec Interconnect Ltd.
Reach Compliance Code	compli
body width	0.199 inch
subject depth	0.201 inch
body length	1.748 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BS2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.842 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	44

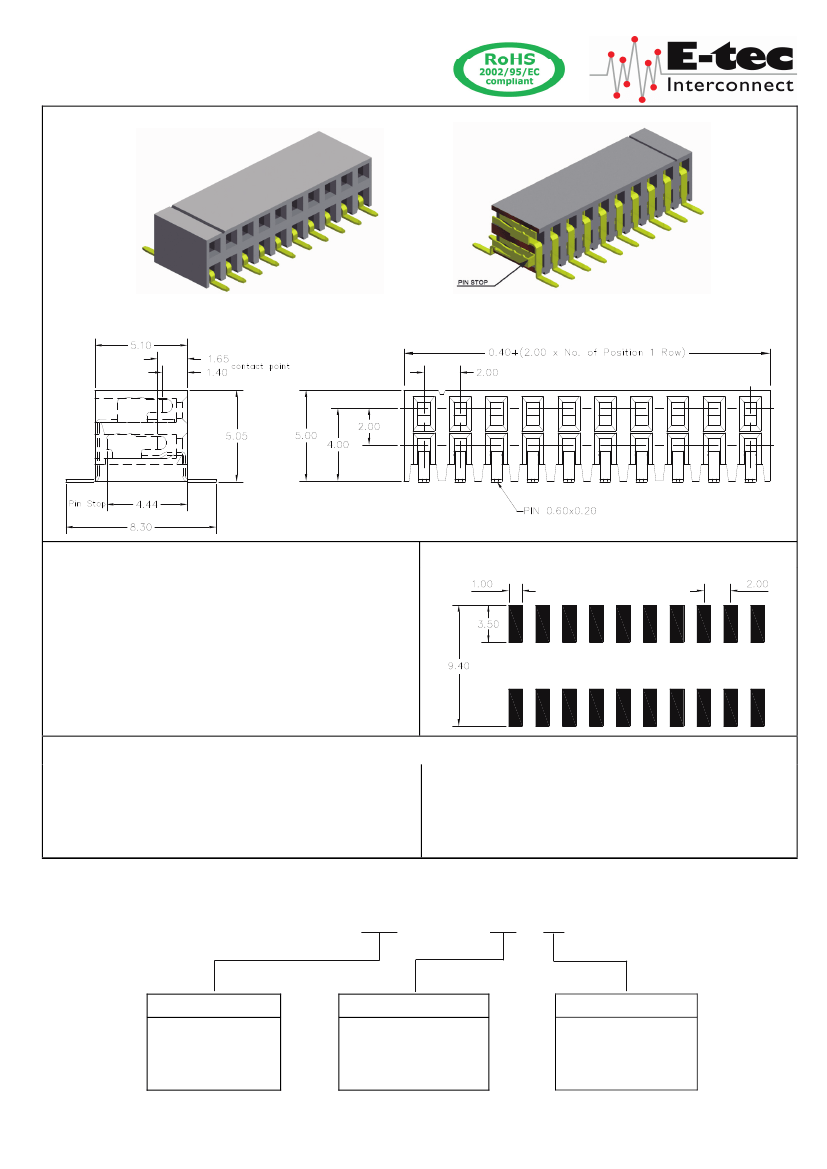

BS2-044-R500-55/2 Preview

2.00mm pitch

- SMT-

Female Header

side entry

APPLICATION

AND

FEATURES

PCB

Surface Mount Layout

Hi-rel dual beam contact with „Pin Stop“

assures reliable connections

Accepts 0.50mm square pins

5.00mm height above board

Automatic assembly to PCB possible

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

1000 MΩ min.

20 mΩ max.

500 V AC

Operating temperature

Processing temperature

Contact material

Insulator material

(RoHS compliant)

- 40°C

+105°C

+250°C

+0/-5°C

for 10sec.

Phosphor Bronze

Nylon UL 94 V-0

How to order

BS 2 - xxx - R 500 -

/2 X

Nbr of contacts

004

050

Plating

gold

Packing Option

Reel

Other platings on request

No suffix for tube packing

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
