1N5915DG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N5915DG

1N5915DG: DescriptionZener Diode, 3.9V V(Z), 1%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size338KB，5 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

1N5915DG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5915DG	-	-	View	Buy Now

1N5915DG Overview

Zener Diode, 3.9V V(Z), 1%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN

1N5915DG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	HERMETIC SEALED, GLASS, DO-41, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
Nominal reference voltage	3.9 V
surface mount	NO
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1%
Working test current	96.1 mA
Base Number Matches	1

Preview

Download Datasheet

View All

1N5913BG – 1N5956BG

Screening in

reference to

MIL-PRF-19500

available

Available

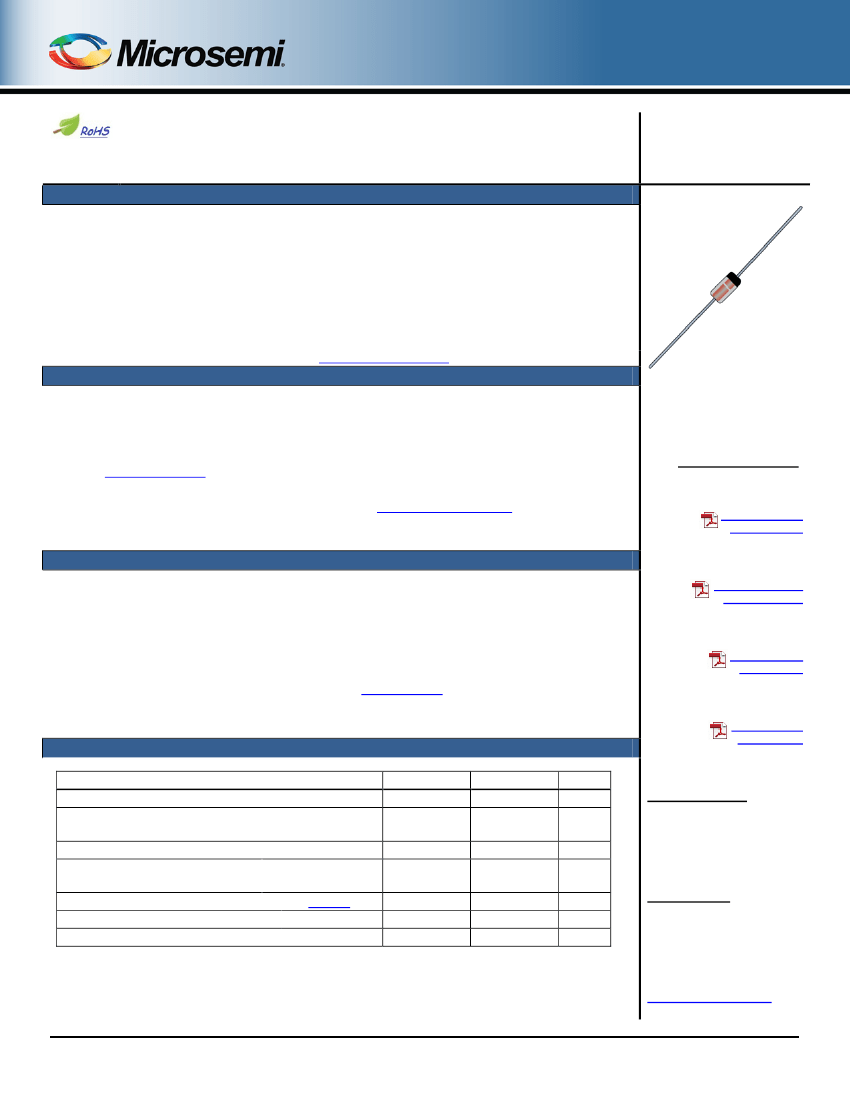

Axial-Leaded 1.5 Watt Glass Zener Diodes

DESCRIPTION

The 1N5913BG-5956BG series of 1.5 watt Zeners provides voltage regulation in a selection

from 3.3 to 200 volts with a variety of tolerances available. They are also available in various

military equivalent screening levels for high reliability. These glass encapsulated Zeners with

a G suffix provide hermetic-sealed qualities and higher rated temperature beyond that

optionally provided in equivalent plastic-body constructions (P suffix) for the same JEDEC part

numbers. Both package options are available from Microsemi.

Important:

For the latest information, visit our website

http://www.microsemi.com.

FEATURES

•

JEDEC registered 1N5913B TO 1N5956B number series.

Zener voltage available 3.3 V to 200 V.

Voltage tolerances of 10%, 5%, 2% and 1% are available.

Screening in reference to MIL-PRF-19500 is available.

(See

part nomenclature

for all available options.)

RoHS compliant versions available (commercial grade only).

Optional plastic body axial-leaded Zeners available as

1N5913BP – 1N5956BP.

(See separate data sheet)

DO-41

(DO-204AL)

Package

Also available in:

DO-213AB package

(MELF surface mount)

1N5913BUR-1 –

1N5956BUR-1

APPLICATIONS / BENEFITS

•

Regulates voltage over a broad range of operating current and temperature.

Flexible axial-lead mounting terminals.

Metallurgically enhanced internal contact design for greater reliability and lower thermal resistance

in glass hermetically sealed package

Non-sensitive to ESD per MIL-STD-750 method 1020.

Hermetically sealed glass body construction.

Inherently radiation hard as described in Microsemi

MicroNote 050.

SMB package

(tabbed surface mount)

SMBG(J)5913B –

SMBG(J)5956B

SMAJ package

(tabbed surface mount)

SMAJ5913B –

SMAJ5956B

Powermite package

(tabbed surface mount)

1PMT5913B –

1PMT5956B

MAXIMUM RATINGS

@ T

= 25 C unless otherwise specified

Parameters/Test Conditions

Junction and Storage Temperature

Thermal Resistance Junction-to-Lead

@ 3/8 inch (10 mm) lead length from body

(1)

Thermal Resistance Junction-to-Ambient

(2)

Steady State Power Dissipation

@ T

≤ 85 ºC

(1)

@ T

= 25 ºC

Rated Average Power Dissipation (also see

figure 1)

Forward Voltage

@ 200 mA

Solder Temperature @ 10 s

Symbol

& T

STG

ӨJL

ӨJA

M(AV)

Value

-65 to +175

120

1.5

1.25

1.5

1.2

260

Unit

C/W

MSC – Lawrence

6 Lake Street, Lawrence,

MA 01841

Tel: 1-800-446-1158 or

(978) 620-2600

Fax: (978) 689-0803

MSC – Ireland

Gort Road Business Park,

Ennis, Co. Clare, Ireland

Tel: +353 (0) 65 6840044

Fax: +353 (0) 65 6822298

Website:

www.microsemi.com

Notes:

1. When mounted on FR4 PC board (1 oz Cu) with 4 mm

copper pads and track width 1 mm, length 25 mm..

2. At 3/8 inch (10 mm) lead length from body.

T4-LDS-0300, Rev. 1 (6/6/13)

Page 1 of 5
