6824-6641 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6824-6641

6824-6641: DescriptionTelecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size316KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

6824-6641 Overview

Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

6824-6641 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
Board mount options	PEG
body width	0.561 inch
subject depth	0.531 inch
body length	0.988 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	6824
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

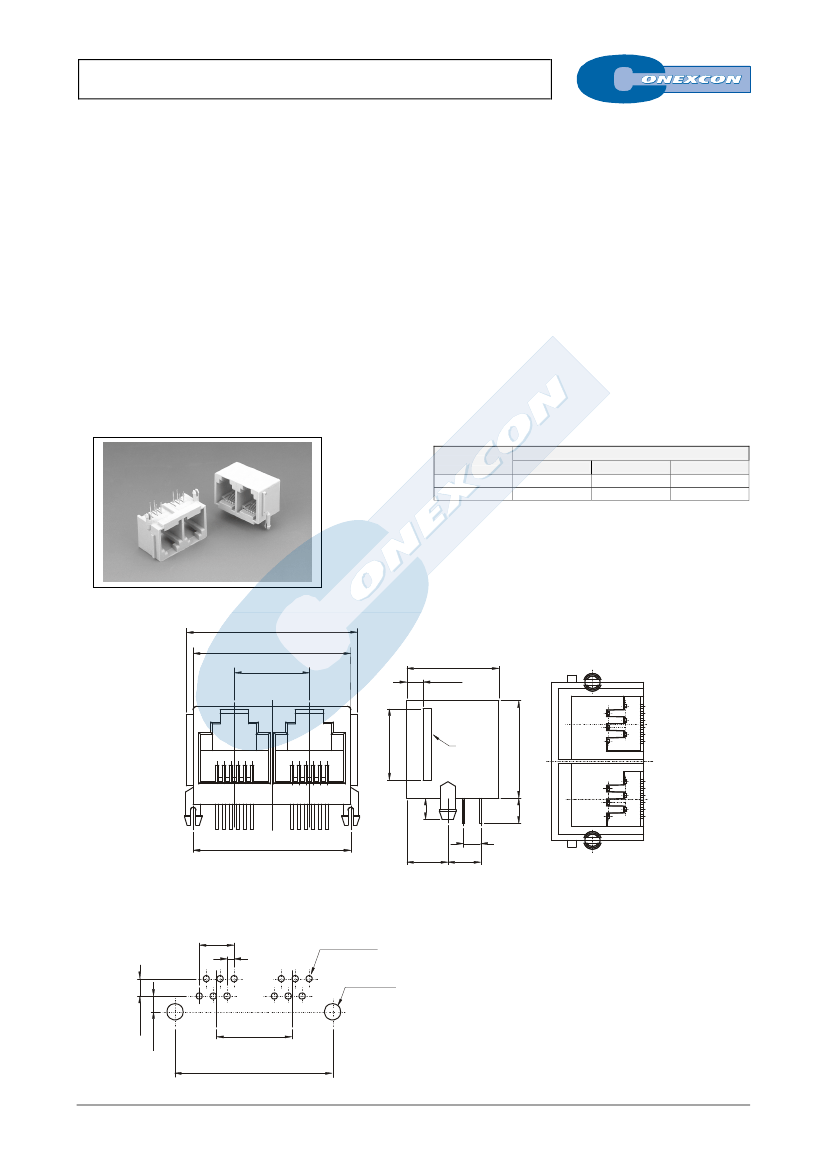

SIDE ENTRY DUAL PORT PCB JACK FCC-68

6824 SERIES.

Right angle PCB jack. Plastic Peg.

General Features

Electrical Features



Available in 6/2, 6/4 and 6/6 circuits

Standard telephone jack FCC-68

15.40 mm. height

Accept standard plugs FCC-68

Full gold plating with different plating

Bifurcated plastic foot print



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.46 mm round in phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Options

Flanged

Flangeless

Dimensions

6/2 Version

6824 –

T621

6824 –

T622

6/4 Version

6824 –

T641

6824 –

T642

6/6 Version

6824 –

T661

6824 –

T662

T = Plating Options

25.10

23.10

11.00

13.50

2.40



T =

10µ” gold over nickel

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

50µ” gold over nickel

10.40

3.10

2.54

23.10

6.00

4.84

RECOMMENDED HOLE PATTERN

1.02 x 5=5.10

1.02

12- ø0.90

2- ø2.36

2.54

2.30

11.00

23.10

E-XX

3.70

14.25

Flanged

Optional

FULL LINE CATALOGUE

6824-6641 Related Products

	6824-6641	6824-6662	6824-6661	6824-5622	6824-6621	6824-7662
Description	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.561 inch	0.561 inch	0.561 inch	0.561 inch	0.561 inch	0.561 inch
subject depth	0.531 inch	0.531 inch	0.531 inch	0.531 inch	0.531 inch	0.531 inch
body length	0.988 inch	0.909 inch	0.988 inch	0.909 inch	0.988 inch	0.909 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V
Durability	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	6824	6824	6824	6824	6824	6824
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	MOUNTING FLANGE	FLANGELESS	MOUNTING FLANGE	FLANGELESS	MOUNTING FLANGE	FLANGELESS
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	30u inch	30u inch	30u inch	15u inch	30u inch	50u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch
Terminal pitch	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	12	12	12	12	12
