NJM339C
Low power quad voltage comparators
Features
• Wide single supply voltage range or dual supplies:
+2V to +36V or ±1V to ±18V
• Very low supply current : 0.8mA typ. at Vcc =5V
• Low input bias current: 20nA typ.
• Low input offset current: 0.5nA typ.
• Low input offset voltage: 0.5mV typ.
• Input common-mode voltage range includes ground
• Low output saturation voltage: 160mV typ. at I
sink
= 4mA
• Differential input voltage range equal to the supply voltage
• TTL, DTL, ECL, MOS, CMOS compatible outputs
• Internal ESD protection
Human body model (HBM)
±2000V
typ.
NJM339CG
(SOP14)
+
Description
The NJM339C consist of four independent low power voltage comparators
designed specifically to operate from a single supply over a wide range of
voltages. Operation from split power supplies is also possible.
These comparators also have a unique characteristic in that the input
common-mode voltage range includes ground even though operated from a
single power supply voltage.
NJM339CV
(SSOP14)
1.
Pin and schematic diagram
Figure 1. Pin connections (top view)
Output 2
1
2
3
4
5
6
7
14
13
12
11
10
9
8
Output 3
Output 1
+
Output 4
-
V
CC
V
CC
Inverting input 1
Non-inverting input 4
Non-inverting input 1
Inverting input 4
Inverting input 2
Non-inverting input 3
Non-inverting input 2
Inverting input 3
ver.06
-1-
NJM339C
Figure 2. Schematic diagram (1/4 NJM339)
V
CC
+
10μA
80μA
10μA
80μA
Output
Non-inverting
Input
Inverting
inverting
Vo
Input
Input
V
CC
-
2.
Absolute maximum ratings and operating conditions
Table1. Absolute maximum ratings
Symbol
V
CC
V
ID
V
IN
V
O
-
T
j
T
stg
P
D
θja
ψjt
+
(Tamb=25°C)
Value
36
±36
V
cc
-
-0.3 to V
cc
-
+36
Unit
V
V
V
V
-
°C
°C
1200
(6)
640
(6)
100
(6)
195
(6)
35
(6)
47
(6)
(5)
Parameter
Supply voltage(V
CC
- V
CC
)
Differential input voltage
Input voltage
(1)
(2)
-
Output Terminal Input Voltage
Output short-circuit to V
CC
- (3)
V
cc
-
-0.3 to V
cc
-
+36
Infinite
150
-65 to +150
SOP14
SSOP14
SOP14
SSOP14
SOP14
SSOP14
:
:
:
:
:
:
880
(5)
510
(5)
140
(5)
245
(5)
40
(5)
49
Maximum junction temperature
Storage temperature range
Power Dissipation
thermal resistance junction to ambient
(4)
mW
°C /W
°C /W
thermal resistance junction to top surface of IC package
(4)
1. Input voltage is the voltage should be allowed to apply to the input terminal independent of the magnitude of V
CC+
.
2. Output voltage is the voltage should be allowed to apply to the output terminal independent of the magnitude of V
CC+
.
3. Short-circuits from the output to V
CC+
can cause excessive heating and potential destruction
4. Short-circuit can cause excessive heating and destructive dissipation. Values are typical.
5. EIA/JEDEC STANDARD Test board (76.2 x 114.3 x 1.6mm, 2layers, FR-4) mounting
6. EIA/JEDEC STANDARD Test board (76.2 x 114.3 x 1.6mm, 4layers, FR-4) mounting
-2-
ver.06
NJM339C
Table2. Operating conditions
Symbol
V
CC
V
icm
+
Parameter
Supply voltage (V
CC
- V
CC
)
Common mode input voltage range(V
CC
=30V)
T
amb
= 25℃
0℃< T
amb
< 70℃
+
-
Value
2 to 36
0 to V
CC
-1.5
0 to V
CC
-2.0
-40 to +85
+
+
(Tamb=25°C)
Unit
V
V
T
oper
Operating free-air temperature range
°C
3.
Electrical characteristics
Table3. V
CC+
= +5V, V
CC-
= 0V, T
amb
= +25˚C (unless otherwise specified)
Symbol
Input offset voltage
V
io
T
amb
= 25℃
0℃< T
amb
< 70℃
Input offset current
I
io
T
amb
= 25℃
0℃< T
amb
< 70℃
Input bias current
I
ib
T
amb
= 25℃
0℃< T
amb
< 70℃
A
vd
V
CC
V
CC
V
CC
V
id
V
OL
+
(5)
(5)
(2)
(5)
(1)
Parameter
Min.
-
-
-
-
-
-
50
Typ.
0.5
-
0.5
-
20
-
200
Max.
5
9
50
150
250
400
-
Unit
mV
nA
nA
Large signal voltage gain
= 15V, R
L
=15kΩ, V
o
= 1V to 11V
= +5V, no load
= +30V, no load
(3)
V/mV
Supply current (all comparators)
I
CC
+
+
-
-
-
V
id
= -1V, I
sink
= 4mA
-
0.8
1.1
-
160
-
0.1
-
16
1.3
2
2.5
V
CC
+
mA
V
mV
Differential input voltage
Low level output voltage
T
amb
= 25℃
0℃< T
amb
< 70℃
(5)
400
700
-
1
-
-
-
+
High level output current V
CC
= V
o
= 30V ,Vid = 1V
I
OH
I
sink
t
re
T
amb
= 25℃
0℃< T
amb
< 70℃
Output sink current
Response Time
(4)
+
(5)
-
-
V
id
= 1V, V
o
= 1.5V
6
-
nA
μA
mA
μs
R
L
= 5.1kΩ connected to V
CC
Large Signal Response Time
R
L
= 5.1kΩ connected to V
CC
e
l
= TTL, V
(ref)
= +1.4V
t
rel
+
-
250
-
ns
1. V
O
= 1.4V, R
S
=0Ω, 5V < V
CC+
< 30V, 0 < V
ic
<( V
CC+
- 1.5V.)
2. The direction of the input current is out of the IC due to the PNP input stage.
3. Positive excursions of input voltage may exceed the power supply level. As long as the other voltage remains within the common-mode range, the
comparator will provide a proper output state. The low input voltage must not be less than –0.3V (or 0.3V below the negative power supply, if used).
4. The response time specified is for a 100mV input step with 5mV overdrive.
5. This parameter is not 100% test.
ver.06
-3-
NJM339C
■

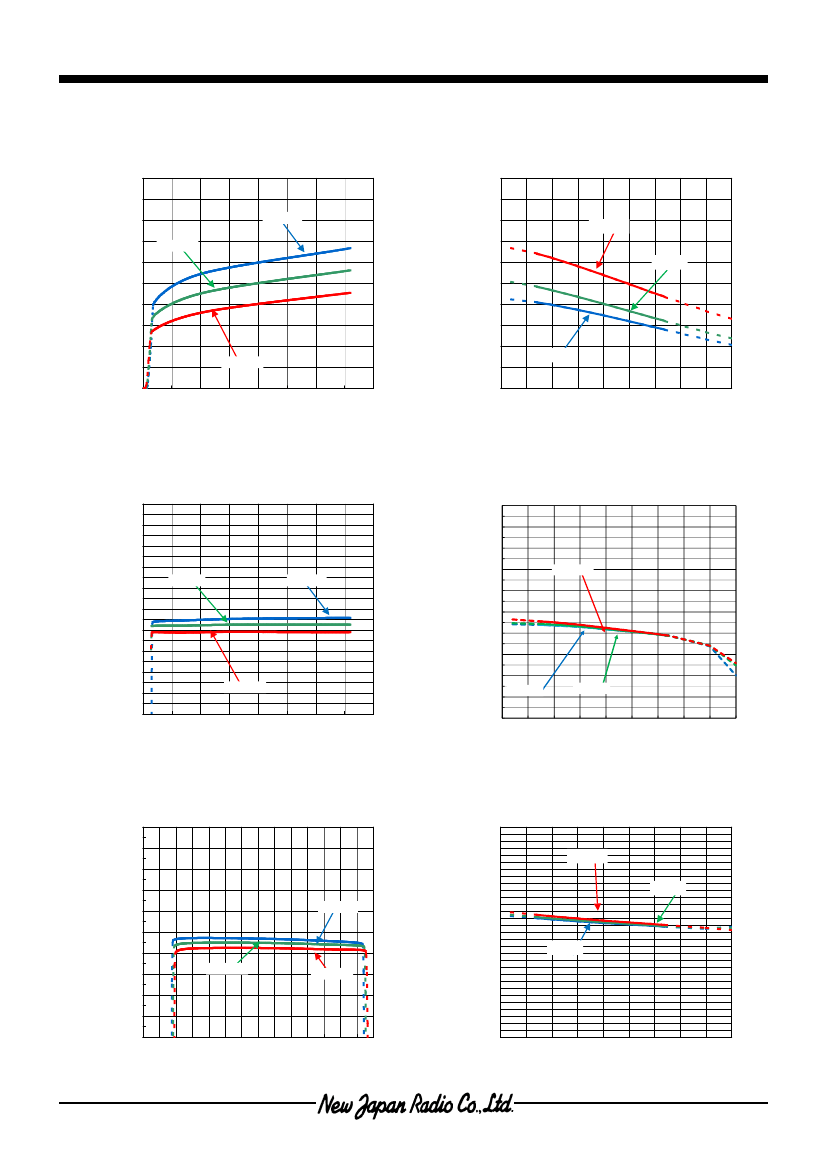

TYPICAL CHARACTERISTICS
Supply Current vs. Supply Voltage
2.0
+Input=0V, -Input=0V, R
L
=Open
Supply Current vs. Temperature
2
+Input=0V, -Input=0V, R
L
=Open
1.6
Ta=-40ºC
Ta=+25ºC
1.6
Supply Current [mA]
1.2
Supply Current [mA]
V
CC+
=30V
1.2
V
CC+
=5V
0.8
0.8
0.4
Ta=+85ºC
0.4
V
CC
=2V
+
0.0
0
10
20
30
Supply Voltage [V]
40
0
-75 -50 -25
0 25 50 75 100 125 150
Temperature [ºC]
Input Offset Voltage vs. Supply Voltage
5
4
V
ICM
=1.4V, V
OUT
=1.4V, R
L
=15KΩ
Input Offset Voltage vs. Temperature
5
4
V
ICM
=1.4V, VOUT=1.4V, R
L
=15KΩ
Input Offset Voltage [mV]
2
1
0
-1
-2
-3
-4
-5
0
10
20
30
Supply Voltage [V]
40
Ta=+85ºC
Ta=25ºC
Ta=-40ºC
Input Offset Voltage [mV]
3
3
2
1
0
-1
-2
-3
-4
-5
-75 -50 -25
0 25 50 75 100 125 150
Temperature [ºC]
V
CC+
=2V
V
CC+
=5V
V
CC+
=30V
Input Offset Voltage vs. Common Mode Input
Voltage
V
CC
=30V
+
Input Bias Current vs. Temperature
150
100
V
ICM
=0V
5
4
V
CC+
=30V
V
CC+
=5V
Input Offset Voltage [mV]
2
1
0
-1
-2
-3
-4
-5
-5
0
5
10
15
20
25
Common Mode Input Voltage [V]
30
Ta=+25ºC
Ta=+85ºC
Ta=-40ºC
Input Bias Current [nA]
3
50
0
V
CC+
=2V
-50
-100
-150
-75 -50 -25
0 25 50 75 100 125 150
Temperature [ºC]
-4-
ver.06
NJM339C
■

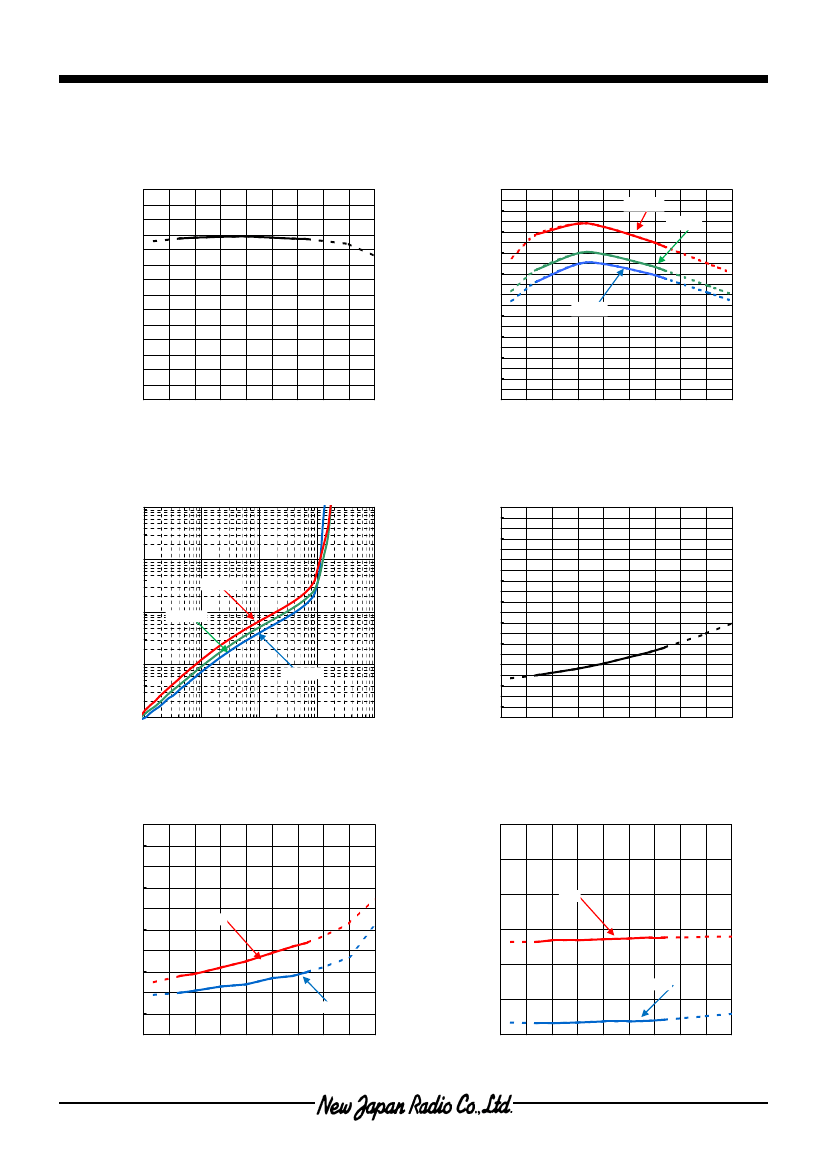

TYPICAL CHARACTERISTICS
Open Loop Gain vs. Temperature
140
120
V
CC+
=15V, V
OUT
=1V to 11V
Sink Current vs. Temperature
20
V
OUT
=1.5V, +Input=0V, -Input=1V
V
CC
=30V
V
CC+
=5V
+
Open Loop Gain [dB]
80
60
40
20
0
-75 -50 -25
0 25 50 75 100 125 150
Temperature [ºC]
Sink Current [mA]
100
15
10
V
CC
=2V
+
5
0
-75 -50 -25
0 25 50 75 100 125 150
Temperature [ºC]
Saturation Voltage vs. Sink Current
10
V
CC+
=5V, +Input=0V, -Input=1V
Saturation Voltage vs. Temperature
400
V
CC+
=5V, +Input=0V, -Input=1V, I
OUT
=3mA
Saturation Voltage [mV]
100
Saturation Voltage [V]
1
Ta=+85ºC
300
0.1
Ta=+25ºC
200
0.01
Ta=-40ºC
100
0.001
0.01
0
0.1
1
10
Sink Current [mA]
-75 -50 -25
0 25 50 75 100 125 150
Temperature [ºC]
Propagation Delay Time vs. Temperature
V
CC
=5V, V
IN+
=GND, V
IN-
=200mV
PP
, ov=100mV, R
L
=5.1kΩ
+
+
Response Time vs. Temperature
V
CC
=5V, V
IN+
=GND, V
IN-
=200mV
PP
, ov=100mV, R
L
=5.1kΩ
1000
600
500
Propagation Delay Time [ns]
800
Response Time [ns]
400
300
200
Rise
600
Rise
400
200
Fall
Fall
100
0
0
-75 -50 -25
0 25 50 75 100 125 150
Temperature [ºC]
-75 -50 -25
0 25 50 75 100 125 150
Temperature [ºC]
ver.06
-5-
