TD62787F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TD62787F

TD62787F: Description8CH HIGH-VOLTAGE SOURCE DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size257KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

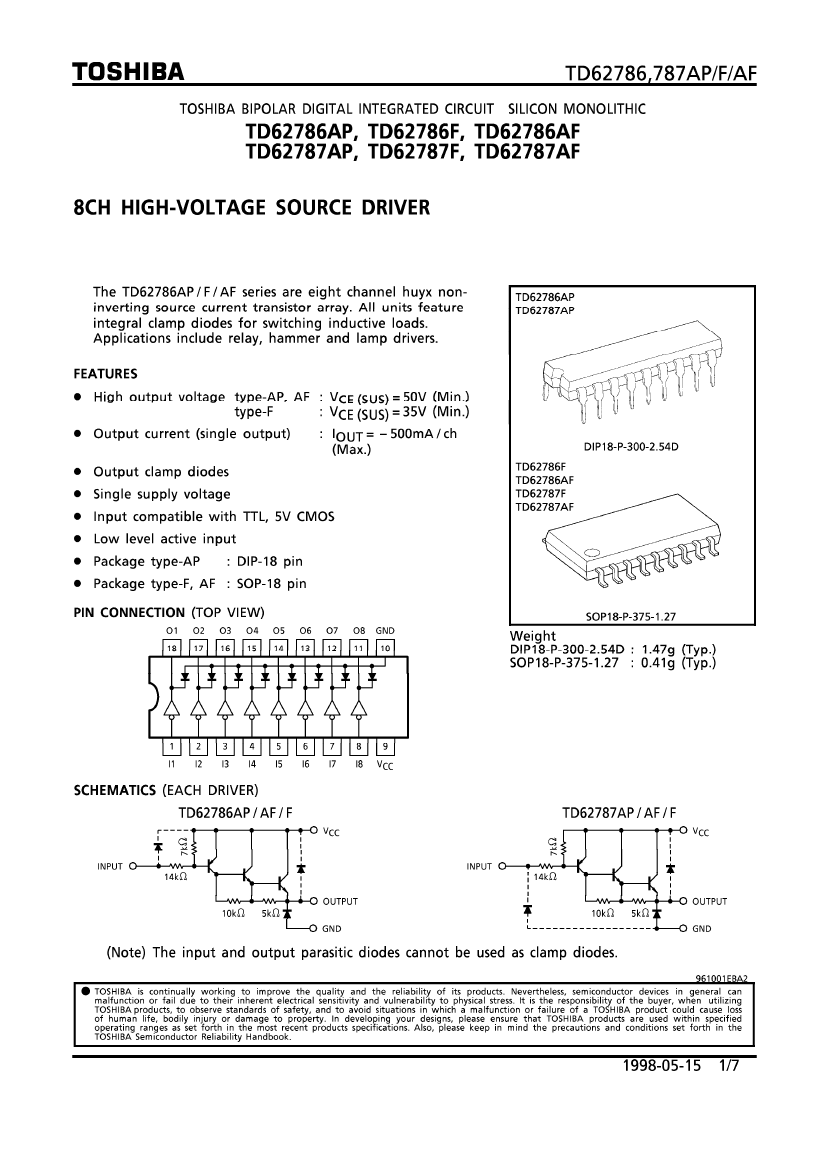

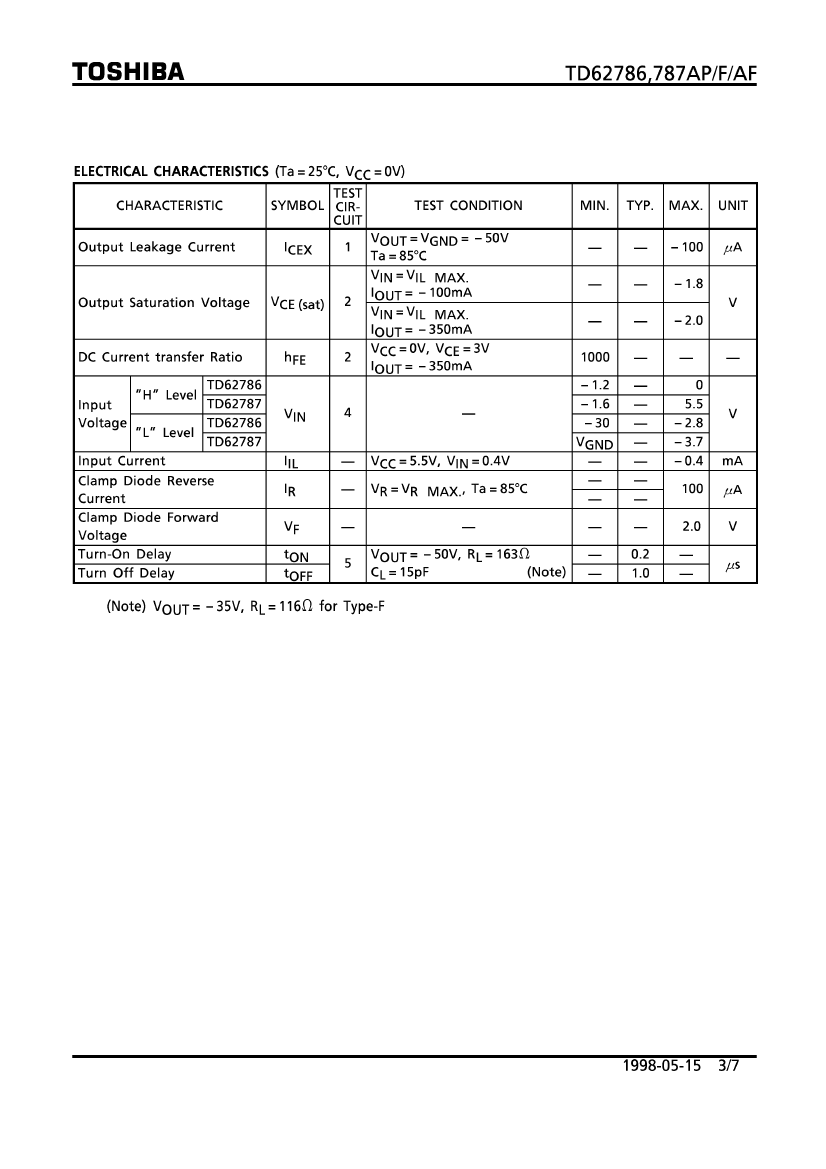

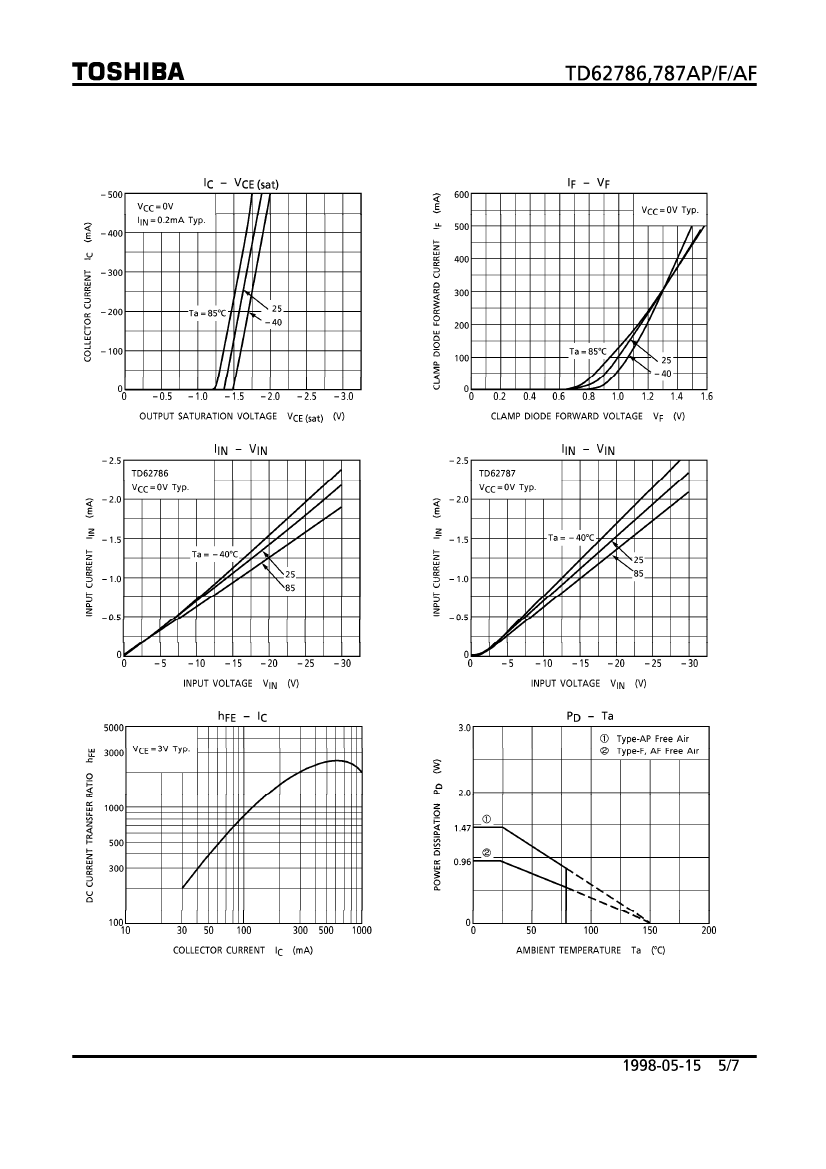

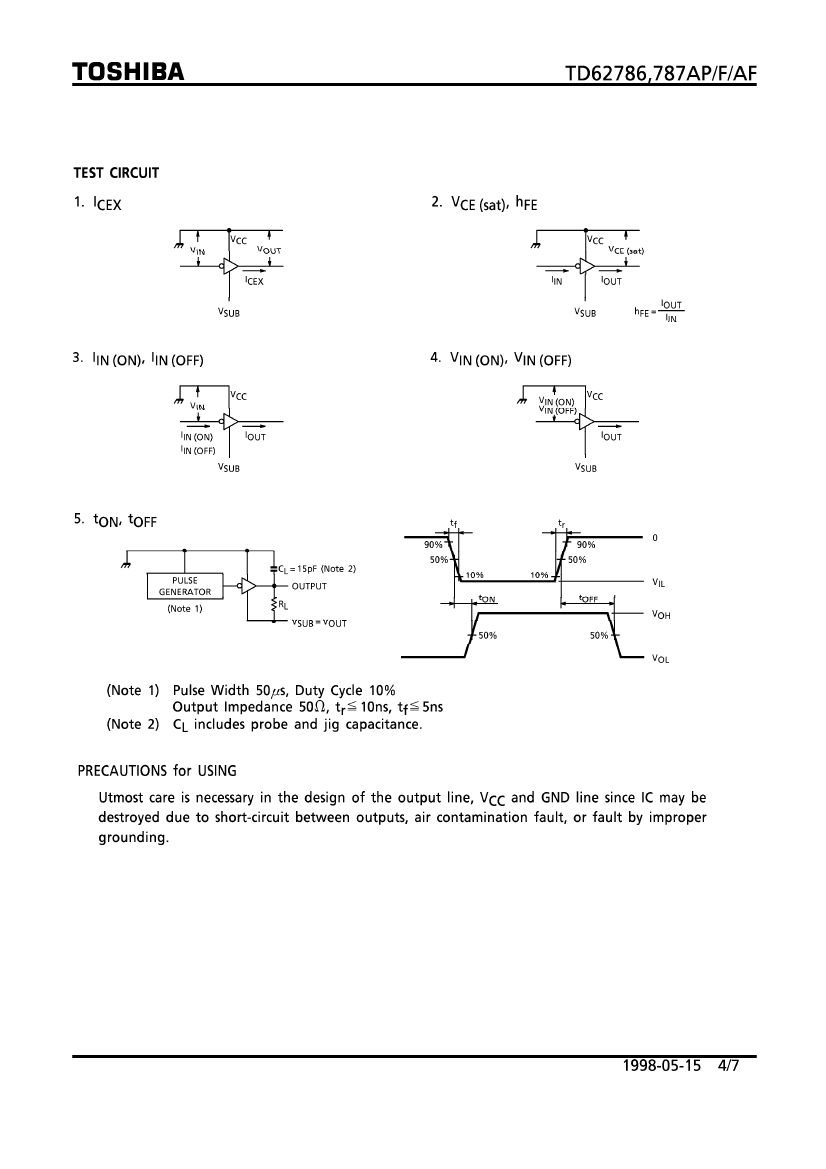

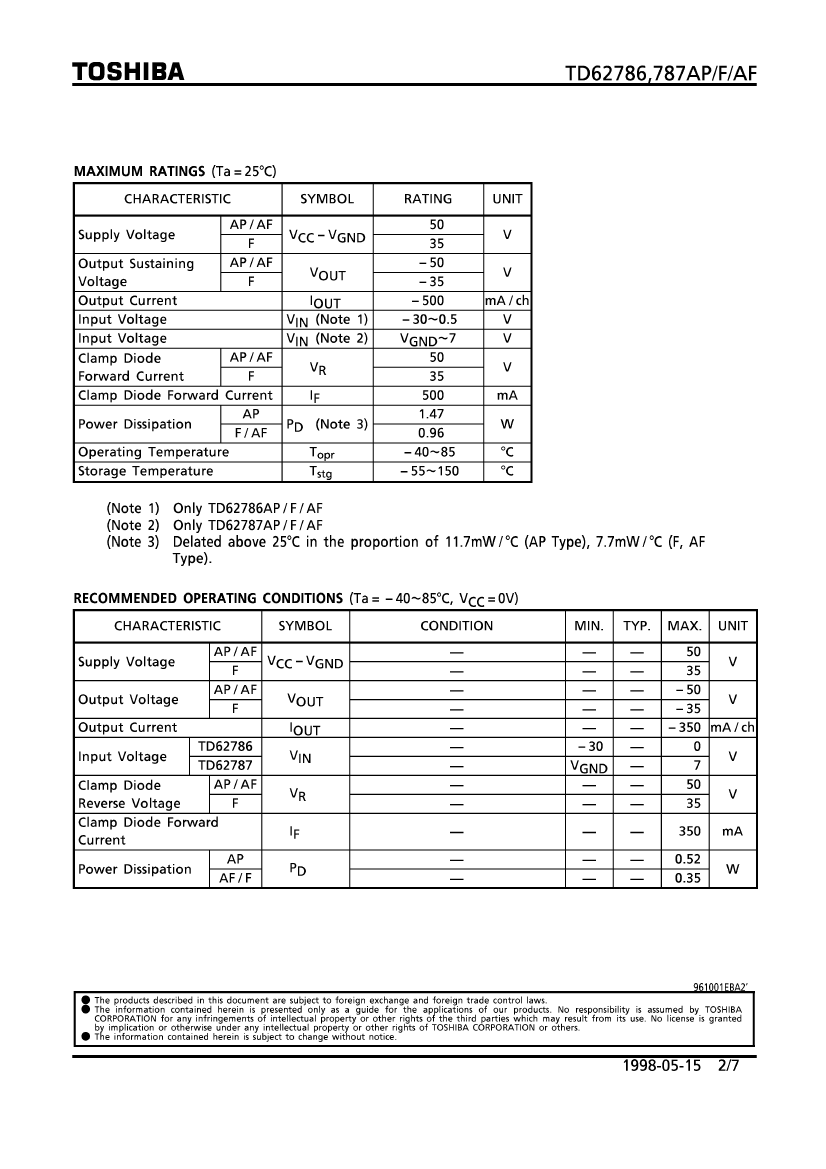

TD62787F Overview

8CH HIGH-VOLTAGE SOURCE DRIVER

TD62787F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP18,.4
Contacts	18
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Built-in protection	TRANSIENT
Number of drives	8
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G18
JESD-609 code	e0
length	12.5 mm
Number of functions	8
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-EMITTER
Output current flow direction	SOURCE
Maximum output current	0.5 A
Nominal output peak current	0.35 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5.5 V
Certification status	Not Qualified
Maximum seat height	2.45 mm
Maximum supply voltage	35 V
Nominal supply voltage	5.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

TD62787F Related Products

	TD62787F	TD62787AP	TD62787AF	TD62786F	TD62786AP	TD62786AF
Description	8CH HIGH-VOLTAGE SOURCE DRIVER	8CH HIGH-VOLTAGE SOURCE DRIVER	8CH HIGH-VOLTAGE SOURCE DRIVER	8CH HIGH-VOLTAGE SOURCE DRIVER	8CH HIGH-VOLTAGE SOURCE DRIVER	8CH HIGH-VOLTAGE SOURCE DRIVER
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	SOIC	SOIC	DIP	SOIC
package instruction	SOP, SOP18,.4	DIP, DIP18,.3	SOP,	0.375 INCH, 1.27 MM PITCH, PLASTIC, SOP-18	DIP,	SOP,
Contacts	18	18	18	18	18	18
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G18	R-PDIP-T18	R-PDSO-G18	R-PDSO-G18	R-PDIP-T18	R-PDSO-G18
length	12.5 mm	24.6 mm	12.5 mm	12.5 mm	24.6 mm	12.5 mm
Number of functions	8	8	8	8	8	8
Number of terminals	18	18	18	18	18	18
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output current flow direction	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE
Nominal output peak current	0.35 A	0.35 A	0.5 A	0.5 A	0.5 A	0.5 A
Output polarity	TRUE	TRUE	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.45 mm	4.45 mm	2.45 mm	2.45 mm	4.45 mm	2.45 mm
Maximum supply voltage	35 V	50 V	50 V	35 V	50 V	50 V
surface mount	YES	NO	YES	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7 mm	7.62 mm	7 mm	7 mm	7.62 mm	7 mm
Base Number Matches	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Is Samacsys	N	N	N	N	-	-
