TD62784AFN datasheet, PDF - EEWORLD Datasheet

TD62784AFN: DescriptionVACUUM FLUOR DISPLAY DRIVER, PDSO18; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size225KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

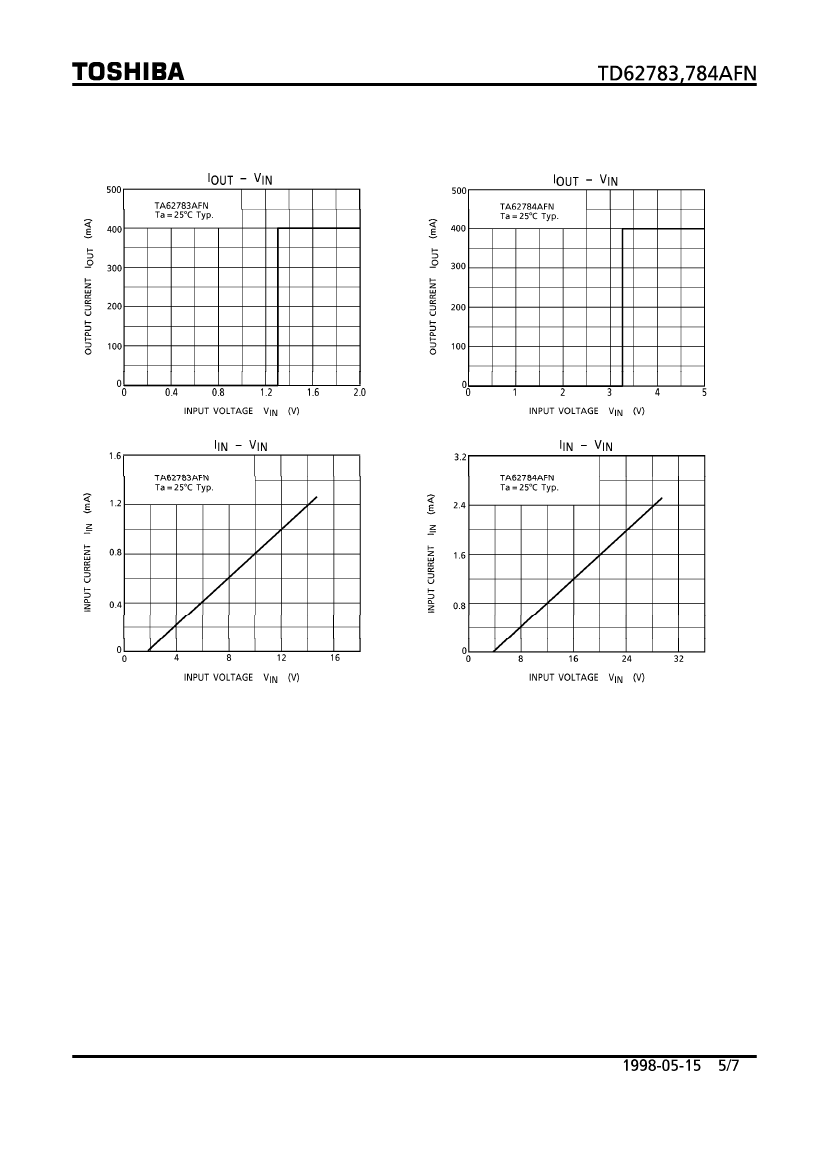

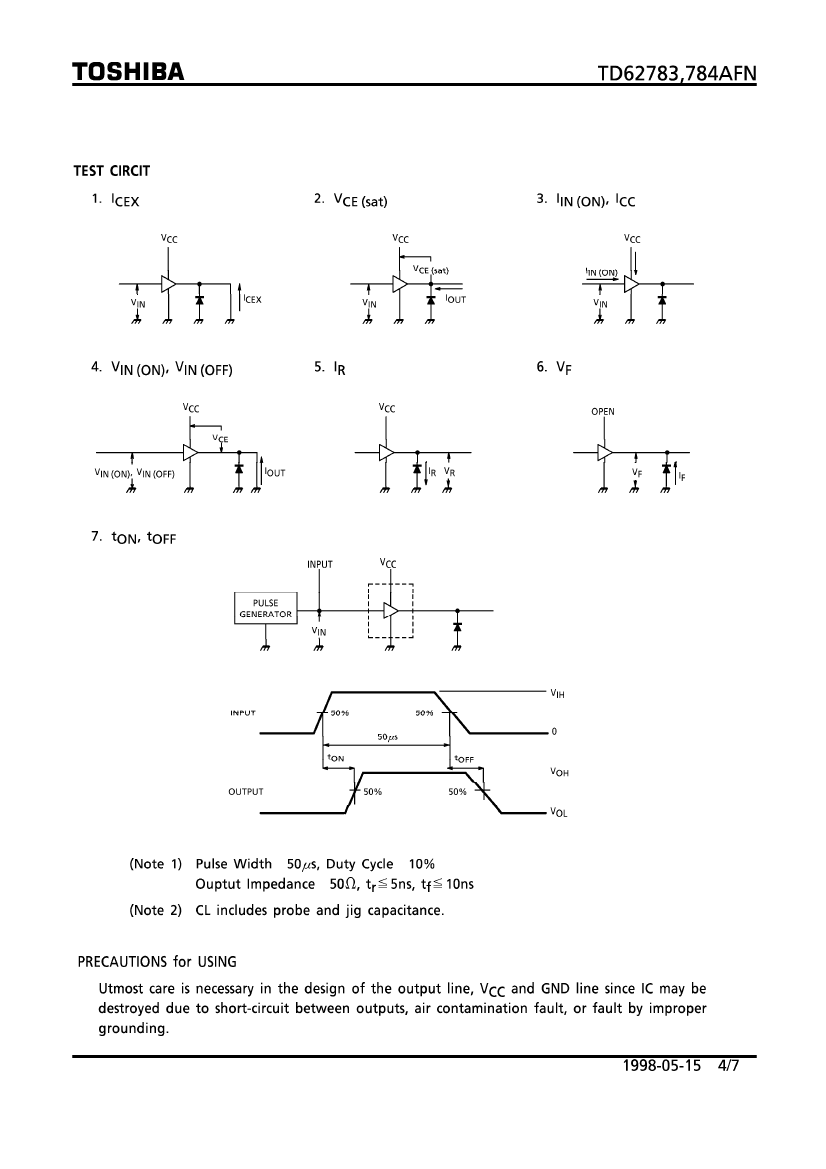

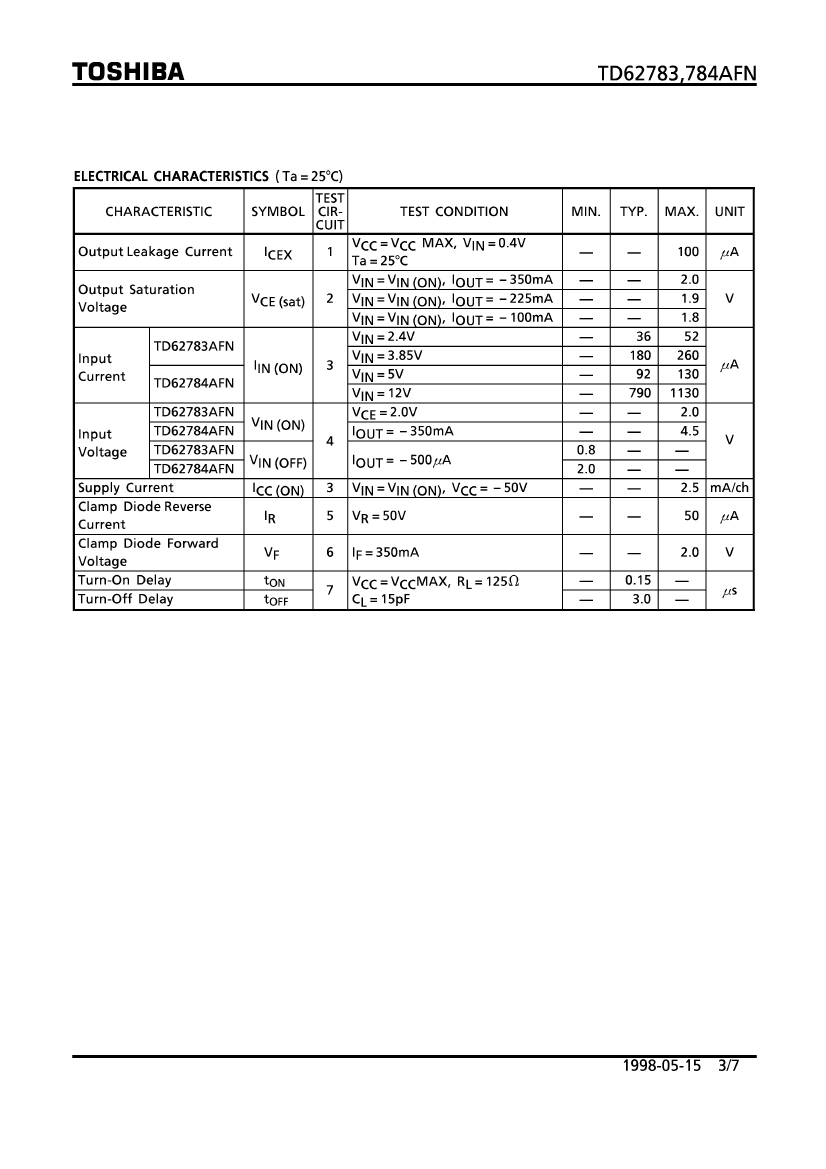

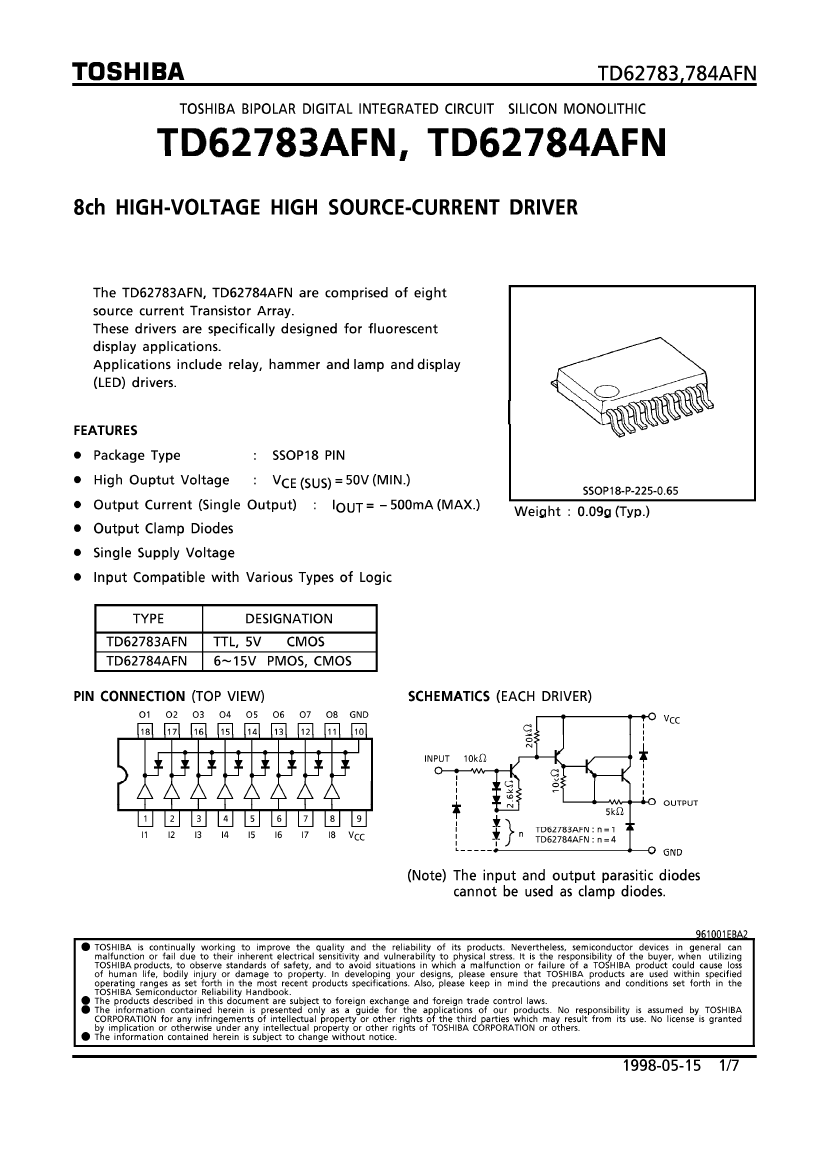

TD62784AFN Overview

VACUUM FLUOR DISPLAY DRIVER, PDSO18

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SSOP
package instruction	0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-18
Contacts	18
Reach Compliance Code	unknow
Interface integrated circuit type	VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 code	R-PDSO-G18
JESD-609 code	e0
length	6.5 mm
Multiplex display function	NO
Number of functions	8
Number of segments	8
Number of terminals	18

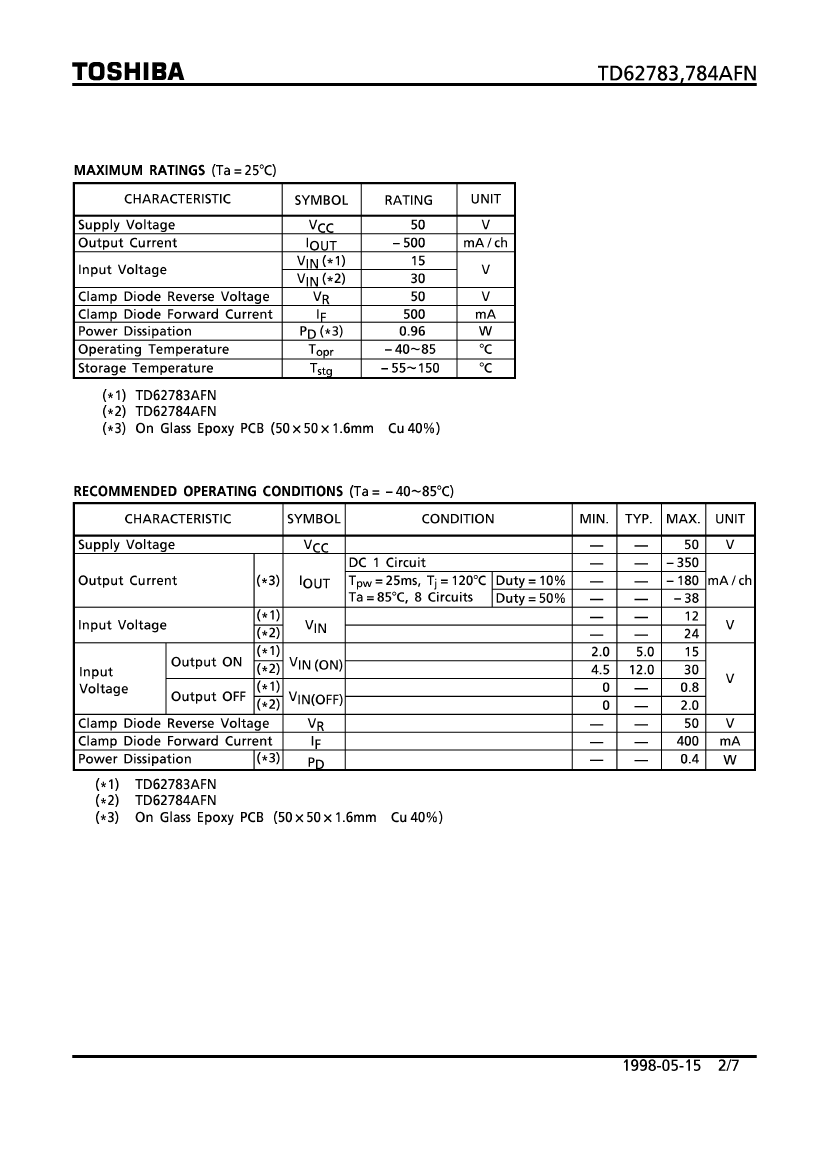

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.55 mm
Maximum supply voltage	50 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm

	TD62784AFN	TD62783AFN
Description	VACUUM FLUOR DISPLAY DRIVER, PDSO18	VACUUM FLUOR DISPLAY DRIVER, PDSO18
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SSOP	SSOP
package instruction	0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-18	0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-18
Contacts	18	18
Reach Compliance Code	unknow	unknow
Interface integrated circuit type	VACUUM FLUORESCENT DISPLAY DRIVER	VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 code	R-PDSO-G18	R-PDSO-G18
JESD-609 code	e0	e0
length	6.5 mm	6.5 mm
Multiplex display function	NO	NO
Number of functions	8	8
Number of segments	8	8
Number of terminals	18	18
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.55 mm	1.55 mm
Maximum supply voltage	50 V	50 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	4.4 mm
