TD62783F datasheet, PDF - EEWORLD Datasheet

TD62783F: DescriptionVACUUM FLUOR DISPLAY DRIVER, PDSO18; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size265KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

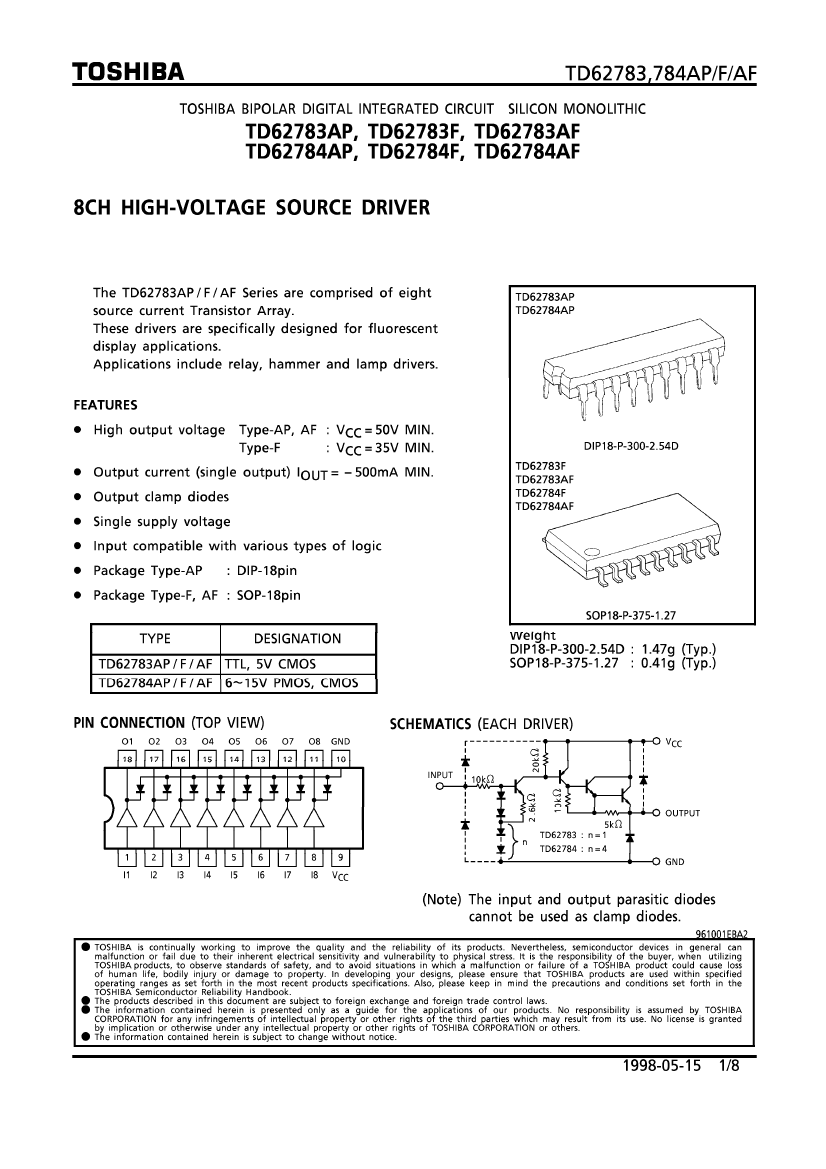

TD62783F Overview

VACUUM FLUOR DISPLAY DRIVER, PDSO18

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	18
Reach Compliance Code	unknow
ECCN code	EAR99
Interface integrated circuit type	VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 code	R-PDSO-G18
JESD-609 code	e0
length	12.5 mm
Multiplex display function	NO
Number of functions	1
Number of segments	8
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.45 mm
Maximum slew rate	20 mA
Maximum supply voltage	35 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7 mm

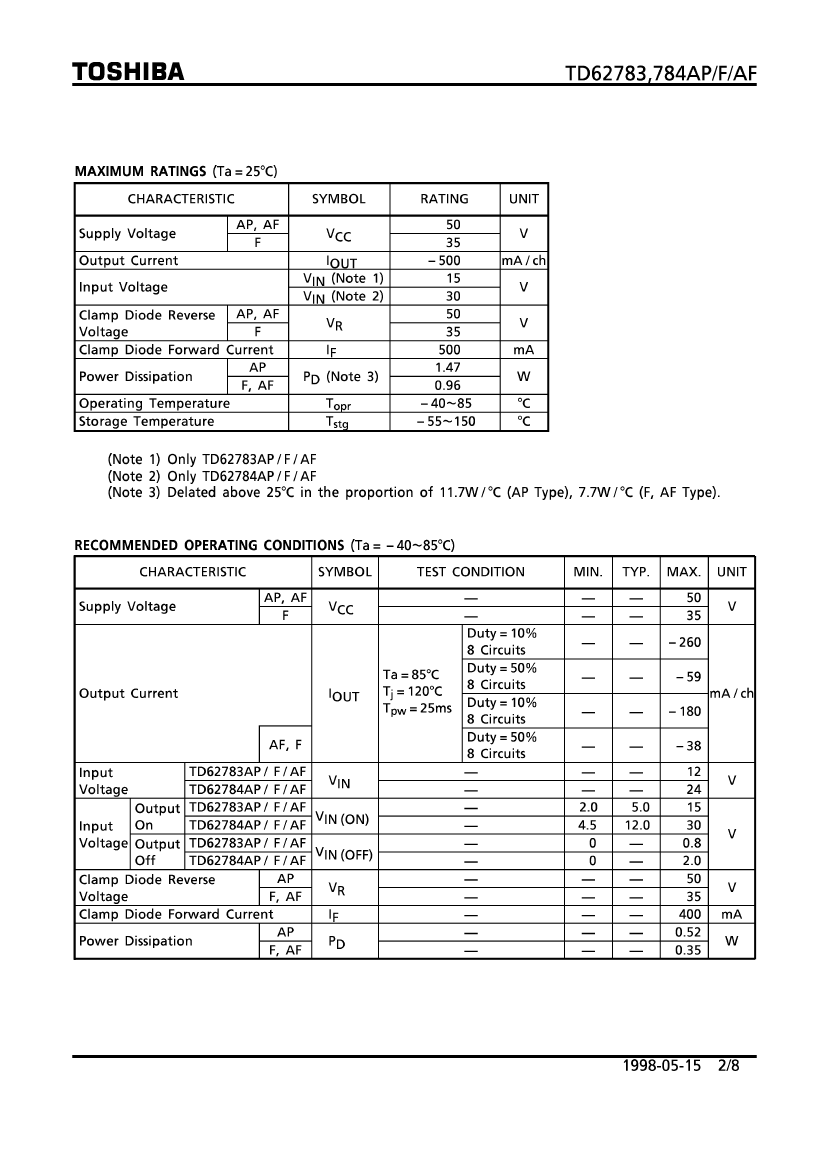

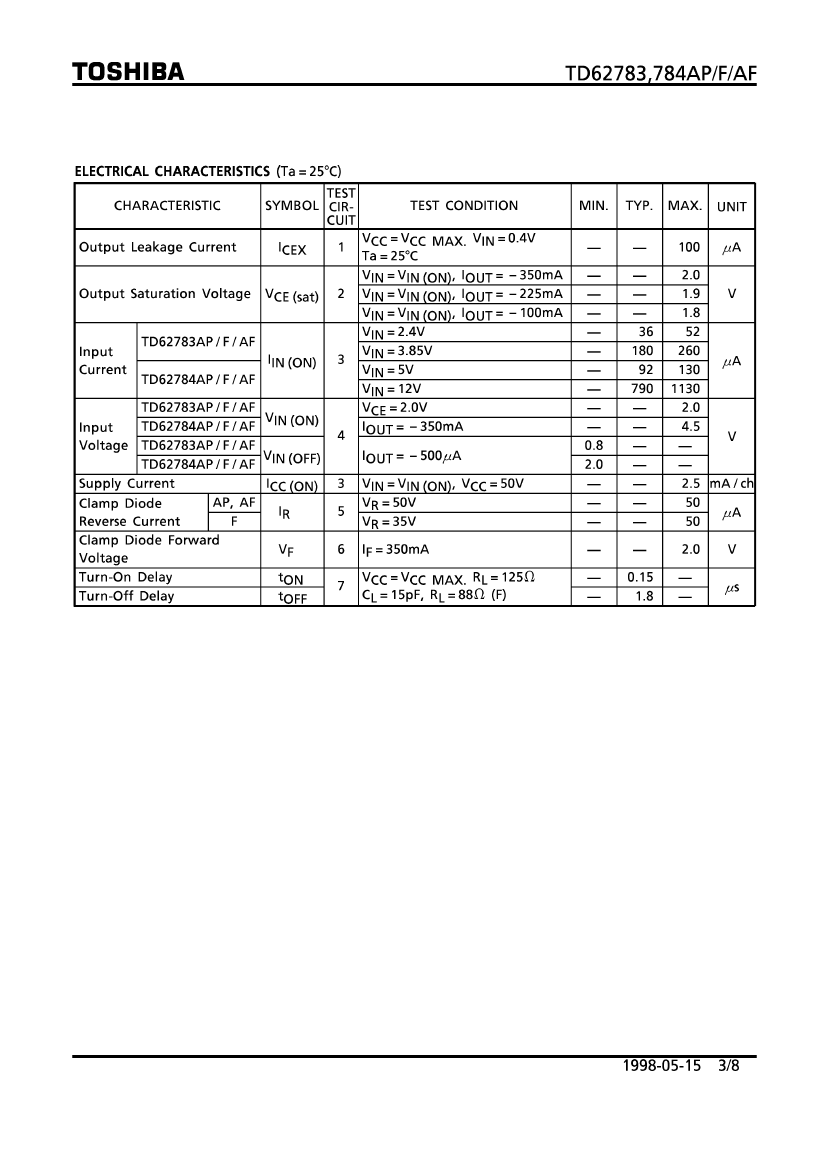

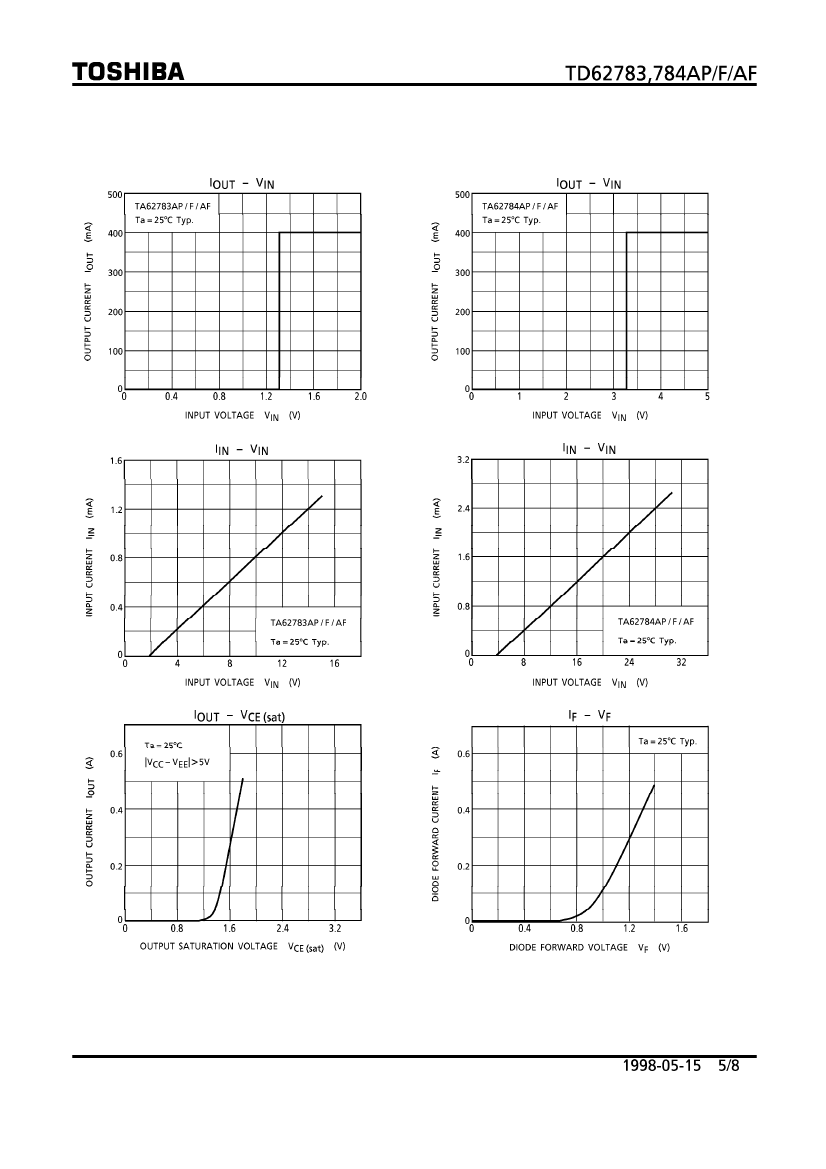

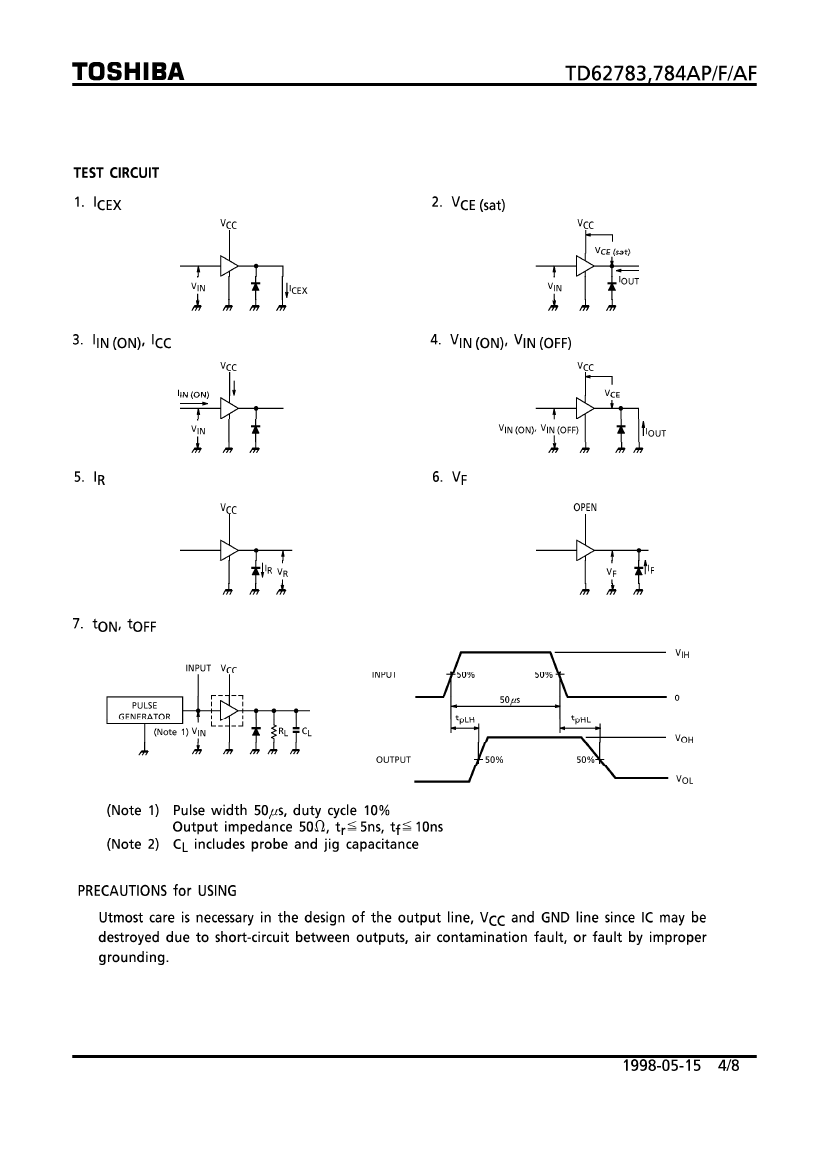

	TD62783F	TD62784F	TD62783
Description	VACUUM FLUOR DISPLAY DRIVER, PDSO18	VACUUM FLUOR DISPLAY DRIVER, PDSO18	VACUUM FLUOR DISPLAY DRIVER, PDSO18
Number of functions	1	1	8
Number of terminals	18	18	18
Maximum operating temperature	85 °C	85 °C	85 Cel
Minimum operating temperature	-40 °C	-40 °C	-40 Cel
surface mount	YES	YES	Yes
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	pair
Is it Rohs certified?	incompatible	incompatible	-
Parts packaging code	SOIC	SOIC	-
package instruction	SOP,	SOP, SOP18,.4	-
Contacts	18	18	-
Reach Compliance Code	unknow	unknow	-
ECCN code	EAR99	EAR99	-
Interface integrated circuit type	VACUUM FLUORESCENT DISPLAY DRIVER	VACUUM FLUORESCENT DISPLAY DRIVER	-
JESD-30 code	R-PDSO-G18	R-PDSO-G18	-
JESD-609 code	e0	e0	-
length	12.5 mm	12.5 mm	-
Multiplex display function	NO	NO	-
Number of segments	8	8	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SOP	SOP	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	-
Certification status	Not Qualified	Not Qualified	-
Maximum seat height	2.45 mm	2.45 mm	-
Maximum slew rate	20 mA	20 mA	-
Maximum supply voltage	35 V	35 V	-
technology	BIPOLAR	BIPOLAR	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal pitch	1.27 mm	1.27 mm	-
width	7 mm	7 mm	-
