TD62706P-H datasheet, PDF - EEWORLD Datasheet

TD62706P-H: Description6CH HIGH-VOLTAGE SOURCE-CURRENT DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size289KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TD62706P-H Overview

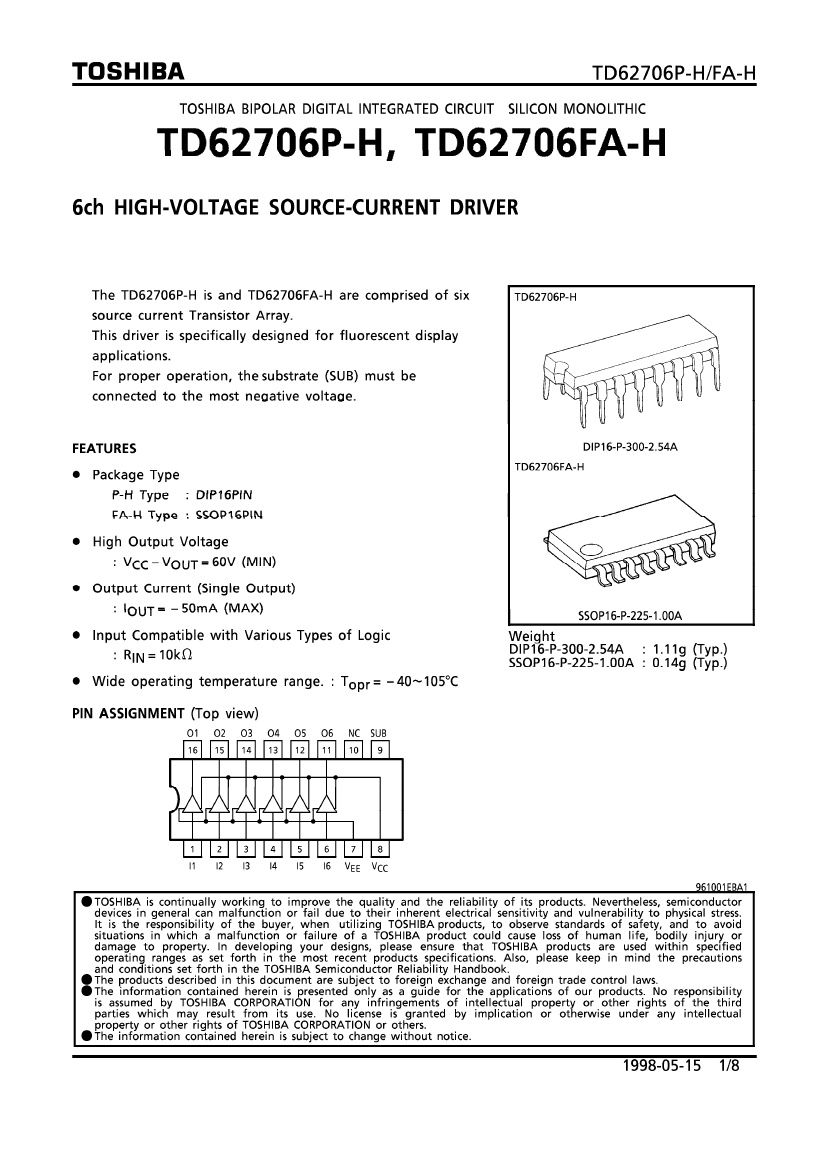

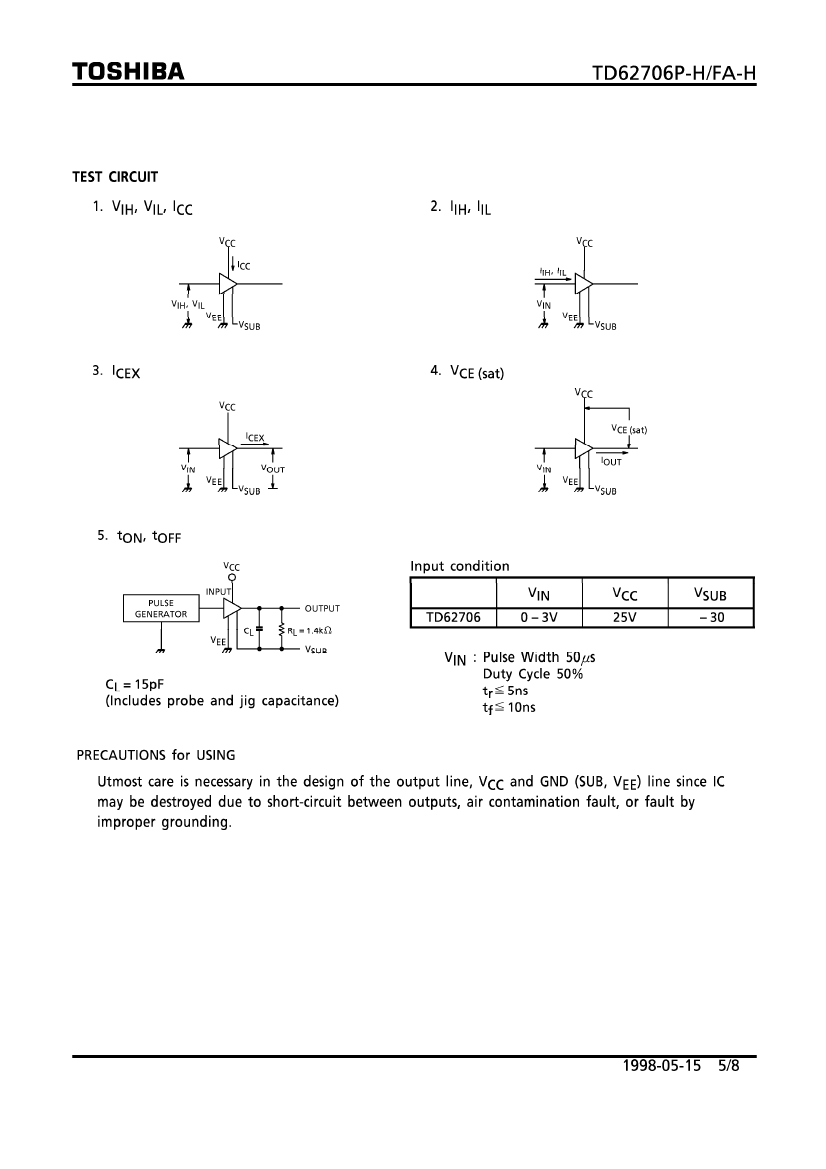

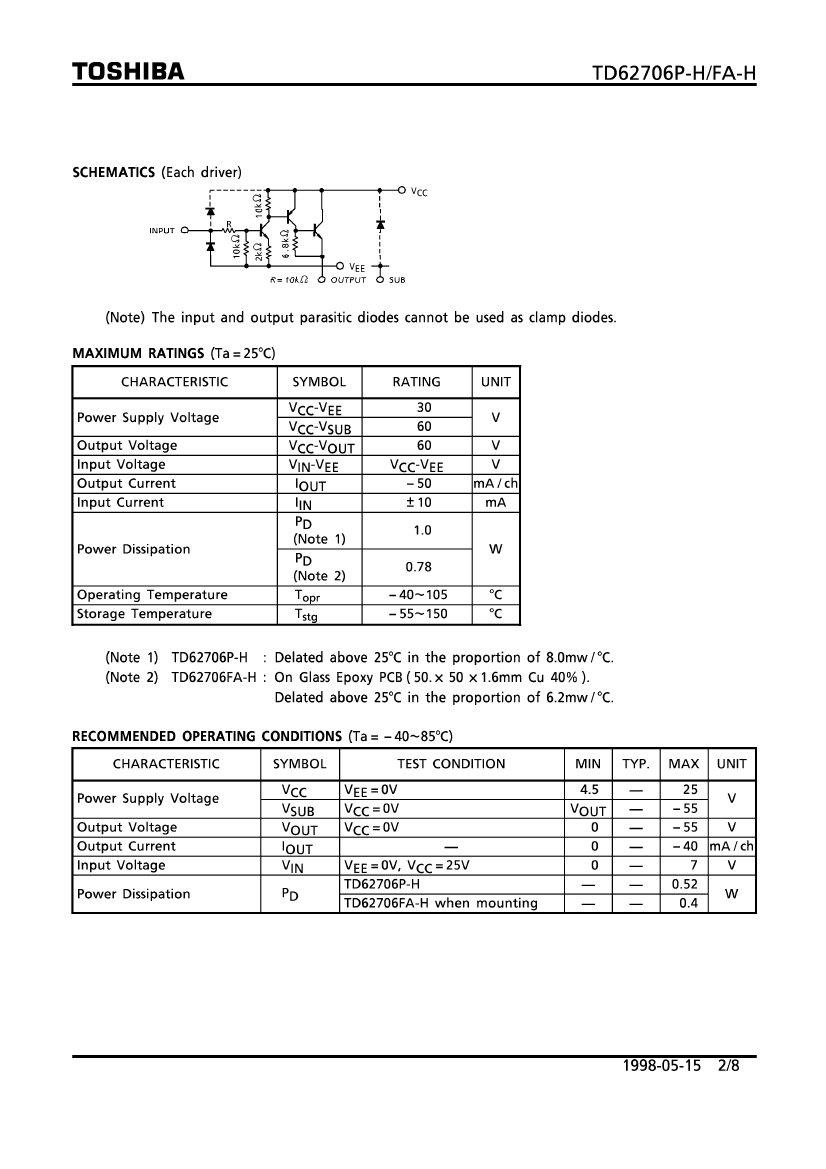

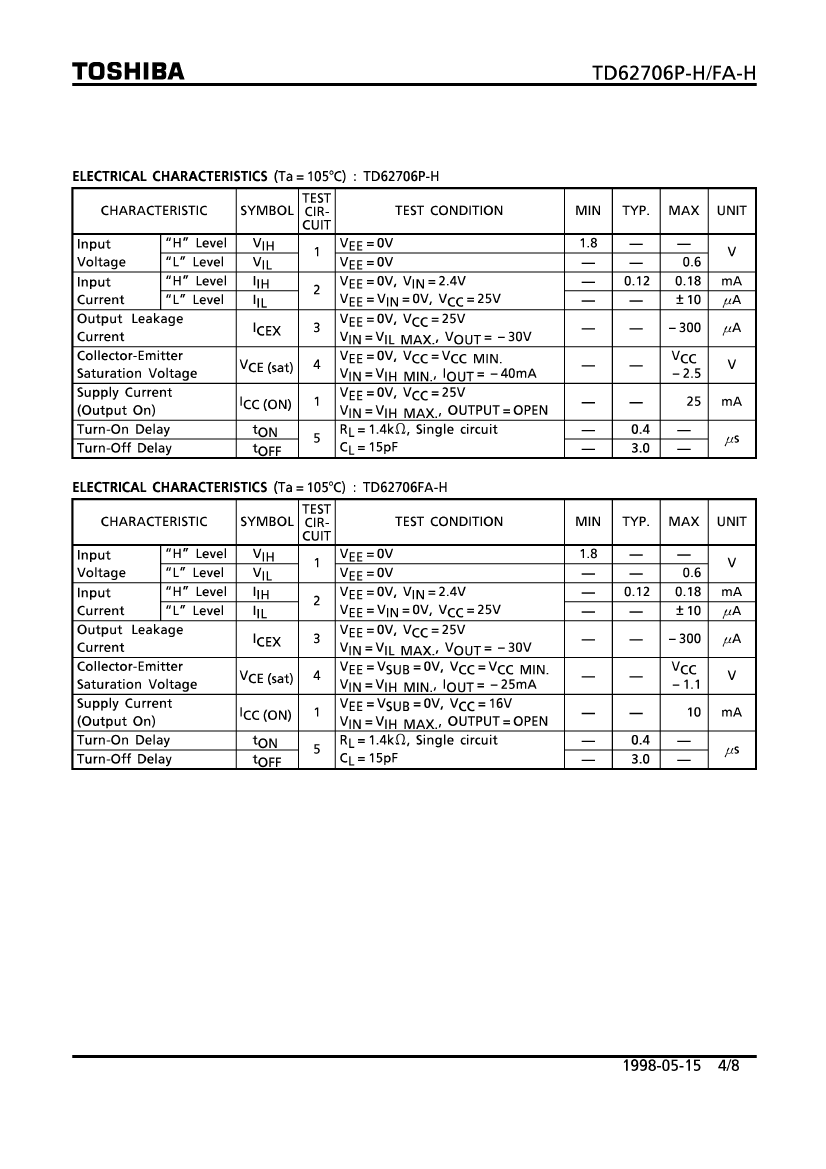

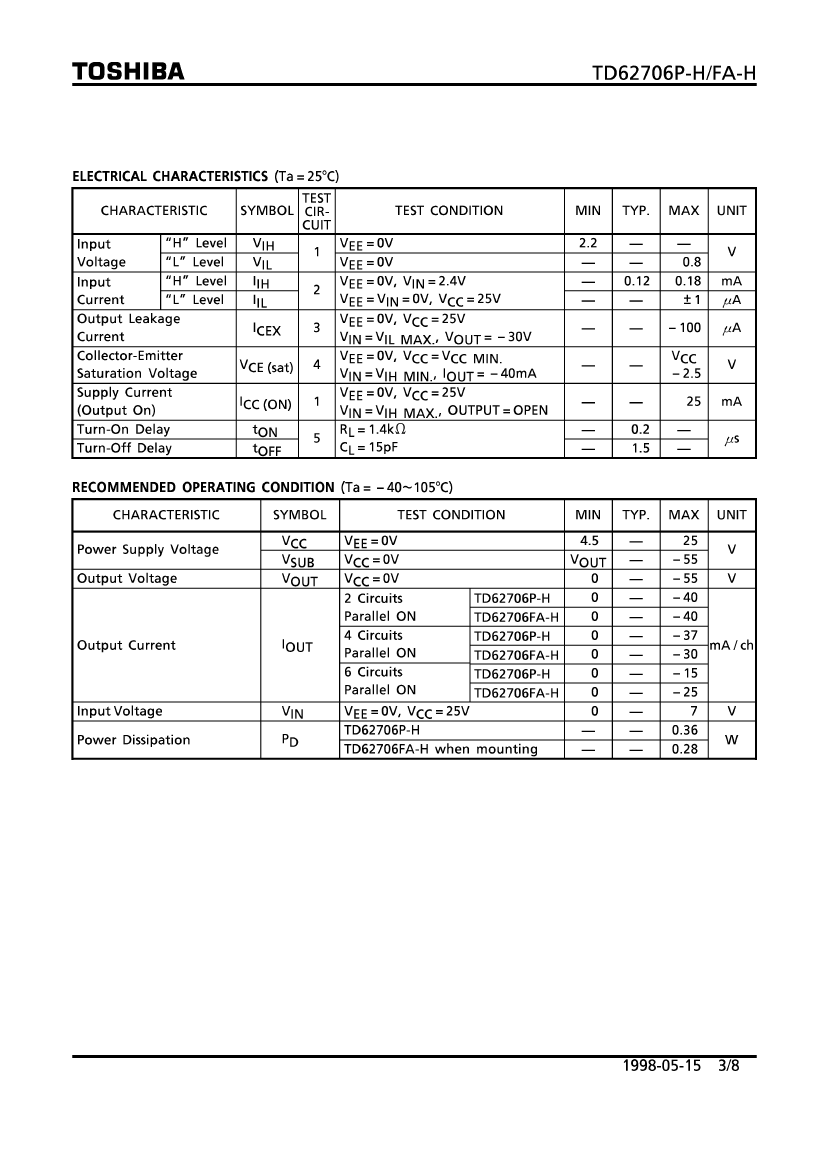

6CH HIGH-VOLTAGE SOURCE-CURRENT DRIVER

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Number of drives	6
Input properties	STANDARD
Interface integrated circuit type	VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 code	R-PDIP-T16
length	19.25 mm
Multiplex display function	NO
Number of functions	1
Number of segments	6
Number of terminals	16
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-EMITTER
Maximum output current	0.04 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	4.5/25 V
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum slew rate	25 mA
Maximum supply voltage	25 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	TD62706P-H	TD62706A-H
Description	6CH HIGH-VOLTAGE SOURCE-CURRENT DRIVER	6CH HIGH-VOLTAGE SOURCE-CURRENT DRIVER
