Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TD62706F

Preview

TD62706F: Description6CH HIGH-VOLTAGE SOURCE DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size253KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

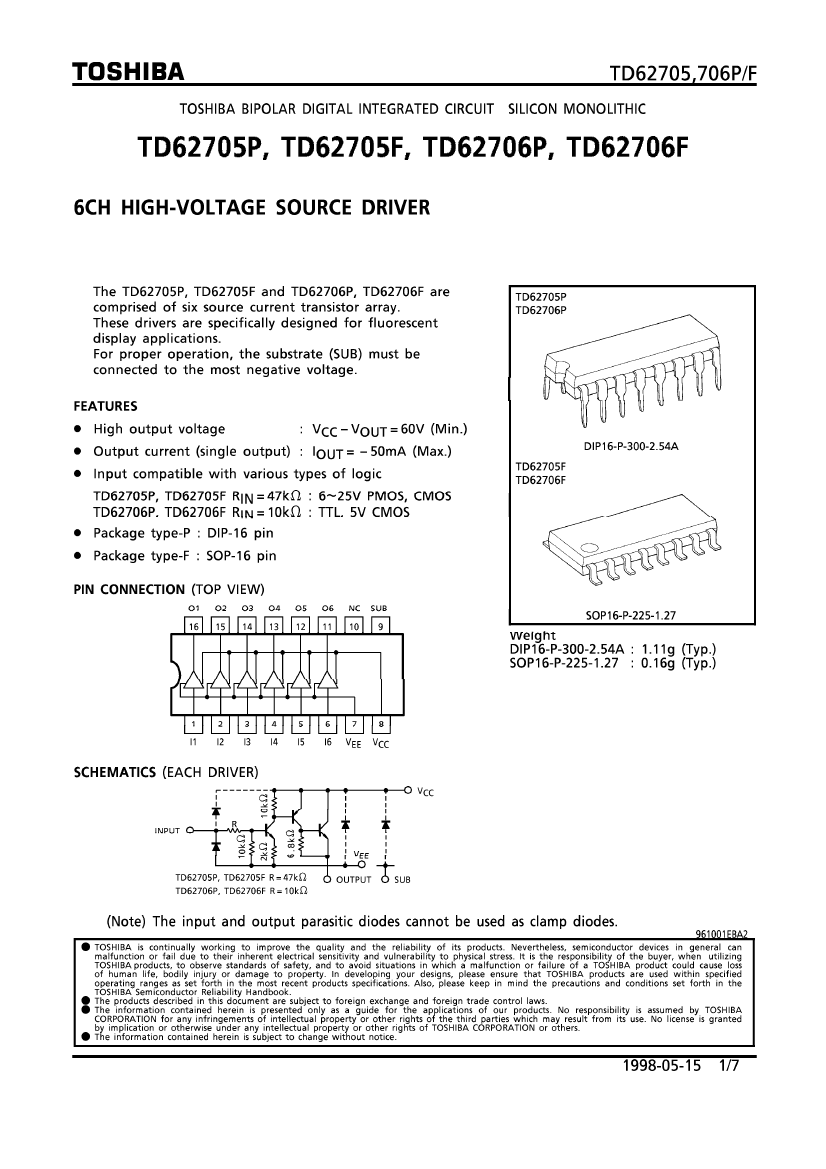

TD62706F Overview

6CH HIGH-VOLTAGE SOURCE DRIVER

TD62706F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Input properties	STANDARD
Interface integrated circuit type	VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 code	R-PDSO-G16
length	10 mm
Multiplex display function	NO
Number of functions	6
Number of segments	6
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	4.5/25,-55 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum slew rate	25 mA
Maximum supply voltage	25 V
Minimum supply voltage	4.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm

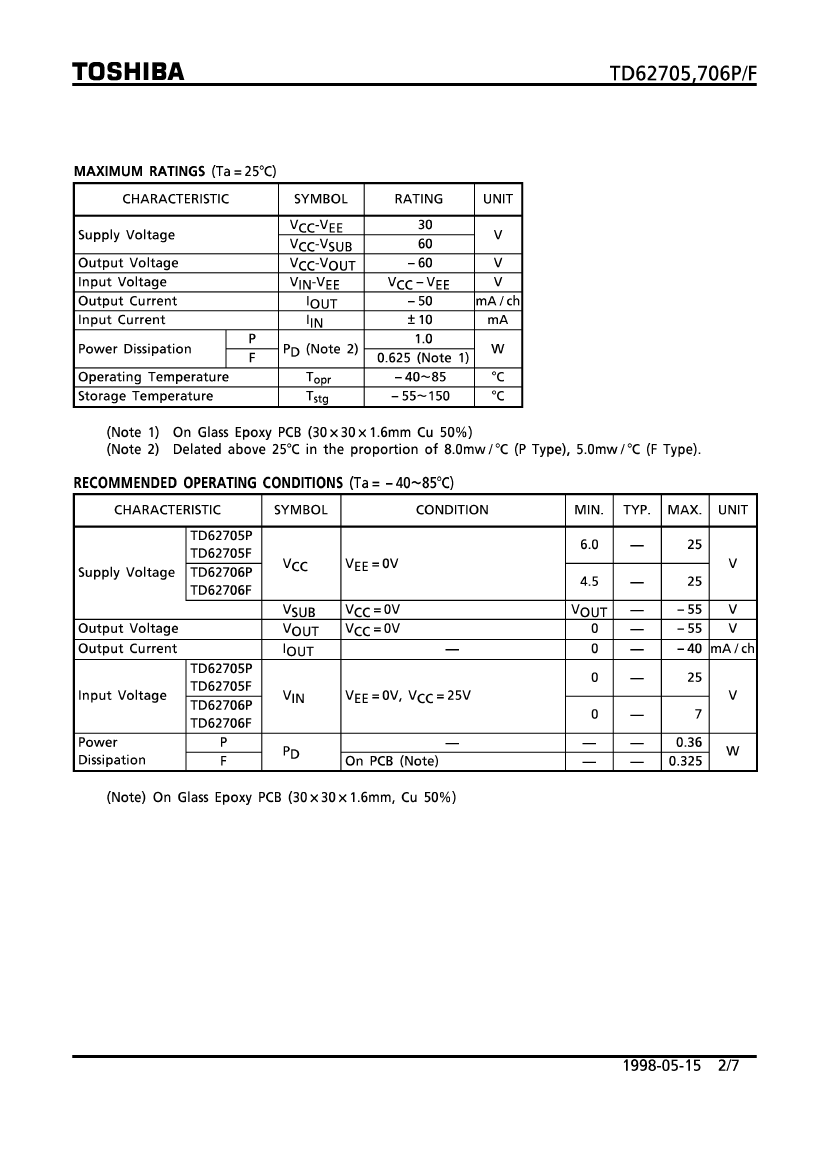

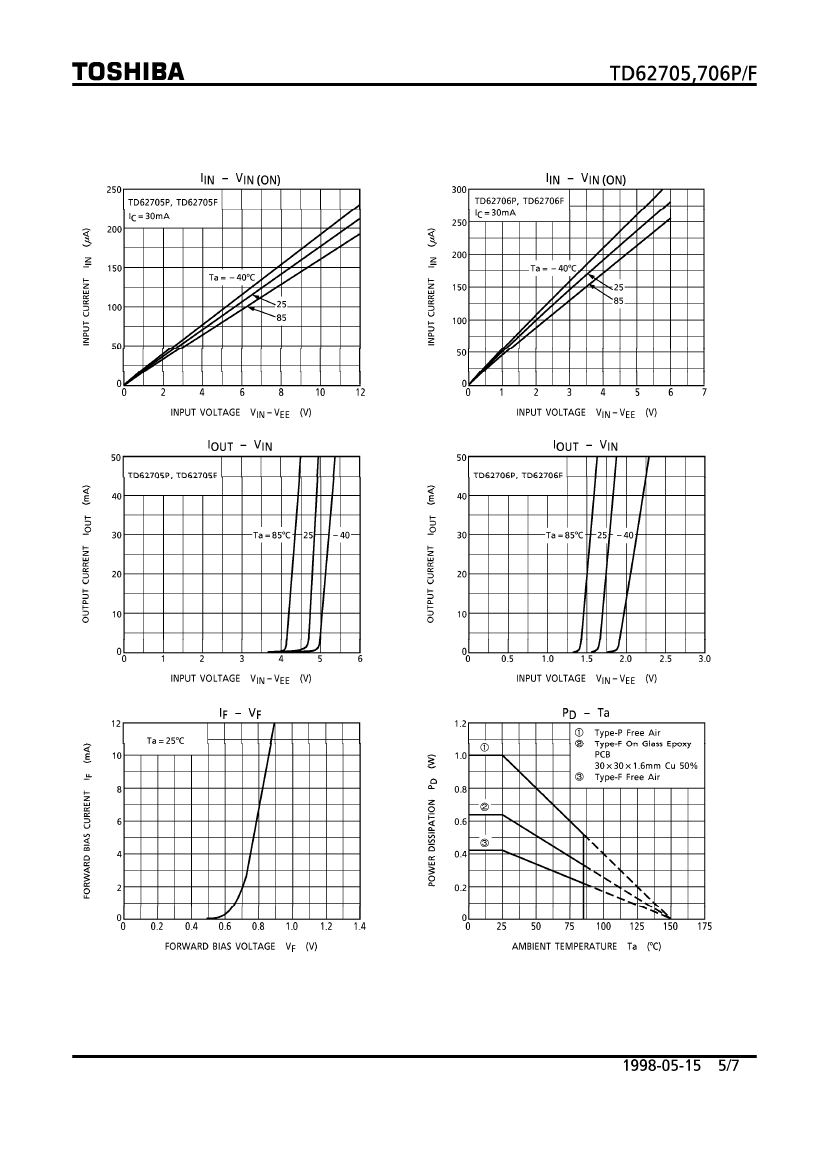

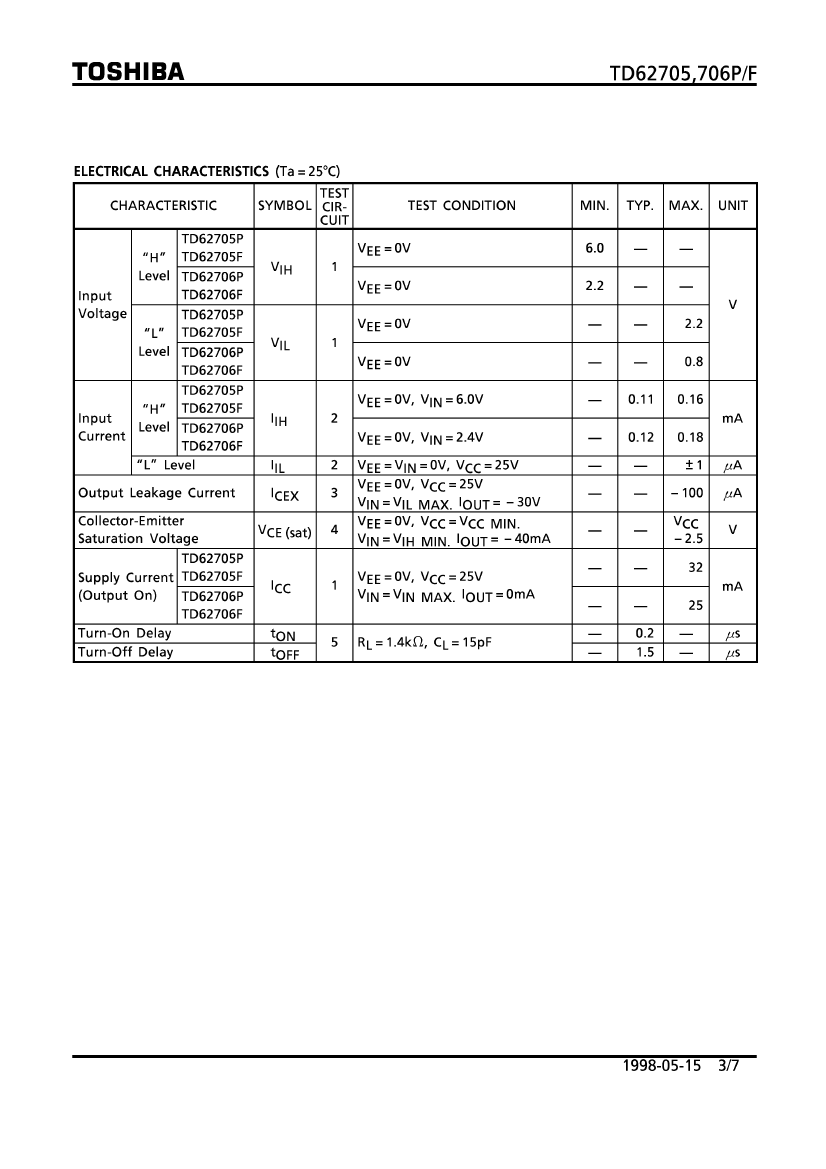

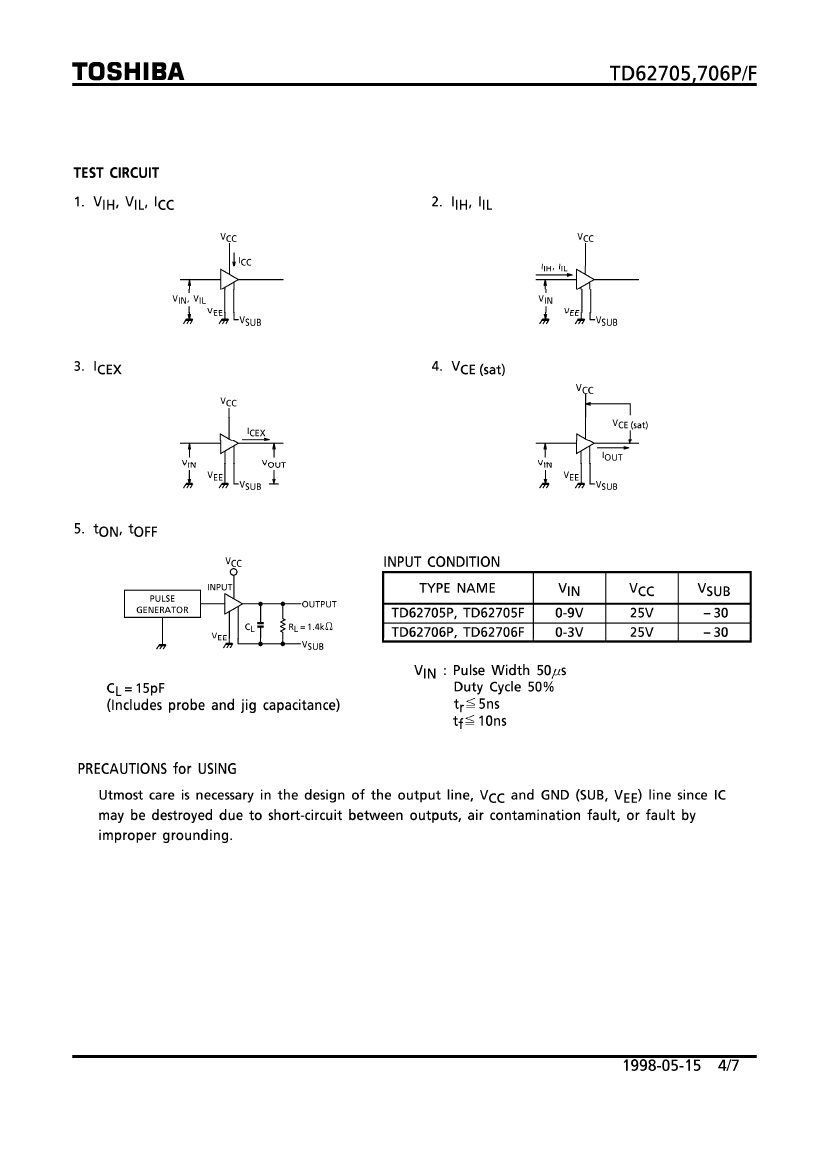

Preview

Download Datasheet

View All

TD62706F Related Products

	TD62706F	TD62705	TD62706P	TD62706	TD62705P	TD62705F
Description	6CH HIGH-VOLTAGE SOURCE DRIVER	6CH HIGH-VOLTAGE SOURCE DRIVER	6CH HIGH-VOLTAGE SOURCE DRIVER	6CH HIGH-VOLTAGE SOURCE DRIVER	6CH HIGH-VOLTAGE SOURCE DRIVER	6CH HIGH-VOLTAGE SOURCE DRIVER
Is it Rohs certified?	incompatible	-	incompatible	-	incompatible	incompatible
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor	-	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	-	DIP	-	DIP	SOIC
package instruction	SOP, SOP16,.25	-	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16	-	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16	SOP, SOP16,.25
Contacts	16	-	16	-	16	16
Reach Compliance Code	unknow	-	unknow	-	unknow	unknow
Interface integrated circuit type	VACUUM FLUORESCENT DISPLAY DRIVER	-	VACUUM FLUORESCENT DISPLAY DRIVER	-	VACUUM FLUORESCENT DISPLAY DRIVER	VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 code	R-PDSO-G16	-	R-PDIP-T16	-	R-PDIP-T16	R-PDSO-G16
length	10 mm	-	19.25 mm	-	19.25 mm	10 mm
Multiplex display function	NO	-	NO	-	NO	NO
Number of functions	6	-	1	-	1	6
Number of segments	6	-	6	-	6	6
Number of terminals	16	-	16	-	16	16
Maximum operating temperature	85 °C	-	85 °C	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	-	DIP	-	DIP	SOP
Package shape	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	IN-LINE	-	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	240	-	240	240
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	-	4.45 mm	-	4.45 mm	1.9 mm
Maximum supply voltage	25 V	-	25 V	-	25 V	25 V
Minimum supply voltage	4.5 V	-	4.5 V	-	6 V	6 V
surface mount	YES	-	NO	-	NO	YES
technology	BIPOLAR	-	BIPOLAR	-	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	-	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	-	THROUGH-HOLE	-	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	-	2.54 mm	-	2.54 mm	1.27 mm
Terminal location	DUAL	-	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	-	7.62 mm	-	7.62 mm	4.4 mm
