TD62604P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TD62604P

TD62604P: Description4CH THRESHOLD FREE DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size206KB，5 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TD62604P Overview

4CH THRESHOLD FREE DRIVER

TD62604P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Number of drives	6
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.25 mm
Number of functions	6
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Maximum output current	0.008 A
Nominal output peak current	0.008 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	4/18 V
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum slew rate	12 mA
Maximum supply voltage	18 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

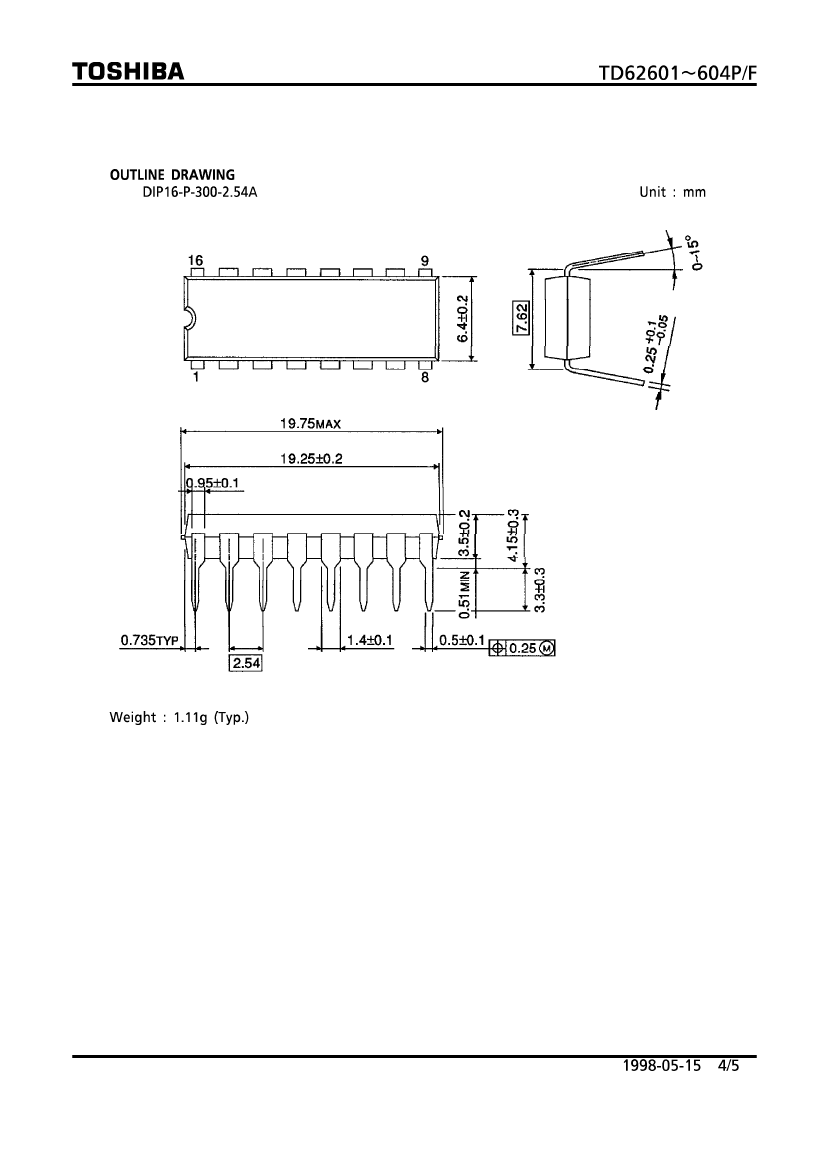

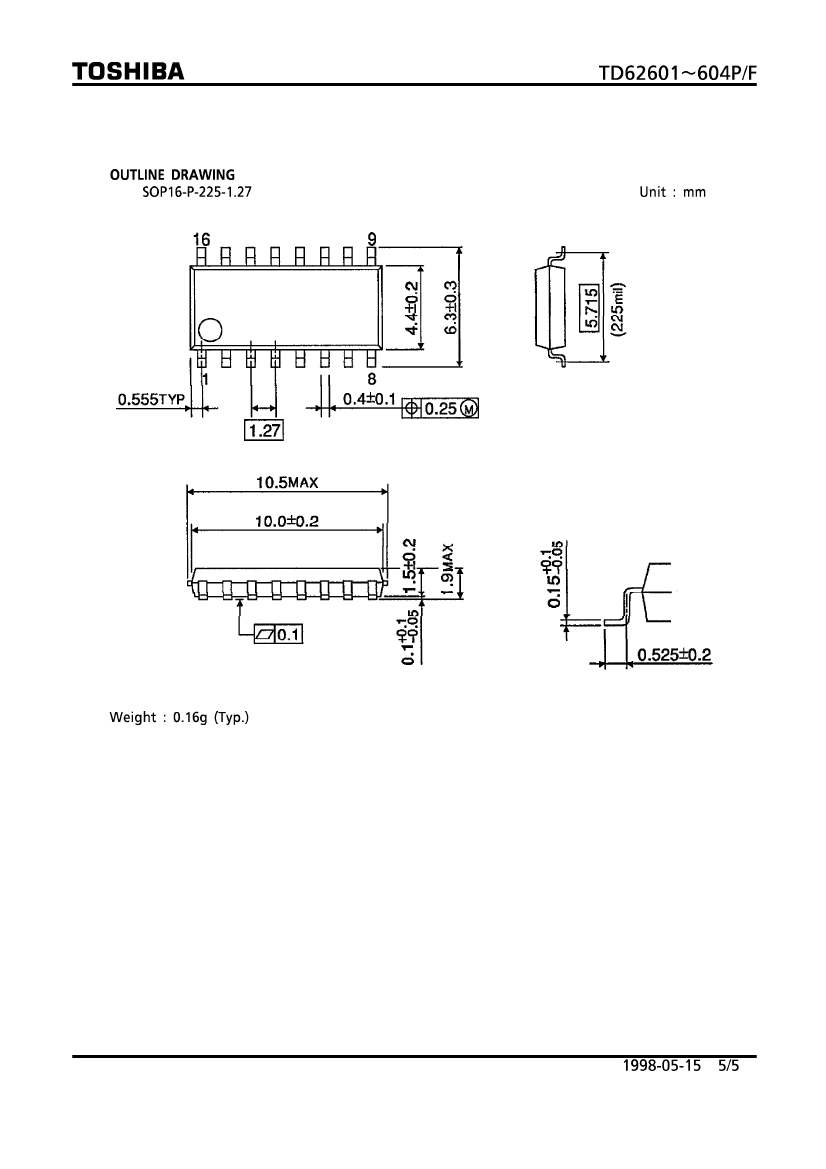

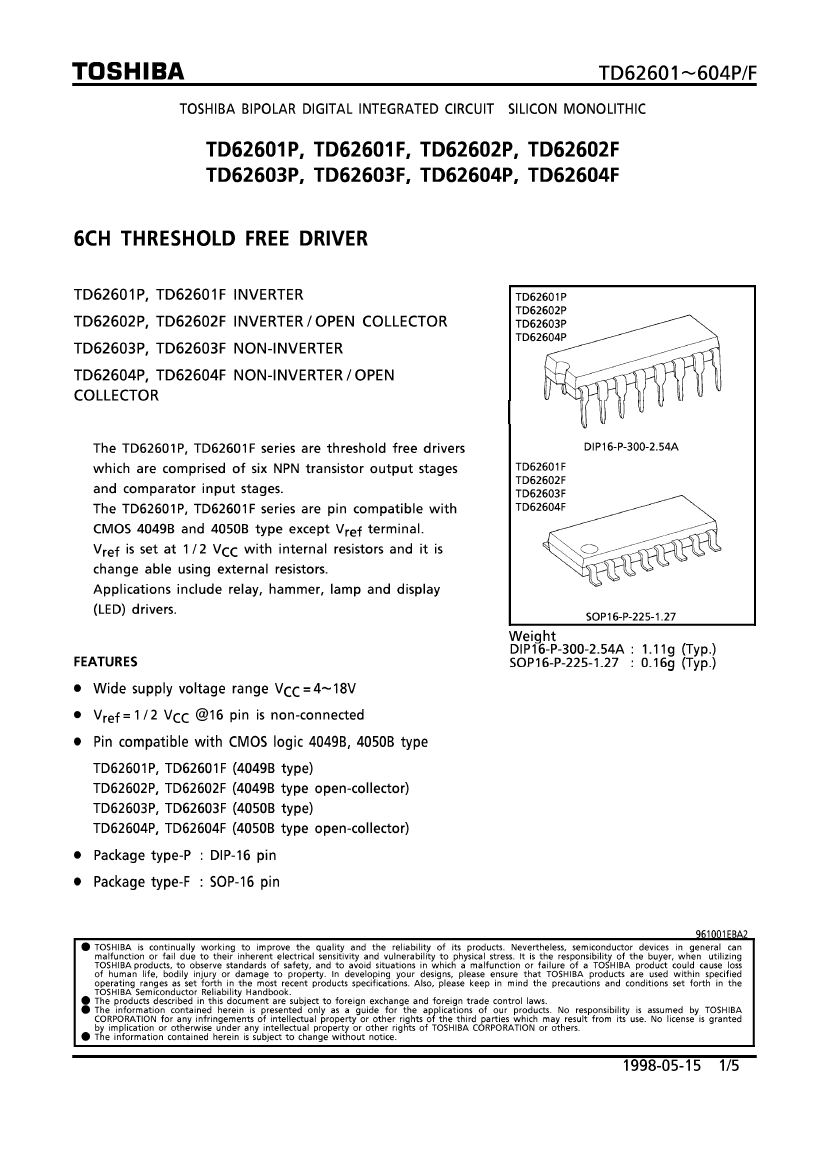

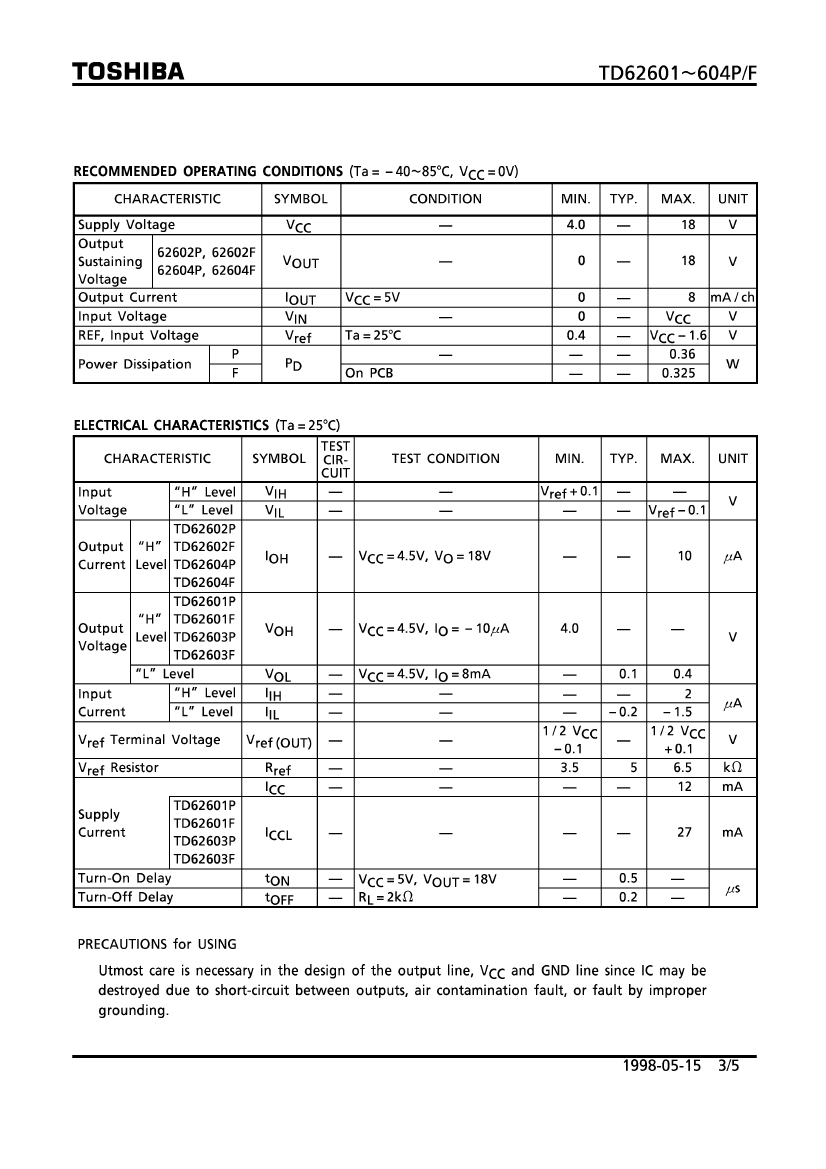

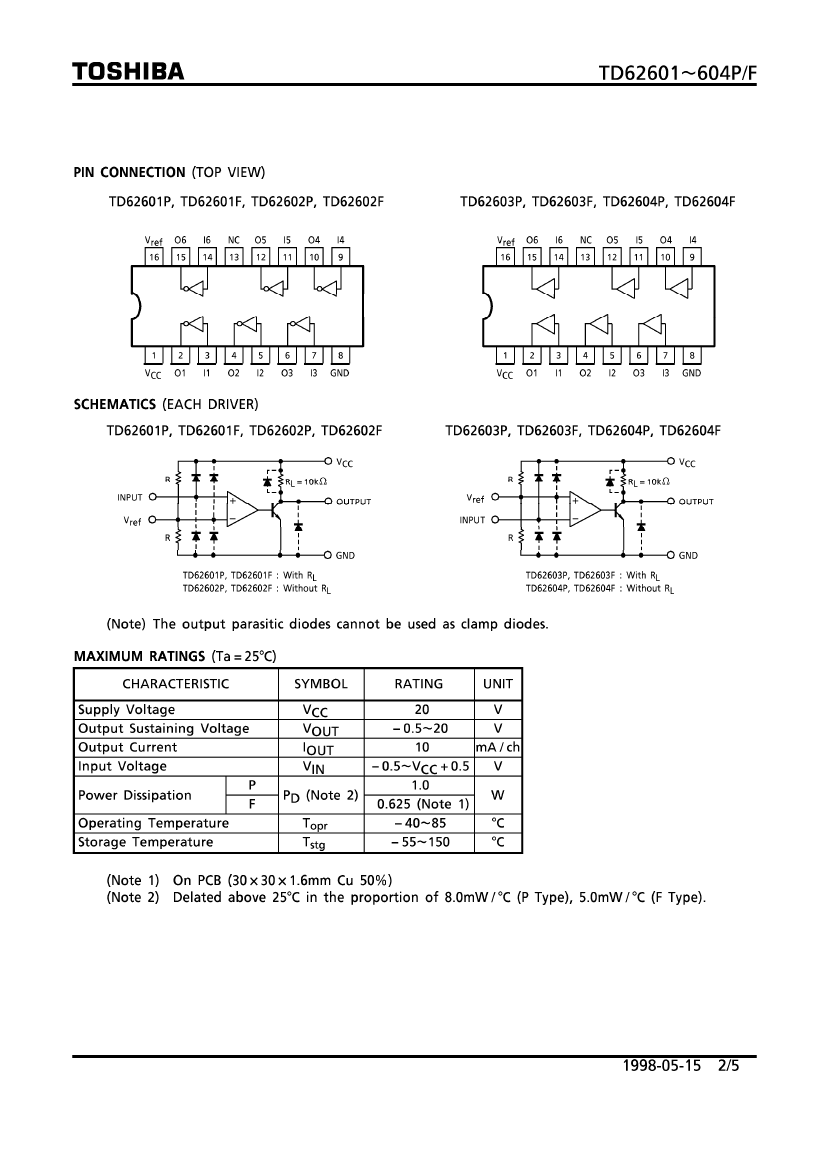

Preview

Download Datasheet

View All

TD62604P Related Products

	TD62604P	TD62601	TD62603P	TD62604F	TD62603F	TD62602P	TD62601P	TD62602F	TD62601F
Description	4CH THRESHOLD FREE DRIVER	4CH THRESHOLD FREE DRIVER	4CH THRESHOLD FREE DRIVER	4CH THRESHOLD FREE DRIVER	4CH THRESHOLD FREE DRIVER	4CH THRESHOLD FREE DRIVER	4CH THRESHOLD FREE DRIVER	4CH THRESHOLD FREE DRIVER	4CH THRESHOLD FREE DRIVER
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	-	DIP	SOIC	SOIC	DIP	DIP	SOIC	SOIC
package instruction	DIP, DIP16,.3	-	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16	SOP, SOP16,.25	0.225 INCH, 1.27 MM PITCH, PLASTIC, SOP-16	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16	0.225 INCH, 1.27 MM PITCH, PLASTIC, SOP-16	0.225 INCH, 1.27 MM PITCH, PLASTIC, SOP-16
Contacts	16	-	16	16	16	16	16	16	16
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	-	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T16	-	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0	e0
length	19.25 mm	-	19.25 mm	10 mm	10 mm	19.25 mm	19.25 mm	10 mm	10 mm
Number of functions	6	-	6	6	6	6	6	6	6
Number of terminals	16	-	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output current flow direction	SINK	-	SINK	SINK	SINK	SINK	SINK	SINK	SINK
Nominal output peak current	0.008 A	-	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	DIP	SOP	SOP	DIP	DIP	SOP	SOP
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.45 mm	-	4.45 mm	1.9 mm	1.9 mm	4.45 mm	4.45 mm	1.9 mm	1.9 mm
surface mount	NO	-	NO	YES	YES	NO	NO	YES	YES
technology	BIPOLAR	-	TTL	BIPOLAR	TTL	TTL	TTL	TTL	TTL
Temperature level	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	-	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	-	7.62 mm	4.4 mm	4.4 mm	7.62 mm	7.62 mm	4.4 mm	4.4 mm
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
