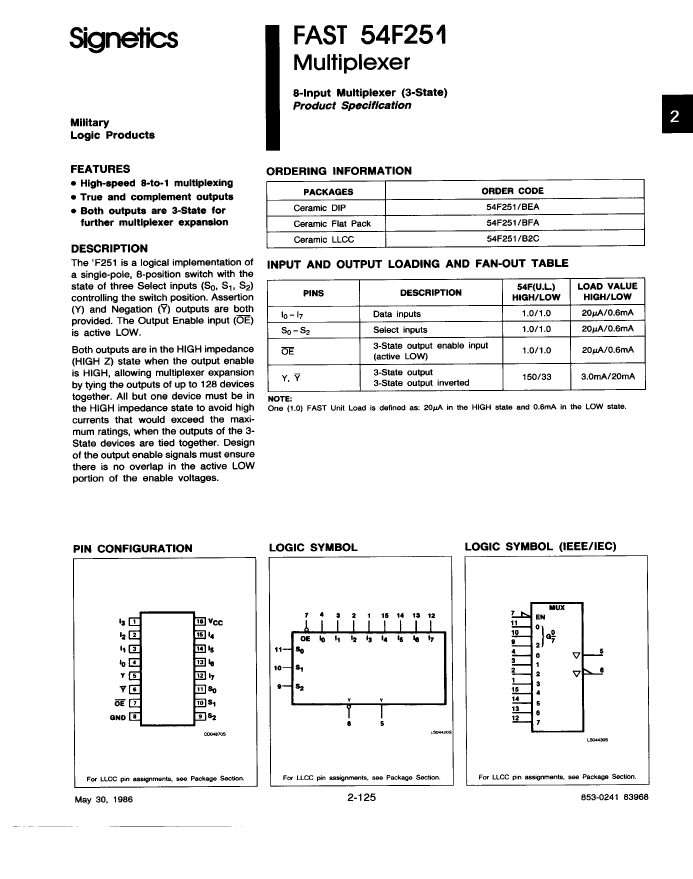

Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDFP16, CERAMIC, FP-16

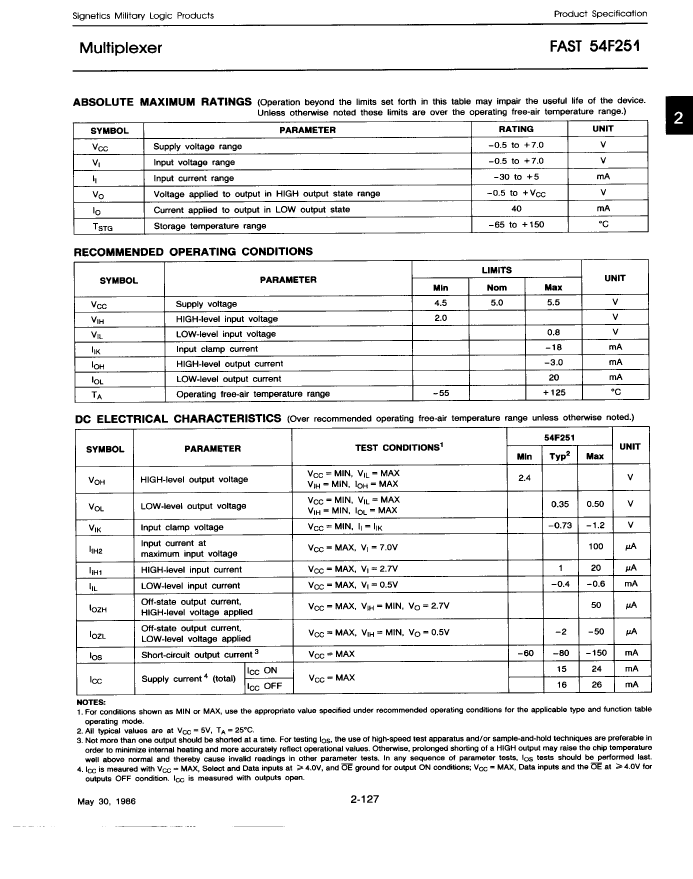

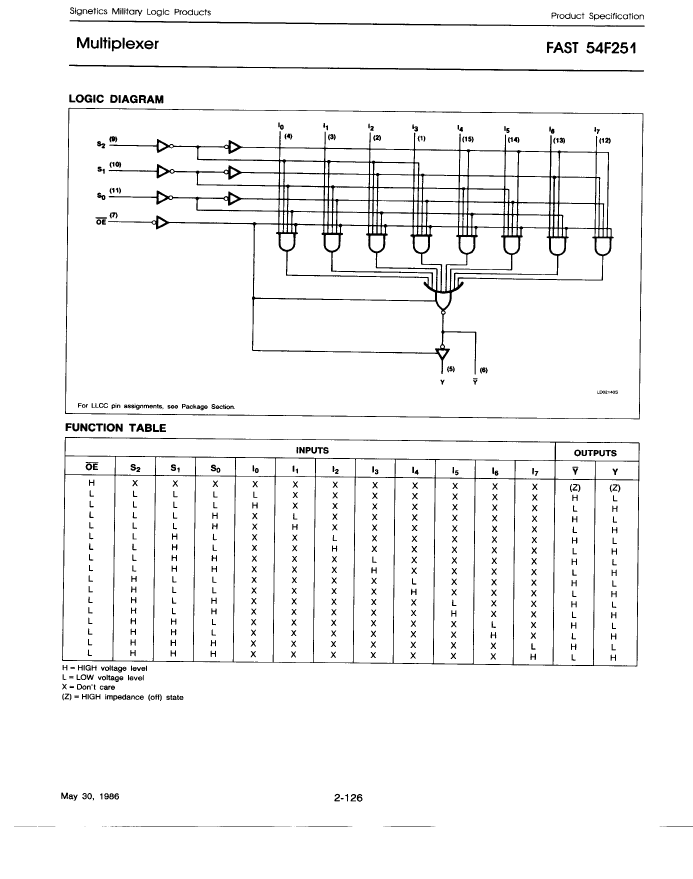

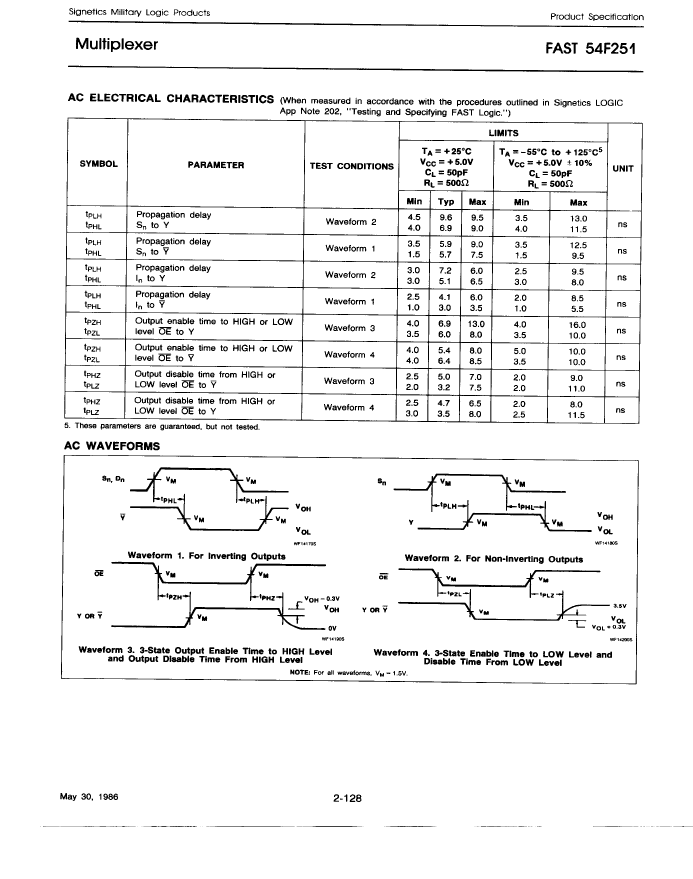

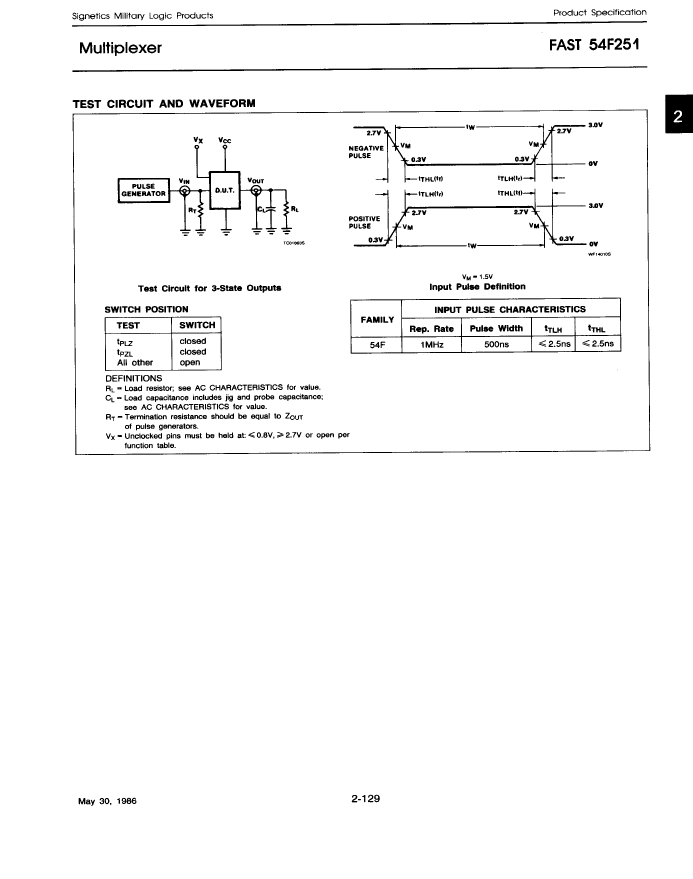

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Signetics |
| package instruction | DFP, FL16,.3 |
| Reach Compliance Code | unknow |
| series | F/FAST |
| JESD-30 code | R-CDFP-F16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MULTIPLEXER |
| MaximumI(ol) | 0.02 A |
| Number of functions | 1 |
| Number of entries | 8 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 26 mA |
| Prop。Delay @ Nom-Su | 12.5 ns |
| propagation delay (tpd) | 9.5 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| 54F251/BFA | 54F251/B2C | 54F251/BEA | |
|---|---|---|---|
| Description | Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDFP16, CERAMIC, FP-16 | Multiplexer, 1-Func, 8 Line Input, TTL, CQCC20 | Multiplexer, 1-Func, 8 Line Input, TTL, CDIP16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Signetics | Signetics | Signetics |
| Reach Compliance Code | unknow | unknown | unknow |
| JESD-30 code | R-CDFP-F16 | S-XQCC-N20 | R-XDIP-T16 |
| JESD-609 code | e0 | e0 | e0 |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| MaximumI(ol) | 0.02 A | 0.02 A | 0.02 A |
| Number of functions | 1 | 1 | 1 |
| Number of entries | 8 | 8 | 8 |
| Number of terminals | 16 | 20 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC | CERAMIC |
| encapsulated code | DFP | QCCN | DIP |
| Encapsulate equivalent code | FL16,.3 | LCC20,.35SQ | DIP16,.3 |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | FLATPACK | CHIP CARRIER | IN-LINE |
| power supply | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 26 mA | 26 mA | 26 mA |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO |
| technology | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL |
| package instruction | DFP, FL16,.3 | - | DIP, DIP16,.3 |
| Prop。Delay @ Nom-Su | 12.5 ns | - | 12.5 ns |
