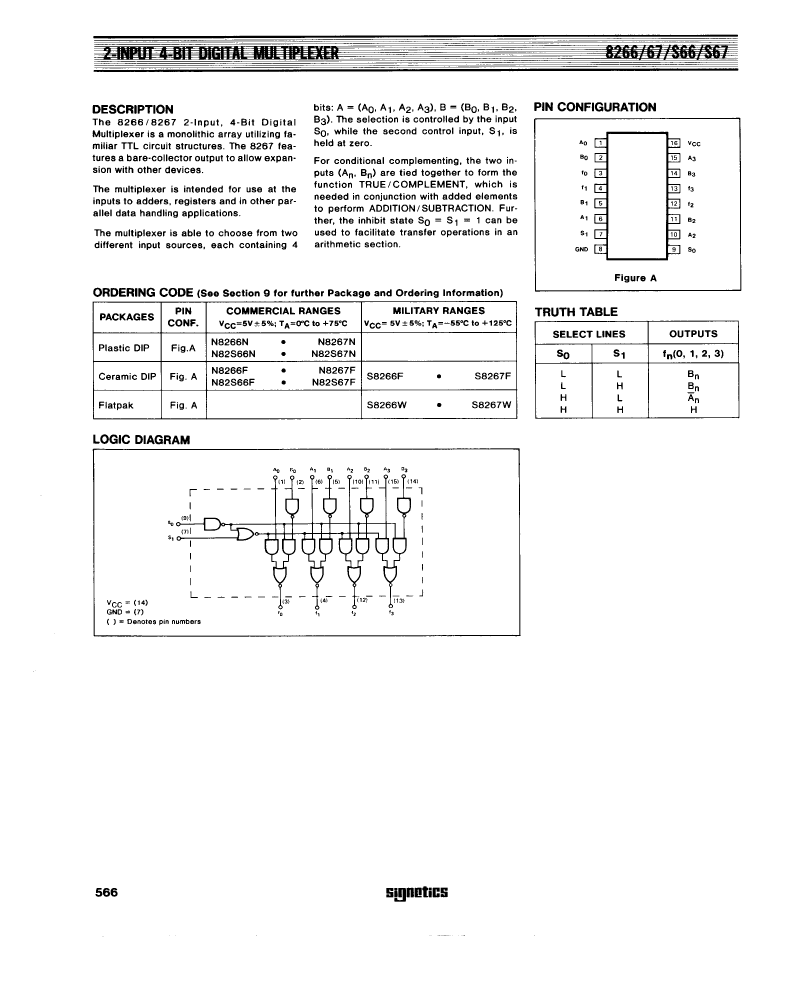

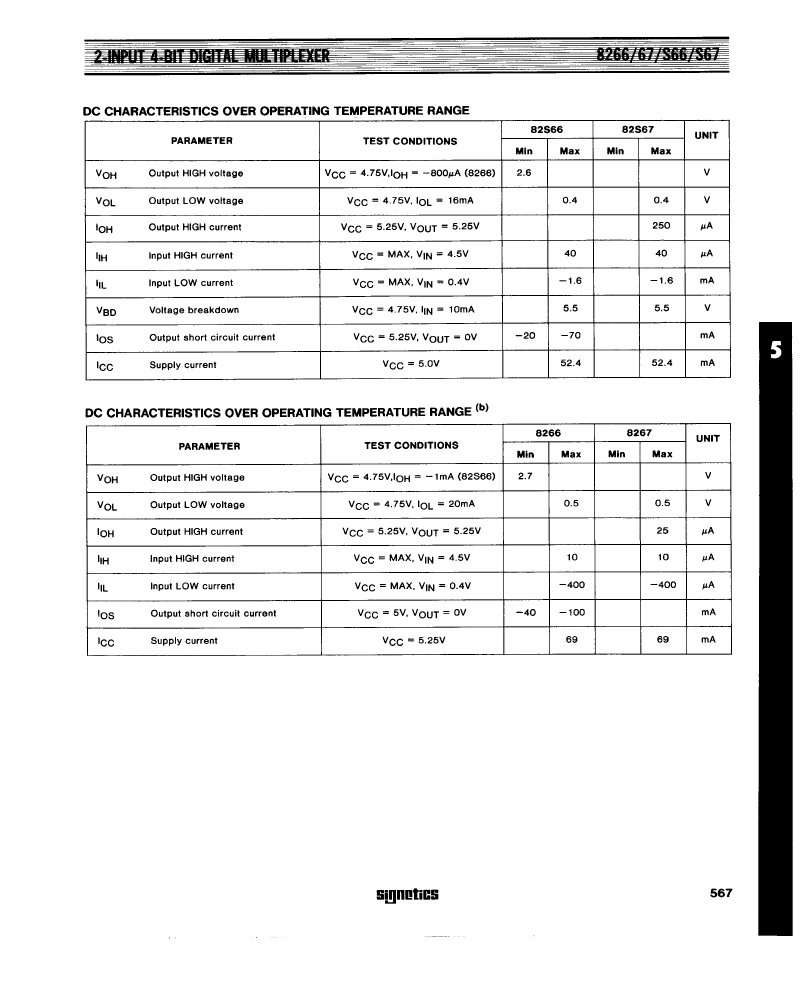

Multiplexer, S Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Signetics |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | unknow |
| Other features | ONE OF THE INPUT IS INVERTED AT THE OUTPUT |
| series | S |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 15 pF |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 4 |
| Number of entries | 2 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| propagation delay (tpd) | 18 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| N82S66F | N82S67F | N8267F | S8267F | S8267W | S8266W | S8266F | N8266F | |
|---|---|---|---|---|---|---|---|---|
| Description | Multiplexer, S Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16 | Multiplexer, S Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16 | Multiplexer, 82 Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16 | Multiplexer, 82 Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16 | Multiplexer, 82 Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CQFP16 | Multiplexer, 82 Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CQFP16 | Multiplexer, 82 Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16 | Multiplexer, 82 Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16 |
| Reach Compliance Code | unknow | unknow | unknown | unknown | unknown | unknown | unknown | unknow |
| Other features | ONE OF THE INPUT IS INVERTED AT THE OUTPUT | ONE OF THE INPUT IS INVERTED AT THE OUTPUT | ONE OF THE INPUT IS INVERTED AT THE OUTPUT | ONE OF THE INPUT IS INVERTED AT THE OUTPUT | ONE OF THE INPUT IS INVERTED AT THE OUTPUT | ONE OF THE INPUT IS INVERTED AT THE OUTPUT | ONE OF THE INPUT IS INVERTED AT THE OUTPUT | ONE OF THE INPUT IS INVERTED AT THE OUTPUT |
| series | S | S | 82 | 82 | 82 | 82 | 82 | 82 |
| JESD-30 code | R-GDIP-T16 | R-GDIP-T16 | R-GDIP-T16 | R-GDIP-T16 | R-CQFP-F16 | R-CQFP-F16 | R-GDIP-T16 | R-GDIP-T16 |
| Load capacitance (CL) | 15 pF | 15 pF | 30 pF | 30 pF | 30 pF | 30 pF | 30 pF | 30 pF |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Output times | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 75 °C | 75 °C | 75 °C | 125 °C | 125 °C | 125 °C | 125 °C | 75 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | FLATPACK | FLATPACK | IN-LINE | IN-LINE |

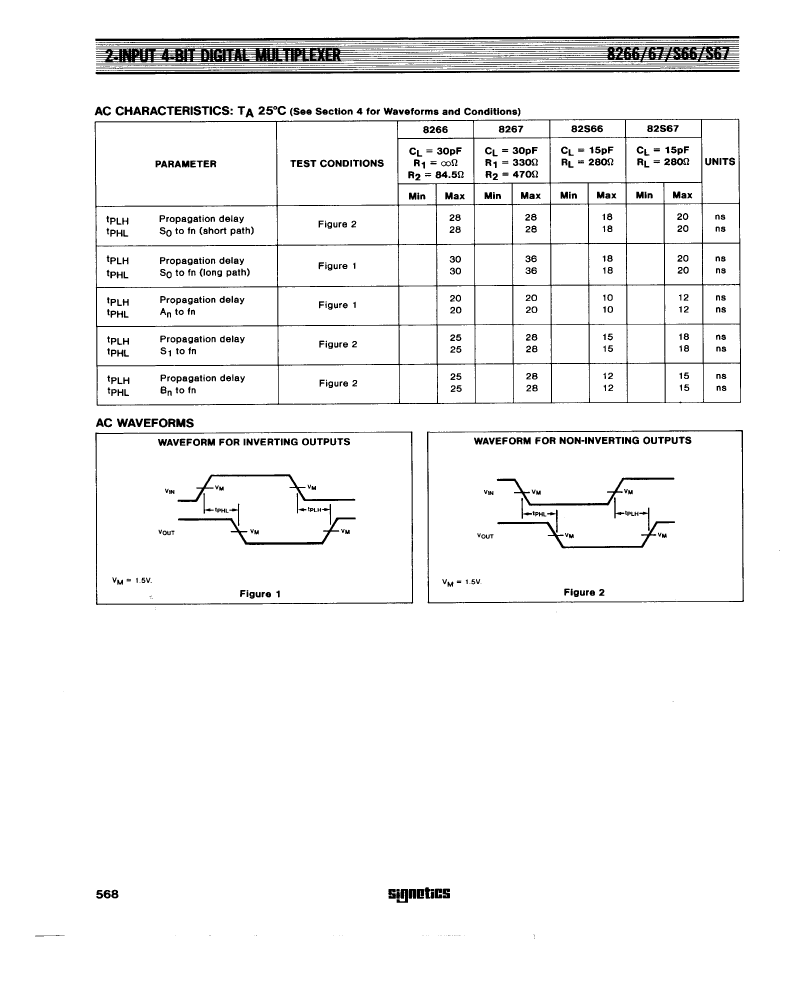

| propagation delay (tpd) | 18 ns | 20 ns | 36 ns | 36 ns | 36 ns | 30 ns | 30 ns | 30 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | YES | YES | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | MILITARY | MILITARY | MILITARY | MILITARY | COMMERCIAL EXTENDED |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | FLAT | FLAT | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | QUAD | QUAD | DUAL | DUAL |
| Maker | Signetics | - | Signetics | Signetics | Signetics | Signetics | Signetics | Signetics |
| Maximum supply current (ICC) | - | - | 52.4 mA | 52.4 mA | 52.4 mA | 52.4 mA | 52.4 mA | 52.4 mA |
