S54S03F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> S54S03F

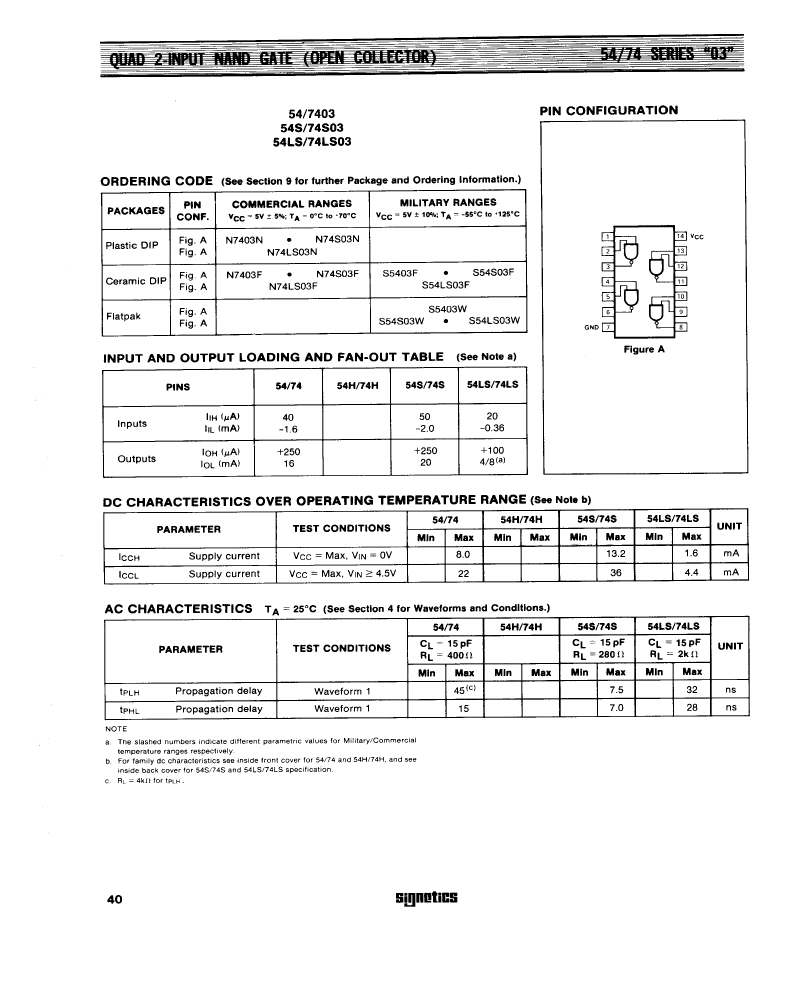

S54S03F: DescriptionNAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14; Categorylogic logic; File Size37KB，1 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

S54S03F Overview

NAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14

S54S03F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknow
series	S
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
Load capacitance (CL)	15 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.02 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	9 mA
Prop。Delay @ Nom-Su	7.5 ns
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

S54S03F Related Products

	S54S03F	S54LS03W	S54LS03F	N74S03F	N7403F	N74S03N	N74LS03F	N7403N	S54S03W	S5403F
Description	NAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14	NAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14	NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14	NAND Gate, S Series, 4-Func, 2-Input, TTL, PDIP14	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14	NAND Gate, 74 Series, 2-Func, 4-Input, TTL, PDIP14	NAND Gate, S Series, 4-Func, 2-Input, TTL, CDFP14	NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
series	S	LS	LS	S	TTL/H/L	S	LS	74	S	TTL/H/L
JESD-30 code	R-GDIP-T14	R-CDFP-F14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-PDIP-T14	R-GDIP-T14	R-PDIP-T14	R-CDFP-F14	R-GDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.02 A	0.004 A	0.004 A	0.02 A	0.016 A	0.02 A	0.008 A	0.016 A	0.02 A	0.016 A
Number of functions	4	4	4	4	4	4	4	2	4	4
Number of entries	2	2	2	2	2	2	2	4	2	2
Number of terminals	14	14	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C	125 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	TOTEM POLE	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DFP	DIP	DIP	DIP	DIP	DIP	DIP	DFP	DIP
Encapsulate equivalent code	DIP14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	9 mA	4.4 mA	4.4 mA	9 mA	22 mA	36 mA	4.4 mA	22 mA	9 mA	22 mA
propagation delay (tpd)	7 ns	28 ns	28 ns	7 ns	15 ns	7.5 ns	28 ns	27 ns	7 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	NO	NO	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Signetics	Signetics	Signetics	-	-	-	-	Signetics	Signetics	Signetics
package instruction	DIP, DIP14,.3	DFP, FL14,.3	-	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DIP, DIP14,.3
Load capacitance (CL)	15 pF	15 pF	15 pF	15 pF	15 pF	-	15 pF	-	15 pF	15 pF
Prop。Delay @ Nom-Sup	-	7.5 ns	7.5 ns	7.5 ns	45 ns	7.5 ns	7.5 ns	45 ns	7.5 ns	-
Base Number Matches	-	1	1	1	1	1	1	-	-	-
