TD62318AP: Description4CH LOW INPUT ACTIVE HIGH-CURRENT DARLINGTON SINK DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size287KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TD62318AP Overview

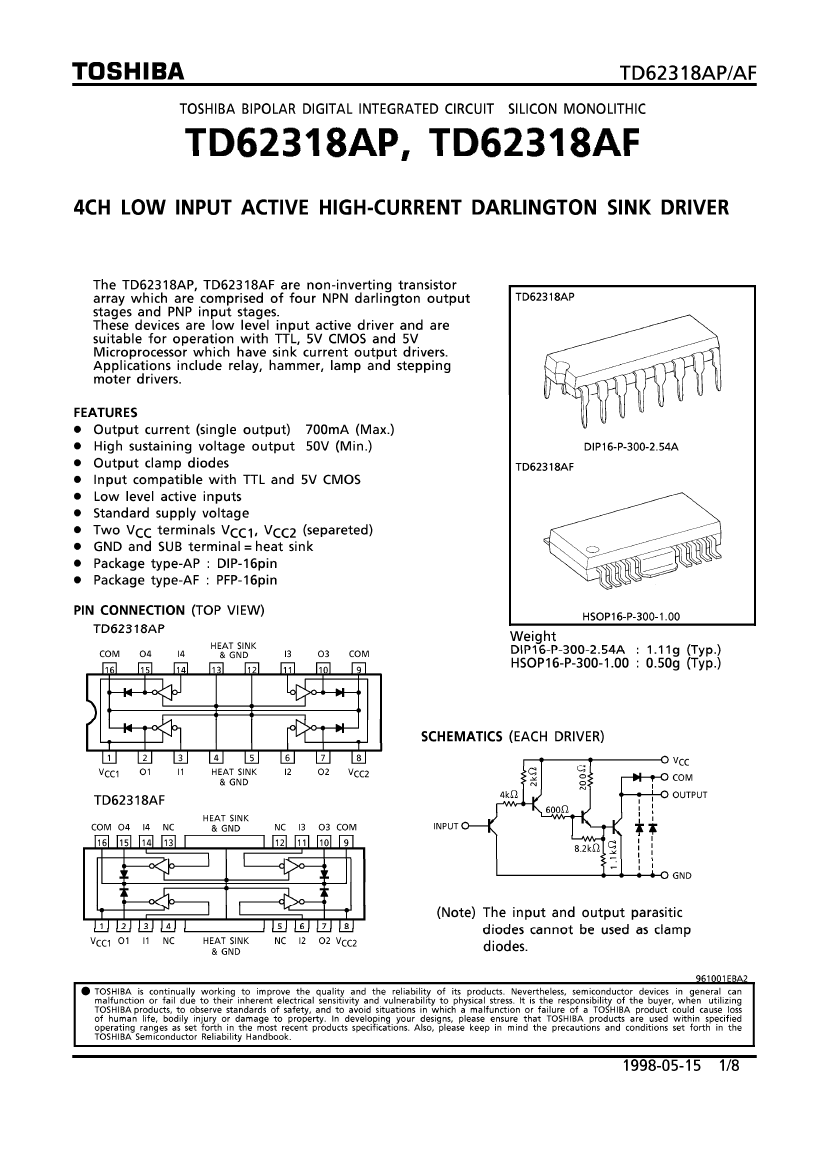

4CH LOW INPUT ACTIVE HIGH-CURRENT DARLINGTON SINK DRIVER

TD62318AP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Built-in protection	TRANSIENT
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.25 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Maximum output current	0.7 A
Nominal output peak current	0.57 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum slew rate	160 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Disconnect time	16 µs
connection time	0.8 µs
width	7.62 mm
Base Number Matches	1

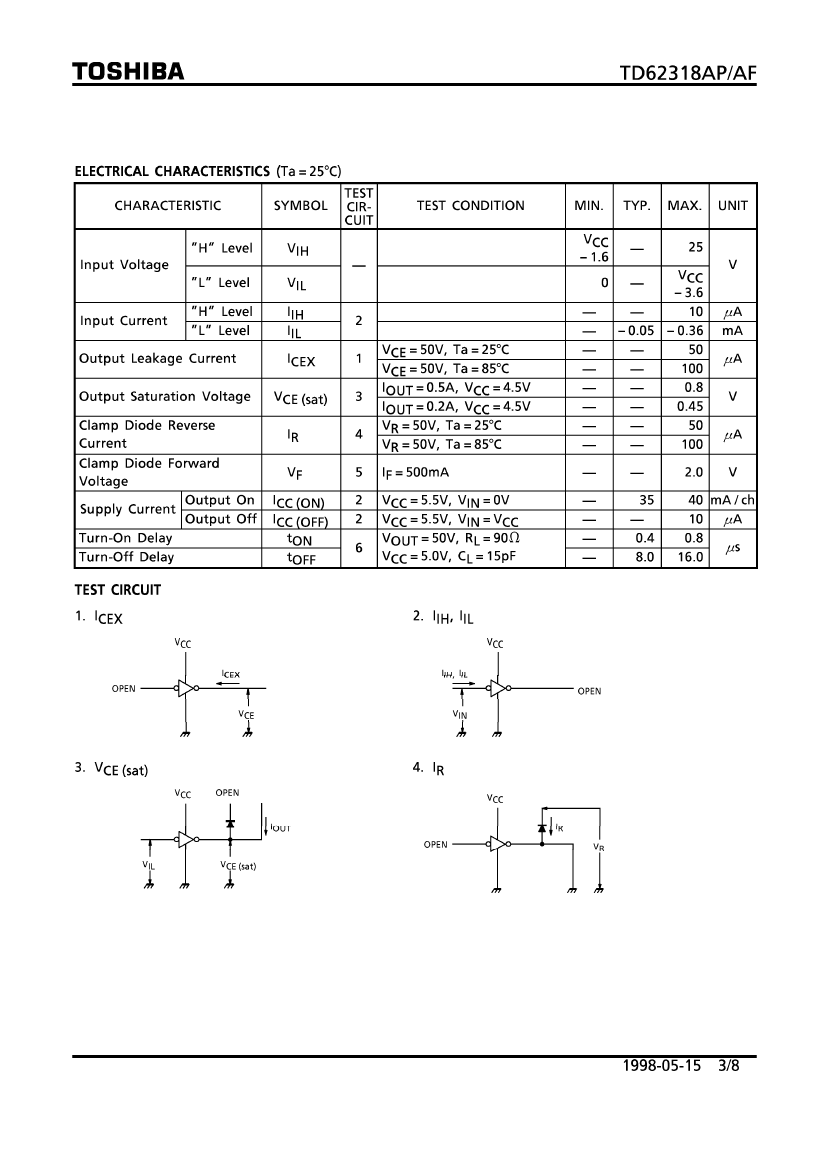

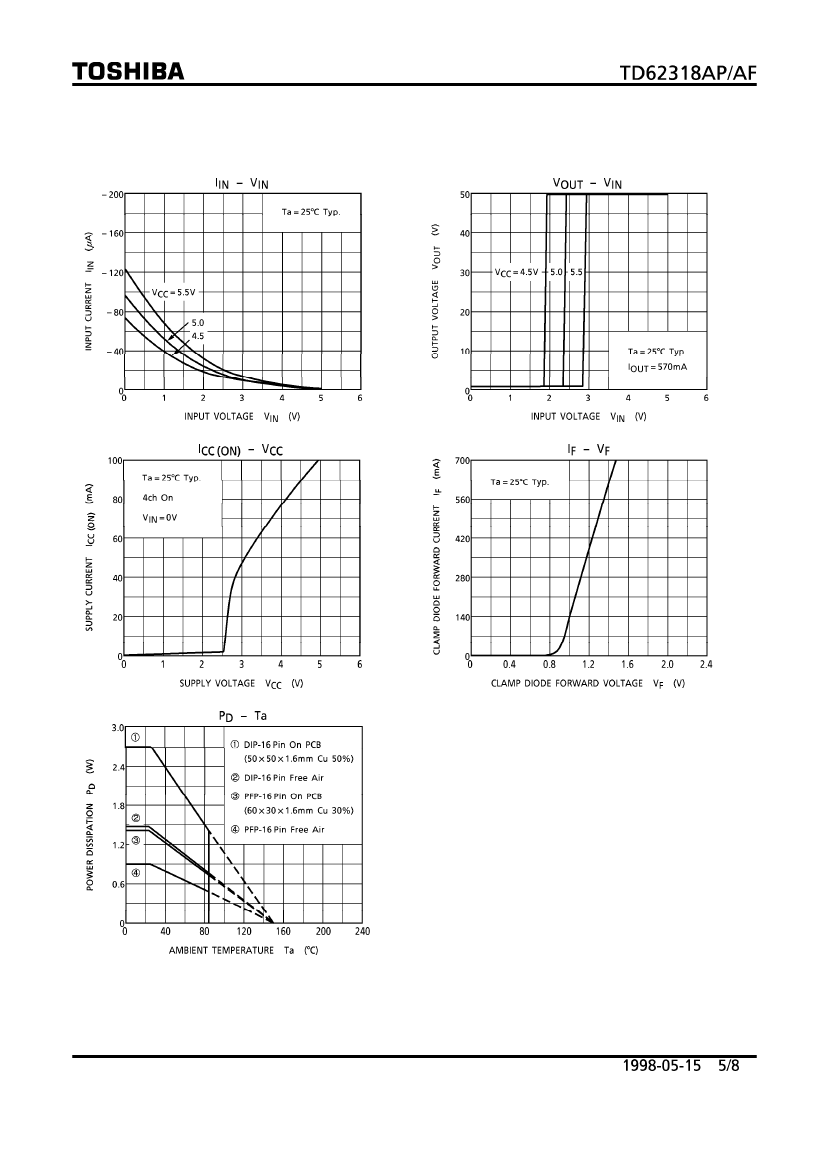

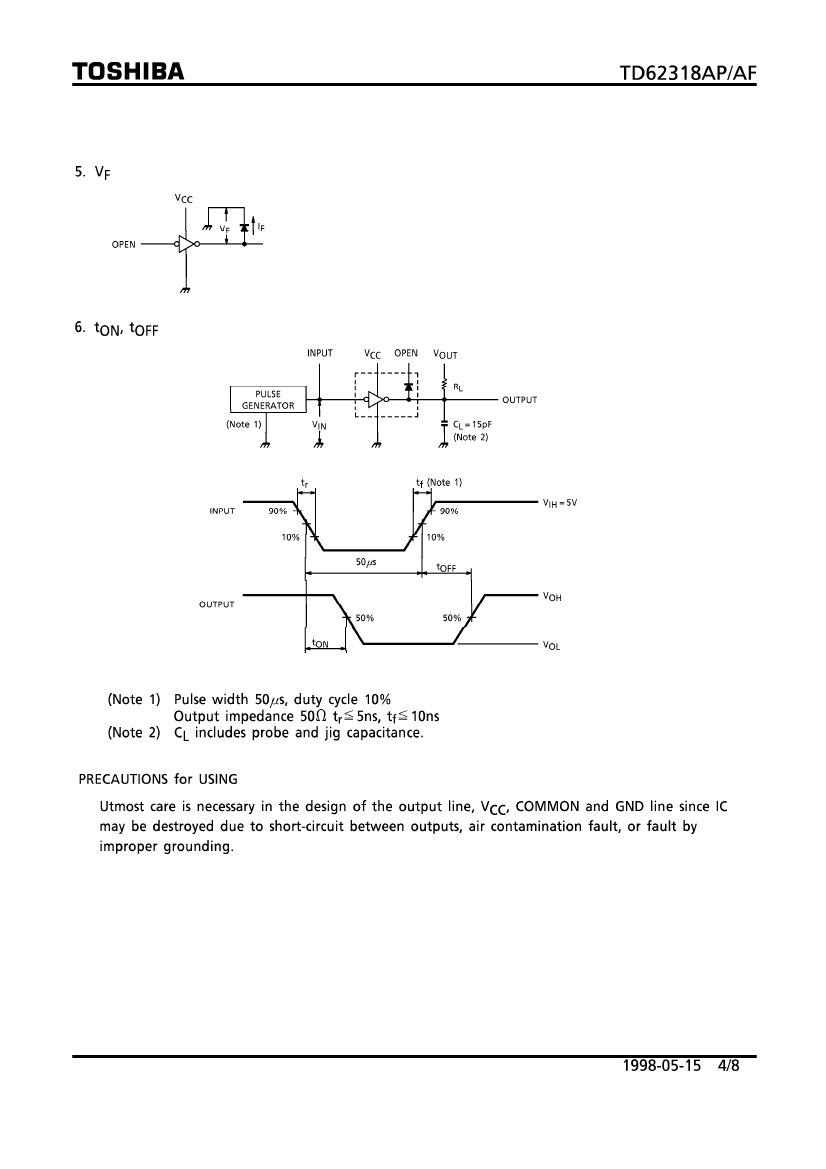

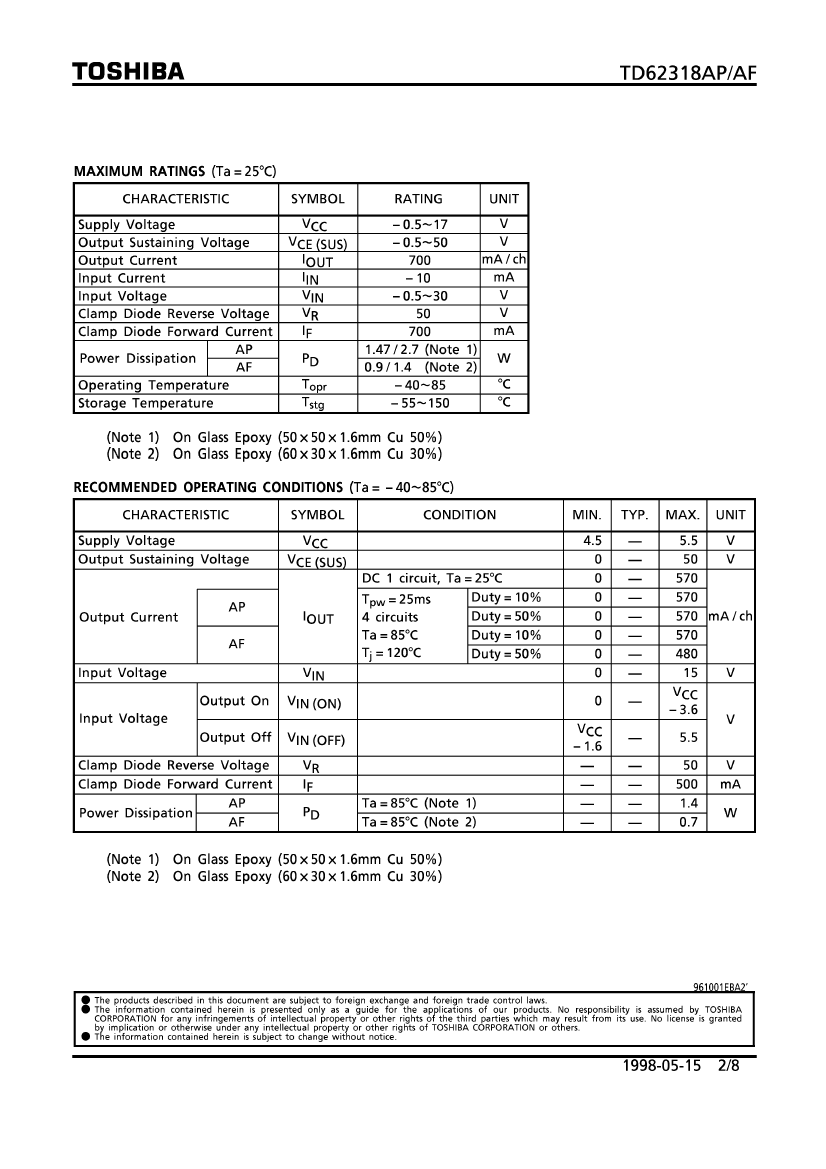

Preview

Download Datasheet

View All

TD62318AP Related Products

	TD62318AP	TD62318AF
Description	4CH LOW INPUT ACTIVE HIGH-CURRENT DARLINGTON SINK DRIVER	4CH LOW INPUT ACTIVE HIGH-CURRENT DARLINGTON SINK DRIVER
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	SOIC
package instruction	DIP, DIP16,.3	HSSOP, SOP16/24,.37,40
Contacts	16	16
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Built-in protection	TRANSIENT	TRANSIENT
Number of drives	4	4
Input properties	STANDARD	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T16	R-PDSO-G18
length	19.25 mm	13 mm
Number of functions	4	4
Number of terminals	16	18
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR
Output current flow direction	SINK	SINK
Maximum output current	0.7 A	0.7 A
Nominal output peak current	0.57 A	0.57 A
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	HSSOP
Encapsulate equivalent code	DIP16,.3	SOP16/24,.37,40
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.45 mm	2.85 mm
Maximum slew rate	160 mA	160 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1 mm
Terminal location	DUAL	DUAL
Disconnect time	16 µs	16 µs
connection time	0.8 µs	0.8 µs
width	7.62 mm	6.4 mm
Base Number Matches	1	1
