5KP SERIES
Technical Data
Data Sheet N0213, Rev. A
5KP SERIES GLASS PASSIVATED
TRANSIENT VOLTAGE SUPPRESSOR
Features
Glass Passivated Die Construction
5000W Peak Pulse Power Dissipation
5.0V- 110V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL Flammability Classification
Rating 94V-O
This is a Pb − Free Device
All SMC Parts are Traceable to the Wafer Lot
Additional testing can be offered upon request
P-600

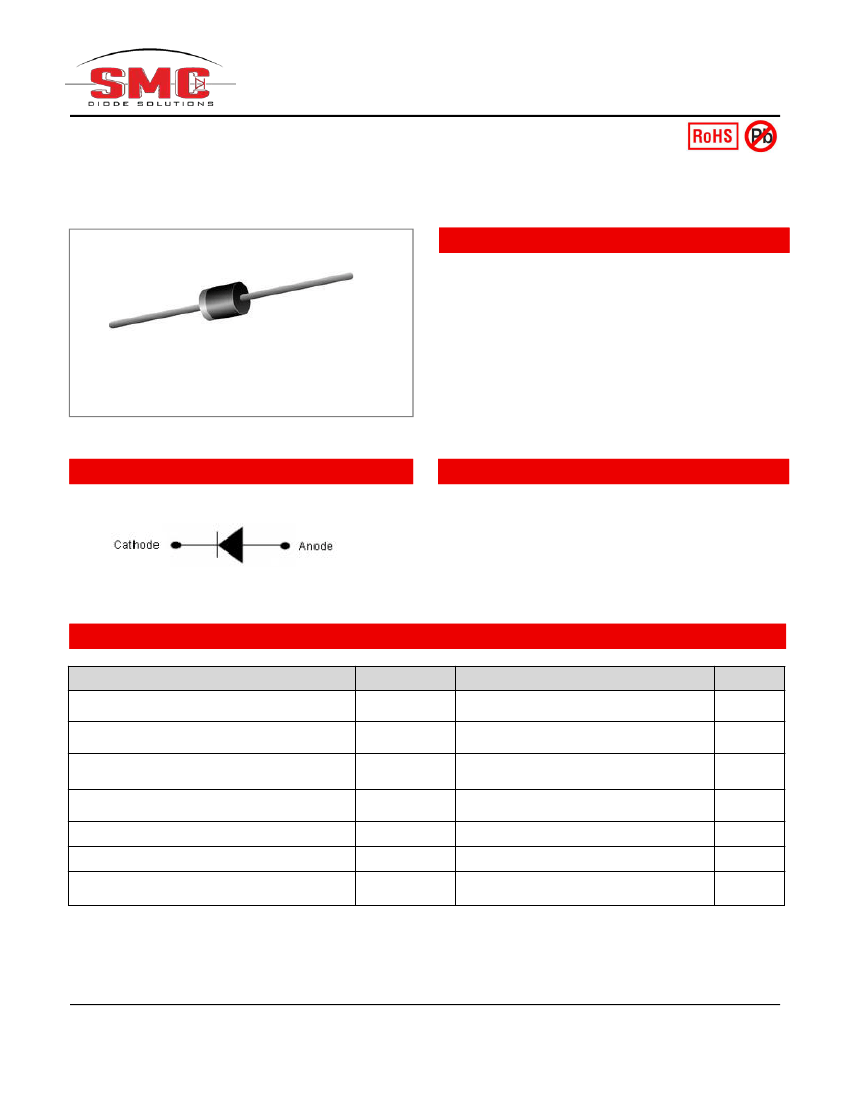

Circuit Diagram
Mechanical Data
Case: JEDEC P-600 Molded Plastic
Terminals: Axial leads , Solderable per
MIL-STD 750, Method 2026
Polarity: Cathode Band or Cathode Notch
Mounting Position: Any
Weight:2.1 grams(approx.)
Maximum Ratings and Thermal Characteristics
@T
A
=25°C unless otherwise specified
Parameter
Peak Pulse Power Dissipation at
T
A
=25°C
(Fig.1)(Note 1, 2, 5)
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave ( Fig.6),(Note 3)
Peak Pulse Current on 10x1000μs
Waveform(Fig.3)(Note 1)
Steady State Power Dissipation
(Note 2, 4)
Typical Thermal Resistance Junction to Lead
Typical Thermal Resistance Junction to Ambient
Operating Junction and Storage
Temperature Range
Symbol
P
PPM
I
FSM
I
PPM
P
M(AV)
R
θJL
R
θJA
T
J
,T
STG
Value
5000
400
See Table 1
8.0
8.0
40
-55 to 175
Unit
W
A
A
W
°C/W
°C/W
°C
Notes:
1. Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2.
2. Mounted on 20mm² copper pads.
3. 8.3ms single half sine wave, duty cycle=4 pulses per minute maximum.
4. Lead
temperature at 75°C=T
L
5.
Peak pulse power waveform is 10x1000μs
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
5KP SERIES
Technical Data
Data Sheet N0213, Rev. A

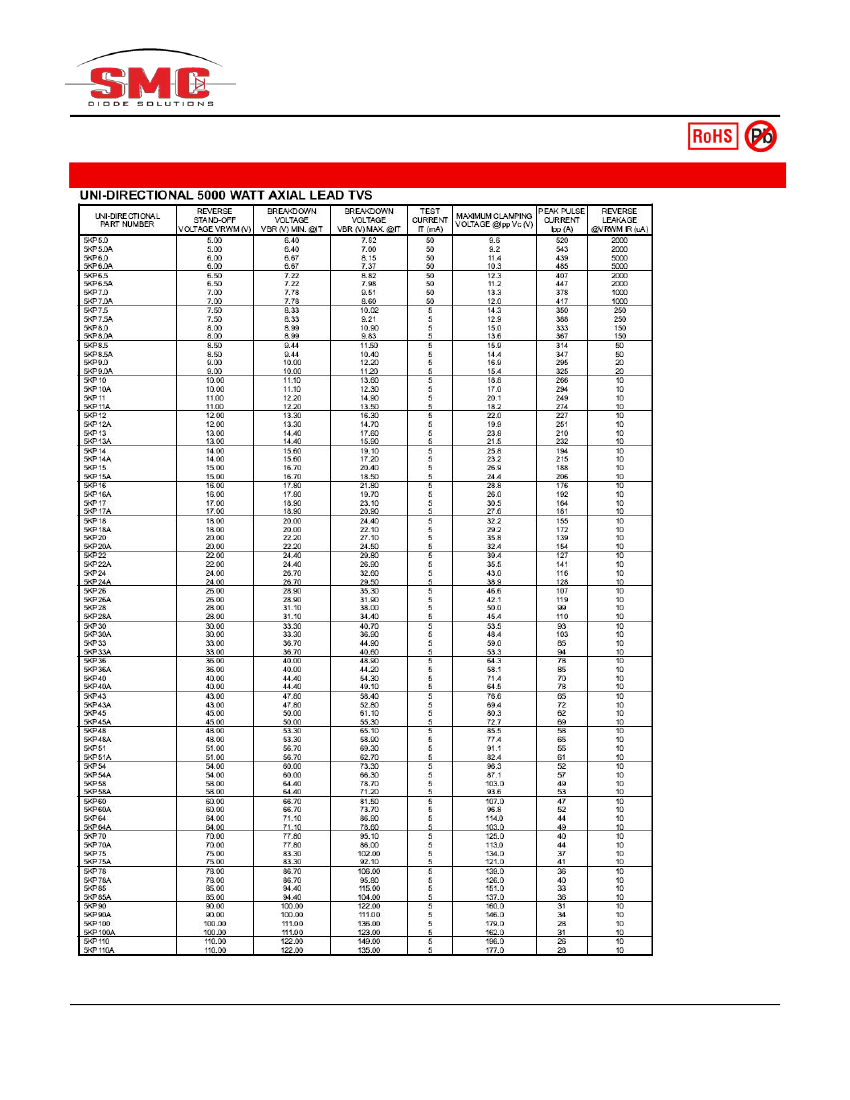

Electrical Characteristics
@T
A
=25°C unless otherwise specified
“C” Suffix Designates Bi-directional Devices
“A” Suffix Designates 5% Tolerance Devices
No Suffix Designates 10% Tolerance Devices
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
5KP SERIES
Technical Data
Data Sheet N0213, Rev. A

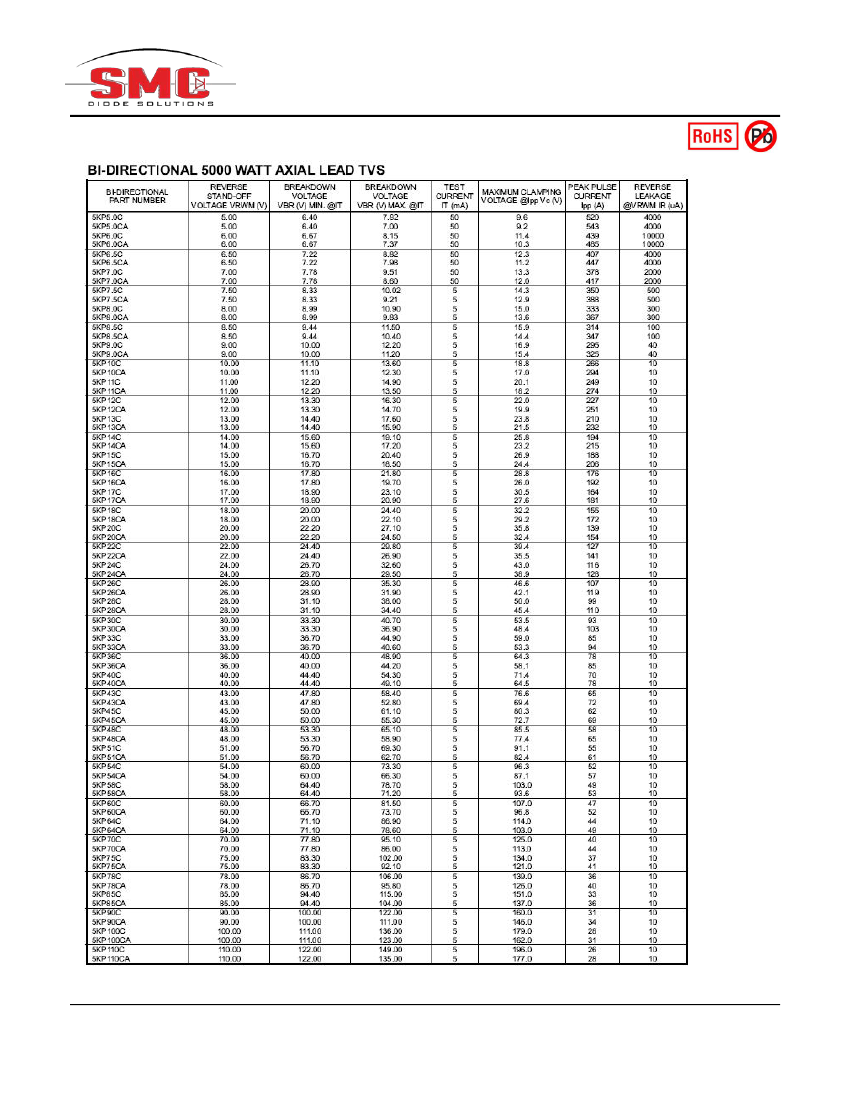

“C” Suffix Designates Bi-directional Devices
“A” Suffix Designates 5% Tolerance Devices
No Suffix Designates 10% Tolerance Devices
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com

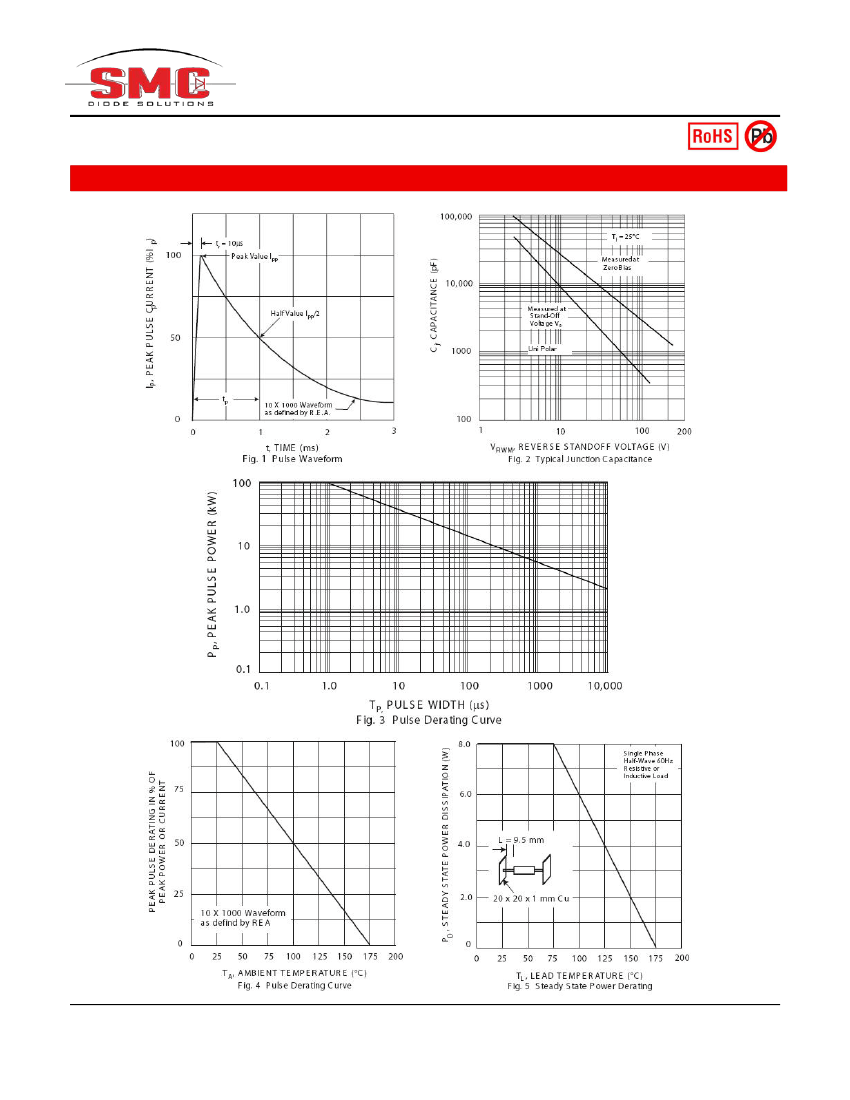

5KP SERIES
Technical Data
Data Sheet N0213, Rev. A

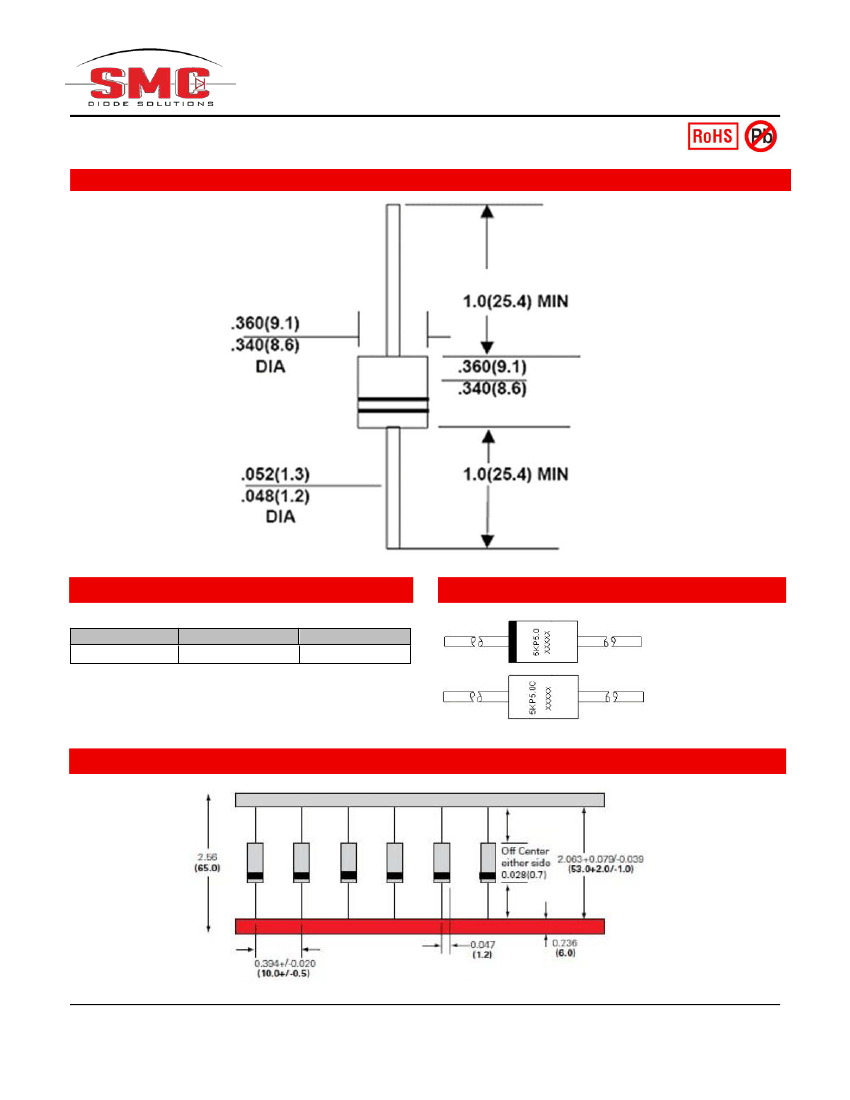

Mechanical Dimensions P-600(Inches/Millimeters)
Ordering Information
Device
5KP SERIES
Package
P-600(Pb-Free)
Shipping
800pcs / reel
Marking Diagram
Where XXXXX is YYWWL
5KP5.0/5KP5.0C = Part Name
YY
= Year
WW
= Week
L
= Lot Number
Cautions：Molding resin
Epoxy resin UL:94V-0
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Carrier Tape Specification P-600
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
