SA SERIES
Technical Data
Data Sheet N0221, Rev. A
SA SERIES
TRANSIENT VOLTAGE SUPPRESSOR
Features
Glass Passivated Die Construction
500W Peak Pulse Power Dissipation
5V- 170V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL Flammability Classification
Rating 94V-O
This is a Pb − Free Device
All SMC Parts are Traceable to the Wafer Lot
Additional testing can be offered upon request
DO-15
Circuit Diagram
Mechanical Data
Case: JEDEC DO-15 Low Profile Molded Plastic
Terminals: Solder Plated , Solderable per MIL-STD-
202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight:0.41 grams(approx.)
Unipolar
Bipolar
Maximum Ratings and Thermal Characteristics
@T
A
=25°C unless otherwise specified
Parameter
Peak Pulse Power Dissipation at
T
A
=25°C
(Fig.1)(Note 1, 2, 5)
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave Fig.6 (Note 3)
Steady State Power Dissipation( Note 2, 4)
Typical Thermal Resistance Junction to Lead
Typical Thermal Resistance Junction to Ambient
Operating Junction and Storage
Temperature Range
Symbol
P
PPM
I
FSM
P
M(AV)
R
θJL
R
θJA
T
J
,T
STG
Value
500
70
3.0
20
75
-65 to + 175
Unit
W
A
W
°C/W
°C/W
°C
Notes:
1. Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2.
2. Mounted on 40mm² copper pad.
3. 8.3ms Single Half Sine Wave duty cycle = 4 pulses per minutes maximum
4. Lead temperature at 75°C= T
L
5. Peak pulse power waveform is 10/1000
μs
.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SA SERIES
Technical Data
Data Sheet N0221, Rev. A
Electrical Characteristics
@T
A
=25°C unless otherwise specified
REVERSE
STAND-OFF
VOLTAGE
VRWM (V)
BREAKDOWN
VOLTAGE
VBR (V) MIN.
@IT
BREAKDOWN
VOLTAGE
VBR (V) MAX.
@IT
TEST
CURRENT
IT(MA)
MAXMUM
CLAMPING
VOLTAGE
@IPP
VC(V)
PEAK
PULSE
CURRENT
IPP(A)
REVERSE
LEAKAGE
@VRWM
IR(uA)
UNI-POLAR
BI-POLAR
SA5.0A
SA6.0A
SA6.5A
SA7.0A
SA7.5A
SA8.0A
SA8.5A
SA9.0A
SA10A
SA11A
SA12A
SA13A
SA14A
SA15A
SA16A
SA17A
SA18A
SA20A
SA22A
SA24A
SA26A
SA28A
SA30A
SA33A
SA36A
SA40A
SA43A
SA45A
SA48A
SA51A
SA54A
SA58A
SA60A
SA64A
SA70A
SA75A
SA78A
SA85A
SA90A
SA100A
SA110A
SA120A
SA130A
SA150A
SA160A
SA170A
SA5.0CA
SA6.0CA
SA6.5CA
SA7.0CA
SA7.5CA
SA8.0CA
SA8.5CA
SA9.0CA
SA10CA
SA11CA
SA12CA
SA13CA
SA14CA
SA15CA
SA16CA
SA17CA
SA18CA
SA20CA
SA22CA
SA24CA
SA26CA
SA28CA
SA30CA
SA33CA
SA36CA
SA40CA
SA43CA
SA45CA
SA48CA
SA51CA
SA54CA
SA58CA
SA60CA
SA64CA
SA70CA
SA75CA
SA78CA
SA85CA
SA90CA
SA100CA
SA110CA
SA120CA
SA130CA
SA150CA
SA160CA
SA170CA
5
6
6.5
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
111
120
130
150
160
170
6.4
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
7
7.37
7.98
8.6
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86
92.1
95.8
104
111
123
135
147
159
185
197
209
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
55.4
49.5
45.5
42.5
39.5
37.5
35.4
33.1
30
28
25.6
23.7
22
20.9
19.6
18.5
17.5
15.7
14.4
13.1
12.1
11.2
10.5
9.6
8.8
7.9
7.3
7
6.6
6.2
5.9
5.4
5.3
5
4.5
4.2
4
3.7
3.5
3.1
2.9
2.6
2.4
2.1
2
1.9
600
600
400
150
50
25
10
5
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
For bidirectional type having VR of 10 volts and less, the IR limit is double.
For parts without A , the VBR is + 10% and Vc is 5% higher than with A parts.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SA SERIES
Technical Data
Data Sheet N0221, Rev. A

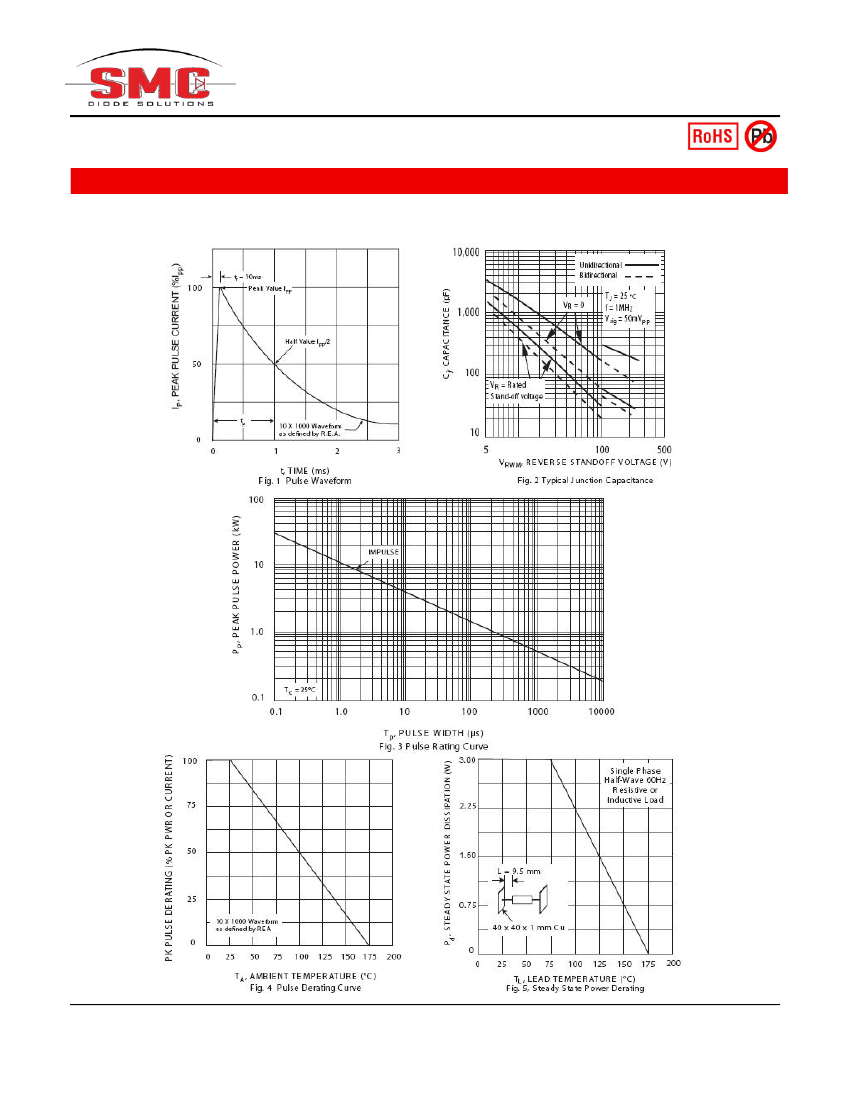

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SA SERIES
Technical Data
Data Sheet N0221, Rev. A
Mechanical Dimensions DO-15
Millimeters
Min.
25.4
5.5
0.7
2.6
Max.
-
7.62
0.9
3.6
Inches
Min.
1.000
0.217
0.028
0.104
Max.
-
0.300
0.034
0.140
SYMBOL
A
B
C
D
Ordering Information
Device
SA SERIES
SA SERIES TA
Package
DO-15 (Pb-Free)
DO-15 (Pb-Free)
Shipping
3000pcs / tape
3000pcs / tape
Marking Diagram
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
SA5.0A/SA5.0CA
= Part Name
Carrier Tape Specification DO-15
SYMBOL
A
B
Z
T
E
IL1-L2I
Millimeters
Min.
4.50
50.9
-
5.60
-
-
Max.
5.50
53.9
1.20
6.40
0.80
1.0
