M22759
wire
M22759 (SAE AS22759)
wires are high-performance, medium and high-temperature hookup wires with
extruded PTFE or ETFE, or PTFE/polyimide tape insulators, and stranded conductors.
These wires are designed for severe-environment aerospace applications, such as engine controls and
SWAMP areas. Some types are available with highly abrasion-resistant insulation and / or high-strength
conductors for maximum performance under mechanical stresses.
Wire types with PTFE tape insulation are available with our unique
Seamless Wrap
PTFE tape insulation
(see page 54 for details and part numbers).
Construction characteristics—M22759 wires
M22759
Conductor Temperature
Insulation Material
Slant Sheet
Plating
Rating
MIL-W-22759/5
Extruded mineral-filled PTFE*
Silver
200
MIL-W-22759/6
Extruded mineral-filled PTFE*
Nickel
260
MIL-W-22759/7
Extruded mineral-filled PTFE (light weight)*
Silver
200
MIL-W-22759/8
Extruded mineral-filled PTFE (light weight)*
Nickel
260
MIL-W-22759/9
Extruded PTFE
Silver
200
MIL-W-22759/10
Extruded PTFE
Nickel
260
MIL-W-22759/11
Extruded PTFE (medium weight)
Silver
200
MIL-W-22759/12
Extruded PTFE (medium weight)
Nickel
260
MIL-W-22759/16
Extruded ETFE
Tin
150
MIL-W-22759/17
Extruded ETFE
Silver
150
MIL-W-22759/18
Extruded ETFE (light weight)
Tin
150
MIL-W-22759/19
Extruded ETFE (light weight)
Silver
150
MIL-W-22759/20
Extruded PTFE
Silver***
200
MIL-W-22759/21
Extruded PTFE
Nickel***
260
MIL-W-22759/22
Extruded PTFE (light weight)
Silver***
200
MIL-W-22759/23
Extruded PTFE (light weight)
Nickel***
260
MIL-W-22759/28
Extruded PTFE with polyimide hardcoat*
Silver
200
MIL-W-22759/29
Extruded PTFE with polyimide hardcoat*
Nickel
260
MIL-W-22759/30
Extruded PTFE with polyimide hardcoat*
Silver***
200
MIL-W-22759/31
Extruded PTFE with polyimide hardcoat*
Nickel***
260
MIL-DTL-22759/80 PTFE/polyimide/PTFE tape and PTFE tape (light weight)**
Tin
150
MIL-DTL-22759/81 PTFE/polyimide/PTFE tape and PTFE tape (light weight)**
Silver***
200
MIL-DTL-22759/82 PTFE/polyimide/PTFE tape and PTFE tape (light weight)**
Nickel***
260
MIL-DTL-22759/83 PTFE/polyimide/PTFE tape and PTFE tape**
Silver
200
MIL-DTL-22759/84 PTFE/polyimide/PTFE tape and PTFE tape**
Nickel
260
MIL-DTL-22759/85 PTFE/polyimide/PTFE tape and PTFE tape**
Tin
150
MIL-DTL-22759/86 PTFE/polyimide/PTFE tape and PTFE tape**
Silver
200
MIL-DTL-22759/87 PTFE/polyimide/PTFE tape and PTFE tape**
Nickel
260
MIL-DTL-22759/88 PTFE/polyimide/PTFE tape and PTFE tape**
Tin
150
MIL-DTL-22759/89 PTFE/polyimide/PTFE tape and PTFE tape**
Silver***
200
MIL-DTL-22759/90 PTFE/polyimide/PTFE tape and PTFE tape**
Nickel***
260
MIL-DTL-22759/91 PTFE/polyimide/PTFE tape and PTFE tape (light weight)**
Silver
200
MIL-DTL-22759/92 PTFE/polyimide/PTFE tape and PTFE tape (light weight)**
Nickel
260
Temperature in ˚C. • *High abrasion resistance. • ** Available with
Seamless Wrap
PTFE tape outer insulation.
*** High-strength and ultra-high-strength copper alloy conductors.
Voltage
Rating
600
600
600
600
1000
1000
600
600
600
600
600
600
1000
1000
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
Page
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
47
47
48
48
48
49
50
51
52
52
53
53
M22759 color coding
Color coding for M22759 wires consists of up to four numbers
added to designate wire color and up to three spiral stripe colors.
Number
0
1
2
3
4
5
6
Color
Black Brown Red Orange Yellow Green Blue
Example: M22759/8-9045 is a white wire with black, yellow, and green stripes.
7
8
9
Violet Gray White
MIL-DTL-22759 identification
M22759 wires are surface printed with the MIL part number and manufacturer’s CAGE code (FSCM number).
36
www.thermaxconnects.com
Toll Free: (800) 423-5873
International: +1 (661) 295-3100

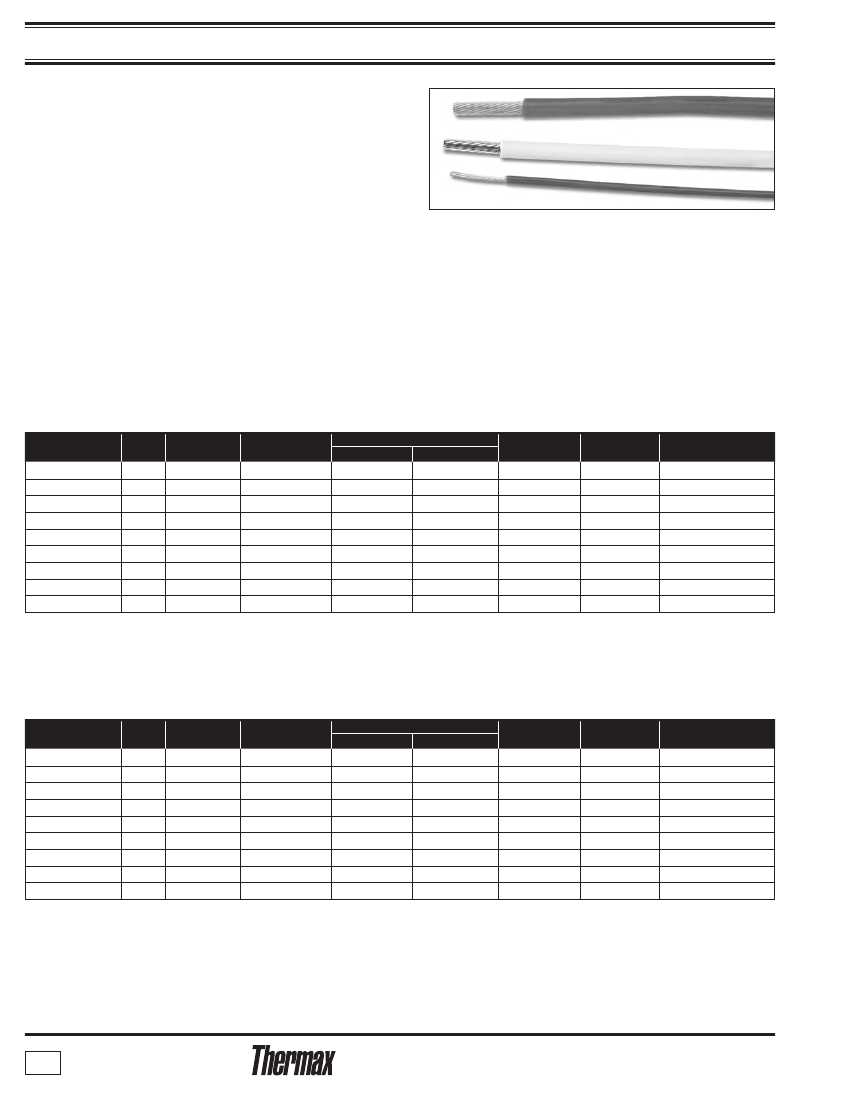

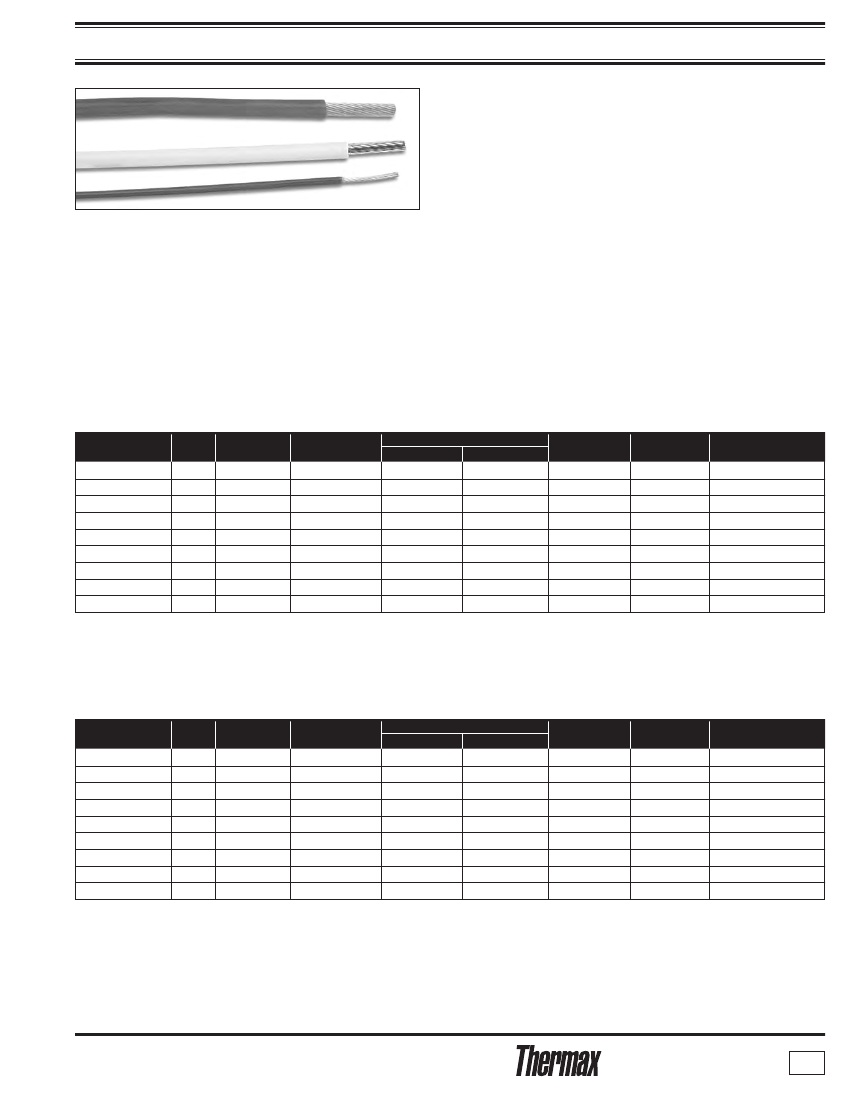

MIL-W-22759/5, /6
wire—mineral-filled PTFE insulation
MIL-W-22759/5 and /6
wires have mineral-filled
PTFE insulation for high-temperature applications
such as aircraft engines, SWAMP zones, and others
where increased abrasion resistance is required.
For reduced-weight versions of these wires, see
M22759/7 and /8 (following page).
Performance:
Voltage rating:
600V.
Temperature rating:
/5: -55 to 200˚ C
/6: -55 to 260˚ C
Construction Details
Insulation:
Extruded PTFE with abrasion-resistant
mineral fillers.
Conductor:
/5: Silver-plated copper;
/6: Nickel-plated copper.
Colors:
Color coded to MIL-STD-104.
Identification:
to M22759.
Dimensions, Resistance, and Weights—M22759/5 (silver-plated conductor)
M22759
AWG
Conductor
Insulation Diameter
Maximum
Stranding
Weight
P/N
Size
Diameter
Minimum
Maximum
Resistance
M22759/5-8-*
8
133/29
.162 (4.11)
.241 (6.12)
.255 (6.48)
77.0 (115)
.658 (2.16)
M22759/5-10-*
10
37/26
.108 (2.74)
.172 (4.37)
.186 (4.73)
42.5 (63.3)
1.19 (3.90)
M22759/5-12-*
12
19/25
.086 (2.18)
.153 (3.89)
.167 (4.24)
30.9 (46.0)
1.81 (5.94)
M22759/5-14-*
14
19/27
.067 (1.70)
.136 (3.45)
.150 (3.81)
22.5 (33.5)
2.88 (9.45)
M22759/5-16-*
16
19/29
.053 (1.35)
.120 (3.05)
.130 (3.30)
16.6 (24.7)
4.52 (14.8)
M22759/5-18-*
18
19/30
.047 (1.19)
.105 (2.67)
.115 (2.92)
12.9 (19.2)
5.79 (19.0)
M22759/5-20-*
20
19/32
.038
(.97)
.090 (2.29)
.100 (2.54)
9.07 (13.6)
9.19 (30.1)
M22759/5-22-*
22
19/34
.030
(.76)
.080 (2.03)
.090 (2.29)
6.83 (10.1)
15.1 (49.5)
M22759/5-24-*
24
19/36
.024
(.61)
.070 (1.78)
.080 (2.03)
5.08 (7.60)
24.3 (79.7)
Dimensions in inches (mm). Weights in pounds/1000 feet (Kg/1000 M). Resistance in
Ω/1,000
feet (Ω/Km), @20˚ C.
All values are nominal unless otherwise indicated.
*
Add color coding per MIL-STD-104 (see page 36).
Thermax
P/N
8-AF3XT-13329
10-AF3XT-3726
12-AF3XT-1925
14-AF3XT-1927
16-AF3XT-1929
18-AF3XT-1930
20-AF3XT-1932
22-AF3XT-1934
24-AF3XT-1936
Dimensions, Resistance, and Weights—M22759/6 (nickel-plated conductor)
M22759
AWG
Conductor
Insulation Diameter
Maximum
Stranding
Weight
P/N
Size
Diameter
Minimum
Maximum
Resistance
M22759/6-8-*
8
133/29
.163 (4.14)
.241 (6.12)
.255 (6.48)
79.0 (118)
.694 (2.28)
M22759/6-10-*
10
37/26
.109 (2.77)
.172 (4.37)
.186 (4.73)
43.5 (64.8)
1.24 (4.07)
M22759/6-12-*
12
19/25
.086 (2.18)
.153 (3.89)
.167 (4.24)
31.9 (47.5)
1.89 (6.20)
M22759/6-14-*
14
19/27
.067 (1.70)
.136 (3.45)
.150 (3.81)
23.3 (34.7)
3.00 (9.84)
M22759/6-16-*
16
19/29
.053 (1.35)
.120 (3.05)
.130 (3.30)
16.9 (25.2)
4.76 (15.6)
M22759/6-18-*
18
19/30
.047 (1.19)
.105 (2.67)
.115 (2.92)
13.1 (19.5)
6.10 (20.0)
M22759/6-20-*
20
19/32
.038
(.97)
.090 (2.29)
.100 (2.54)
9.27 (13.9)
9.77 (32.1)
M22759/6-22-*
22
19/34
.030
(.76)
.080 (2.03)
.090 (2.29)
6.98 (10.4)
16.0 (52.5)
M22759/6-24-*
24
19/36
.024
(.61)
.070 (1.78)
.080 (2.03)
5.18 (7.70)
25.9 (85.0)
Dimensions in inches (mm). Weights in pounds/1000 feet (Kg/1000 M). Resistance in
Ω/1,000
feet (Ω/Km), @20˚ C.
All values are nominal unless otherwise indicated.
*
Add color coding per MIL-STD-104 (see page 36).
Thermax
P/N
8-AF3XTN-13329
10-AF3XTN-3726
12-AF3XTN-1925
14-AF3XTN-1927
16-AF3XTN-1929
18-AF3XTN-1930
20-AF3XTN-1932
22-AF3XTN-1934
24-AF3XTN-1936
Toll Free: (800) 423-5873
International: +1 (661) 295-3100
www.thermaxconnects.com
37

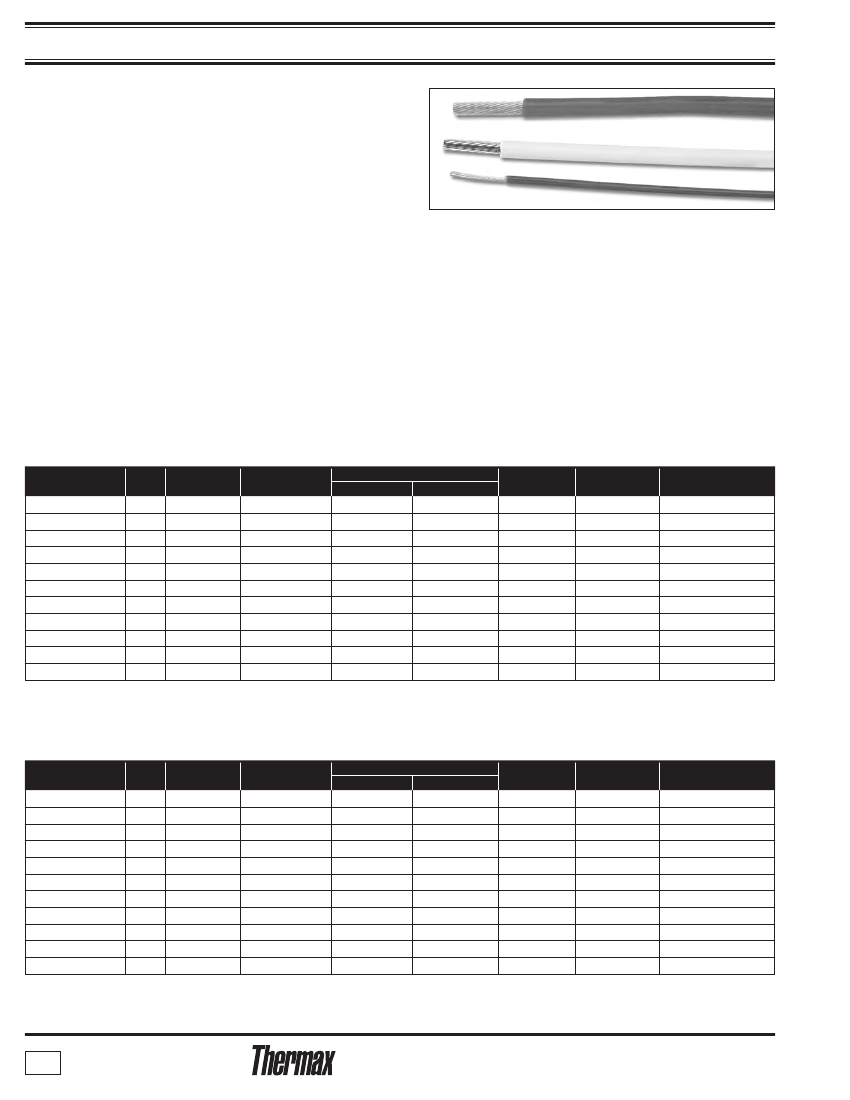

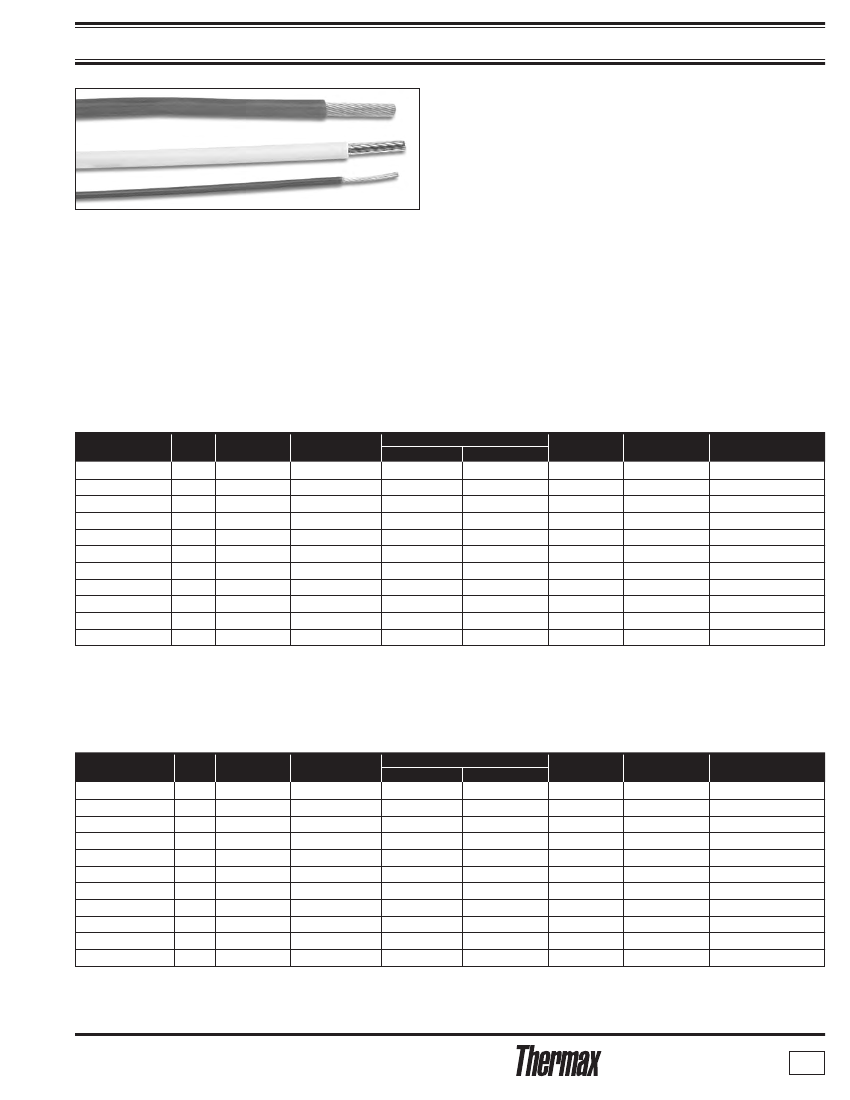

MIL-W-22759/7, /8
