500-017 and 500-037
Choose Metal Protective Covers
for full
environmental protection.
Silicone Rubber Gasket
provides a
watertight seal.
Use with M83513 Type Metal Shell
Micro-D Connectors
MATERIALS & FINISHES
Shell
Gasket
Hardware
Aluminum Alloy 6061 -T6
Silicone Rubber
300 Series Stainless
Steel, Passivated

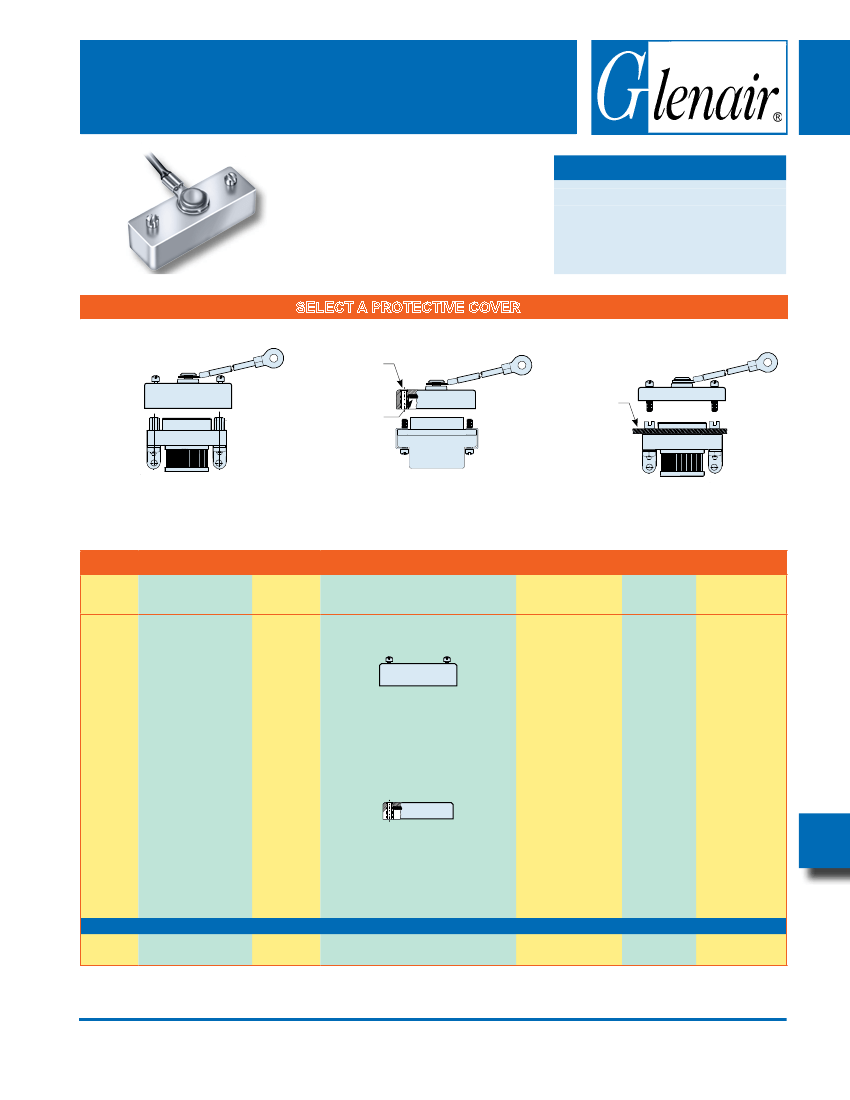

SELECT A PROTECTIVE COVER STYLE
Style 1
Tapped
Threads
Panel
Style 2
Style 3
Silicone
Gasket
(All Styles)
Use With Micro-D Connectors With
Jackposts
Not for rear panel mounted connectors.
Use With Micro-D Connectors With
Jackscrews
Use With Rear-Panel Mounted Micro-D
Connectors
HOW TO ORDER STYLE 1 AND STYLE 2 PROTECTIVE COVERS
Series
500-017
C
E
J
Shell Finish
–
Black
Connector
Size
09
15
21
25
31
37
51
51-2
67
69
100
Hardware Option
STYLE 1
Lanyard Option
N
–
No Lanyard
G
–
Flexible Nylon
Rope
Lanyard
Length
Ring Terminal
Ordering Code
Anodize
–
Chem Film
–
Cadmium,
Yellow
Chromate
Nickel
F
–
Wire Rope,
Fits Micro-D's With Jackposts
Cover has Jackscrews
Nylon Jacket
Length in 06
–
.125 (3.2)
01
–
.140 (3.6)
One Inch
Increments 05
–
.167 (4.2)
04
–
.197 (5.0)
Example: “6”
equals six
inches.
I.D. of Ring
Terminal
H
–
Wire Rope,
M
NF
Z2
–
Electroless
–
Cadmium,
–
Gold
MB
–
Fillister Head Jackscrew
MH
–
Hex Head Jackscrew
STYLE 2
Hi-Temp
Teflon Jacket
Olive Drab
Fits Micro-D's With Jackscrews
Cover has Tapped Female Threads
F
–
Female Threads
(STYLE 3:
see next page)
Sample Part Number
500-017
M
25
MB
F
4
– 06
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
N-5
Micro-D
Accessories
Metal Protective Covers
with Silicone Rubber Gaskets
N
Metal Protective Covers
with Silicone Rubber Gasket
500-017 and 500-037
Micro-D
Accessories
Series
500-037
C
E
J
Shell Finish
–
Black
HOW TO ORDER STYLE 3 PROTECTIVE COVERS FOR REAR MOUNT CONNECTORS
Connector
Size
09
15
21
25
31
37
51
51-2
67
69
100
Panel Thickness
Option
R1
R2
R3
R4
–
.031 (0.79) Panel
–
.047 (1.19) Panel
–
.062 (1.57) Panel
–
.093 (2.36) Panel
Hardware Option
STYLE 3
Lanyard Option
N
–
No Lanyard
G
–
Flexible
Nylon
Rope
Ring Terminal
Ordering Code
06
01
05
04
–
–
–
–
.125 (3.2)
.140 (3.6)
.167 (4.2)
.197 (5.0)
Anodize
–
Chem Film
–
Cadmium,
Yellow
Chromate
Nickel
Fits Micro-D's With
Jackposts
Panel
F
–
Wire Rope,
Nylon
Jacket
I.D. of Ring
Terminal
M
NF
Z2
–
Electroless
–
Cadmium,
–
Gold
B
–
Fillister Head
Jackscrew
H
–
Wire
Olive Drab
H
–
Hex Head Jackscrew
Rope, Hi-
TempTeflon
Jacket
Sample Part Number
500-037
J
31
R4
B
G
– 06

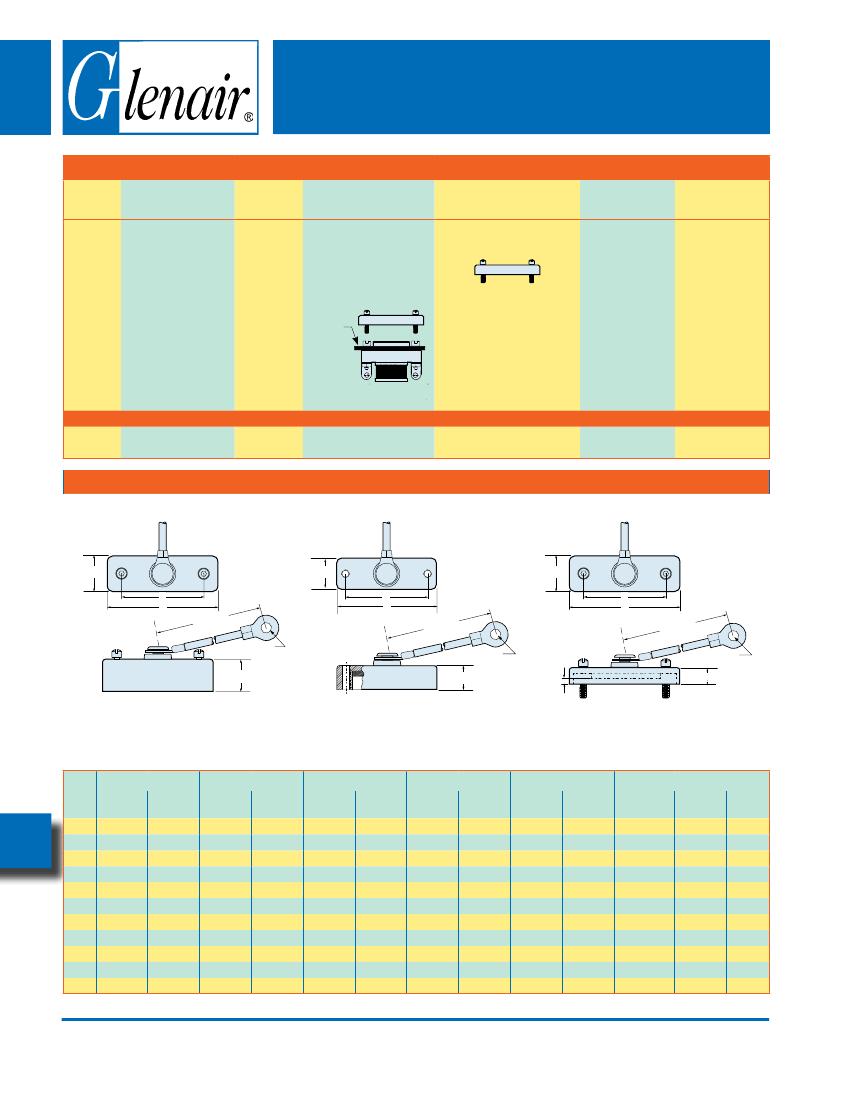

PROTECTIVE COVER DIMENSIONS
Style 1
Style 2
Style 3
A
C
B
th
Leng
D
C
E
th
Leng
A
C
B
th
Leng
RING TERMINAL
DIA.
.410 (10.4) MAX
RING TERMINAL
DIA.
.310 (7.9) MAX
F
RING TERMINAL
DIA.
.260 (6.6) MAX
#2-56 UNC THREADS SIZES 9-69
#4-40 UNC THREADS SIZE 100
#2-56 UNC THREADS SIZES 9-69
#4-40 UNC THREADS SIZE 100
#2-56 UNC THREADS SIZES 9-69
#4-40 UNC THREADS SIZE 100
For Micro-D Connectors With Jackposts
A Max.
B Max.
In .
.930
1.080
1.230
1.330
1.480
1.630
1.580
1.980
2.380
1.880
2.315
For Micro-D Connectors With Jackscrews
C
In.
.565
.715
.865
.965
1.115
1.265
1.215
1.615
2.015
1.515
1.800
For Rear-Panel Mounted Micro-D
E Max.
In.
.775
.925
1.075
1.175
1.325
1.475
1.425
1.825
2.225
1.725
2.160
D Max.
mm.
14.35
18.16
21.97
24.51
28.32
32.13
30.86
41.02
51.18
38.48
45.72
N
Size
9
15
21
25
31
37
51
51-2
67
69
100
In.
.453
.453
.453
.453
.453
.453
.496
.453
.453
.496
.539
mm.
11.5
11.5
11.5
11.5
11.5
11.5
12.6
11.5
11.5
12.6
13.7
mm.
23.6
27.4
31.2
33.8
37.6
41.4
40.1
50.3
60.5
47.8
58.8
In.
.360
.360
.360
.360
.360
.360
.400
.360
.360
.400
.450
mm.
9.1
9.1
9.1
9.1
9.1
9.1
10.2
9.1
9.1
10.2
11.4
mm.
19.7
23.5
27.3
29.8
33.7
37.5
36.2
46.4
56.5
43.8
54.9
Panel
Thickness
R1
R2
R3
R4
F
In.
.126
.110
.095
.064
mm.
3.2
2.8
2.4
1.6
