BB080-08-A-1-0270-0150-L-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BB080-08-A-1-0270-0150-L-D

BB080-08-A-1-0270-0150-L-D: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BB080-08-A-1-0270-0150-L-D Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Receptacle,

BB080-08-A-1-0270-0150-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compli
Board mount options	PEG
body width	0.12 inch
subject depth	0.059 inch
body length	0.136 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
Insulation resistance	500000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BB080
Plug contact pitch	0.031 inch
Match contact row spacing	0.047 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.4798 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	8

Preview

Download Datasheet

View All

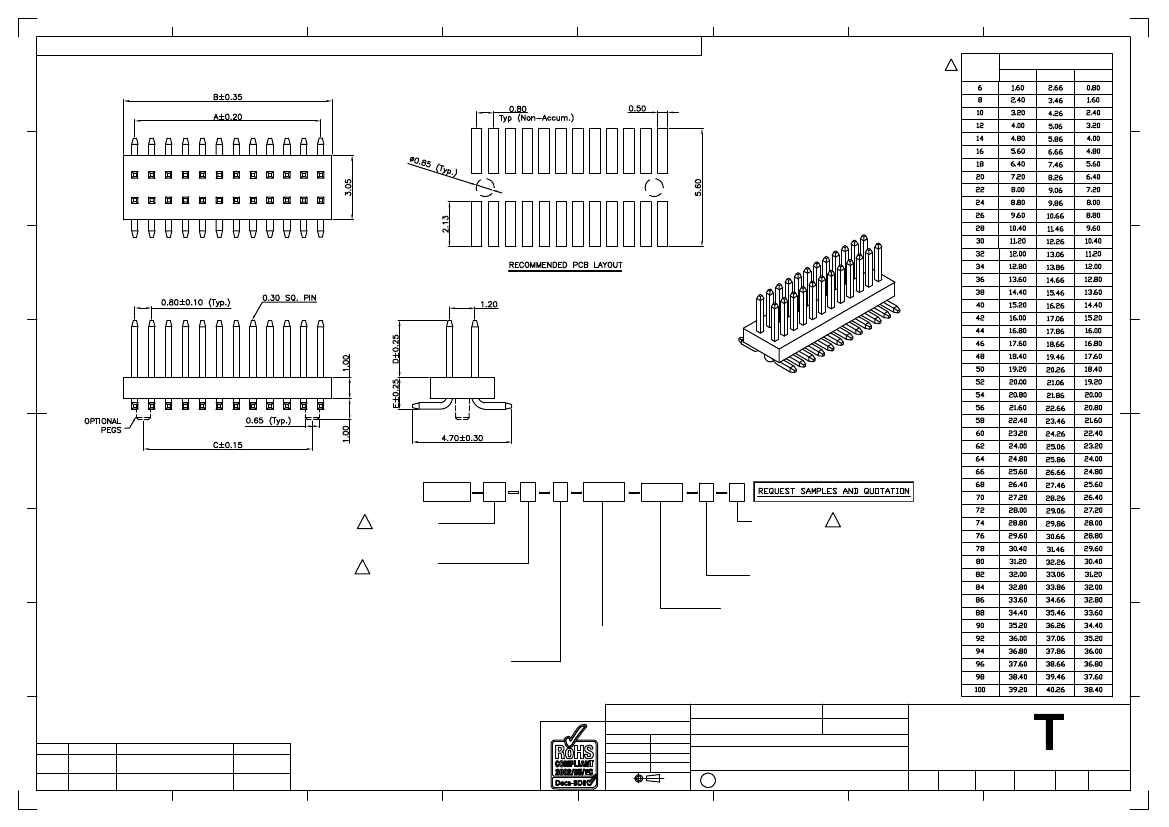

Global Connector Technology Ltd. - BB080: 0.8mm x 1.2mm PITCH PIN HEADER, DUAL ROW, SURFACE MOUNT, VERTICAL

DIMENSIONS

CONTACTS

Ordering Grid

BB080

B No. of Contacts

06 to 100

00 = 100

Contact Plating

C A = Gold Flash

(Standard)

XXXX

Packing Options B

B = Tape and Reel with Cap (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP (Standard)

Dimension E (1/100mm)

(Top of Insulator to Bottom of Pin)

Standard - 1.50mm = 0150

or specify Dimension E

e.g. 2.50mm = 0250

Tol +/- 0.2mm

SPECIFICATIONS

规格

CURRENT RATING

电流额定值：

0.5 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 500 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 200 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BB060

DETAIL

REV

DATE

DRAWING

RELEASE

18/09/09

AMENDMENT TO PACKING OPTIONS,

DIMENSION TABLE & NO. OF CONTACTS

Locating Peg

0 = No Peg

1 = With Peg

Dimension D (1/100mm)

(Post Height)

Standard - 2.70mm = 0270

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.25

X.XX ± 0.15

X.°± 5.0°

X.X°± 3.0°

X.XX°± 2.0°

BB080

Description:-

18 SEP 09

AMENDMENT TO

PLATING OPTIONS

X.XXX ± 0.10 X.XXX°± 1.0°

Third Angle Projection

0.8mm x 1.2mm PITCH PIN HEADER, DUAL ROW,

SURFACE MOUNT, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

28/09/09

22/12/09

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

E & OE

Sheet No.

1/1
