5013311407 Overview

1.00mm

5013311407 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
Factory Lead Time12 weeks
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Base Number Matches1

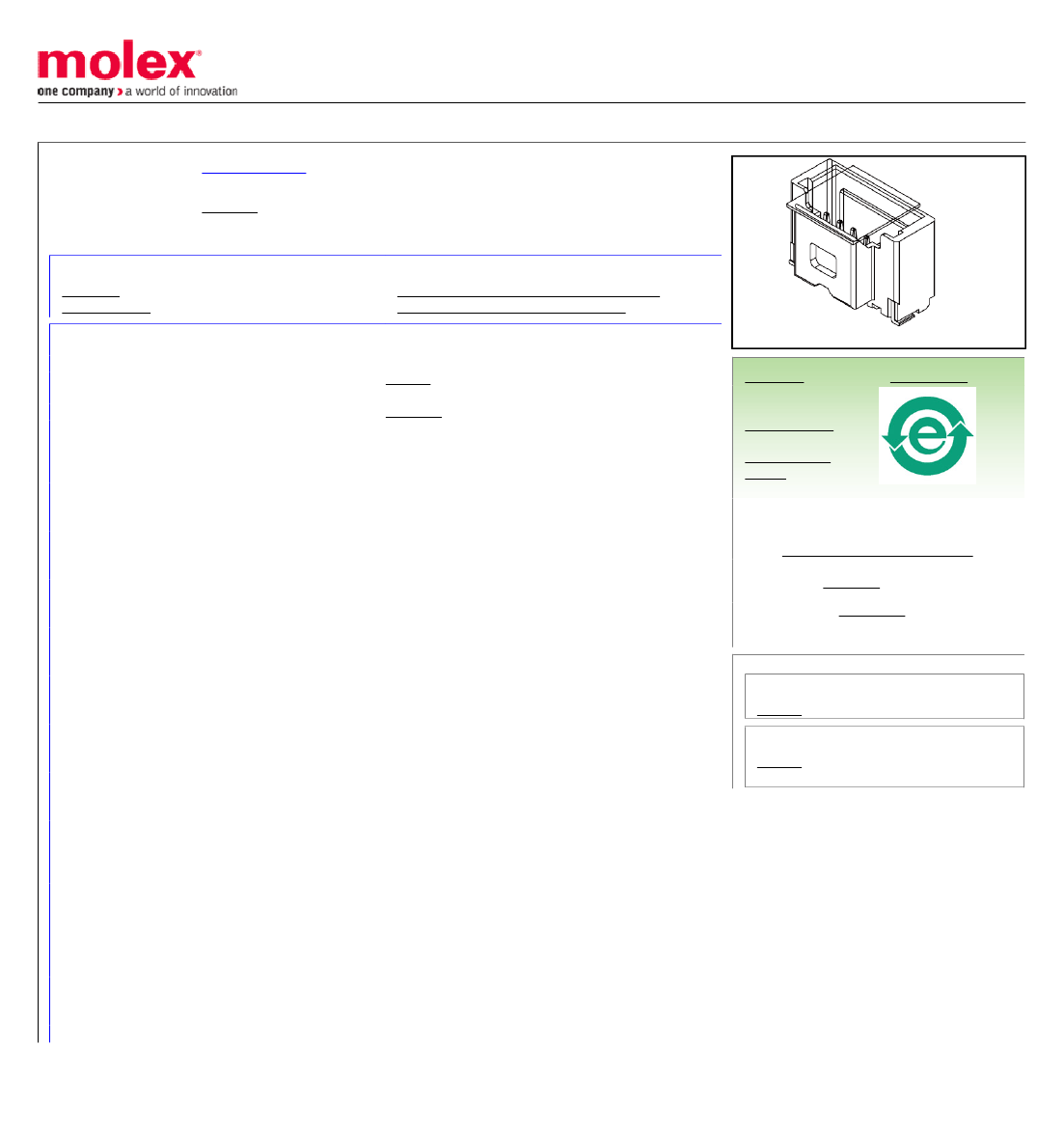

This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5013311407
Active
picoclasp
1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Header, Surface Mount, Single Row,
Vertical, with Positive Lock, 14 Circuits, with Cover Tape, Lead-free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-501331-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
501331
Wire-to-Board
picoclasp
Pico-Clasp™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Robotic Placement
Stackable
Temperature Range - Operating
Termination Interface: Style
No
14
Natural
30
No
Yes
Phosphor Bronze
Tin
Tin
Nylon
1
Vertical
No
Yes
Embossed Tape on Reel
0.039 In
1.00 mm
Yes
No
Vacuum Pick-Up Tape
No
-40°C to +85°C
Surface Mount
Search Parts in this Series
501331Series
Mates With
501330 Pico-Clasp™ Wire-to-Board Female
Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers

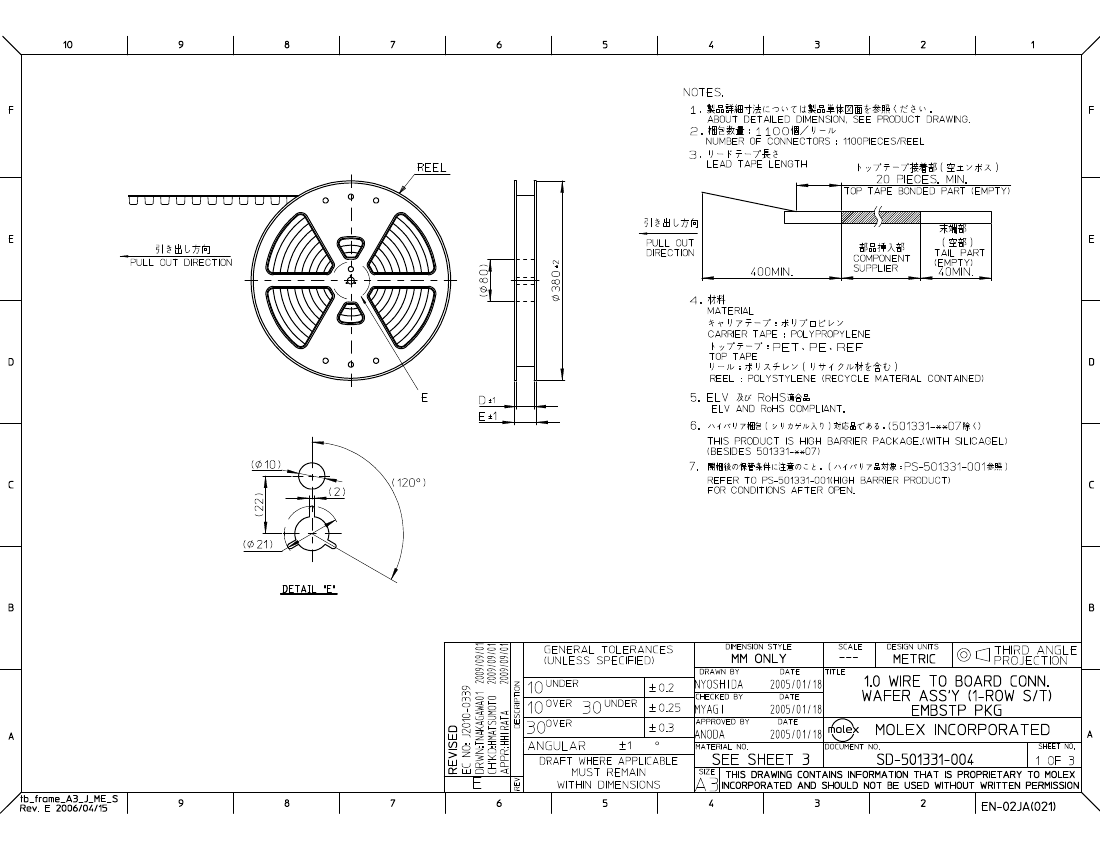

Packaging Specification
Product Specification
SPK-501331-001
PS-501331-001, RPS-501331-001, RPS-501331-002,
RPS-501331-003, RPS-501331-005, RPS-501331-006,
RPS-501331-007, RPS-501940-001, RPS-501940-002

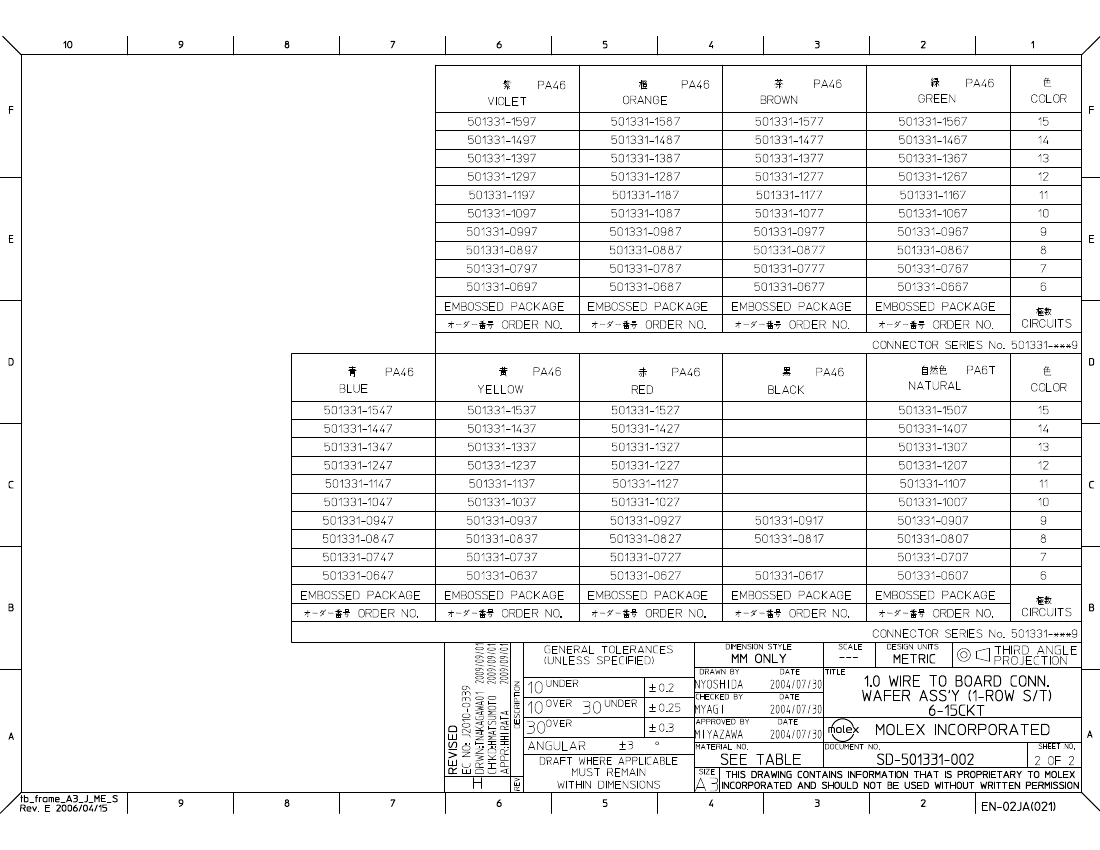

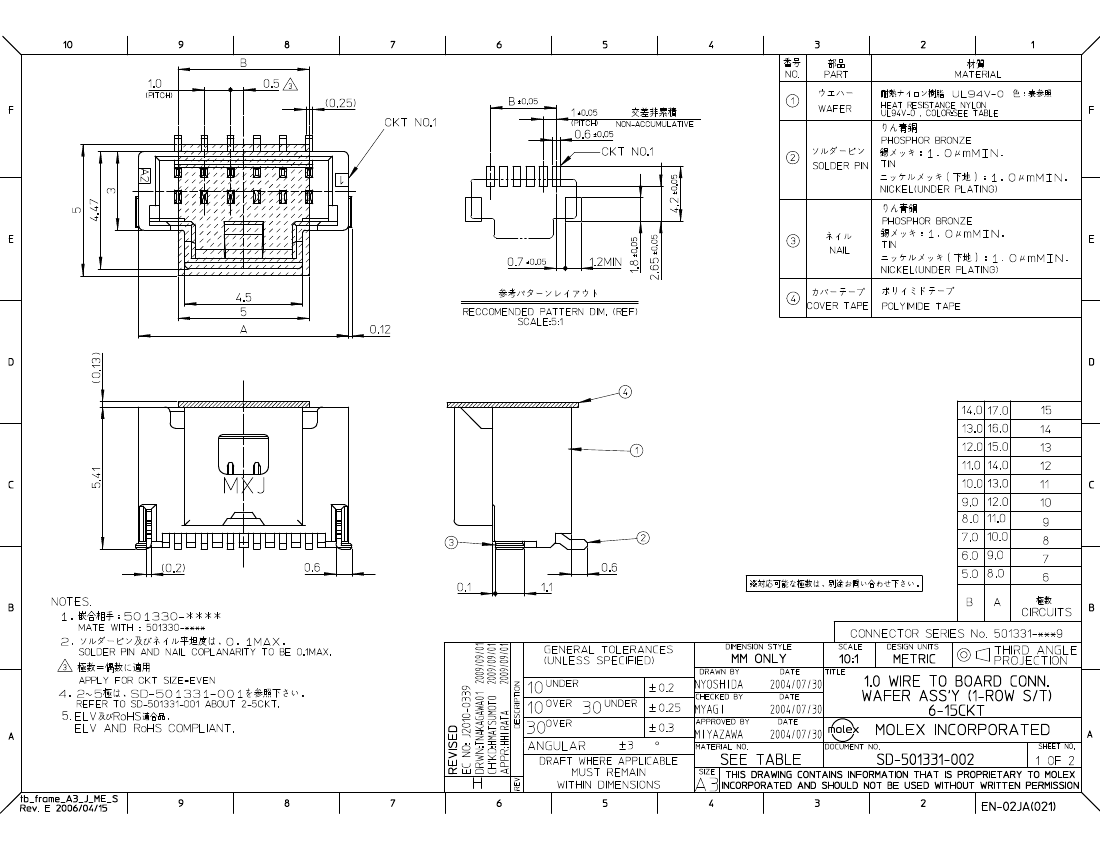

SD-501331-002, SD-501331-004
Sales Drawing
