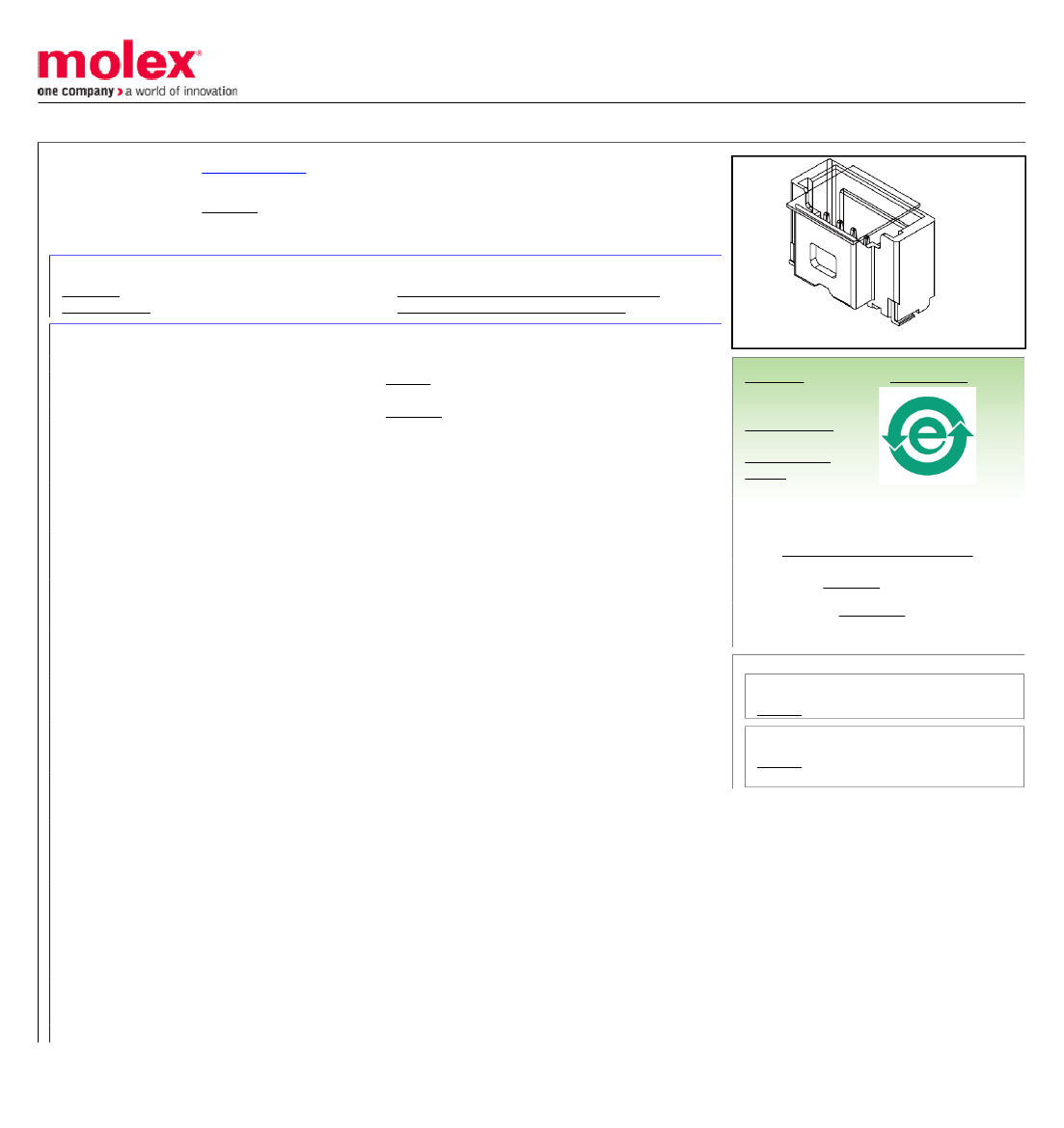

Part Number:
Status:
Overview:
Description:
5013311507
Active
picoclasp
1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Header, Surface Mount, Single Row,
Vertical, with Positive Lock, 15 Circuits, with Cover Tape, Lead-free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-501331-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
501331
Wire-to-Board
picoclasp
Pico-Clasp™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Robotic Placement
Stackable
Temperature Range - Operating
Termination Interface: Style
No
15
Natural
30
No
Yes
Phosphor Bronze
Tin
Tin
Nylon
1
Vertical
No
Yes
Embossed Tape on Reel
0.039 In
1.00 mm
Yes
No
Vacuum Pick-Up Tape
No
-40°C to +85°C
Surface Mount
Search Parts in this Series
501331Series
Mates With
501330 Pico-Clasp™ Wire-to-Board Female
Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers

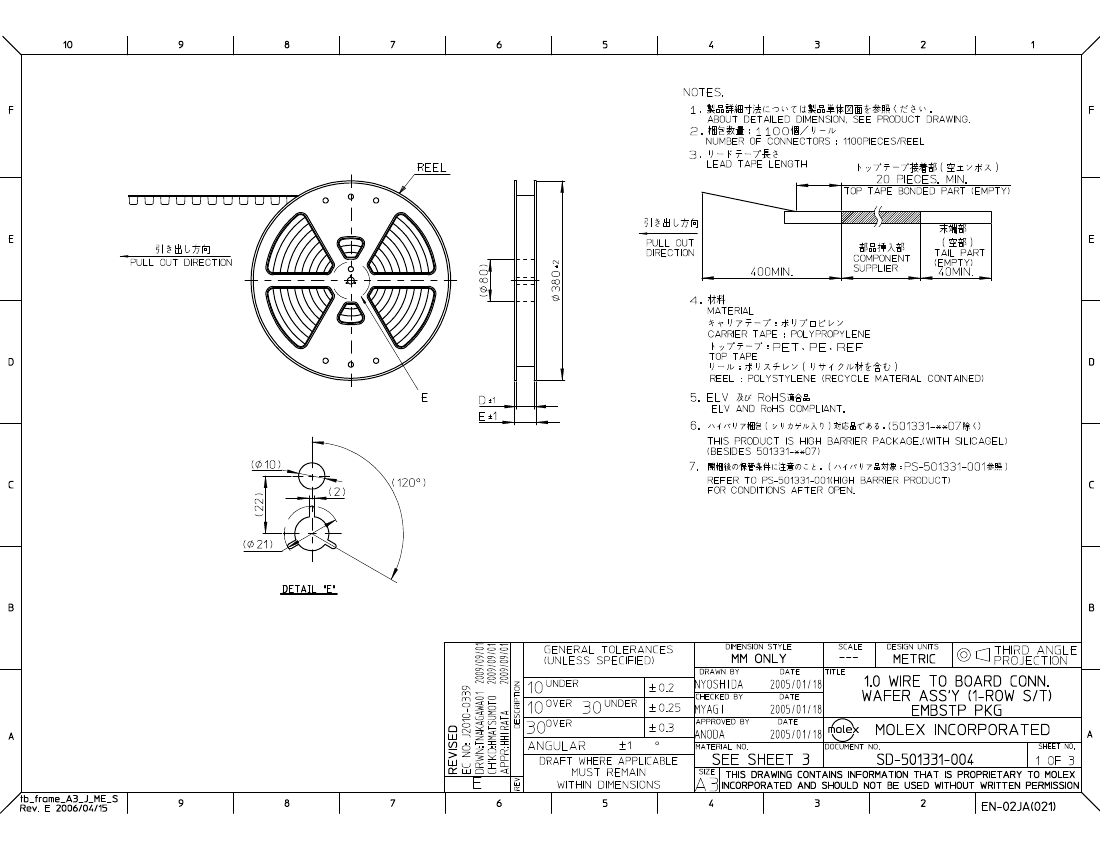

Packaging Specification
Product Specification
SPK-501331-001
PS-501331-001, RPS-501331-001, RPS-501331-002,
RPS-501331-003, RPS-501331-005, RPS-501331-006,
RPS-501331-007, RPS-501940-001, RPS-501940-002
SD-501331-002, SD-501331-004

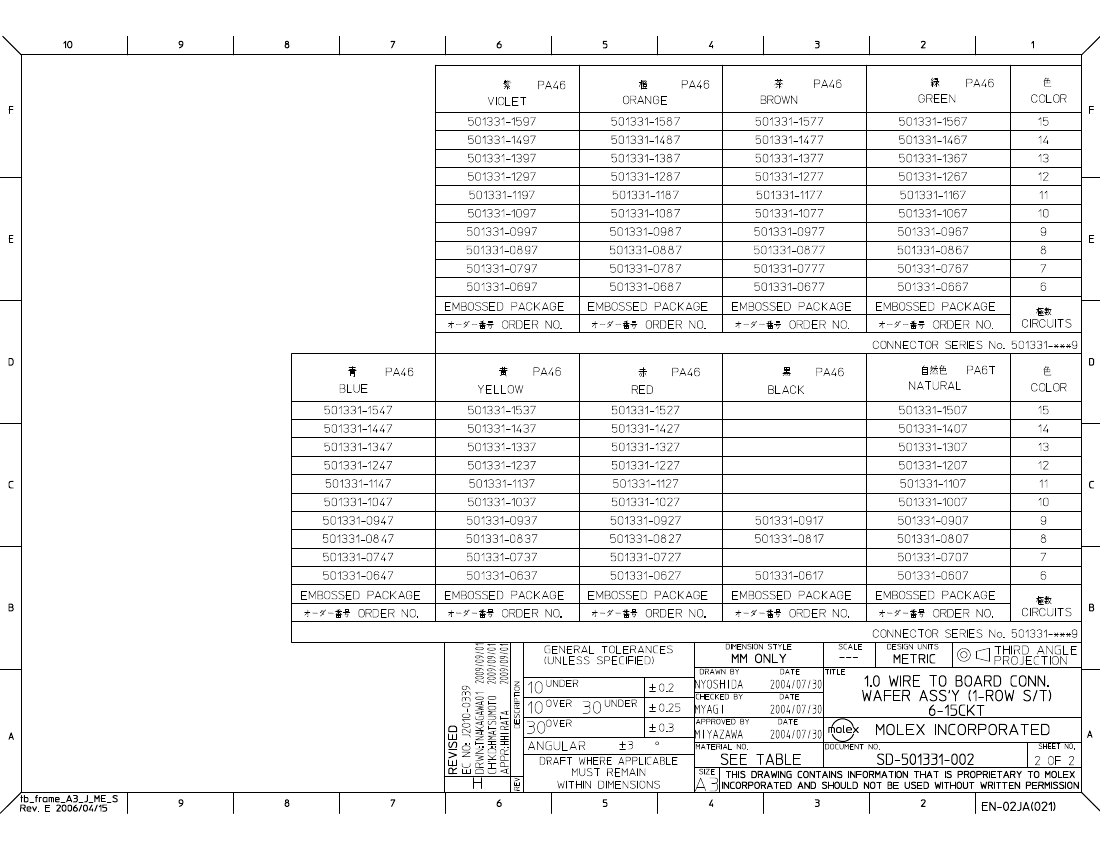

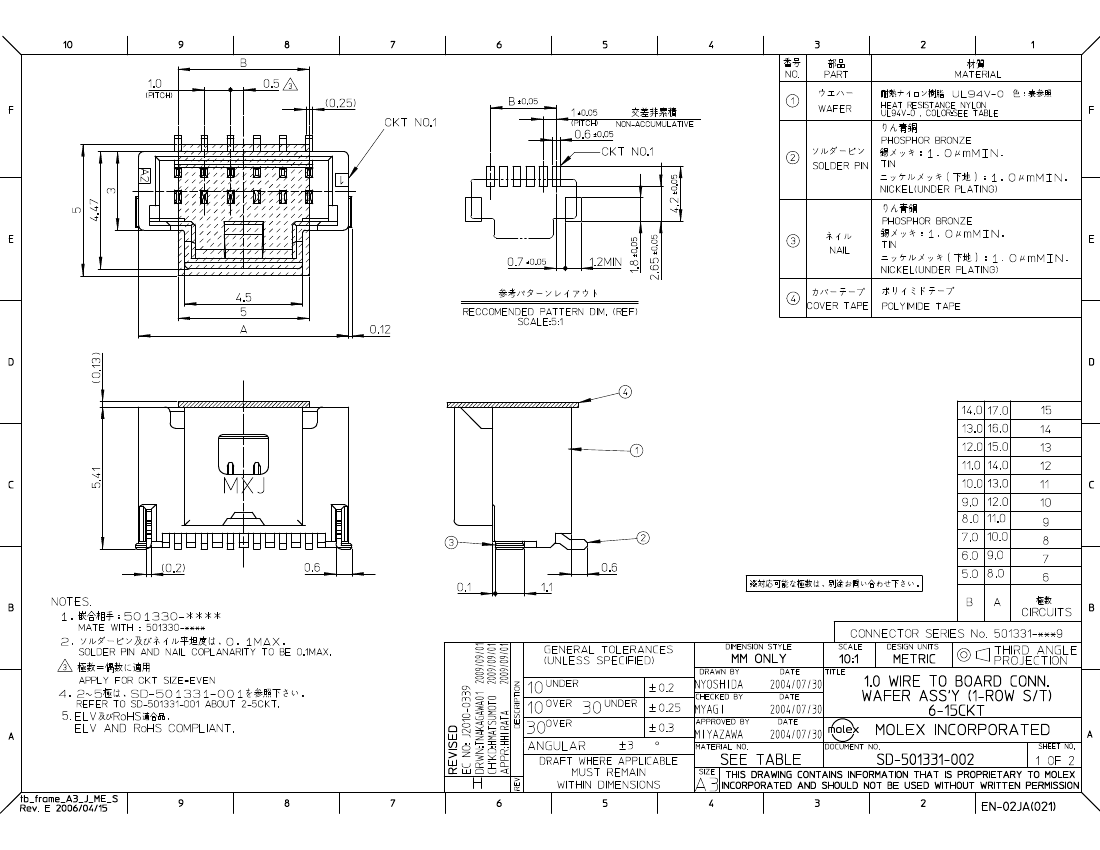

Sales Drawing
