5018762640 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5018762640

5018762640: Description2.00mm; CategoryThe connector The connector; File Size108KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

5018762640 Overview

2.00mm

5018762640 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	IGRID, POLARIZED
body width	0.326 inch
subject depth	0.57 inch
body length	1.102 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.9812 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

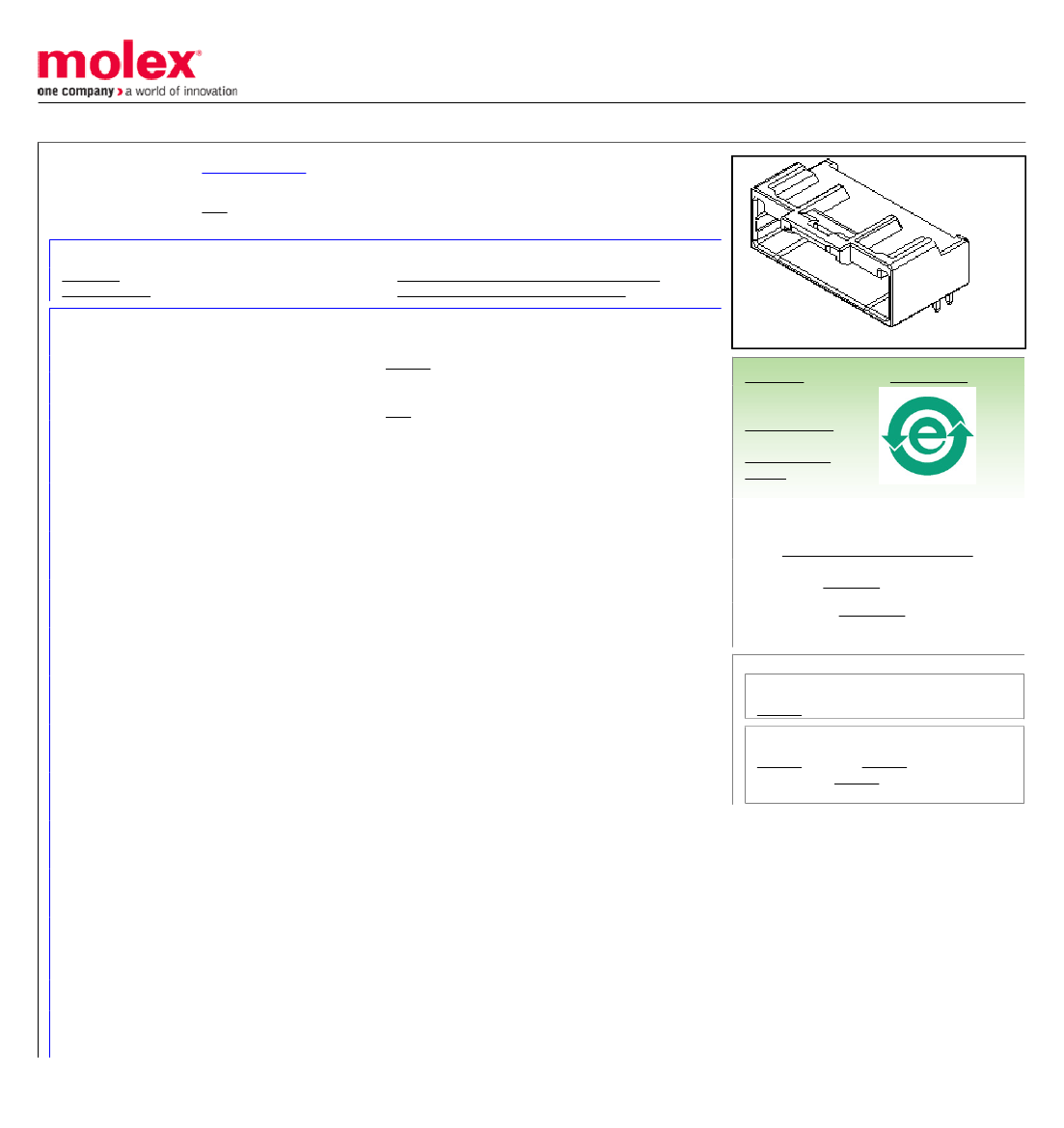

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

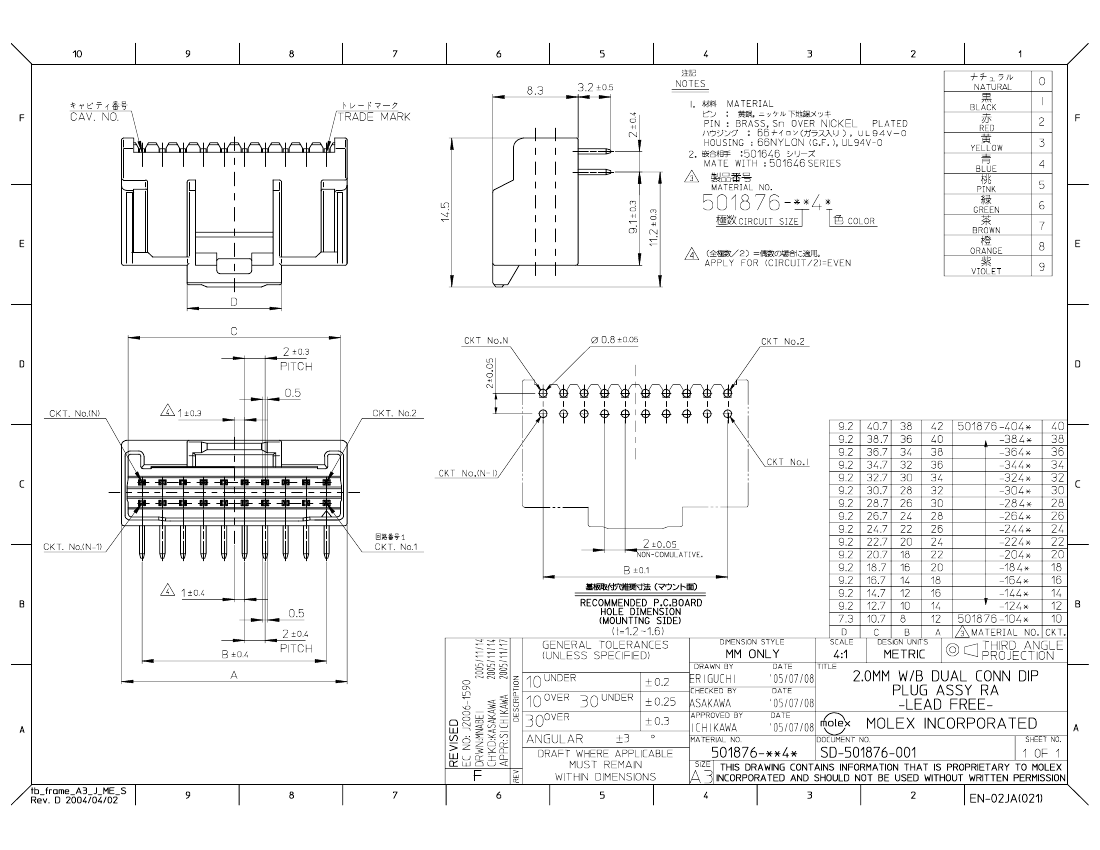

Drawing (PDF)

5018762640

Active

igrid

2.00mm (.079") Pitch iGrid™ Wire-to-Board Header, Dual Row, Right Angle, 26 Circuits

Product Specification PS-501646-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

PCB Headers

501876

Wire-to-Board

Yes

igrid

iGrid™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

MolexKits

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

Yes

Brass

Tin

Nylon

Right Angle

0.126 In

3.20 mm

None

0.047 In, 0.063 In

1.20 mm, 1.60 mm

Tray

0.079 In

2.00 mm

Yes

-25°C to +85°C

Through Hole

Search Parts in this Series

501876Series

Mates With

501646 Housing. 501647 Crimp Terminal

22-26 AWG. 501648 Crimp Terminal 26-28

AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Packaging Specification

SPK-501876-001
