Part Number:
Status:
Description:
5019122190
Active
0.30mm (.012") Pitch Easy-On™ FPC Connector, Right Angle, SMT, Bottom Contact
Style, 1.80mm (.071") Mated Height, 21 Circuits
Documents:
3D Model

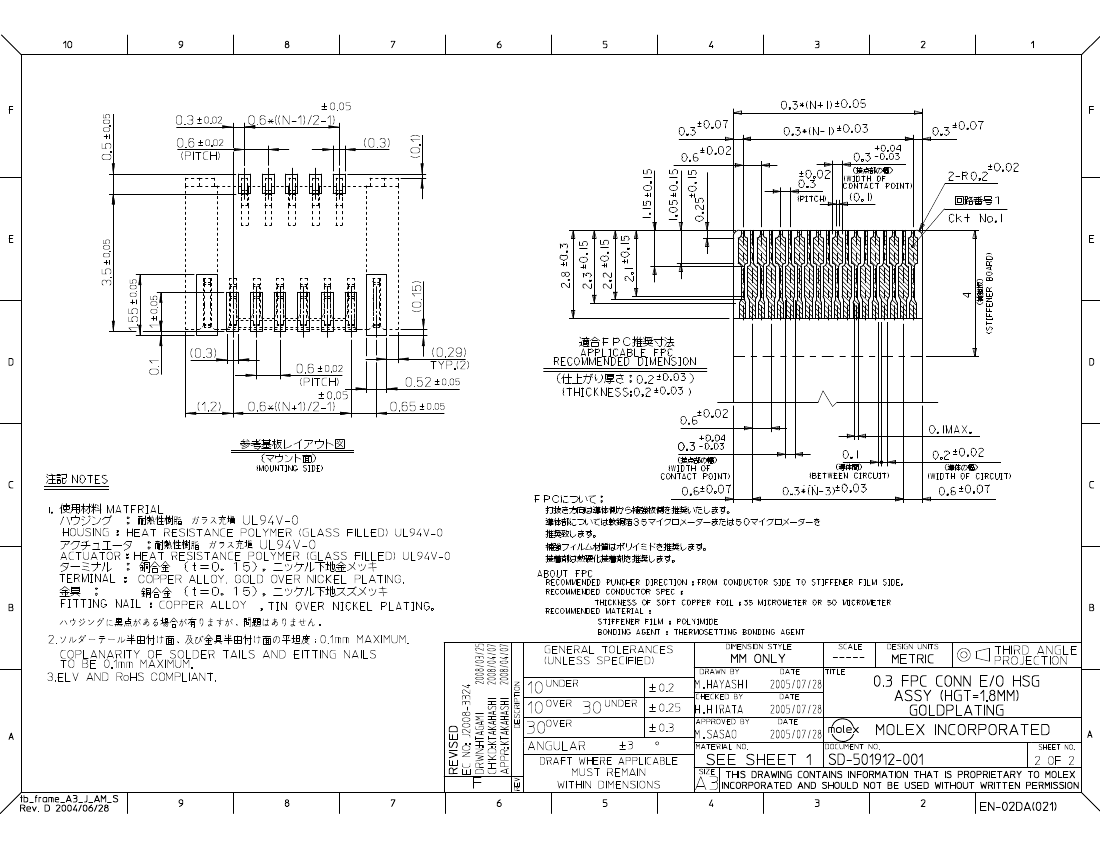

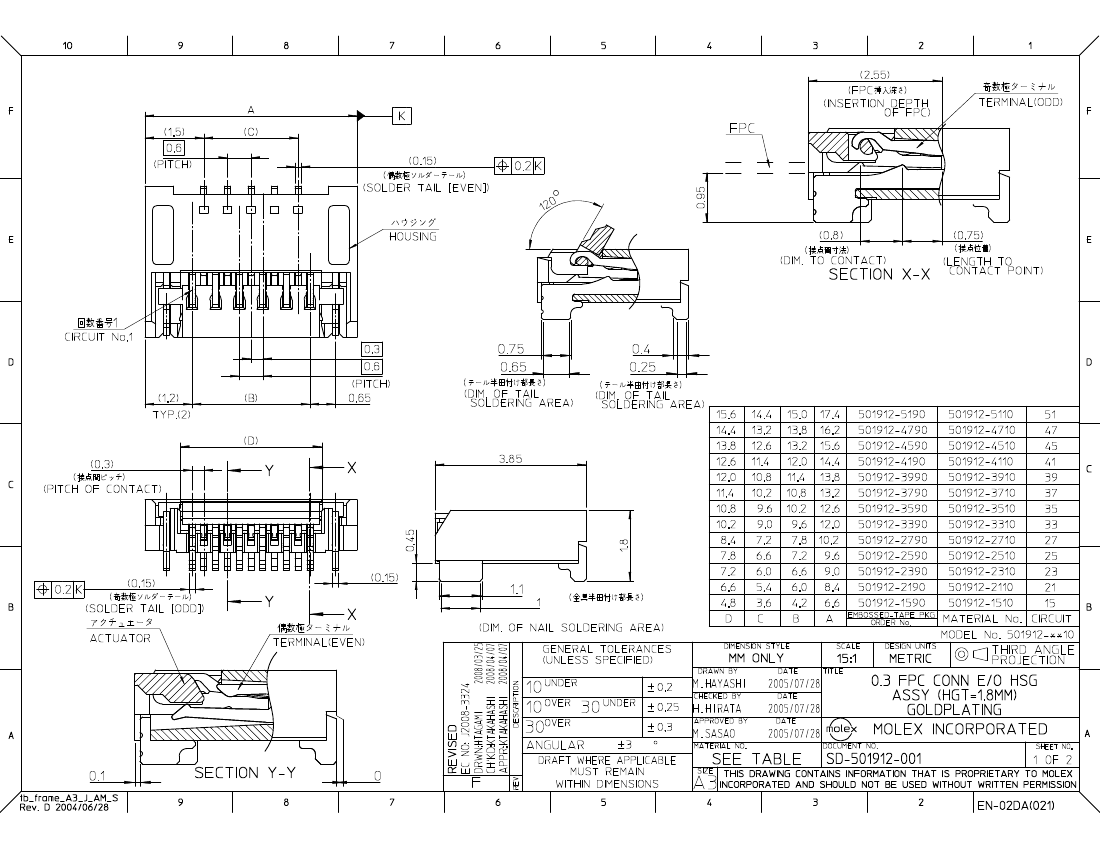

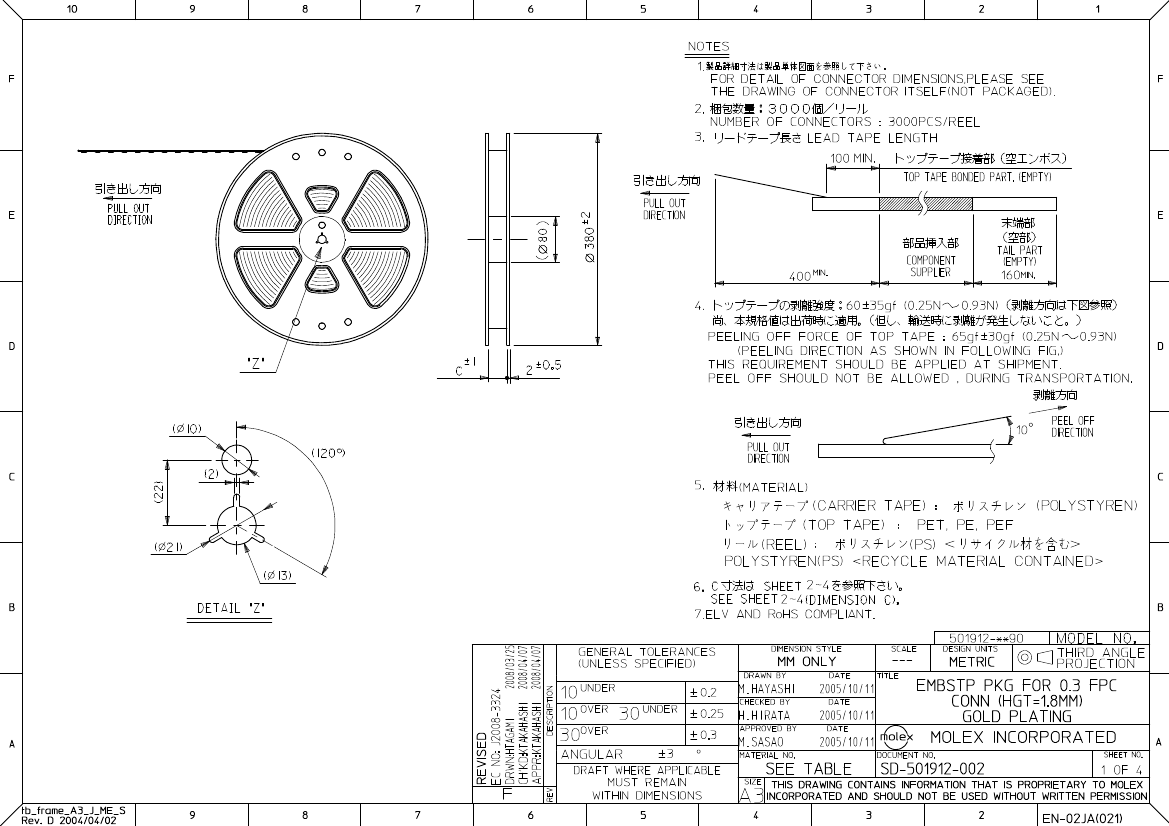

Drawing (PDF)
Product Specification PS-501912-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
FFC/FPC Connectors
501912
Easy-On™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Product Name
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
21
21
Black, Natural
Bottom
20
90° Angle
0.071 In
1.80 mm
Copper, Phosphor Bronze
Gold
Gold
High Temperature Thermoplastic
1
Right Angle
No
None
Embossed Tape on Reel
0.012 In
0.30 mm
0.012 In
0.30 mm
4
0.1
2
0.05
No
No
Yes
-20°C to +85°C
Surface Mount
FPC only
Search Parts in this Series
501912Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.2A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-501912-001, RPS-501912-002, RPS-501912-003
SD-501912-001, SD-501912-002
