5031751410 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5031751410

5031751410: Description1.50mm; CategoryThe connector The connector; File Size281KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

5031751410 Overview

1.50mm

5031751410 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Body/casing type	RECEPTACLE
Connector type	DIP CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

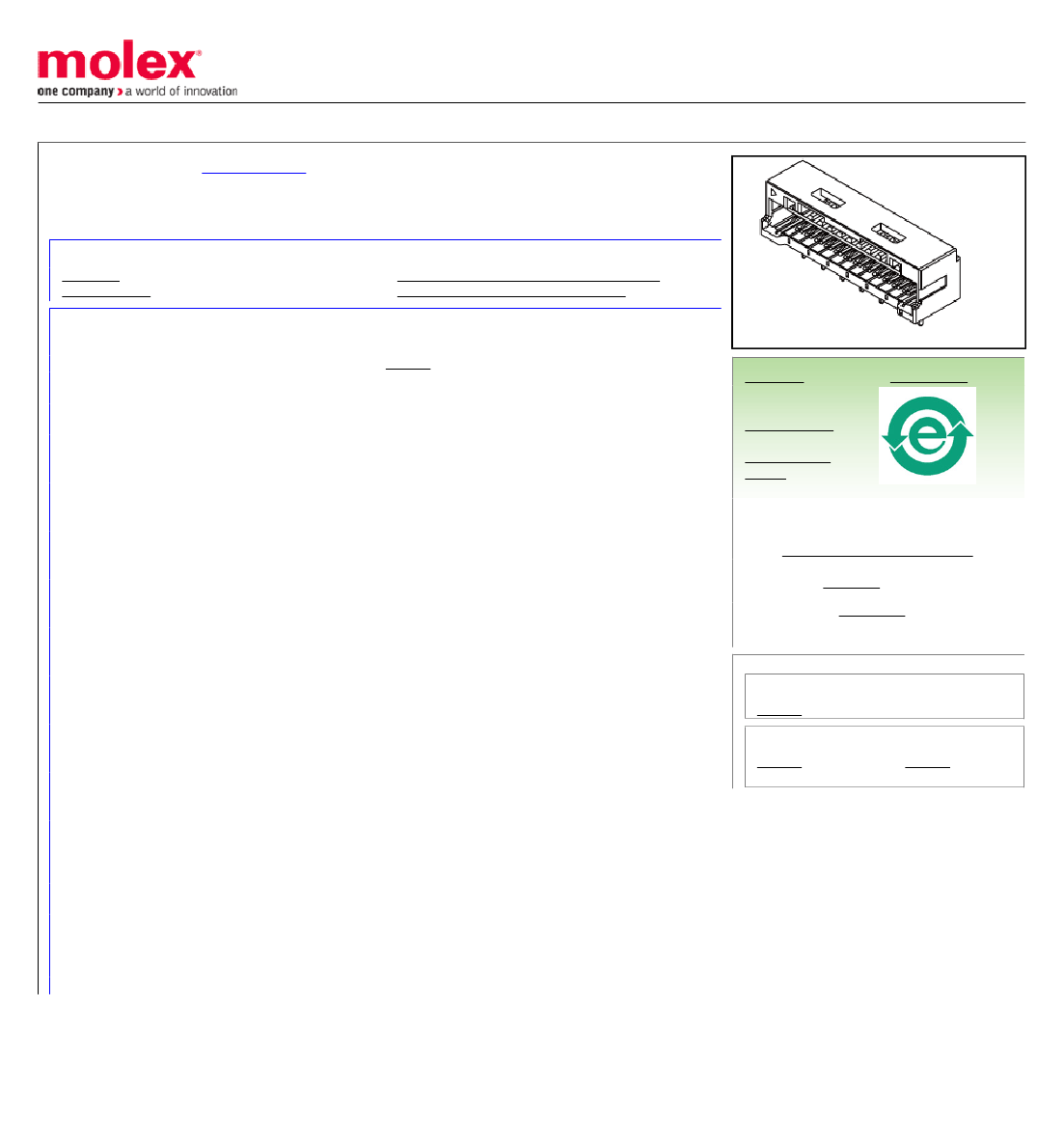

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5031751410

Active

1.50mm (.059") Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle, Single Row,

Through Hole, Right Angle, without Peg, 14 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-503175-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

PCB Receptacles

503175

Wire-to-Board

CLIK-Mate™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Beige

Yes

Copper Alloy

Tin

Right Angle

Yes

0.062 In

1.60 mm

Tray

0.059 In

1.50 mm

Yes

-25°C to +85°C

Through Hole

Search Parts in this Series

503175Series

Mates With

502578 Crimp Housing . 502579 Crimp

Terminal

Electrical

Current - Maximum per Contact

Voltage - Maximum

100V

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

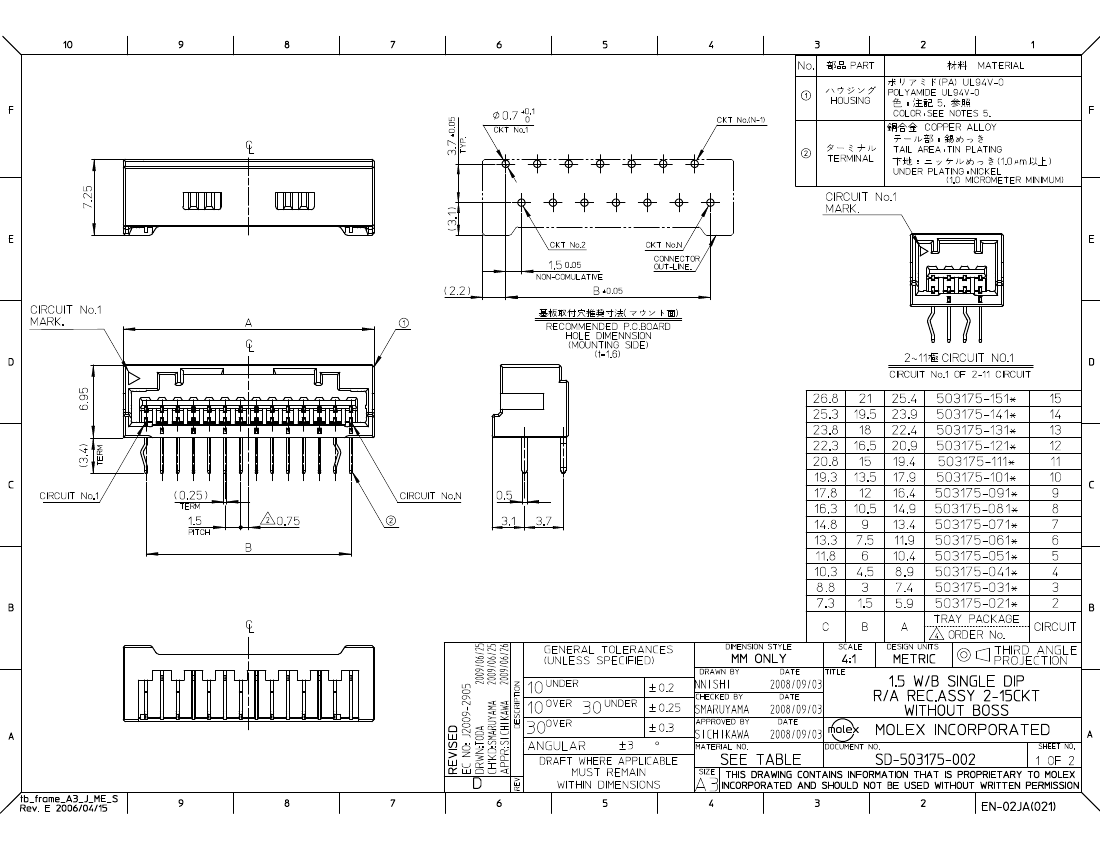

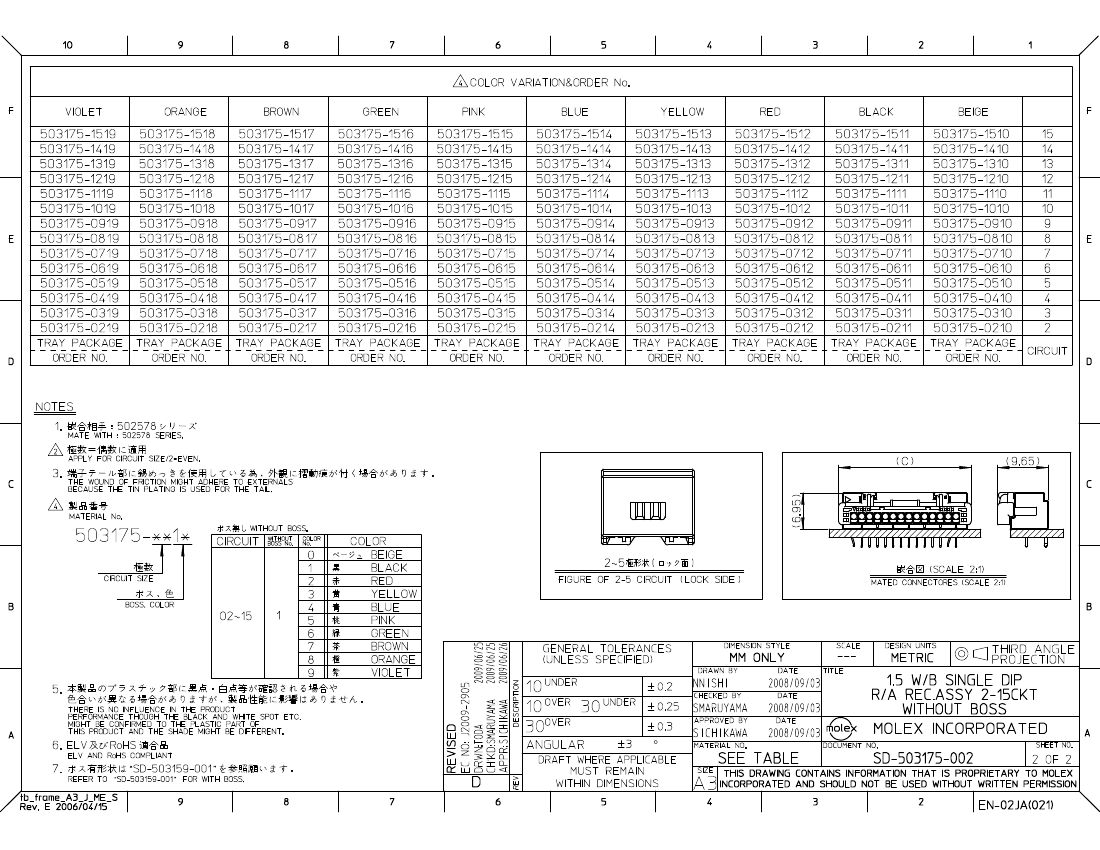

Sales Drawing

SPK-503175-001

PS-503175-001, RPS-503175-001, RPS-503175-002

SD-503175-002

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
