510HBKT: DescriptionLINEAR AND ROTARY POSITION; Categoryunclassified; File Size42KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Compare View All

510HBKT Overview

LINEAR AND ROTARY POSITION

Preview

Download Datasheet

View All

Page 1 of 2

HOME

ABOUT US

PRODUCTS & INFORMATION

NEWS & EVENTS

SALES & SUPPORT

LOGIN

Search

510E1A48F204PB Encoders

(

Home

:

Products

)

narrow your search

Products

Controls Monitoring

and Lighting

(354)

Machine Safety

(1726)

Sensors

(7016)

Switches

(9736)

Technology

Control and

Instrumentation

(1063)

Electromechanical

(9297)

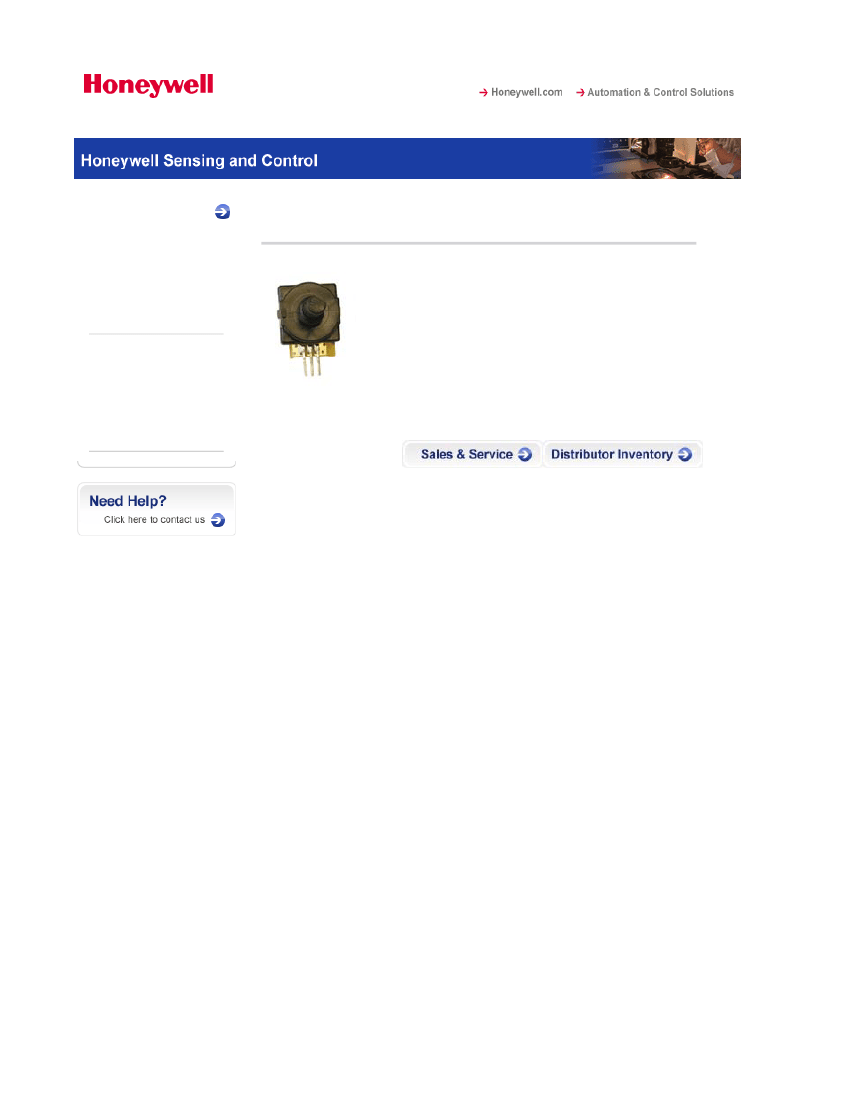

510 Series Encoder, Mechanical 4 pulse/rev/channel 2-bit Gray

code

Microstructure

(2298)

NTC Thermistors

(147)

Thick Film

(1764)

Actual product

appearance may

vary.

Overview

Specs

Documentation

Application Notes

Product Specifications

Encoder Type

Pulse Per Revolution

Detents

Pulse

Dome Switch

Output

Contact Resistance

Open Resistance

Contact Rating

Jitter (Bounce)

Dielectric Withstanding

Voltage

Electrical Travel

Operating Speed

Operating Torque

Body Size (Single

Module)

Terminal

Housing Type

Mechanical Travel

Rotational Life

Shaft Pull Force

Shaft Side Load Force

Shaft Material

Shaft Diameter

Shaft Length

Bushing Material

Bushing Diameter

Mechanical

4 cycles/rev

16

1/4 cycle per detent

No

2-bit gray code, Channel L leads Channel R by 90° electrically in clockwise

direction

5 Ohm

100 kOhm

28 Vdc max at 250 mA

5 ms/cycle at 15 RPM

1000 Vac at sea level

Continuous

50 RPM

0,0216 N m to 0,036 N m [3.0 oz in to 5.0 oz in]

21,1 mm [0.83 in] square, ±0,127 mm [0.005 in]

PC terminals straight Type B-110 (Horizontal mount)

Molded thermoplastic

Continuous

100,000 detented cycles at rated load typical (1 cycle=720 degrees)

4,536 kg [10 lb]

1.13 N m [7 lb in] max.

Plastic

6,35 mm [0.25 in]

19,05 mm [0.75 in]

Plastic

9,53 mm [0.375 in] x 32 NEF-2A

Panel Mounting Torque 1,13 N m [7.0 lb] max.

http://sensing.honeywell.com/index.cfm?ci_id=140301&la_id=1&pr_id=151836

5/28/2009
